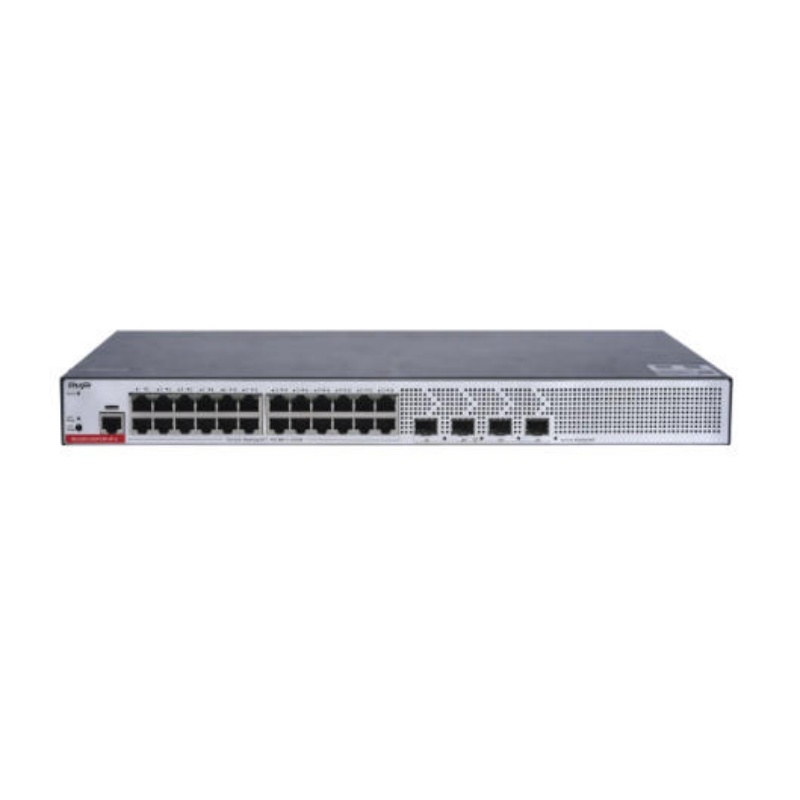

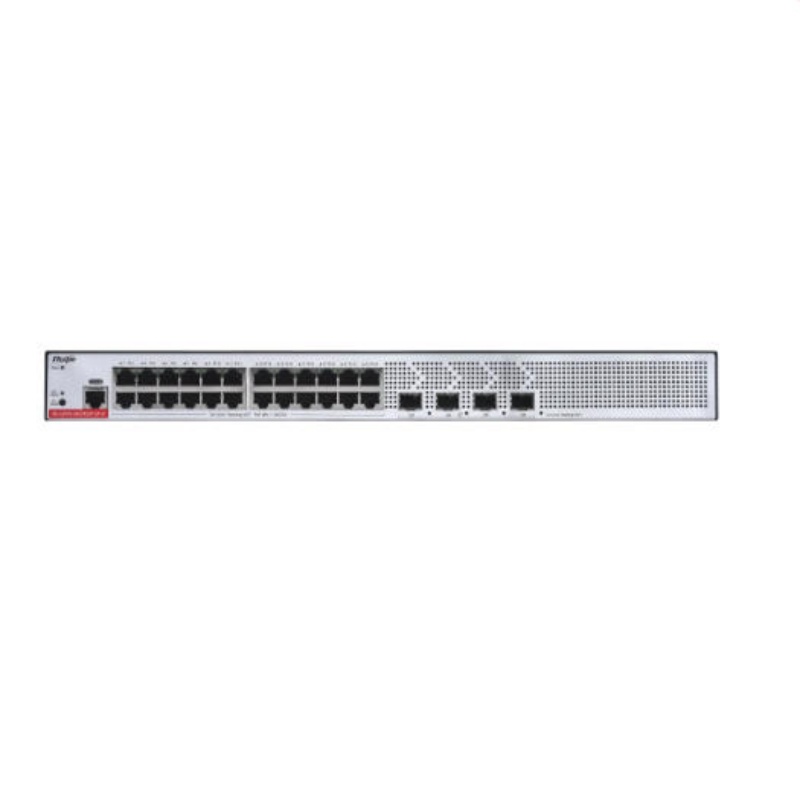

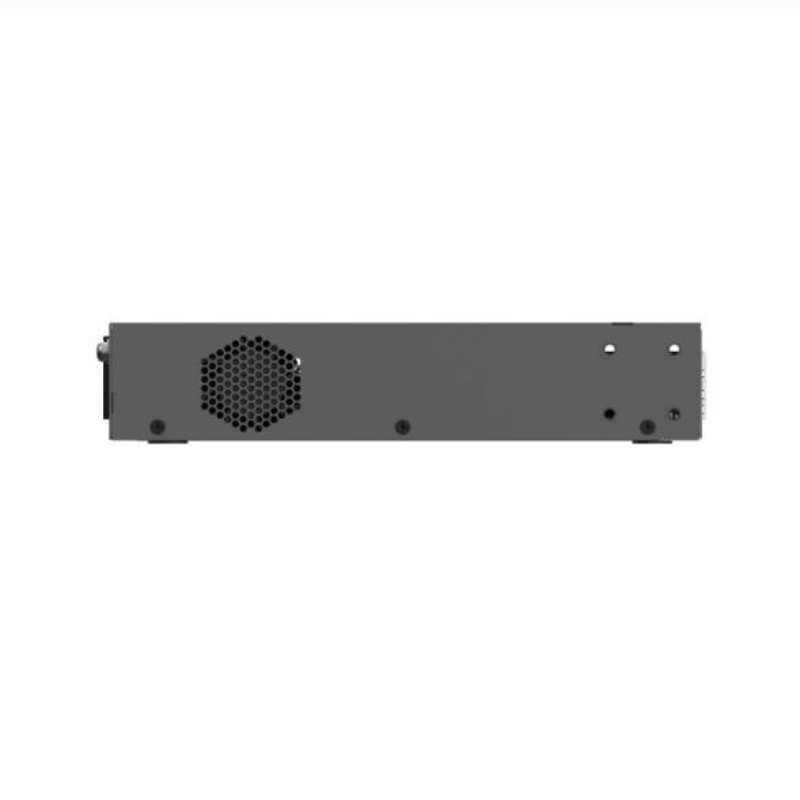

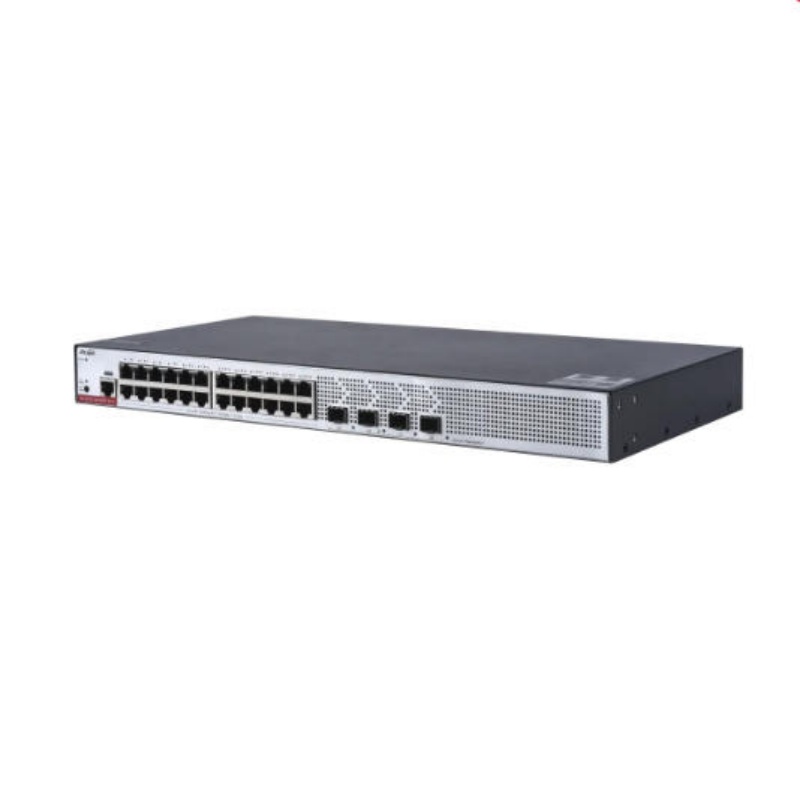

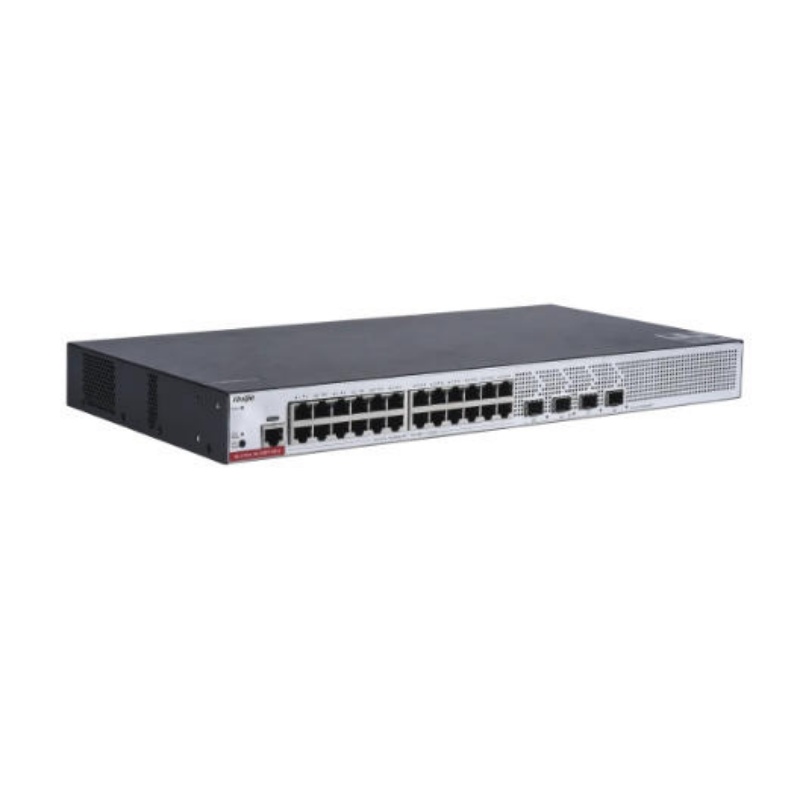

Ruijie 24 Port Gigabit Electrical Access Switch, 4 Gigabit Uplink Ports, RG-S2910-24GT4SFP-UP-H

Model number                         Description

RG-S2910-24GT4XS-E       24 adaptive electrical ports supporting 10/100/1000M, 4 optical ports with 1G/10G SFP+ interface

RG-S2910-48GT4XS-E       48 ports of 10/100/1000M adaptive electrical ports, 4 ports of 1G/10G SFP+ optical ports

M2910-01XS                         1-port 10-gigabit SFP+ interface card, applicable to all PoE models

*M2910-02SFP                     2-port Gigabit multiplexing SFP interface card, applicable to both PoE models

RG-M5000E-AC500P          The AC power module has a total power of 440W. Among them, 370W is used for powering the PoE                                                        ports, and the remaining power is for powering the host itself. Each power module can provide power                                                        for24 PoE ports or 12 PoE+ ports.

RG-M5000E-DC500P          DC power supply module, suitable for DC input voltage ranging from -32Vdc to 72Vdc; total power of                                                       500W, of which 370W is used for powering the PoE ports, and the remaining power is for the host's                                                           own  power supply; each power module can provide power for 24 PoE ports or 12 PoE+ ports.

RG-PA1150P-F                     The AC power module has a total power of 1150W. Among them, 740W is used for powering the PoE                                                     ports, and the remaining power is for powering the host itself. Each power module can supply power to                                                     48 PoE ports or 24 PoE+ ports. It is suitable for RG-S2910C-24GT2XS-HP-E and RG-S2910C-                                                                   48GT2XS-HP-E.

Mini-GBIC-GT                        1000BASE-GT mini GBIC conversion module

MINI-GBIC-SX-MM850         Single-port 1000BASE-SX mini GBIC conversion module (LC interface)

MINI-GBIC-LX-SM1310        Single-port 1000BASE-LX mini GBIC conversion module (LC interface)

MINI-GBIC-LH40-SM1310   Single-port 1000BASE-LH mini GBIC conversion module (LC interface), with transmission distance of                                                         40km

MINI-GBIC-ZX80-SM1550   Single-port 1000BASE-ZX mini GBIC conversion module (LC interface), with a transmission distance of                                                       80km

MINI-GBIC-ZX100-SM1550  1000BASE-ZX mini GBIC conversion module, with a transmission distance of 100km

XG-SFP-SR-MM850               10 Gigabit LC interface module (62.5/125μm: 33 meters; 50/125μm: 66 meters; with modal bandwidth                                                     of 2000 MHz•km, it can transmit 300 meters), suitable for SFP+ interface

XG-SFP-LR-SM1310              10 Gigabit LC interface module (1310nm), 10km, suitable for SFP+ interface

XG-SFP-ER-SM1550              10 Gigabit LC interface module (1550nm), 40km, suitable for SFP+ interface

XG-SFP-CU1M                         1-meter-long 10-gigabit SFP+ interface cable, including one cable and two interface modules

XG-SFP-CU3M                         10 Gigabit SFP+ interface cable, 3 meters in length, includes one cable and two interface modules.

XG-SFP-CU5M                         10 Gigabit SFP+ interface cable, 5 meters in length, including one cable and two interface modules
