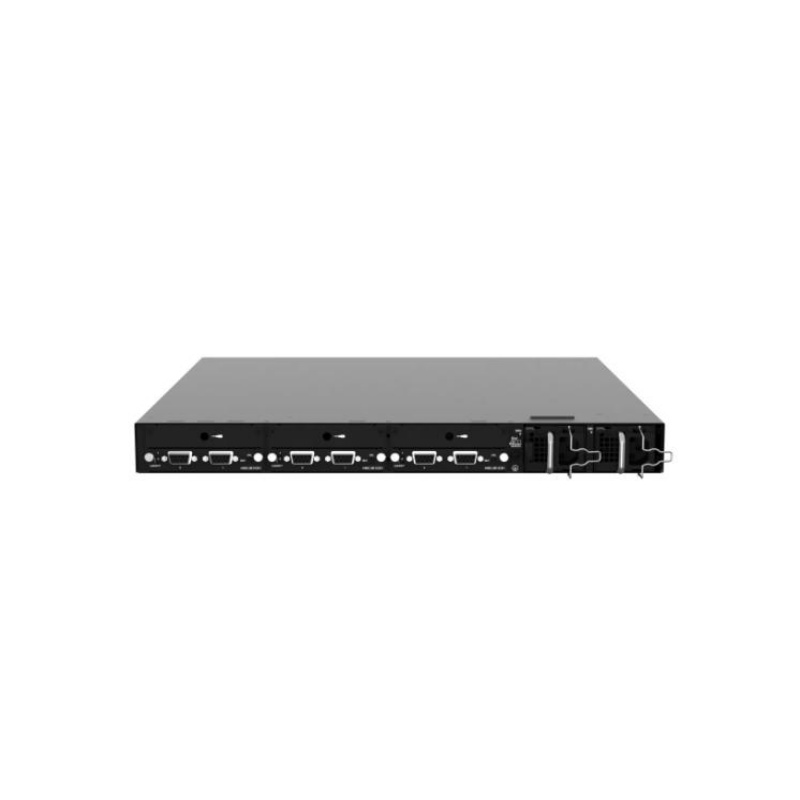

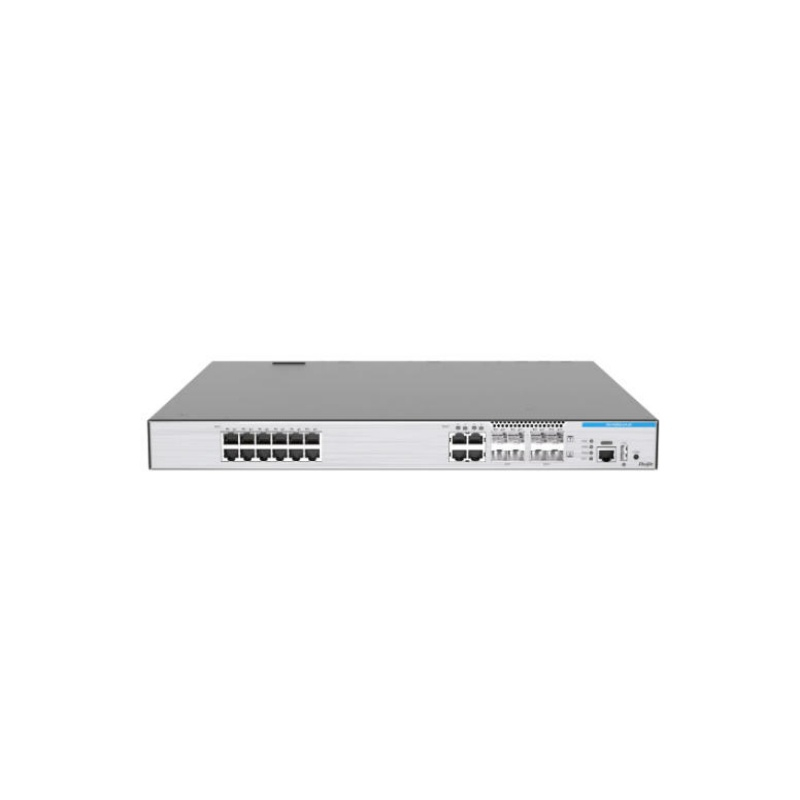

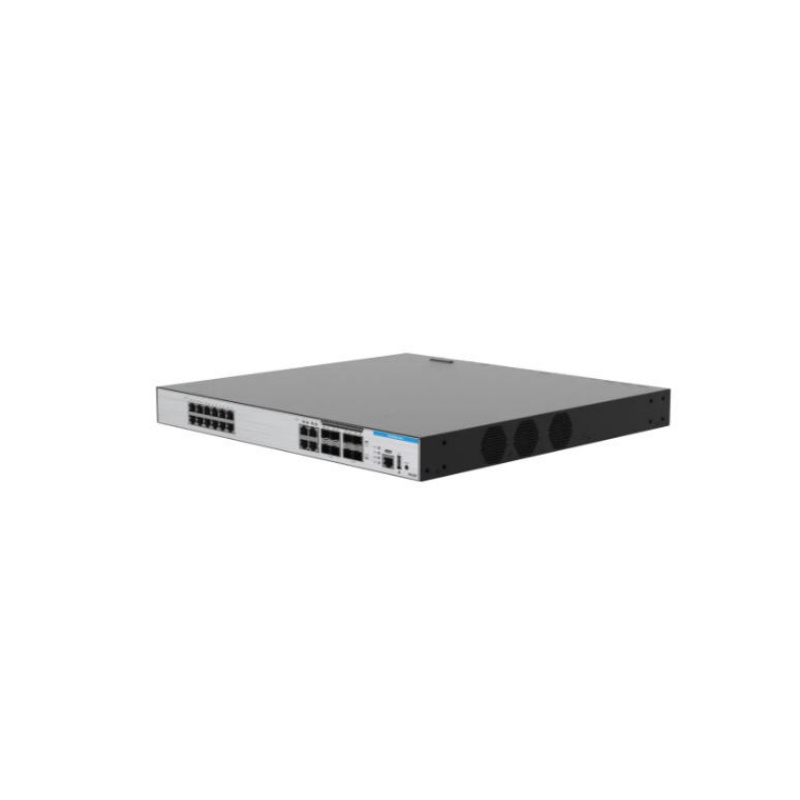

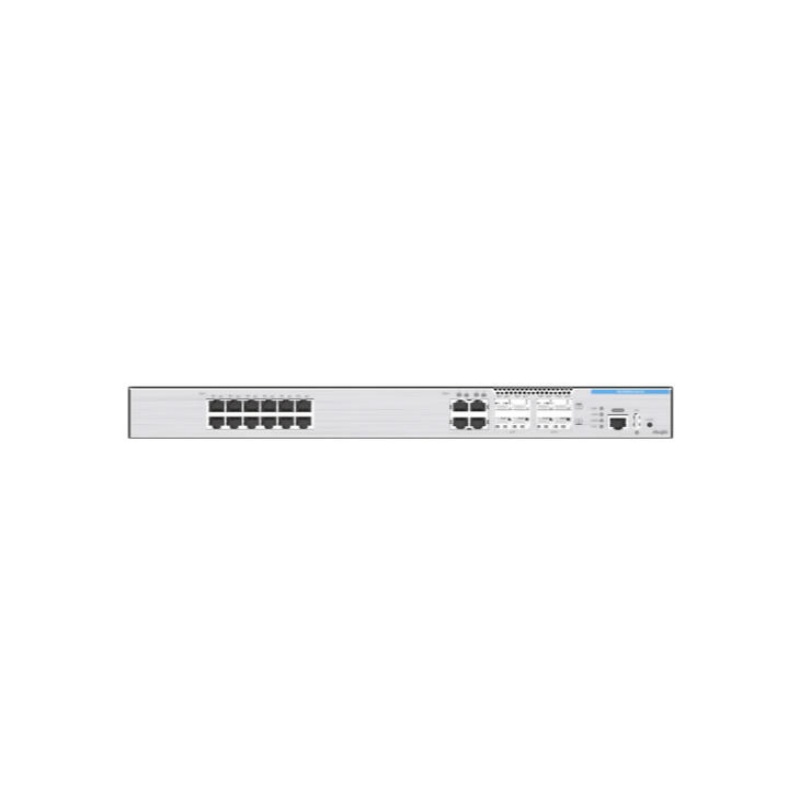

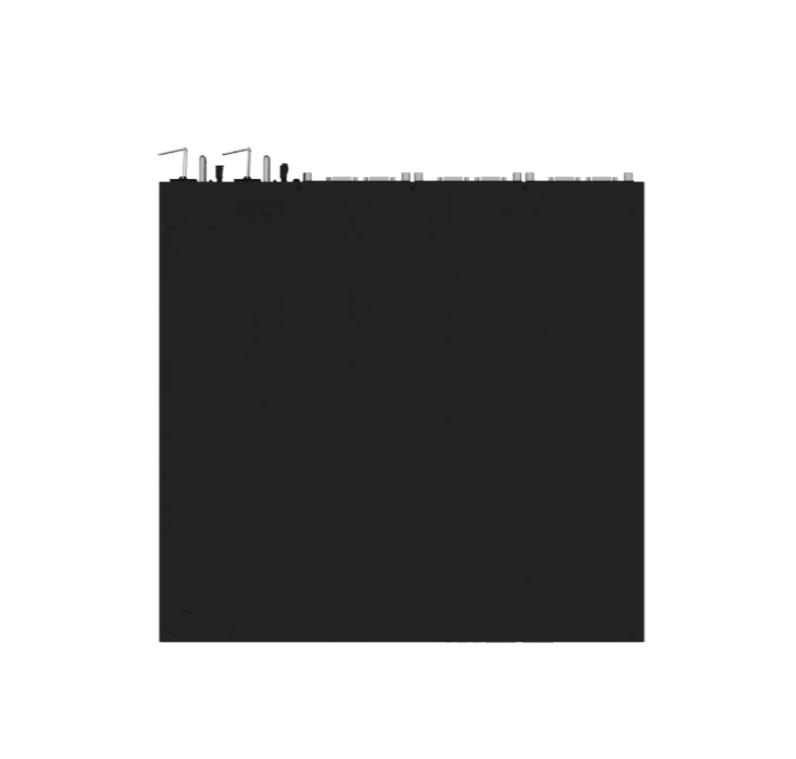

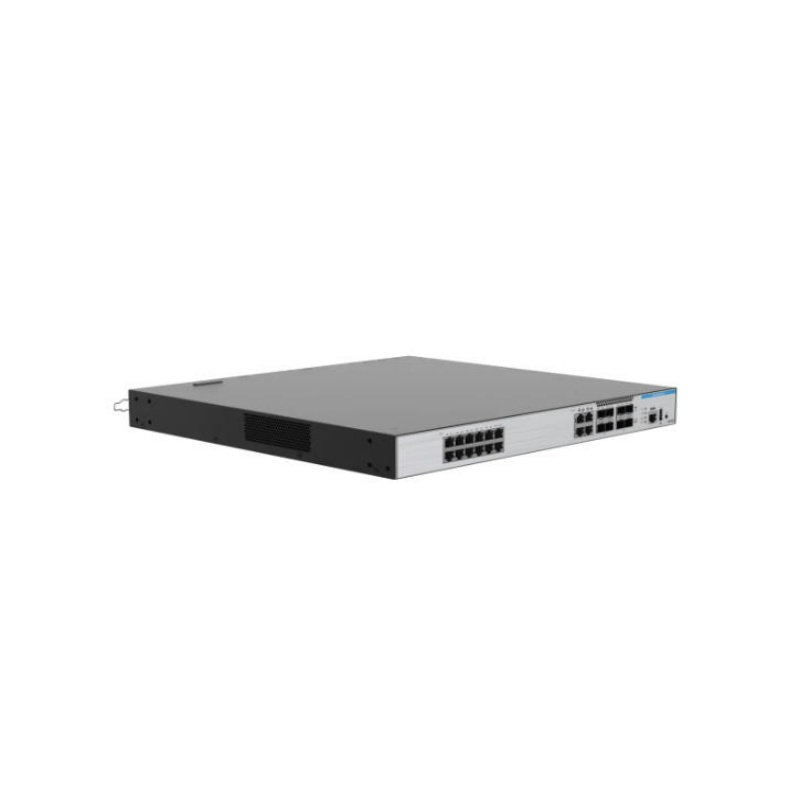

Ruijie 24 Port Multi Service Box Access Router, 12 WAN Ports, 12 LAN Ports, Integrating Routing, Switching, Security, 4G/5G And Other Functions,RG-RSR20-XA-24

The Ruijie RG-RSR20-XA-24 is a flexible multi-service aggregation router designed for enterprise branch offices, financial outlets, and government sites. Powered by a multi-core architecture, it features 24 fixed ports alongside modular expansion slots for adaptable WAN/LAN connectivity. Supporting high-performance routing, hardware-accelerated IPSec/SSL VPN encryption, advanced QoS, and stateful firewall protection, it ensures secure, scalable, and resilient WAN performance.

  • RG-RSR20-XA-24

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

host

Product Model                   Product Description

RG-RSR20-XA-24            Host, with 12 fixed WAN ports (4 10G optical ports, 4 Gigabit optical ports, 4 Gigabit electrical ports) and 12 Gigabit electrical LAN ports (supporting LAN/WAN switching), supporting 4 HSIC slots, 1 USB 2.0 port, and 1 Console management port

RG-RSR20-XA-36            Host, with 12 fixed WAN ports (4 10G optical ports, 4 Gigabit optical ports, 4 Gigabit electrical ports) and 24 Gigabit electrical LAN ports (supporting LAN/WAN switching), supporting 4 HSIC slots, 1 USB 2.0 port, and 1 Console management port

RG-RSR20-XA-54            Host, with 6 fixed WAN ports (2 10G optical ports, 4 Gigabit electrical ports) and 48 Gigabit electrical LAN ports (supporting LAN/WAN switching), supporting 4 HSIC slots, 1 USB 2.0 port, and 1 Console management port

business module

Product Model                   Product Description

HSIC-2E1/CE1                  2-port E1/CE1 module, cables need to be purchased separately

HSIC-4G-LTE                    1 port full standard 4G and national encryption module, antenna needs to be purchased separately

HSIC-5G-NR                     1 port full standard 5G and national encryption module, antenna needs to be purchased separately

HSIC-1POS-STM1           1 port OC-3c/STM-1c POS interface card, optical module needs to be purchased separately

power module

Product Model                   Product Description

RG-PA150IB-F                 150W AC power module

RG-PD150IB-F                 150W DC power module

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of network device is the RG-RSR20-XA-24?
A: The RG-RSR20-XA-24 is a flexible multi-service aggregation router designed for enterprise branch offices, financial service sites, government regional offices, and WAN edge deployments.

Q2: What port and slot options does the RG-RSR20-XA-24 provide?
A: It features 24 fixed Gigabit Ethernet network ports (combining WAN/LAN capabilities) alongside modular expansion slots, allowing flexible interface customization based on network growth and WAN media requirements.

Q3: What security and VPN capabilities are supported?
A: It supports hardware-accelerated IPSec and SSL VPN encryption, stateful packet firewall inspection, Control Plane Protection (CPP), and fine-grained ACL rules to secure multi-branch traffic over public and private networks.

Q4: How does the RG-RSR20-XA-24 handle traffic prioritization and reliability?
A: Powered by a multi-core processing architecture, it utilizes advanced Quality of Service (QoS) bandwidth management, real-time link detection (BFD), and multi-WAN load balancing to ensure uptime for mission-critical applications.

Q5: What are the primary deployment scenarios for this model?
A: It is ideal as a branch aggregation router or secure WAN edge gateway for corporate branches, bank outlets, and government offices needing flexible port expansion, high-speed routing, and encrypted site-to-site connectivity.
