Key Features and Technical Highlights
High-Density 10G Optical Access and 100G Backbone Uplinks:

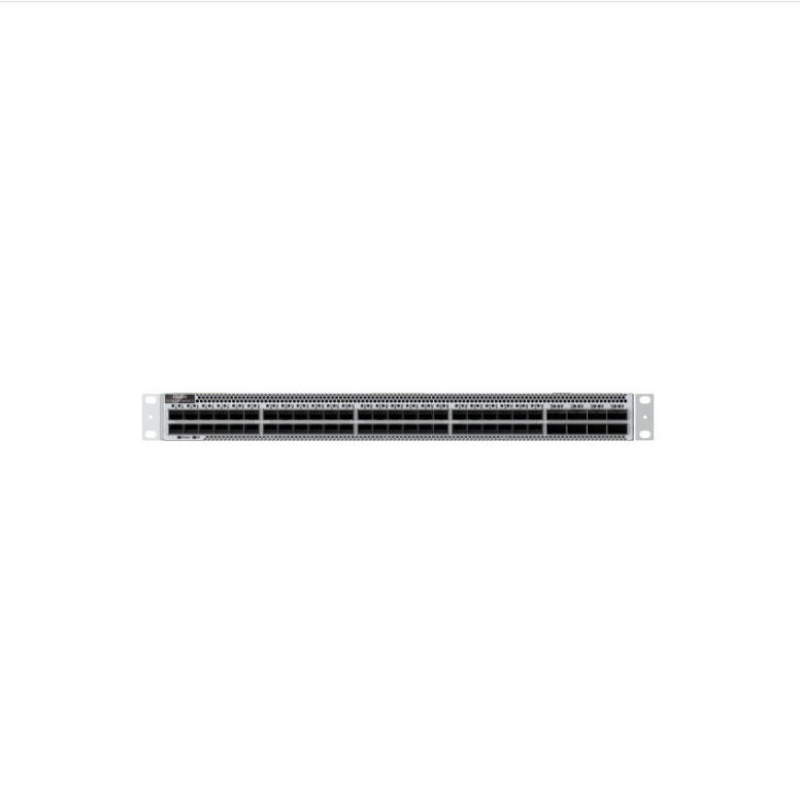

10G SFP+ Density: Provides 48 x 10G SFP+ optical ports (backwards compatible with 1G SFP transceivers) for high-density server, storage, and access node connections.
High-Speed Uplinks: Offers 8 x 100G QSFP28 ports (supporting 40G mode or breakout configurations to 4 x 25G / 4 x 10G) for massive, non-blocking uplink capacity to Spine switches or data center cores.
Lossless Ethernet and Sub-Microsecond Latency:
Cut-Through Architecture: Minimizes end-to-end switching delay to sub-microsecond levels, accelerating node-to-node data transfers across compute pools.
RoCEv2 Support: Implements RDMA over Converged Ethernet (RoCEv2) to enable high-throughput, direct memory access between servers without CPU overhead.
Congestion Control: Integrates Priority-based Flow Control (PFC) and Explicit Congestion Notification (ECN) to maintain a zero-packet-loss, low-latency network environment for AI and HPC workloads.
Carrier-Grade Redundancy and Flexible Airflow:
Hardware Redundancy: Features hot-swappable 1+1 redundant power supply units (AC/DC) and N+1 redundant fan modules to ensure maximum service availability.
Airflow Paths: Supports front-to-back or back-to-front airflow configurations to align with hot/cold aisle containment systems in standard server rooms.
Energy Efficiency: Employs dynamic fan speed adjustment and energy-saving chip architectures to reduce power consumption and lower operational expenses (OPEX).
Network Automation and Real-Time Telemetry:
DevOps and Automation: Supports gRPC, NETCONF, OpenFlow, and RESTful APIs, facilitating seamless integration with SDN controllers and Zero-Touch Provisioning (ZTP).
Streaming Telemetry: Delivers sub-second network state monitoring, real-time traffic analysis, and proactive congestion detection for accelerated troubleshooting.
Target Applications
10G Fiber Top-of-Rack (ToR) Access: Serves as a ToR switch connecting high-density 10G optical servers and storage units to 100G Spine networks.
AI Compute and High-Speed Storage: Provides lossless, low-latency interconnects for NVMe-over-Fabrics (NVMe-oF) storage systems and GPU-accelerated computing.
Enterprise Core and Aggregation: Ideal for campus network cores, financial data centers, and commercial facilities requiring high-capacity 10G/100G fiber switching.
RG-S6233-48XS8CQ
Ruijie
Original New
1 year
| Quantity: | |
|---|---|
host
Product Model Product Description

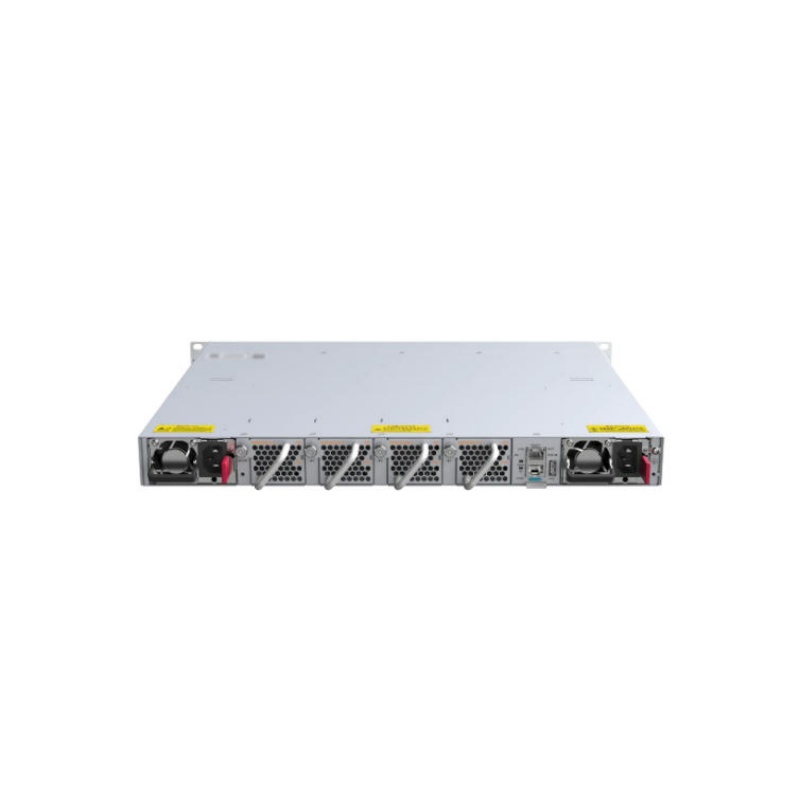

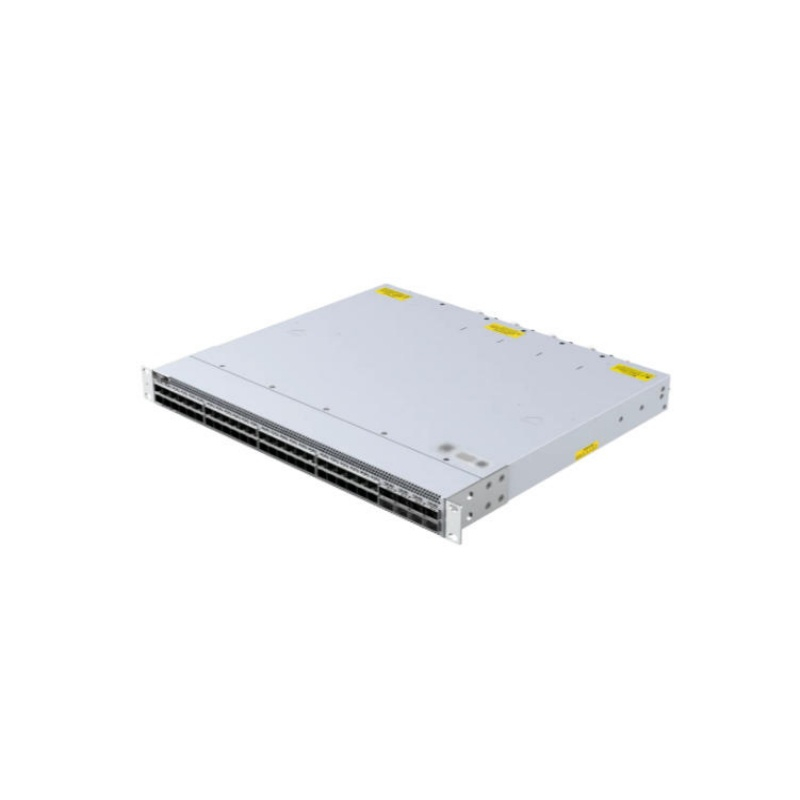

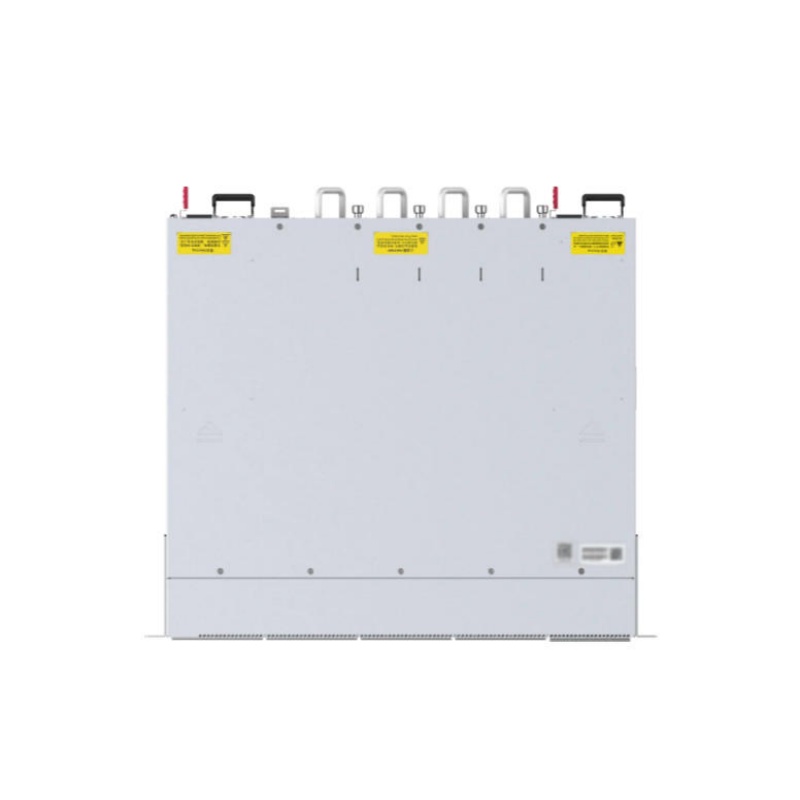

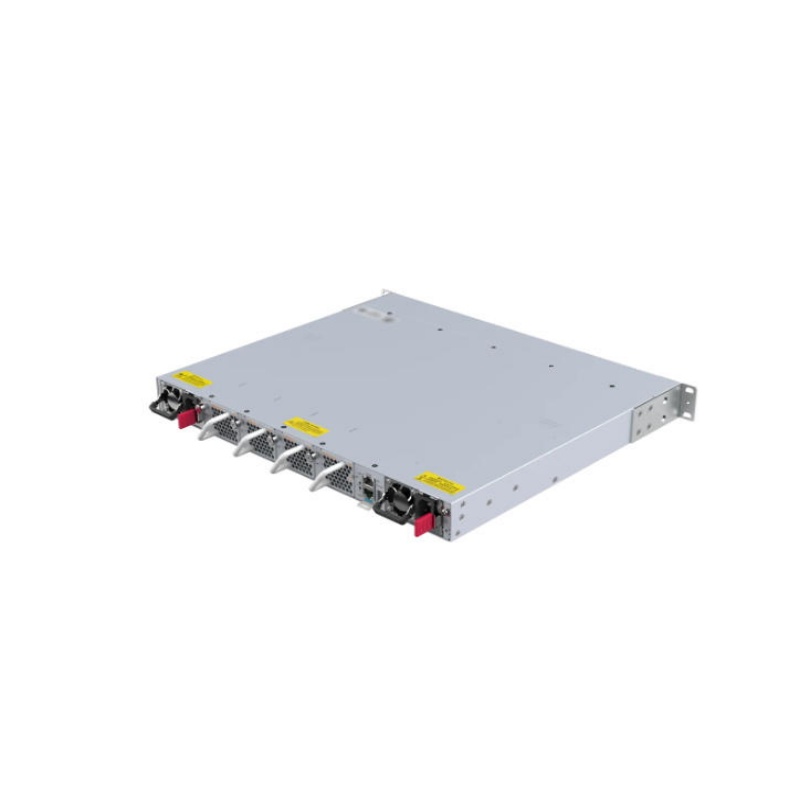

RG-S6233-48XS8CQ 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 PA550I-F power supplies and 4 M1EFAN III-F fans.
power supply
Product Model Product Description
PA550I-F 550W exchange power module (can support AC and 240V high voltage DC).
fan
Product Model Product Description
M1EFAN III-F switch fan module (port side air intake).
40G optical module
Product Model Product Description
40G-AOC-5M 40G QSFP+active fiber optic cable, 5m
40G-AOC-30M 40G QSFP+active fiber optic cable, 30m
40G-QSFP-SR-MM850 40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber for use, with a maximum transmission distance of 150m
40G-QSFP-LSR-MM850 40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber to be used, with a maximum transmission distance of 400m
40G-QSFP-LR4-SM1310 40G LR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 10Km
40G-QSFP-iLR4-SM1310 40G iLR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 2Km
100G optical module
Product Model Product Description
100G-AOC 5M 100G AOC cable, QSFP28 package, length 5M
100G-AOC 10M 100G AOC cable, QSFP28 package, length 10M
100G-QSFP-SR-MM850 100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, requires multi-mode fiber for use, maximum transmission distance of 100m
100G-QSFP-iLR4-SM1310 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 2Km
100G-QSFP-LR4-SM1310 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 10Km
100G-QSFP-ER4-SM1310 100G ER4 optical module, QSFP28 package, dual LC interface, using wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 40Km
Gigabit optical module
Product Model Product Description
GE-SFP-LH40-SM1310-BIDI 1G LH optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 40Km
GE-SFP-LX20-SM1310-BIDI 1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km
GE-SFP-LX20-SM1550-BIDI 1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km
MINI-GBIC-LH40-SM1310 1G LH optical module, SFP package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km
MINI-GBIC-LX-SM1310 1G LX Optical Module, SFP Package, Dual LC Interface, Requires Single Mode Fiber for Use, Maximum Transmission Distance of 10Km
MINI-GBIC-SX-MM850 1G SR optical module, SFP package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 550m
MINI-GBIC-ZX80-SM1550 1G ZX Optical Module, SFP Package, Dual LC Interface, Requires Single Fiber Use, Maximum Transmission Distance of 80Km
Gigabit electrical module
Product Model Product Description
Mini GBIC-GT 1G optical to power module, SFP package, RJ45 interface, compatible with Cat 5e/6/6a, maximum transmission distance of 100m
10G optical module
Product Model Product Description
XG-SFP-SR-MM850 10G SR optical module, SFP+package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 300m
XG-SFP-LR-SM1310 10G LR optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 10Km
XG-SFP-ER-SM1550 10G ER optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km
XG-SFP-ZR-SM1550 10G ZR optical module, SFP+package, dual LC interface, requires matching single-mode fiber for use, with a maximum transmission distance of 80Km
XG-LR-SM1310 10G LR optical module, SFP+package, dual LC interface, needs to be matched with single-mode fiber, maximum transmission distance is 10Km
XG-SFP-AOC1M 10G AOC cable, SFP+package, length 1m
XG-SFP-AOC3M 10G AOC cable, SFP+package, length 3m
XG-SFP-AOC5M 10G AOC cable, SFP+package, length 5m
XG-SR-MM850 10G SR optical module, SFP+package, dual LC interface, requires supporting multimode fiber (MMF) for use, with a maximum transmission distance of 300m
