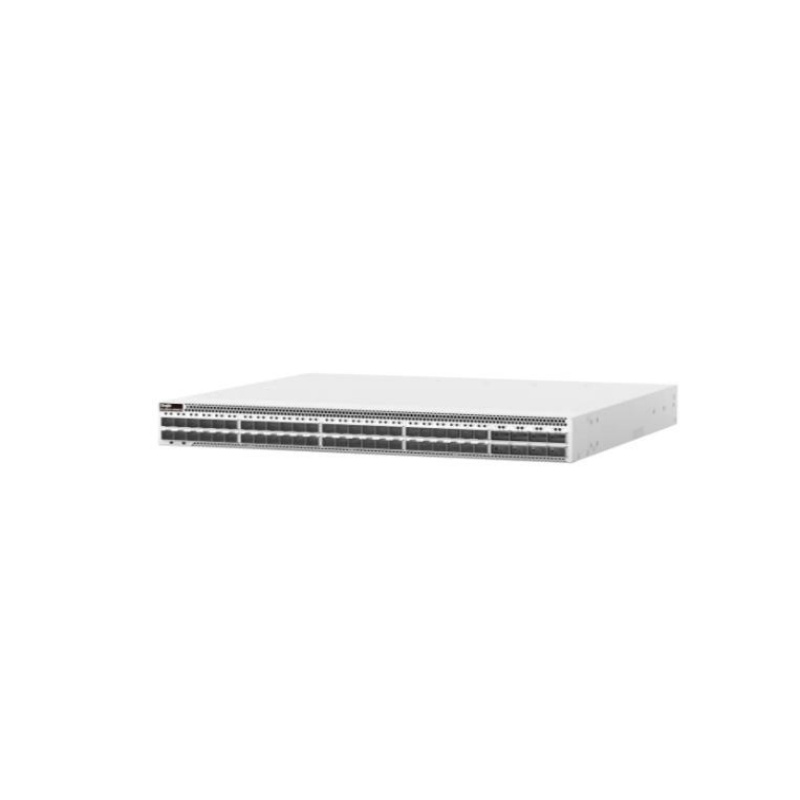

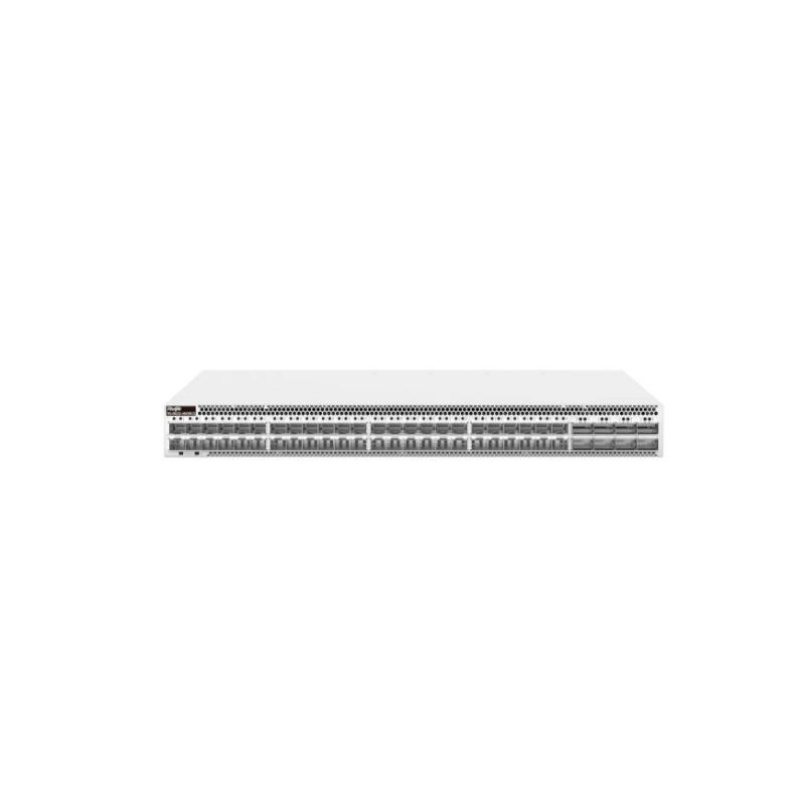

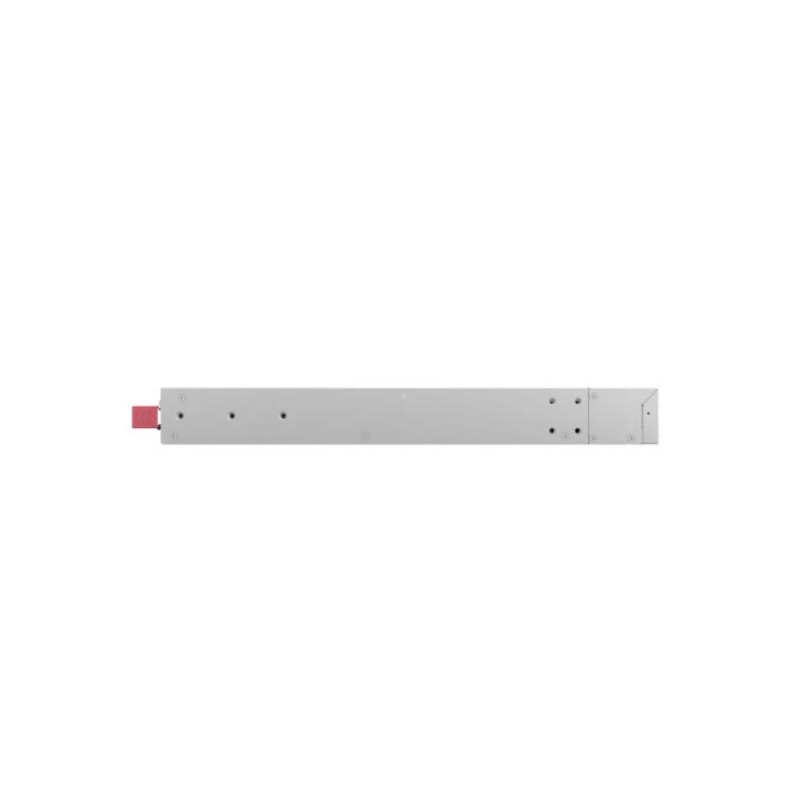

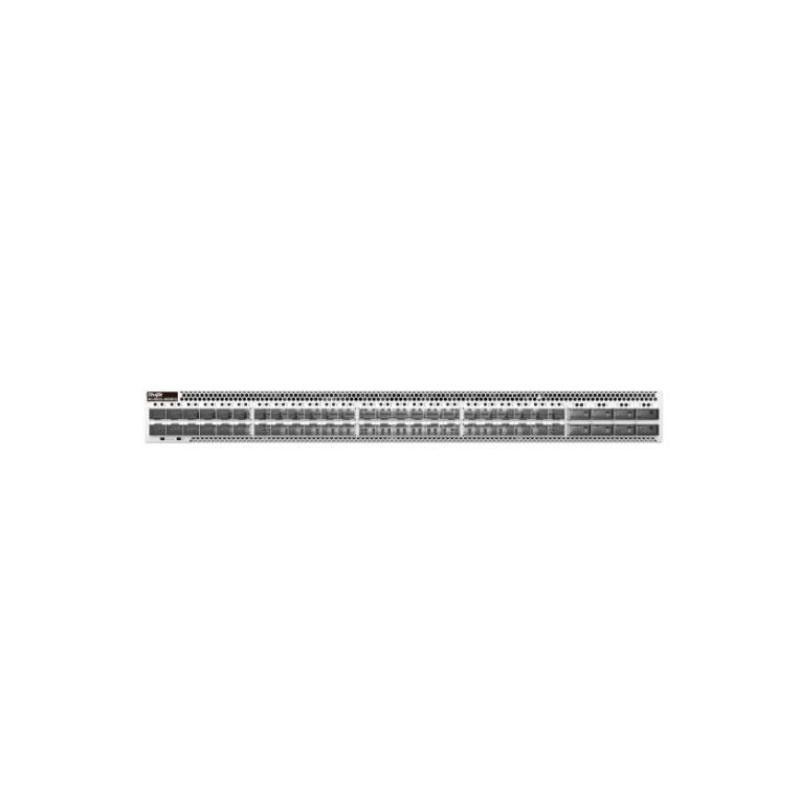

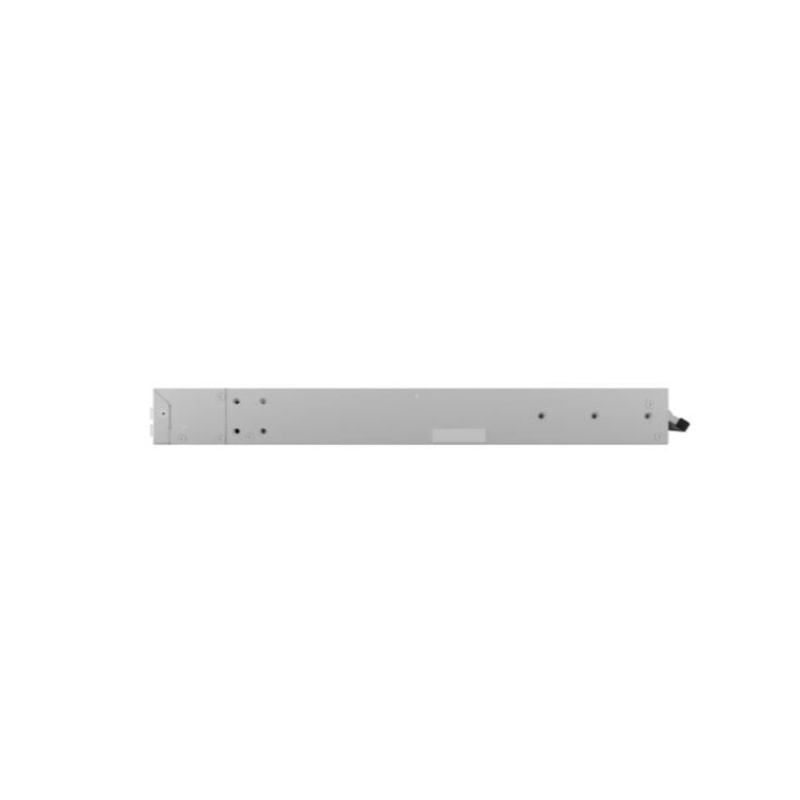

Ruijie 48 port 10G three-layer data center TOR access switch, 100G upstream (supporting downstream compatibility), RG-S6232-48XS8CQ

Product Overview
The Ruijie RG-S6232-48XS8CQ is an enterprise-class, ultra-low-latency 1U data center Ethernet switch designed for modern cloud infrastructure, High-Performance Computing (HPC), AI compute clusters, and high-bandwidth corporate network backbones. Built to meet the scaling requirements of virtualized data centers and bandwidth-intensive applications, this switch delivers flexible optical connectivity with 48 x 10G SFP+ ports and 8 x 100G QSFP28 high-speed uplinks. Powered by next-generation switching silicon, advanced buffer allocation, and complete Layer 2/3 feature sets, the RG-S6232-48XS8CQ guarantees wire-speed packet forwarding and zero-loss reliability for mission-critical operations.

Key Features and Technical Highlights

High-Density 10G Optical Access and 100G Backbone Uplinks:

10G SFP+ Density: Provides 48 x 10G SFP+ optical ports (backwards compatible with 1G SFP transceivers) for high-density server, storage, and access node connections.

High-Speed Uplinks: Offers 8 x 100G QSFP28 ports (supporting 40G mode or breakout configurations to 4 x 25G / 4 x 10G) for massive, non-blocking uplink capacity to Spine switches or data center cores.

Lossless Ethernet and Sub-Microsecond Latency:

Cut-Through Architecture: Minimizes end-to-end switching delay to sub-microsecond levels, accelerating node-to-node data transfers across compute pools.

RoCEv2 Support: Implements RDMA over Converged Ethernet (RoCEv2) to enable high-throughput, direct memory access between servers without CPU overhead.

Congestion Control: Integrates Priority-based Flow Control (PFC) and Explicit Congestion Notification (ECN) to maintain a zero-packet-loss, low-latency network environment for AI and HPC workloads.

Carrier-Grade Redundancy and Flexible Airflow:

Hardware Redundancy: Features hot-swappable 1+1 redundant power supply units (AC/DC) and N+1 redundant fan modules to ensure maximum service availability.

Airflow Paths: Supports front-to-back or back-to-front airflow configurations to align with hot/cold aisle containment systems in standard server rooms.

Energy Efficiency: Employs dynamic fan speed adjustment and energy-saving chip architectures to reduce power consumption and lower operational expenses (OPEX).

Network Automation and Real-Time Telemetry:

DevOps and Automation: Supports gRPC, NETCONF, OpenFlow, and RESTful APIs, facilitating seamless integration with SDN controllers and Zero-Touch Provisioning (ZTP).

Streaming Telemetry: Delivers sub-second network state monitoring, real-time traffic analysis, and proactive congestion detection for accelerated troubleshooting.

Target Applications

10G Fiber Top-of-Rack (ToR) Access: Serves as a ToR switch connecting high-density 10G optical servers and storage units to 100G Spine networks.

AI Compute and High-Speed Storage: Provides lossless, low-latency interconnects for NVMe-over-Fabrics (NVMe-oF) storage systems and GPU-accelerated computing.

Enterprise Core and Aggregation: Ideal for campus network cores, financial data centers, and commercial facilities requiring high-capacity 10G/100G fiber switching.

  • RG-S6232-48XS8CQ

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

host

Product Model                     Product Description

RG-S6231-48XT8CQ        host, with 48 fixed 10G (10GBASE-T) Ethernet ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans

RG-S6231-48XS8CQ        host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans.

RG-S6232-48XS8CQ        host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans.

RG-S6250-48XS8CQ         host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN II-F fans.

power supply

Product Model                     Product Description

RG-PA550I-F                      550W exchange power module (can support AC and 240V high voltage DC).

RG-PD800I-F                      800W Switching Power Module (capable of supporting 48V low voltage DC), suitable for RG-S6250-48XS8CQ and RG-S6510-48VS8CQ products.

RG-PA550I-R                      550W exchange power module (rear front air duct, can support AC and 240V high voltage DC), needs to be used with rear front air duct fan M1EFAN IV-R

RG-PHD550I-F                   550W Switching Power Module (Supports 336V High Voltage DC)

fan

Product Model                     Product Description

M1EFAN II-F                        switch fan module (port side inlet), suitable for RG-S6250-48XS8CQ products.

M1EFAN III-F                       switch fan module (port side inlet), suitable for RG-S6231-48XT8CQ, RG-S6231-48XS8CQ, RG-S6232-48XS8CQ, RG-S6501-48VS8CQ products.

M1EFAN IV-R                      switch fan module (fan side inlet), suitable for RG-S6231-48XS8CQ, RG-S6231-48XT8CQ products.

40G optical module

Product Model                     Product Description

40G-AOC-5M                     40G QSFP+active fiber optic cable, 5m

40G-AOC-30M                   40G QSFP+active fiber optic cable, 30m

40G-QSFP-SR-MM850      40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber for use, with a maximum transmission distance of 150m

40G-QSFP-LSR-MM850    40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber to be used, with a maximum transmission distance of 400m

40G-QSFP-LR4-SM1310  40G LR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 10Km

40G-QSFP-iLR4-SM1310  40G iLR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 2Km

40G-QSFP-LX4-SM1310   40G LX4 optical module, QSFP+package, dual LC interface, can be used with multimode fiber, using OM3/OM4 multimode fiber for a maximum transmission distance of 150m. Using single-mode fiber for a maximum transmission distance of 2Km

100G optical module

Product Model                      Product Description

100G-AOC 5M                    100G AOC cable, QSFP28 package, length 5M

100G-AOC 10M                  100G AOC cable, QSFP28 package, length 10M

100G-QSFP-SR-MM850    100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, requires multi-mode fiber for use, maximum transmission distance of 100m

100G-QSFP-iLR4-SM1310 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 2Km

100G-QSFP-LR4-SM1310 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 10Km

100G-QSFP-ER4-SM1310 100G ER4 optical module, QSFP28 package, dual LC interface, using wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 40Km

Gigabit optical module

Product Model                            Product Description

GE-SFP-LH40-SM1310-BIDI  1G LH optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 40Km

GE-SFP-LX20-SM1310-BIDI  1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km

GE-SFP-LX20-SM1550-BIDI  1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km

MINI-GBIC-LH40-SM1310      1G LH optical module, SFP package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km

MINI-GBIC-LX-SM1310            1G LX Optical Module, SFP Package, Dual LC Interface, Requires Single Mode Fiber for Use, Maximum Transmission Distance of 10Km

MINI-GBIC-SX-MM850             1G SR optical module, SFP package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 550m

MINI-GBIC-ZX80-SM1550       1G ZX Optical Module, SFP Package, Dual LC Interface, Requires Single Fiber Use, Maximum Transmission Distance of 80Km

Gigabit electrical module

Product Model                             Product Description

Mini GBIC GT (F)                         1G optical to power module, SFP package, RJ45 interface, requires Cat 5e/6/6a for use, with a maximum transmission distance of 100m. For RG-S6200 series products, Mini GBIC GT (F) module is only suitable for RG-S6250-48XS8CQ.

Mini GBIC-GT                              1G optical to power module, SFP package, RJ45 interface, compatible with Cat 5e/6/6a, maximum transmission distance of 100m

10G optical module

Product Model                             Product Description

XG-SFP-SR-MM850                  10G SR optical module, SFP+package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 300m

XG-SFP-LR-SM1310                 10G LR optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 10Km

XG-SFP-ER-SM1550                 10G ER optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km

XG-SFP-ZR-SM1550                 10G ZR optical module, SFP+package, dual LC interface, requires matching single-mode fiber for use, with a maximum transmission distance of 80Km

XG-LR-SM1310                          10G LR optical module, SFP+package, dual LC interface, needs to be matched with single-mode fiber, maximum transmission distance is 10Km

XG-SFP-AOC1M                         10G AOC cable, SFP+package, length 1m

XG-SFP-AOC3M                         10G AOC cable, SFP+package, length 3m

XG-SFP-AOC5M                         10G AOC cable, SFP+package, length 5m

XG-SR-MM850                           10G SR optical module, SFP+package, dual LC interface, requires supporting multimode fiber (MMF) for use, with a maximum transmission distance of 300m

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S6232-48XS8CQ?

A: The RG-S6232-48XS8CQ is a high-density, low-latency 1U data center switch designed for cloud networks, high-performance computing (HPC), AI clusters, and enterprise network backbones.

Q2: How many ports does the RG-S6232-48XS8CQ provide?

A: It features 48 x 10G SFP+ optical ports for server and storage access (backward compatible with 1G SFP) and 8 x 100G QSFP28 uplink ports for high-speed network connections.

Q3: Does the RG-S6232-48XS8CQ support lossless Ethernet for AI and storage workloads?

A: Yes. It supports RoCEv2 (RDMA over Converged Ethernet) along with PFC (Priority Flow Control) and ECN (Explicit Congestion Notification) to ensure high-throughput, low-latency, and zero-packet-loss performance.

Q4: What hardware redundancy features does this switch offer?

A: It includes hot-swappable 1+1 redundant power supply units (PSUs) and N+1 redundant fan modules, supporting configurable front-to-back or back-to-front airflow paths for data center cooling.

Q5: Where is the RG-S6232-48XS8CQ suitable for deployment?

A: It is ideal as a ToR (Top-of-Rack) switch for 10G optical server access, high-speed distributed storage networks (NVMe-oF), AI/ML compute clusters, and large enterprise aggregation or core layers.
