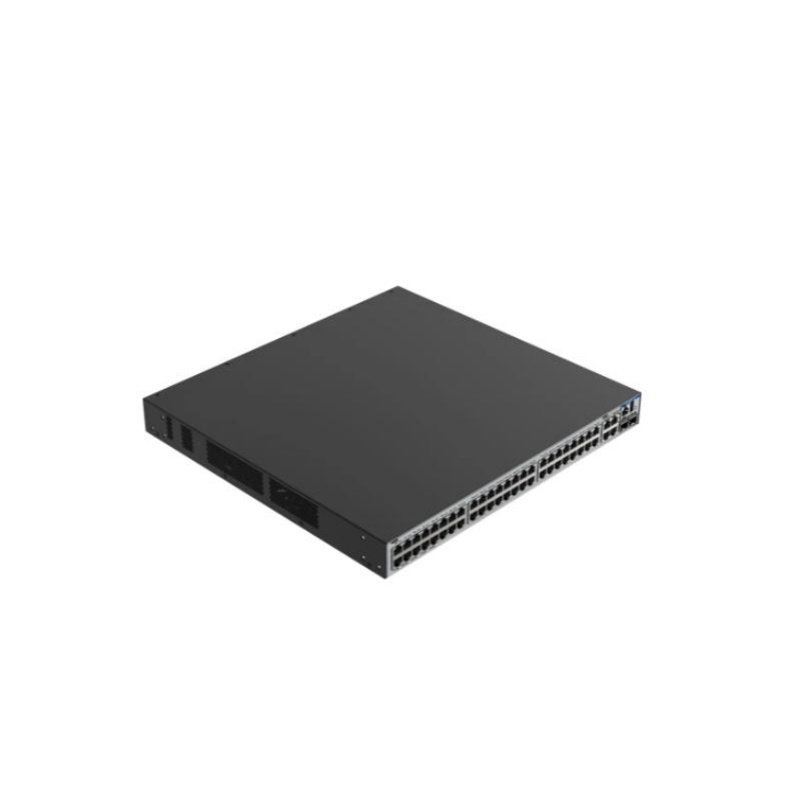

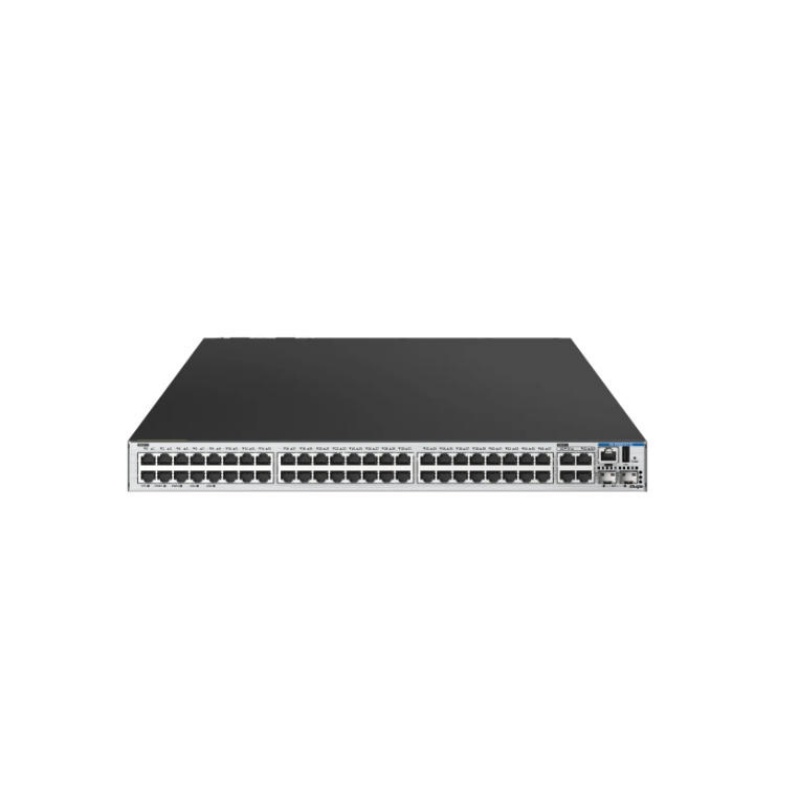

Ruijie 54 port multi service box access router, 6 WAN ports, 48 LAN ports, RG-RSR20-X1-52

The Ruijie RG-RSR20-X1-52 is a high-density multi-service router built for large enterprise branches, government sites, and financial outlets. Featuring a multi-core architecture and 52 fixed interfaces with flexible WAN/LAN expansion, it integrates high-speed routing, hardware-accelerated IPSec/SSL VPN encryption, stateful firewall protection, and advanced QoS into an energy-efficient 1U platform for reliable, scalable WAN connectivity.

  • RG-RSR20-X1-52

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

host

Product Model                 Product Description

RG-RSR20-X1-28          Host, with 12 fixed WAN ports (8 10G optical ports, 4 Gigabit electrical ports) and 24 Gigabit electrical LAN ports (supporting LAN/WAN switching), supporting 4 HSIC slots, 1 USB 2.0 port, and 1 Console management port

RG-RSR20-X1-52          Host, with 6 fixed WAN ports (2 10G optical ports, 4 Gigabit electrical ports) and 48 Gigabit electrical LAN ports (supporting LAN/WAN switching), supporting 4 HSIC slots, 1 USB 2.0 port, and 1 Console management port

business module

Product Model                 Product Description

HSIC-2E1/CE1                 2-port E1/CE1 module, cables need to be purchased separately

HSIC-4G-LTE                   1 port full standard 4G, antenna needs to be purchased separately

HSIC-5G-NR                    1 port full standard 5G, antenna needs to be purchased separately

HSIC-1POS-STM1          1 port OC-3c/STM-1c POS interface card, optical module needs to be purchased separately

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流




Q1: What type of network device is the RG-RSR20-X1-52?
A: The RG-RSR20-X1-52 is a high-density enterprise multi-service router engineered for large regional branch offices, government service centers, financial branch hubs, and high-density WAN access environments.

Q2: What port configuration does the RG-RSR20-X1-52 feature?
A: It provides 52 fixed high-speed network interfaces, combining high-density Gigabit Ethernet WAN/LAN ports with flexible expansion slots to support large-scale local device connectivity and redundant WAN backhaul links.

Q3: What security and VPN encryption mechanisms are supported?
A: It integrates hardware-accelerated IPSec/SSL VPN engines, stateful firewall inspection, CPU defense mechanisms, and comprehensive access control policies to safeguard cross-branch data transmissions over public and private WANs.

Q4: How does the high-density port design benefit branch deployments?
A: The 52 fixed ports reduce the need for separate access switches at smaller branch sites, consolidating local Ethernet switching and secure WAN routing into a single compact 1U footprint to lower overall deployment costs and simplify maintenance.

Q5: What are the primary deployment scenarios for the RG-RSR20-X1-52?
A: It is ideal as a primary WAN gateway for large enterprise branches, municipal government centers, bank branch hubs, and regional operations requiring high-density port access, multi-WAN load balancing, and secure encrypted links back to headquarters.
