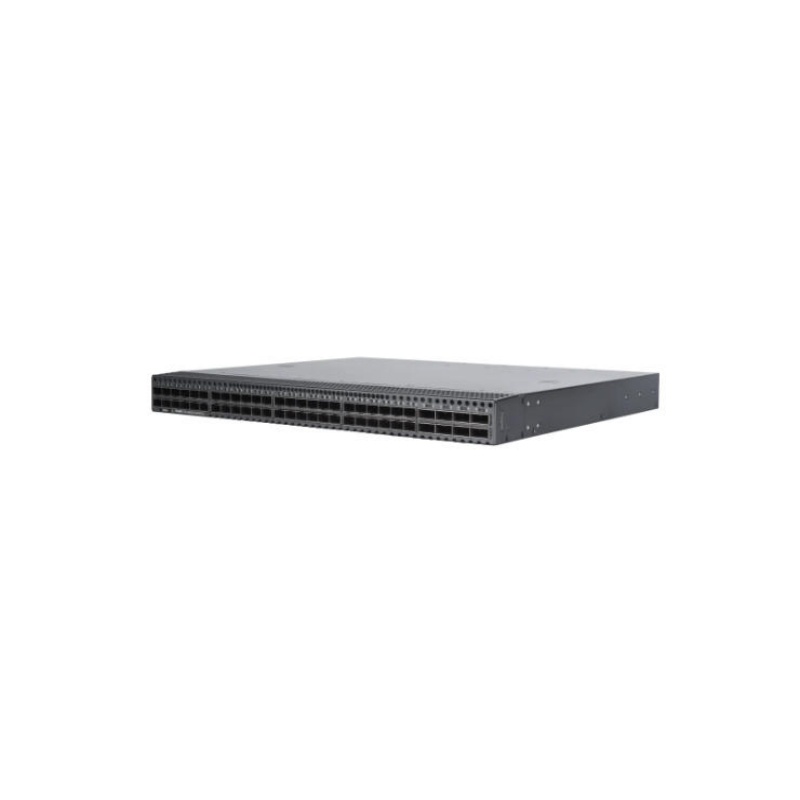

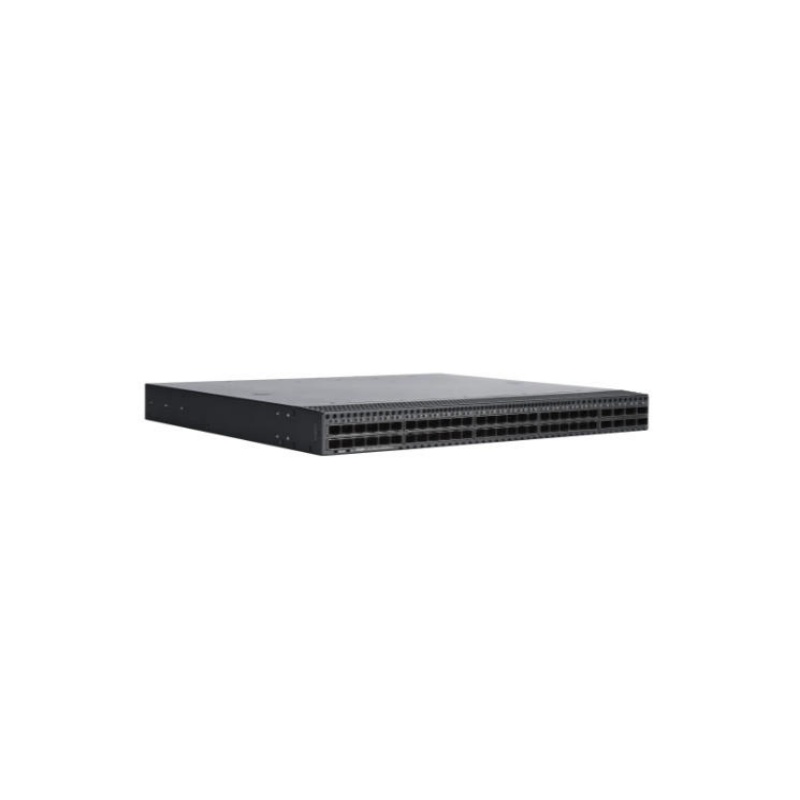

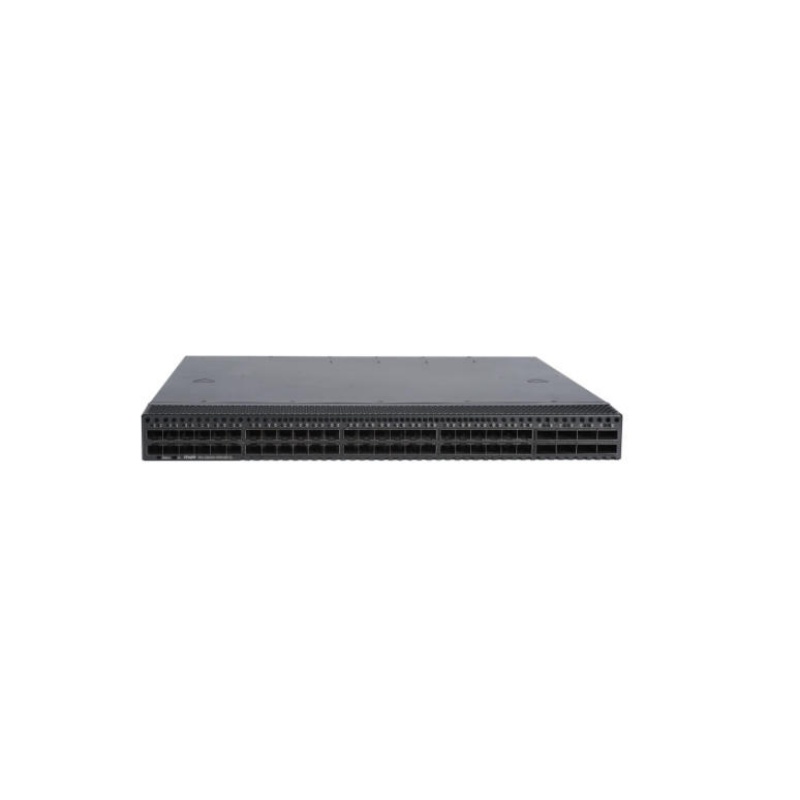

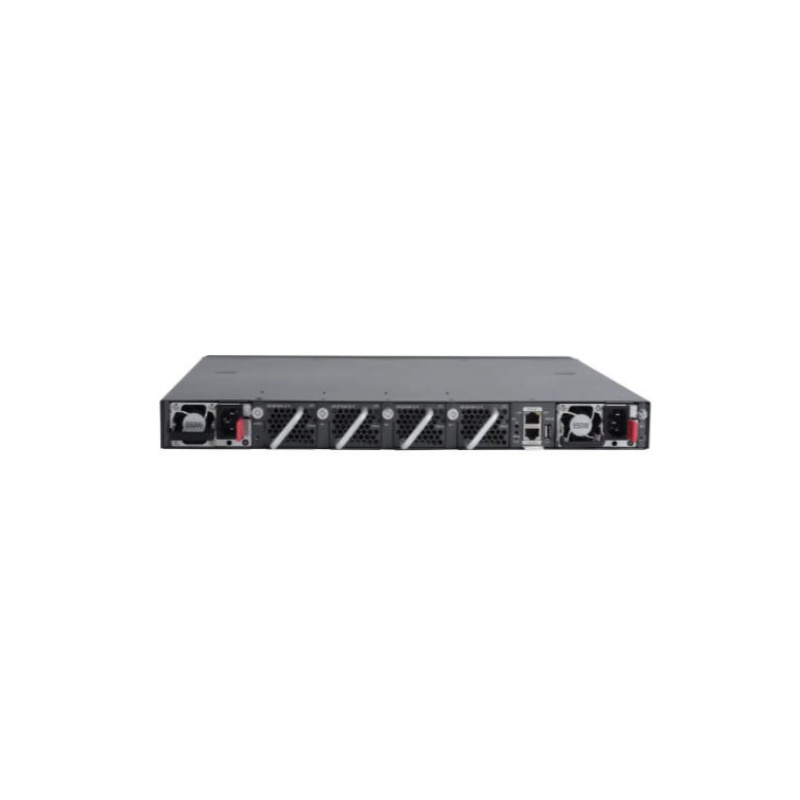

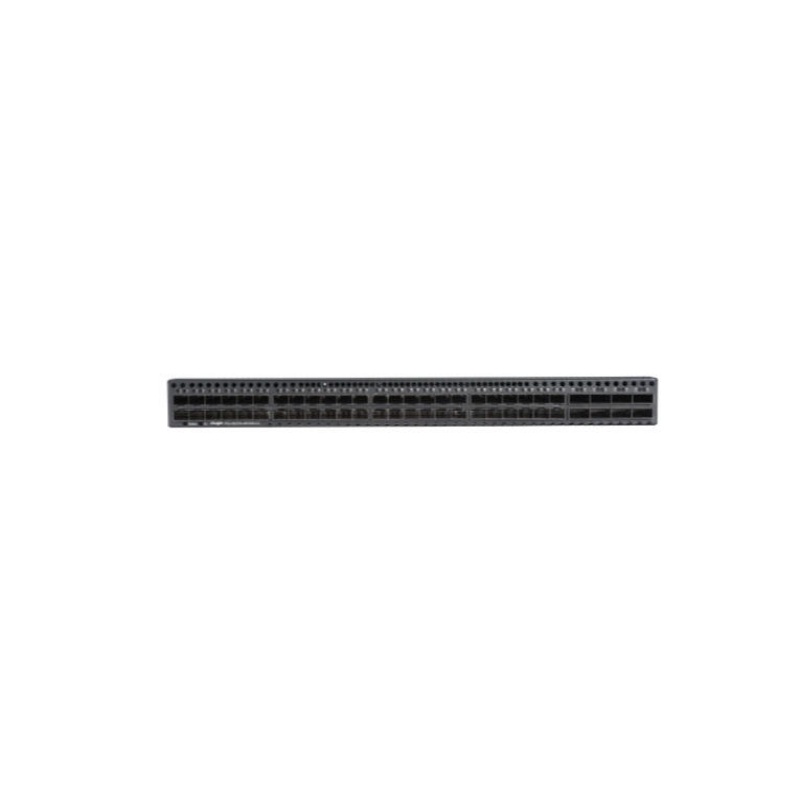

Ruijie Data center 10G high-density access switch, 100G upstream compatible with 40G downstream switch, RG-S6250-48XS8CQ

host

Product Model                     Product Description

RG-S6231-48XT8CQ        host, with 48 fixed 10G (10GBASE-T) Ethernet ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans

RG-S6231-48XS8CQ        host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans.

RG-S6232-48XS8CQ        host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN III-F fans.

RG-S6250-48XS8CQ         host, with 48 fixed 10G SFP+Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power slots, and 4 fan slots. The host is fully equipped with 2 RG-PA550I-F power supplies and 4 M1EFAN II-F fans.

power supply

Product Model                     Product Description

RG-PA550I-F                      550W exchange power module (can support AC and 240V high voltage DC).

RG-PD800I-F                      800W Switching Power Module (capable of supporting 48V low voltage DC), suitable for RG-S6250-48XS8CQ and RG-S6510-48VS8CQ products.

RG-PA550I-R                      550W exchange power module (rear front air duct, can support AC and 240V high voltage DC), needs to be used with rear front air duct fan M1EFAN IV-R

RG-PHD550I-F                   550W Switching Power Module (Supports 336V High Voltage DC)

fan

Product Model                     Product Description

M1EFAN II-F                        switch fan module (port side inlet), suitable for RG-S6250-48XS8CQ products.

M1EFAN III-F                       switch fan module (port side inlet), suitable for RG-S6231-48XT8CQ, RG-S6231-48XS8CQ, RG-S6232-48XS8CQ, RG-S6501-48VS8CQ products.

M1EFAN IV-R                      switch fan module (fan side inlet), suitable for RG-S6231-48XS8CQ, RG-S6231-48XT8CQ products.

40G optical module

Product Model                     Product Description

40G-AOC-5M                     40G QSFP+active fiber optic cable, 5m

40G-AOC-30M                   40G QSFP+active fiber optic cable, 30m

40G-QSFP-SR-MM850      40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber for use, with a maximum transmission distance of 150m

40G-QSFP-LSR-MM850    40G SR optical module, QSFP+package, MPO interface, requires multi-mode fiber to be used, with a maximum transmission distance of 400m

40G-QSFP-LR4-SM1310  40G LR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 10Km

40G-QSFP-iLR4-SM1310  40G iLR4 optical module, QSFP+package, dual LC interface, required to be used with single-mode fiber, maximum transmission distance is 2Km

40G-QSFP-LX4-SM1310   40G LX4 optical module, QSFP+package, dual LC interface, can be used with multimode fiber, using OM3/OM4 multimode fiber for a maximum transmission distance of 150m. Using single-mode fiber for a maximum transmission distance of 2Km

100G optical module

Product Model                      Product Description

100G-AOC 5M                    100G AOC cable, QSFP28 package, length 5M

100G-AOC 10M                  100G AOC cable, QSFP28 package, length 10M

100G-QSFP-SR-MM850    100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, requires multi-mode fiber for use, maximum transmission distance of 100m

100G-QSFP-iLR4-SM1310 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 2Km

100G-QSFP-LR4-SM1310 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 10Km

100G-QSFP-ER4-SM1310 100G ER4 optical module, QSFP28 package, dual LC interface, using wavelength 1310nm, requires matching single-mode fiber, maximum transmission distance is 40Km

Gigabit optical module

Product Model                            Product Description

GE-SFP-LH40-SM1310-BIDI  1G LH optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 40Km

GE-SFP-LX20-SM1310-BIDI  1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km

GE-SFP-LX20-SM1550-BIDI  1G LX optical module, SFP package, BIDI LC interface, requires single fiber use, maximum transmission distance is 20Km

MINI-GBIC-LH40-SM1310      1G LH optical module, SFP package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km

MINI-GBIC-LX-SM1310            1G LX Optical Module, SFP Package, Dual LC Interface, Requires Single Mode Fiber for Use, Maximum Transmission Distance of 10Km

MINI-GBIC-SX-MM850             1G SR optical module, SFP package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 550m

MINI-GBIC-ZX80-SM1550       1G ZX Optical Module, SFP Package, Dual LC Interface, Requires Single Fiber Use, Maximum Transmission Distance of 80Km

Gigabit electrical module

Product Model                             Product Description

Mini GBIC GT (F)                         1G optical to power module, SFP package, RJ45 interface, requires Cat 5e/6/6a for use, with a maximum transmission distance of 100m. For RG-S6200 series products, Mini GBIC GT (F) module is only suitable for RG-S6250-48XS8CQ.

Mini GBIC-GT                              1G optical to power module, SFP package, RJ45 interface, compatible with Cat 5e/6/6a, maximum transmission distance of 100m

10G optical module

Product Model                             Product Description

XG-SFP-SR-MM850                  10G SR optical module, SFP+package, dual LC interface, requires multi-mode fiber for use, with a maximum transmission distance of 300m

XG-SFP-LR-SM1310                 10G LR optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 10Km

XG-SFP-ER-SM1550                 10G ER optical module, SFP+package, dual LC interface, requires single-mode fiber for use, with a maximum transmission distance of 40Km

XG-SFP-ZR-SM1550                 10G ZR optical module, SFP+package, dual LC interface, requires matching single-mode fiber for use, with a maximum transmission distance of 80Km

XG-LR-SM1310                          10G LR optical module, SFP+package, dual LC interface, needs to be matched with single-mode fiber, maximum transmission distance is 10Km

XG-SFP-AOC1M                         10G AOC cable, SFP+package, length 1m

XG-SFP-AOC3M                         10G AOC cable, SFP+package, length 3m

XG-SFP-AOC5M                         10G AOC cable, SFP+package, length 5m

XG-SR-MM850                           10G SR optical module, SFP+package, dual LC interface, requires supporting multimode fiber (MMF) for use, with a maximum transmission distance of 300m
