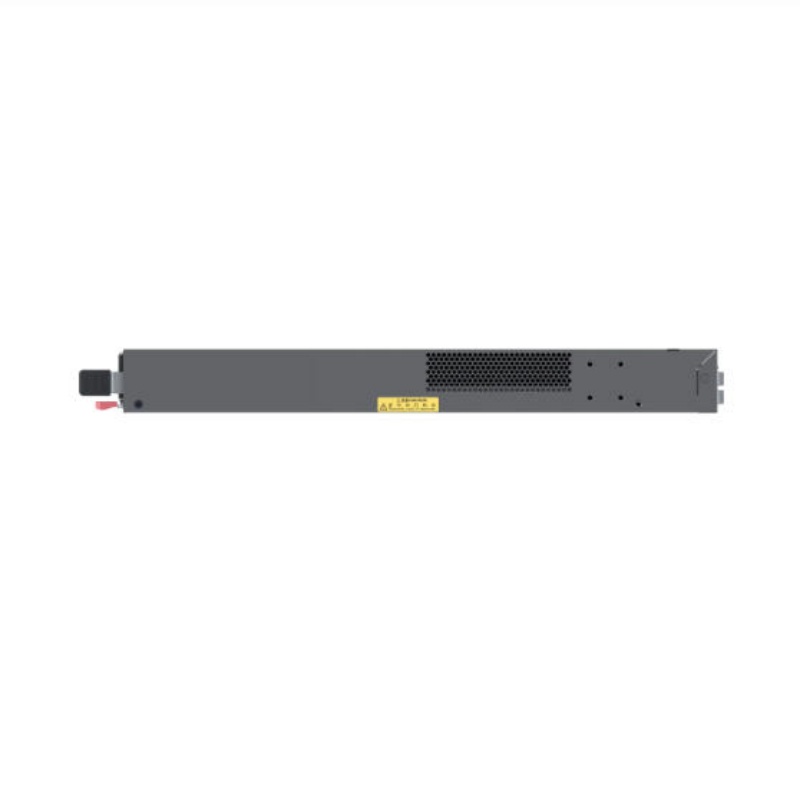

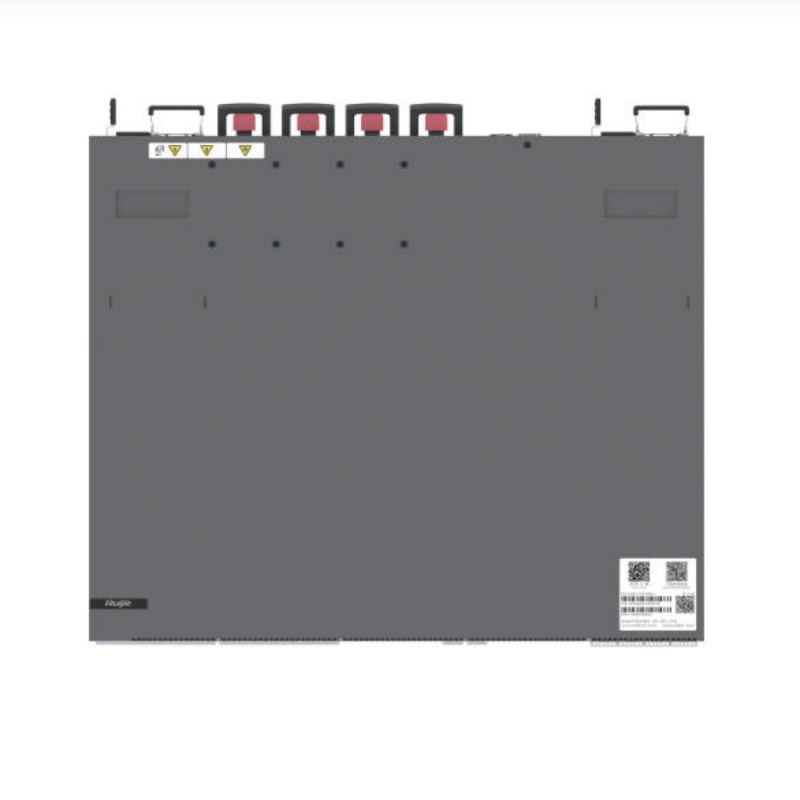

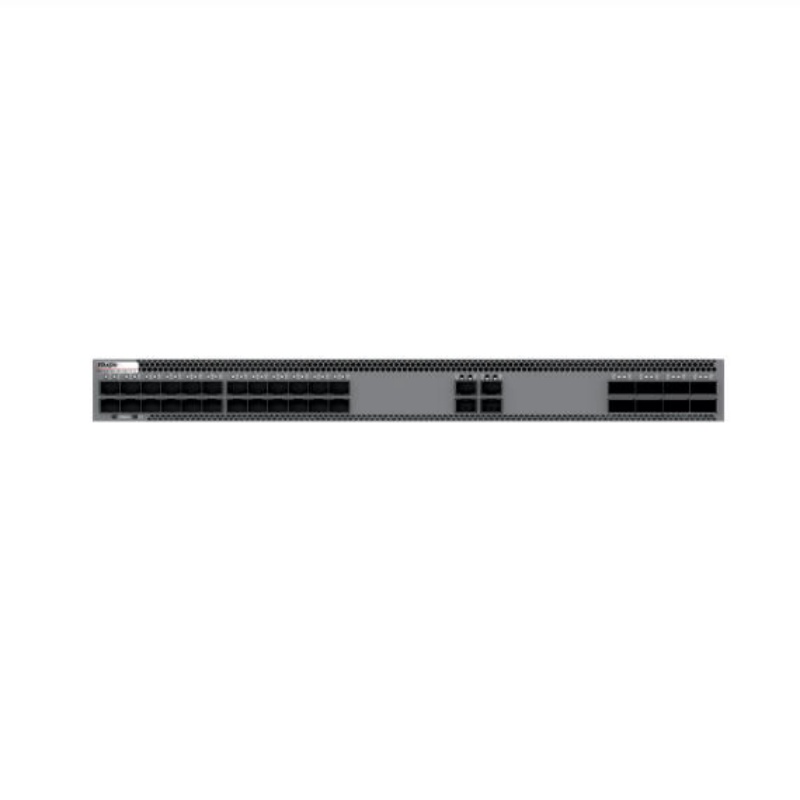

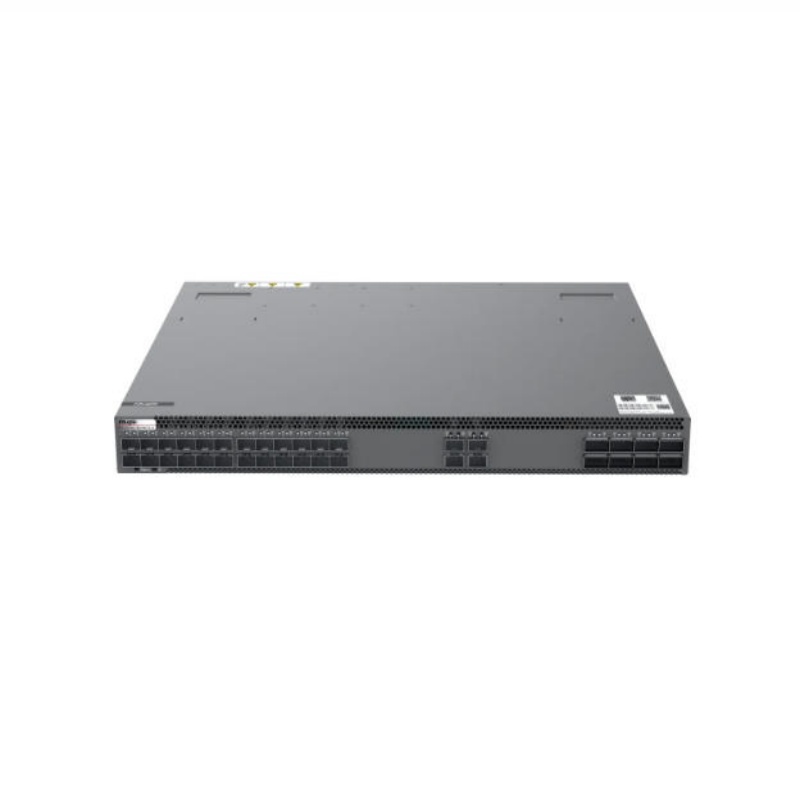

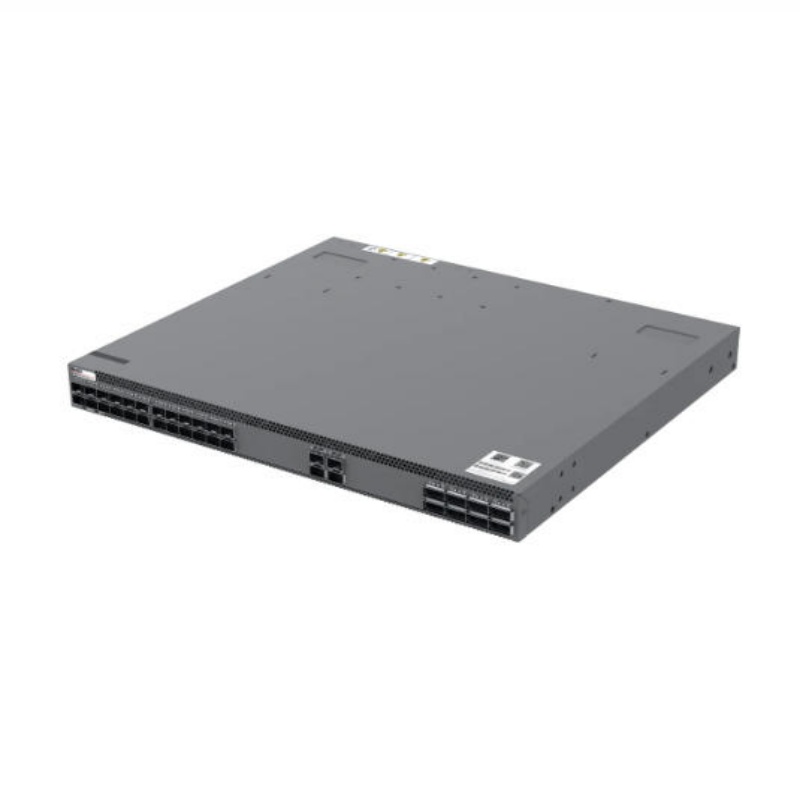

Ruijie New generation 28 port 10G all-optical three-layer core aggregation network switch, 100G uplink, RG-S6160-28VS8CQ-X

The Ruijie RG-S6160-28VS8CQ-X is a high-performance data center switch designed to handle demanding network workloads and high-bandwidth applications. Built for modern data center and enterprise environments, it provides high-speed connectivity and flexible interface options for servers, storage systems, aggregation switches, and other network infrastructure.

The switch supports high-speed 25GbE connectivity for server and access connections, while its 100GbE interfaces provide powerful uplink and network backbone capacity. This combination enables efficient data transmission and helps reduce network bottlenecks in environments with intensive traffic requirements.

The RG-S6160-28VS8CQ-X is particularly suitable for data centers, cloud computing platforms, virtualization environments, high-performance computing, and large-scale enterprise networks. Its high bandwidth and scalable architecture make it a practical choice for applications that require fast communication between servers, storage, and network devices.

By providing high-speed network interfaces and substantial bandwidth capacity, the RG-S6160-28VS8CQ-X helps organizations build efficient and scalable data center infrastructure. It is designed to support growing traffic volumes and demanding workloads while providing reliable connectivity for next-generation network deployments.

  • RG-S6160-28VS8CQ-X

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

host

Product Model                                   Product Description

RG-S6160-28VS8CQ-X                  24 1G/2.5G/10GSFP28 optical ports (default speed 10G, can be upgraded to 25G through authorization), 4 25G SFP28 optical ports, 8 40G/100G QSFP28 optical ports (ports support 1/4 10G or 25G), 4 modular fan slots, 2 modular power slots

RG-S6160-48VS8CQ-X                  48 1G/2.5G/10G/25G SFP28 optical ports (default speed 10G, can be upgraded to 25G through authorized license), 8 40G/100G QSFP28 optical ports, 4 modular fans, 2 modular power slots, at least 1 RG-PA550I II-F power module needs to be purchased

RG-S6160-48XMG4VS2CQ-UP-X  48 100M/1G/2.5G/5G/10G adaptive electrical ports, 4 10G/25G SFP28 optical ports, 2 40G/100G QSFP28 optical ports

power supply

Product Model                                    Product Description

RG-PA550I II-F                                   550W AC power module

RG-PA600I-P-F                                  600W AC power module

RG-PA1000I-P-F                                1000W AC power module

*RG-PA2200I-P-F                               *2200W AC power module

fan

Product Model                                     Product Description

M2SFAN II-F                                         Fan Module

Authorization

Product Model                                      Product Description

RG-24VS-LIC                                        1~24 ports 25G interface capability authorization, one machine one authorization, compatible with RG-S6160-28VS8CQ-X and RG-S6150-24VS8CQ-X products

RG-48VS-LIC                                        1~48 ports 25G interface capability authorization, one machine one authorization, compatible with RG-S6160-48VS8CQ-X and RG-S6150-48VS8CQ-X products

Optical Module

1GE optical module

Product Model                                       Product Description

Mini GBIC-GT                                        1000BASE-X to 1000BASE-T, electrical port SFP optical module, RJ45100m (with cable Cat 5e/6/6a), port needs to be configured in self negotiation mode

2.5GE optical module

Product Model                                        Product Description

2.5G-SFP-LX03-SM1310-BICI-I          2.5GBASE-LX, SFP optical module, TX1310/RX1550, BiDi LC, 3 km (with single-mode fiber)

2.5G-SFP-LX03-SM1550-BIDI-I          2.5GBASE-LX, SFP optical module, TX1550/RX1310, BiDi LC, 3 km (with single-mode fiber)

10GE optical module

Product Model                                          Product Description

XG-SFP-SR-MM850                                10GBASE-SR, SFP+optical module, 850nm, Duplex LC, 300m (with multimode fiber)

XG-SFP-LR-SM1310                               10GBASE-LR, SFP+optical module, 1310nm, Duplex LC, 10km (with single-mode fiber)

XG-SFP-ER-SM1550                               10GBASE-R, SFP+optical module, 1550nm, Duplex LC, 40 km (with single-mode fiber)

XG-SFP-AOC1M                                       10GBASE, SFP+Active Optical Cable (AOC), 1m, including 1 fiber optic cable and 2 optical modules

XG-SFP-AOC3M                                       10GBASE, SFP+Active Optical Cable (AOC), 3m, including 1 fiber optic cable and 2 optical modules

XG-SFP-AOC5M                                        10GBASE, SFP+Active Optical Cable (AOC), 5m, including 1 fiber optic cable and 2 optical modules

25GE optical module

Product Model                                              Product Description

VG-SFP-SR-MM850                                   25GBASE-SR, SFP28 optical module, 850 nm, Duplex LC, 100 m (with OM4 multimode fiber), 70 m (with OM3 multimode fiber)

VG-SFP-LR-SM1310                                  25GBASE-LR, SFP28 optical module, 1310 nm, Duplex LC, 10 km (with single-mode fiber)

VG-SFP-AOC7M (M)                                   25GBASE, SFP28 active optical cable (AOC), 7 m, including 1 optical cable and 2 optical modules

40GE optical module

Product Model                                              Product Description

40G-QSFP-SR-MM850                             40GBASE-SR, QSFP+optical module, 850 nm, MPO 1 x 12150 m (with OM4 multimode fiber), 100 m (with OM3 multimode fiber)

40G-QSFP-LR4-SM1310                          40GBASE-LR4, QSFP+optical module, 1310 nm, Duplex LC, 10 km (with single-mode fiber)

40G-AOC-5M                                              40GBASE, QSFP+Active Optical Cable (AOC), 5m, including 1 optical cable and 2 optical modules

40G-AOC-10M                                            40GBASE, QSFP+Active Optical Cable (AOC), 10m, including 1 optical cable and 2 optical modules

100GE optical module

Product Model                                              Product Description

100G-QSFP-SR-MM850                            100GBASE-SR, QSFP28 optical module, 850 nm, MPO 1 x 12100 m (with OM4 multimode fiber), 70 m (with OM3 multimode fiber)

100G-QSFP-LR4-SM1310                         100GBASE-LR4, QSFP28 optical module, 1310 nm, Duplex LC, 10 km (with single-mode fiber)

100G-AOC 1M                                              100GBASE, QSFP28 active optical cable (AOC), 1 m, including 1 optical cable and 2 optical modules

100G-AOC 5M                                               100GBASE, QSFP28 active optical cable (AOC), 5m, including 1 optical cable and 2 optical modules

100G-AOC 10M                                             100GBASE, QSFP28 active optical cable (AOC), 10m, including 1 optical cable and 2 optical modules

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S6160-28VS8CQ-X?
A: The RG-S6160-28VS8CQ-X is a high-performance data center switch designed for high-bandwidth and demanding network environments.

Q2: What network speeds does the RG-S6160-28VS8CQ-X support?
A: It supports high-speed 25GbE connectivity and 100GbE interfaces, providing fast data transmission and high-bandwidth uplink capabilities.

Q3: What applications is this switch suitable for?
A: It is ideal for data centers, cloud computing, virtualization, high-performance computing, server networks, and large-scale enterprise deployments.

Q4: What are the main features of the RG-S6160-28VS8CQ-X?
A: Key features include high-speed 25GbE and 100GbE connectivity, high bandwidth capacity, reliable performance, and scalable network architecture.

Q5: Is the RG-S6160-28VS8CQ-X suitable for network expansion?
A: Yes. Its high-speed interfaces and 100GbE connectivity provide sufficient bandwidth for expanding modern data center and enterprise networks.
