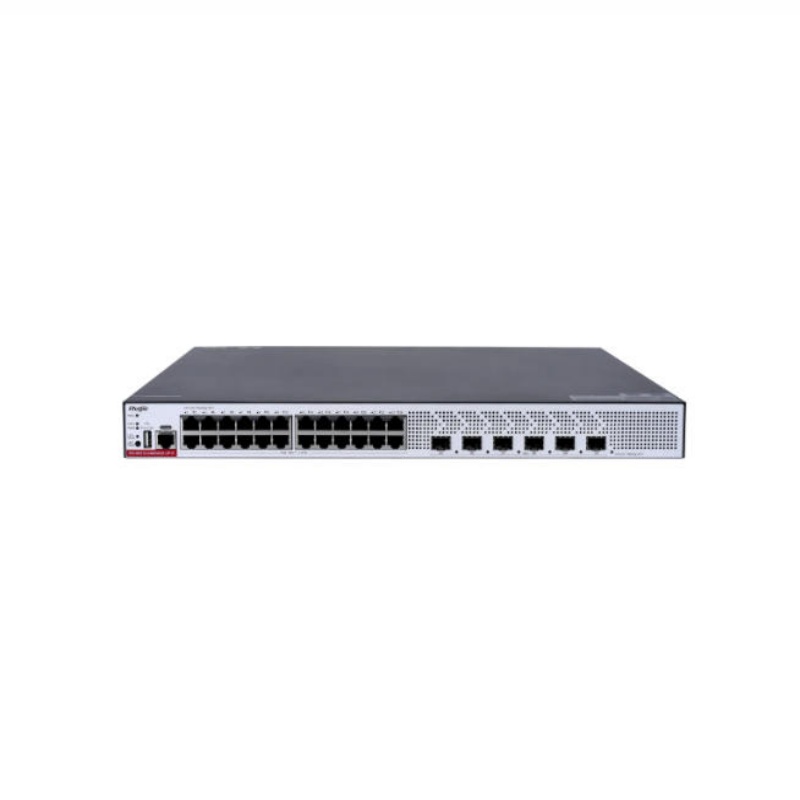

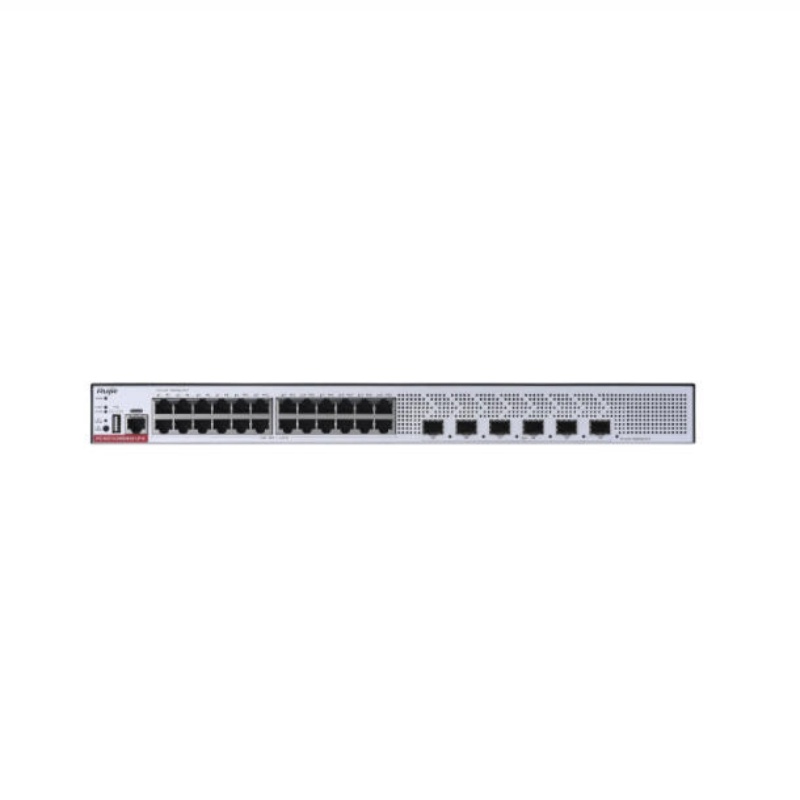

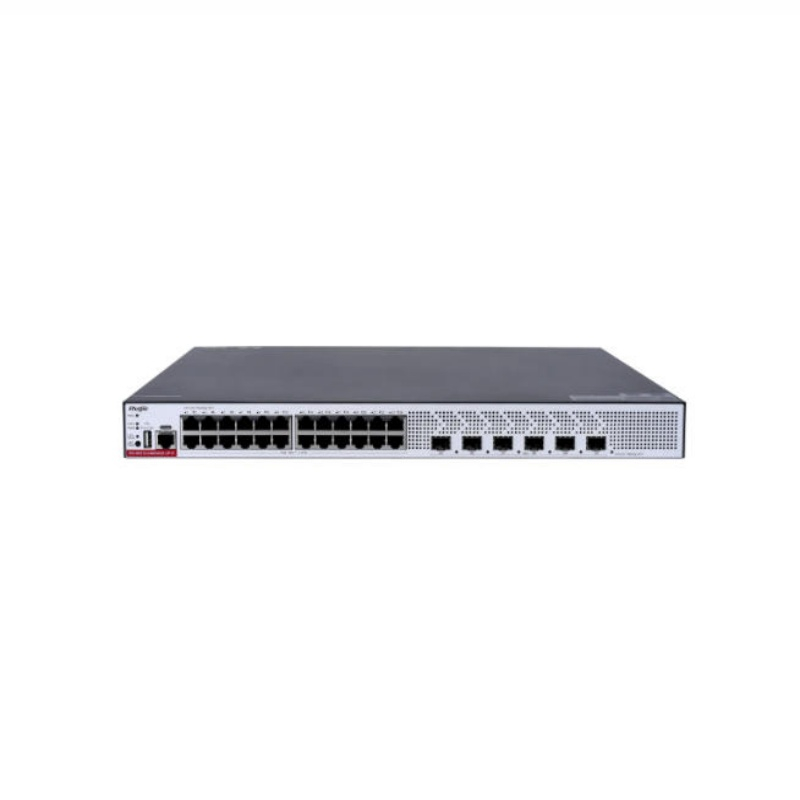

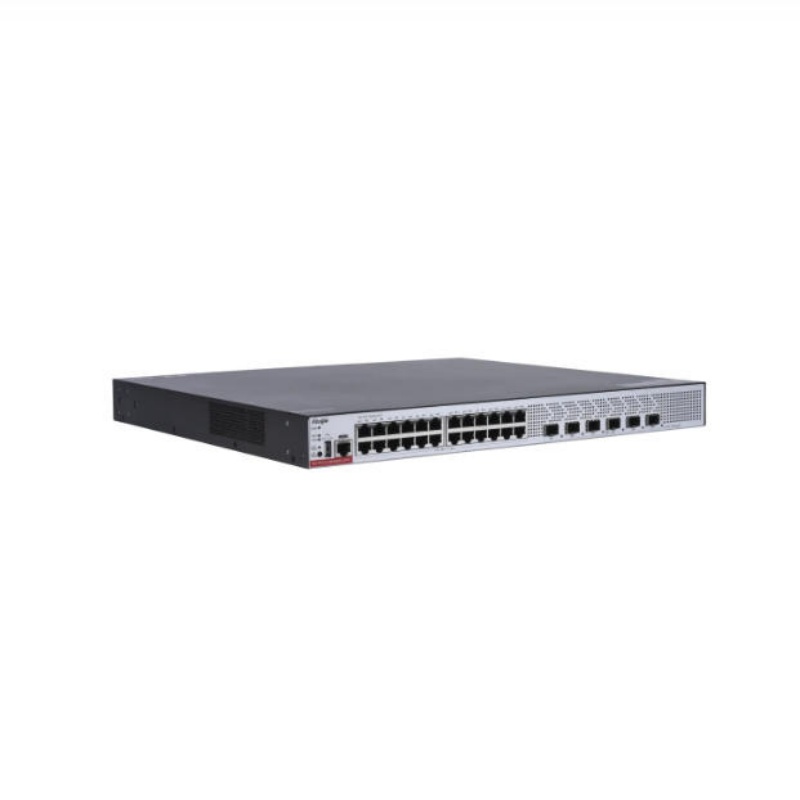

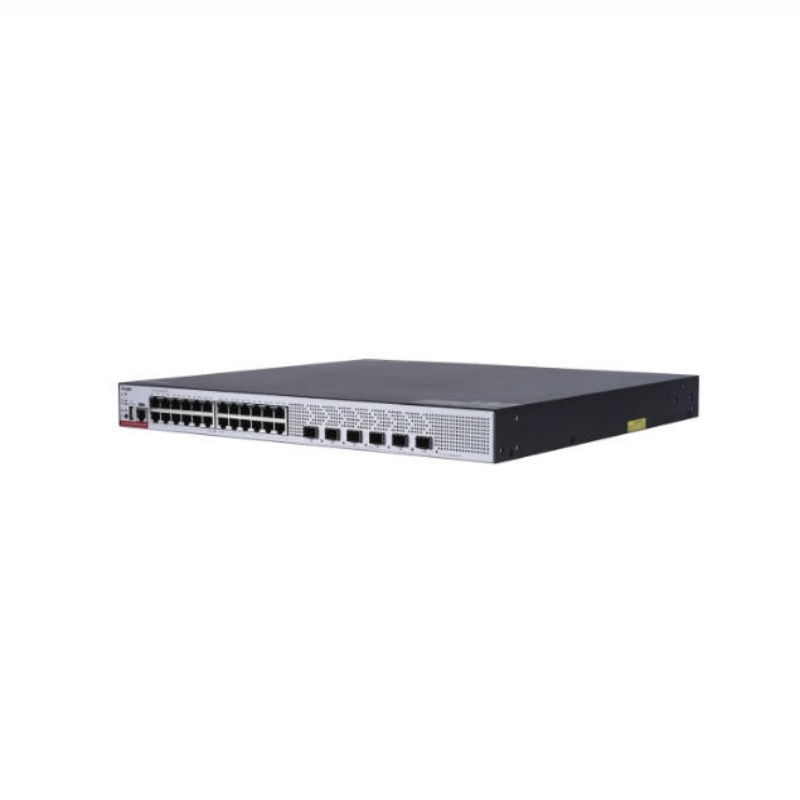

Ruijie RG-S5315-24MG6XS-UP-E Next-Generation 24-Port 2.5GE Multi-GE Access Switches with 10GE Uplinks, Supporting Up To 90 W (PoE++) Power Output Per Port

Share to:

Ruijie RG-S5315-24MG6XS-UP-E Next-Generation 24-Port 2.5GE Multi-GE Access Switches with 10GE Uplinks, Supporting Up To 90 W (PoE++) Power Output Per Port

The Ruijie RG-S5315-24MG6XS-UP-E is a high-performance enterprise PoE switch designed for modern high-speed network deployments. It features 24 multi-gigabit Ethernet ports and 6 × 10G SFP+ uplink ports, providing flexible and high-bandwidth connectivity for enterprise networks.

With PoE support, the switch can deliver both data and power through a single Ethernet cable to compatible devices such as Wi-Fi access points, IP phones, IP cameras, and IoT terminals. Its multi-gigabit access ports are well suited for high-speed wireless networks and bandwidth-intensive applications, while the 10G uplinks provide fast connections to aggregation or core switches.

The RG-S5315-24MG6XS-UP-E is ideal for enterprise offices, campus networks, hotels, smart buildings, surveillance systems, and high-density Wi-Fi deployments. It provides a scalable solution for organizations looking to upgrade their network infrastructure with higher-speed access, reliable PoE connectivity, and 10G uplink capacity.

Model:
RG-S5315-24MG6XS-UP-E
Brand:
Ruijie
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Product Description

Switch and Power Module

Model	Description

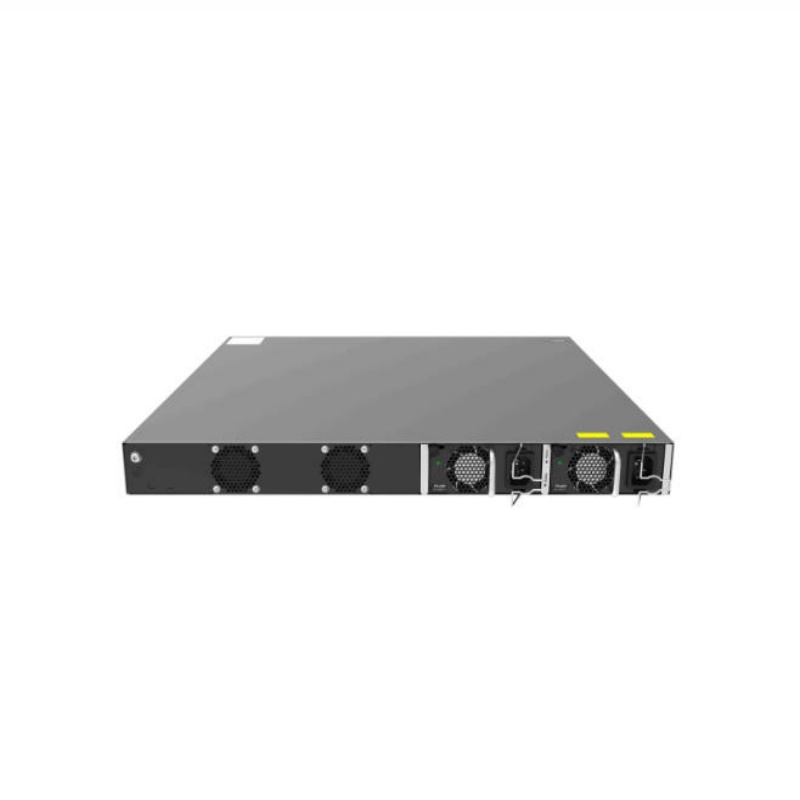

RG-S5315-24MG6XS-UP-E	24 x 100/1000/2500BASE-T ports with auto-negotiation, supporting PoE/PoE+/PoE++ and the maximum PoE output power of 1600 W, 6 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported)

Note: 6 x 1GE/2.5GE /10GE SFP+ ports support 1GE SFP transceivers, 2.5GE SFP transceivers and 10GE SFP+ transceivers.

Power Module

Model	Description
RG-PA600I-P-F	600 W AC power module, PoE power module
RG-PA1000I-P-F	1,000 W AC power module, PoE power module

GE Optical Transceivers

Model	Description
MINI-GBIC-GT	1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850	1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310	1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310	1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550	1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI	1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI	1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF
GE-SFP-LX03-SM1310-BIDI-I	1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
GE-SFP-LX03-SM1550-BIDI-I	1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.

2.5GE Optical Transceivers

Model	Description
2.5G-SFP-LX03-SM1310-BIDI-I	2500BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
2.5G-SFP-LX03-SM1550-BIDI-I	2500BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

10GE Optical Transceivers

Model	Description
XG-SFP-SR-MM850	10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310	10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550	10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-ZR-SM1550	10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF
XG-SFP-LR10-SM1270-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF
XG-SFP-LR10-SM1330-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF
XG-SFP-AOC1M	10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M	10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M	10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers

CWDM Transceivers

Model	Description
GE-SFP-LR(A1-8)-H	1000BASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
GE-SFP-LR(A1-8)-H-E	1000BASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
MG-SFP-LR(A1-8)-H	2.5GBASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
MG-SFP-LR(A1-8)-H-E	2.5GBASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
XG-SFP-LR(A1-8)-H	10GBASE-LR, access switch-side group of 8 SFP+ CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
XG-SFP-LR(A1-8)-H-E	10GBASE-LR, access switch-side group of 8 SFP+ CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
