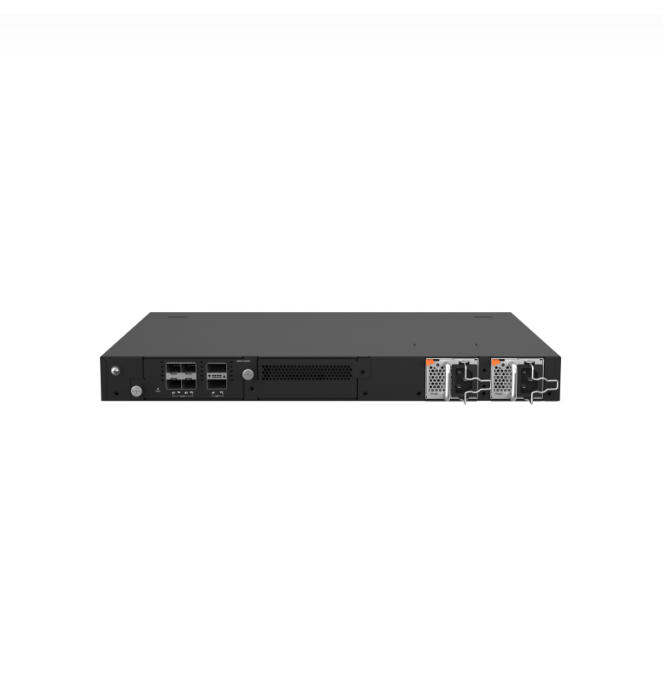

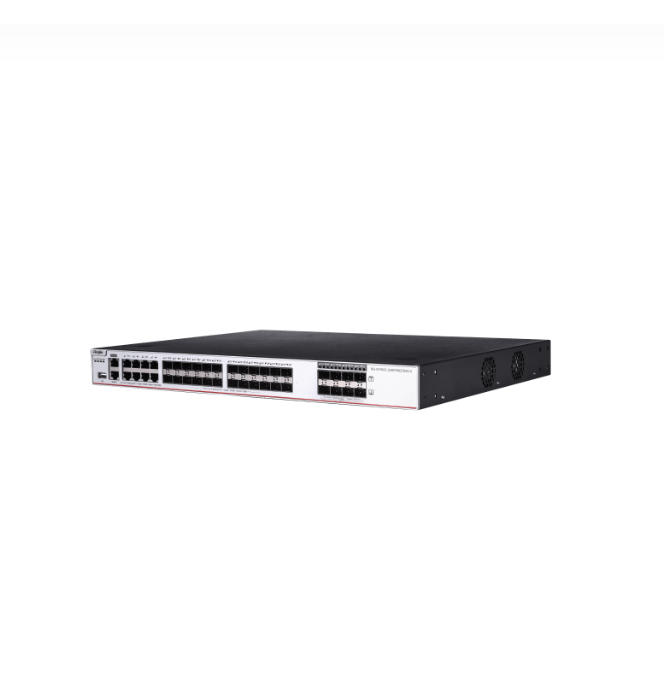

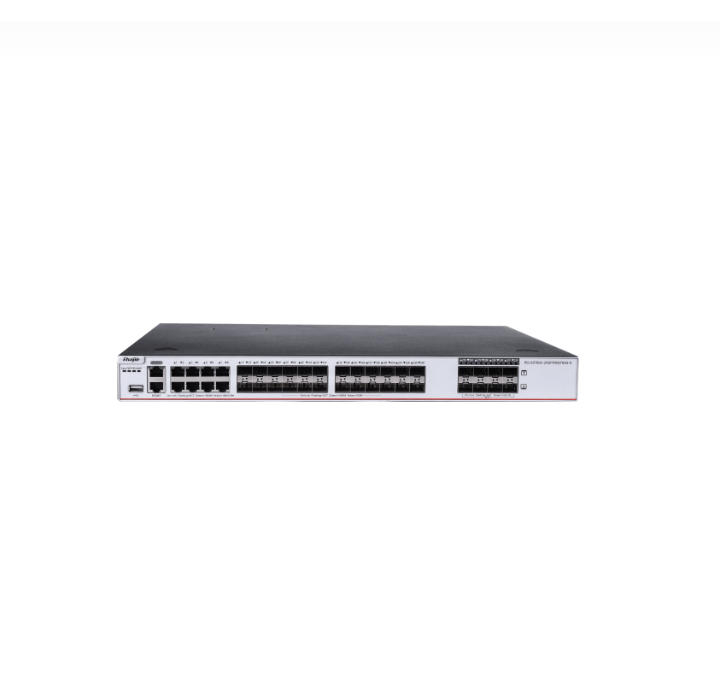

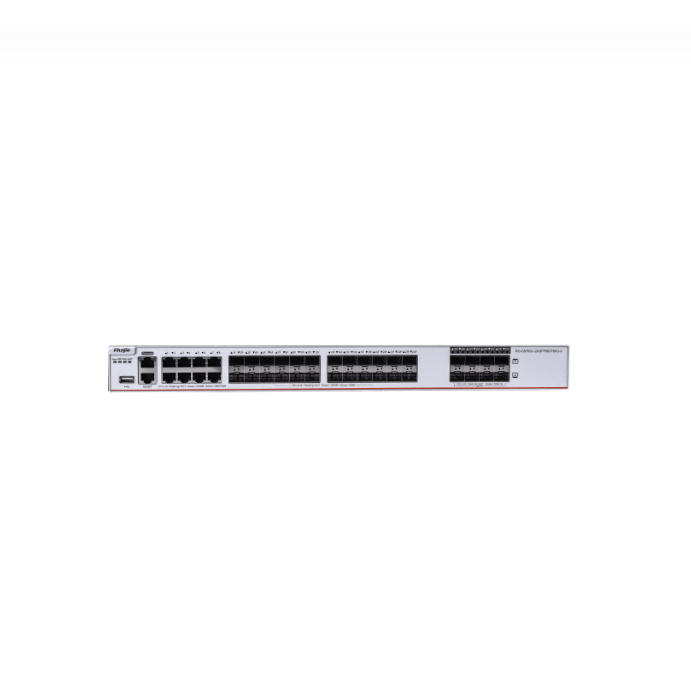

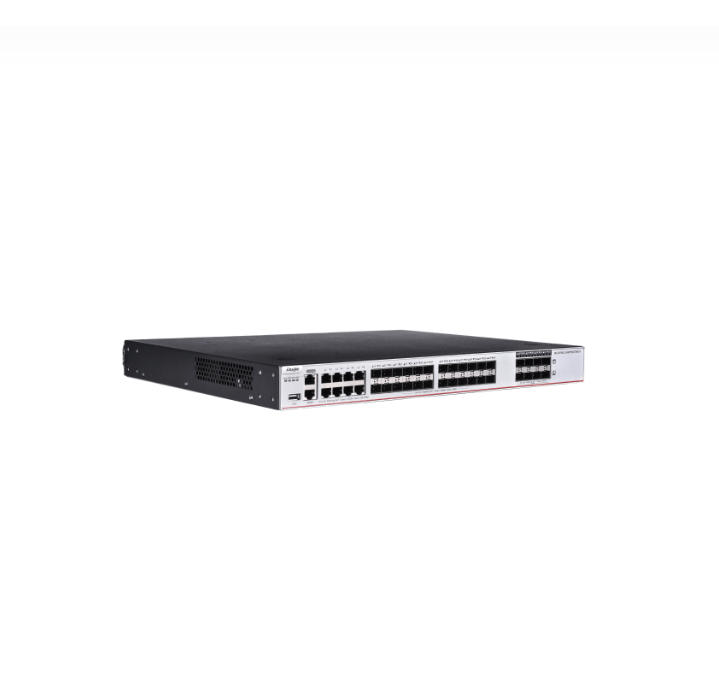

Ruijie RG-S5760C-24SFP/8GT8XS-X 24-Port Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), 8-Port 10GE Uplink

The Ruijie RG-S5760C-24SFP/8GT8XS-X is a high-performance Layer 3 enterprise switch designed for network aggregation in large networks and core deployments in small and medium-sized networks. It provides 24 × 1GE SFP ports, including 8 combo ports, together with 8 × 1GE/10GE SFP+ uplink ports, offering flexible fiber connectivity and high-speed data transmission.

The switch is particularly suitable for fiber-based network environments where long-distance connectivity and high-density optical access are required. Ports 1–16 support 100Mbps/1Gbps SFP connectivity, while ports 17–24 support 1Gbps SFP connectivity. The 8 combo ports can provide flexible copper or fiber access depending on deployment requirements, while the 8 SFP+ ports support 1G/10G uplinks for connections to aggregation switches, core switches, servers, and other high-bandwidth equipment.

For network reliability and scalability, the RG-S5760C-24SFP/8GT8XS-X supports VSU virtualization, allowing multiple switches to operate as a virtualized system and helping simplify network architecture and management. It also supports a wide range of Layer 3 routing protocols, including RIP, OSPF, BGP, IS-IS, and IPv4/IPv6 routing, making it suitable for complex enterprise and campus network deployments.

The switch is equipped with hardware-level redundancy features, including dual BOOT protection and support for redundant power supplies. It also provides network security and protection functions such as CPP and NFPP, while SNMP, RMON, Syslog, USB, CLI, Web management, and Telnet provide flexible options for configuration, monitoring, troubleshooting, and daily maintenance.

The RG-S5760C-24SFP/8GT8XS-X is ideal for enterprise aggregation, campus networks, fiber-based access networks, server connectivity, and small-to-medium-sized network cores. With high-density SFP access, 10G uplinks, powerful Layer 3 capabilities, VSU virtualization, and reliable hardware architecture, it provides a scalable and efficient foundation for modern enterprise network infrastructure.

  • RG-S5760C-24SFP/8GT8XS-X

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

Order switches, expansion modules, power modules, and other components as needed. Before ordering an expansion module or power module, contact our online customer service team for the latest support information about the module.

Switches and Power Modules

Model

Description

RG-S5760C-24GT8XS-X

24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48GT4XS-X

48 x 10/100/1000BAST-T ports，4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-24SFP/8GT8XS-X

24 x 1GE SFP ports (ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps, ports 1 to 8 are 10/100/1000BASE-T combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48SFP4XS-X

48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-PA150IB-F

150 W AC power module

RG-PD150IB-F

150 W DC power module



Model

Description

RG-S5760C-48GT4XS-HP-X

48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots

Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module



Expansion module

Model

Description

M5000X-4XS2CQ

4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports

Note:

  • 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.

  • 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.

  • 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.


Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF



10GE

Model

Description

XG-SFP-SR-MM850

10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF

XG-SFP-LR-SM1310

10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF

XG-SFP-ER-SM1550

10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF

XG-SFP-ZR-SM1550

10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF

XG-SFP-LR10-SM1270-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF

XG-SFP-LR10-SM1330-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

XG-SFP-AOC1M

10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers

XG-SFP-AOC3M

10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers

XG-SFP-AOC5M

10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


40GE

Model

Description

40G-QSFP-LR4-SM1310

40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF

40G-QSFP-iLR4-SM1310

40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF

40G-AOC-5M

40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


100GE

Model

Description

100G-QSFP-SR-MM850

100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF

100G-QSFP-LR4-SM1310

100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF

100G-AOC-10M

100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S5760C-24SFP/8GT8XS-X?
A: It is a high-performance Layer 3 switch designed for enterprise aggregation, campus networks, fiber-based access, and small-to-medium-sized network cores.

Q2: How many fiber ports does the switch provide?
A: It provides 24 Gigabit SFP ports, including 8 combo ports, together with 8 × 1G/10G SFP+ ports for high-speed uplinks.

Q3: What are the 8 SFP+ ports used for?
A: The 8 SFP+ ports support 1G/10G connectivity and can be used to connect core switches, aggregation switches, servers, storage systems, or other high-bandwidth network equipment.

Q4: Does the RG-S5760C-24SFP/8GT8XS-X support Layer 3 routing?
A: Yes. It supports IPv4/IPv6 Layer 3 routing and various dynamic routing protocols, providing flexibility for complex enterprise and campus network architectures.

Q5: Does this switch support VSU virtualization?
A: Yes. VSU allows multiple physical switches to operate as a single logical system, helping simplify network management, improve redundancy, and provide a scalable network architecture.
