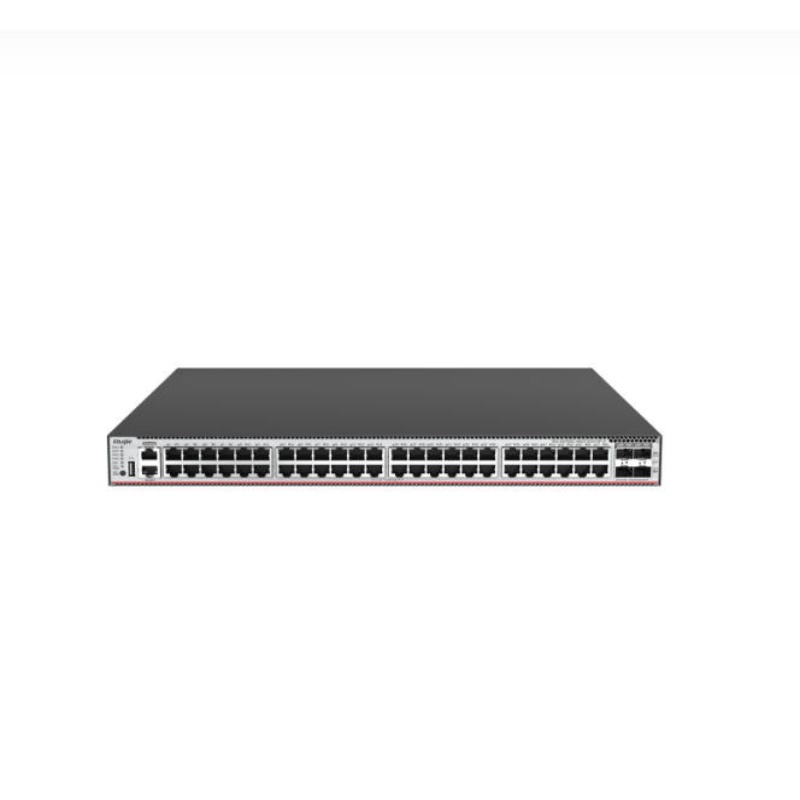

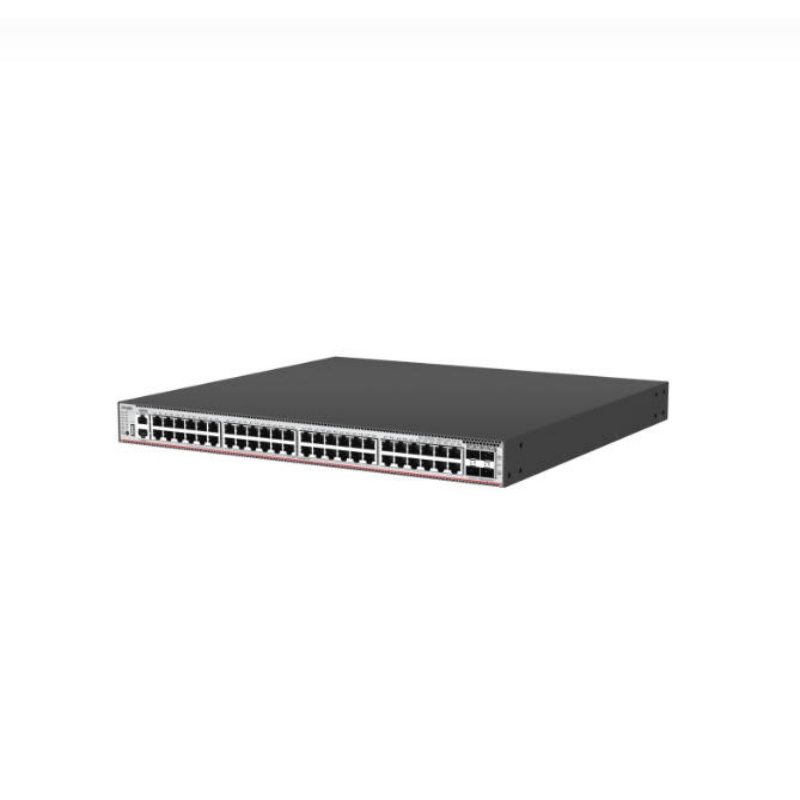

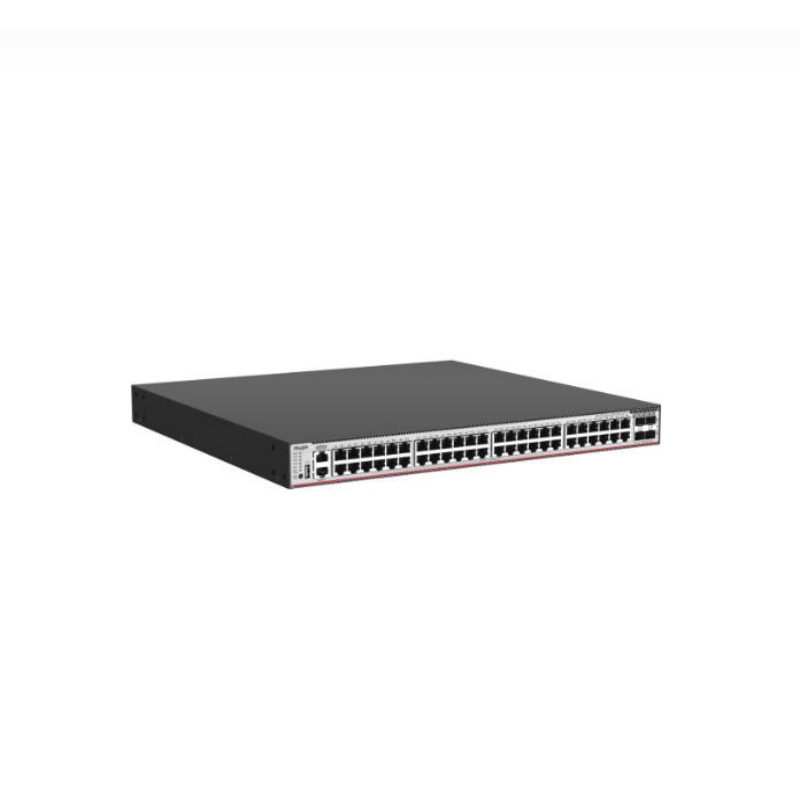

Ruijie RG-S5760C-48GT4XS-HP-X 48-Port Layer 3 Enterprise-Class PoE Core or Aggregation Switch, 4-Port 10G Uplink

The Ruijie RG-S5760C-48GT4XS-HP-X is a high-performance Layer 3 enterprise PoE switch designed for network aggregation in large-sized networks and core deployments in small and medium-sized networks. It provides 48 × 10/100/1000BASE-T Ethernet ports with PoE/PoE+ support, together with 4 × 1G/10G SFP+ uplink ports for high-speed backbone connectivity.

The PoE/PoE+ capability allows the switch to deliver both data and power over Ethernet to compatible devices such as wireless access points, IP phones, IP cameras, and other PoE terminals, helping simplify network installation and reduce additional power cabling. The 4 × 1G/10G SFP+ ports provide flexible high-bandwidth connections to core switches, aggregation equipment, servers, and other network infrastructure.

For reliable network operation, the RG-S5760C-48GT4XS-HP-X supports VSU virtualization, Layer 3 routing, link aggregation, BFD, ERPS, VRRP, and other enterprise networking technologies. It also includes security features such as CPP, NFPP, 802.1X, ACL, DHCP Snooping, ARP protection, and IP Source Guard to help enhance network stability and security.

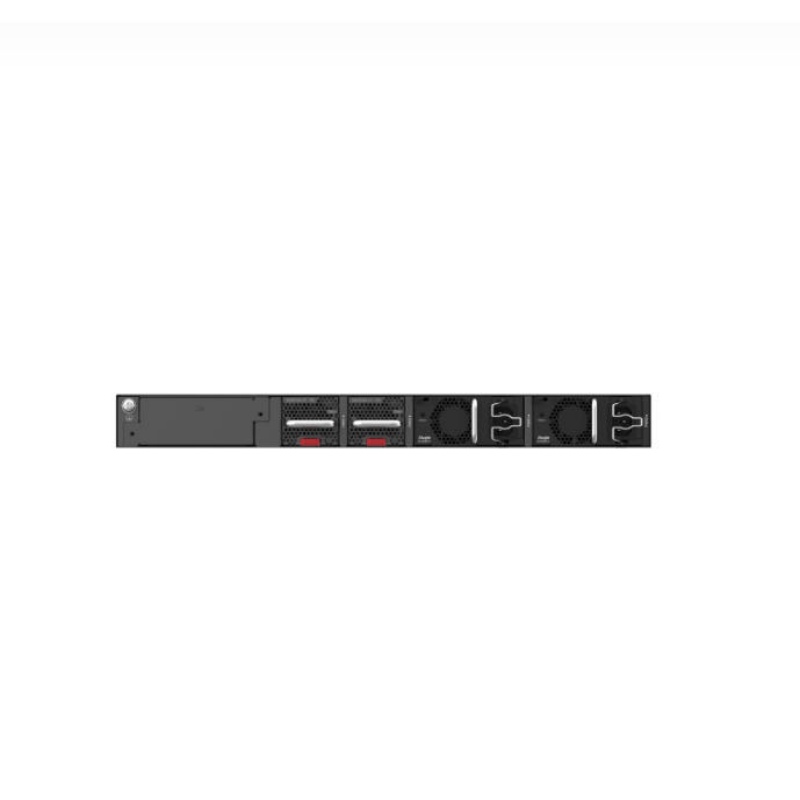

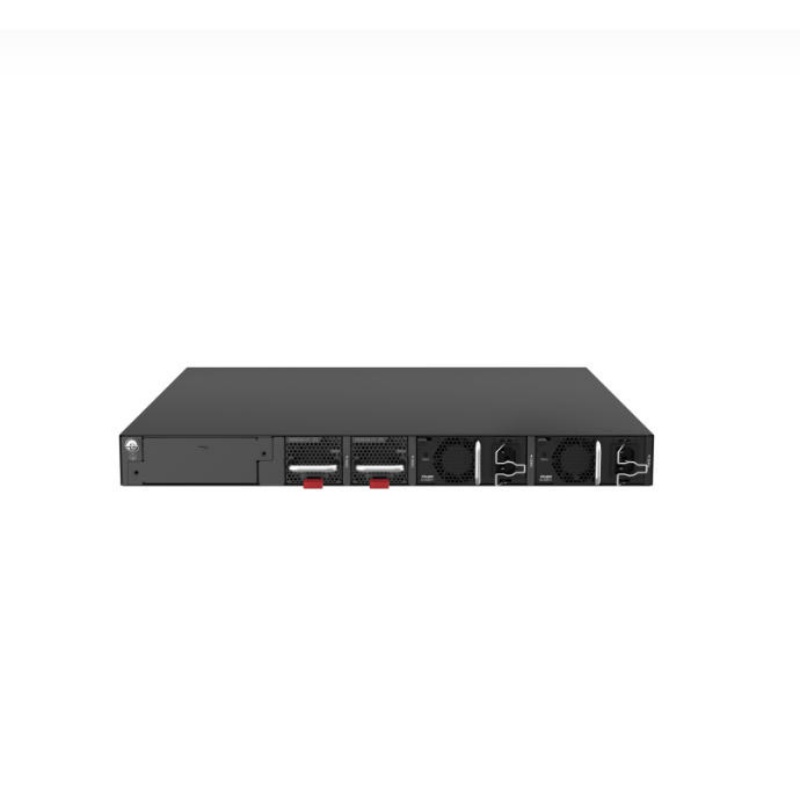

The switch provides one expansion slot and two modular power supply slots, supporting flexible deployment and power redundancy. It is well suited for enterprise offices, campus networks, schools, hotels, smart buildings, surveillance systems, and other environments that require high-density Gigabit access, PoE power delivery, and 10G uplink capacity.

Combining 48 Gigabit PoE ports, 10G uplinks, Layer 3 routing, VSU virtualization, and reliable hardware architecture, the RG-S5760C-48GT4XS-HP-X provides a scalable foundation for building efficient, secure, and reliable enterprise and campus network infrastructure.

  • RG-S5760C-48GT4XS-HP-X

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

Order switches, expansion modules, power modules, and other components as needed. Before ordering an expansion module or power module, contact our online customer service team for the latest support information about the module.

Switches and Power Modules

Model

Description

RG-S5760C-24GT8XS-X

24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48GT4XS-X

48 x 10/100/1000BAST-T ports，4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-24SFP/8GT8XS-X

24 x 1GE SFP ports (ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps, ports 1 to 8 are 10/100/1000BASE-T combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48SFP4XS-X

48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-PA150IB-F

150 W AC power module

RG-PD150IB-F

150 W DC power module



Model

Description

RG-S5760C-48GT4XS-HP-X

48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots

Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module



Expansion module

Model

Description

M5000X-4XS2CQ

4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports

Note:

  • 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.

  • 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.

  • 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.


Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF



10GE

Model

Description

XG-SFP-SR-MM850

10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF

XG-SFP-LR-SM1310

10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF

XG-SFP-ER-SM1550

10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF

XG-SFP-ZR-SM1550

10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF

XG-SFP-LR10-SM1270-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF

XG-SFP-LR10-SM1330-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

XG-SFP-AOC1M

10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers

XG-SFP-AOC3M

10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers

XG-SFP-AOC5M

10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


40GE

Model

Description

40G-QSFP-LR4-SM1310

40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF

40G-QSFP-iLR4-SM1310

40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF

40G-AOC-5M

40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


100GE

Model

Description

100G-QSFP-SR-MM850

100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF

100G-QSFP-LR4-SM1310

100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF

100G-AOC-10M

100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S5760C-48GT4XS-HP-X?
A: It is a high-performance Layer 3 enterprise-class PoE switch designed for aggregation in large networks and core deployments in small and medium-sized networks.

Q2: How many ports does the RG-S5760C-48GT4XS-HP-X provide?
A: It provides 48 × 10/100/1000BASE-T PoE/PoE+ ports and 4 × 1G/10G SFP+ uplink ports, supporting both high-density access and high-speed network connections.

Q3: How much PoE power can each port provide?
A: Each PoE port can provide up to 30W under IEEE 802.3af/at. The total PoE budget depends on the installed power modules, with configurations supporting up to 1,440W across 48 ports.

Q4: Does the switch support Layer 3 routing and VSU virtualization?
A: Yes. It supports IPv4/IPv6 Layer 3 routing and VSU virtualization. VSU can combine multiple physical switches into a single logical unit, helping simplify network management and improve redundancy.

Q5: What applications is the RG-S5760C-48GT4XS-HP-X suitable for?
A: It is suitable for enterprise and campus networks, large-network aggregation, small and medium-sized network cores, and deployments requiring PoE connectivity for APs, IP phones, cameras, and other PoE devices.
