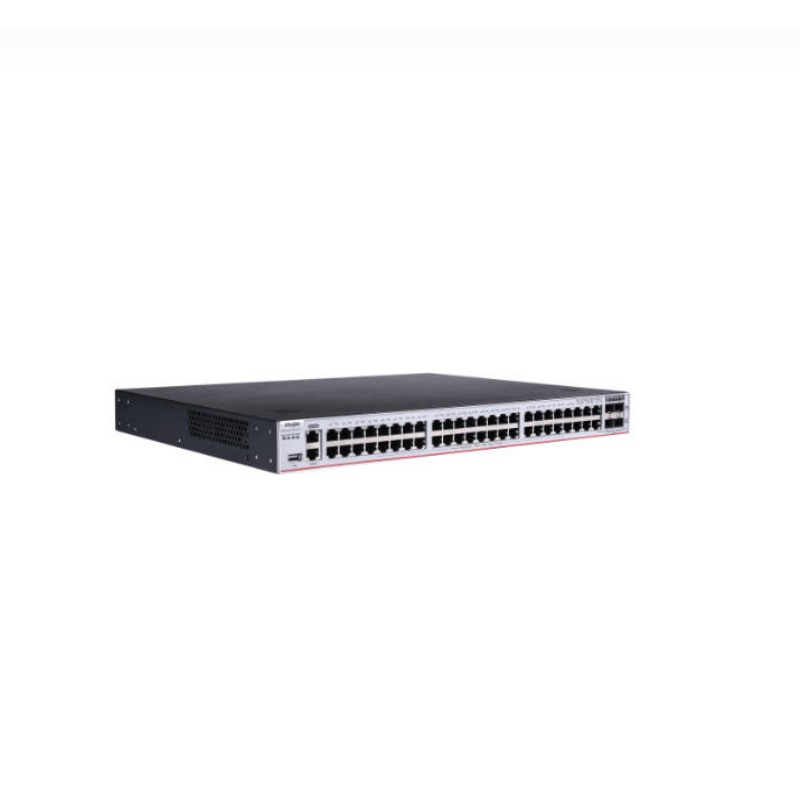

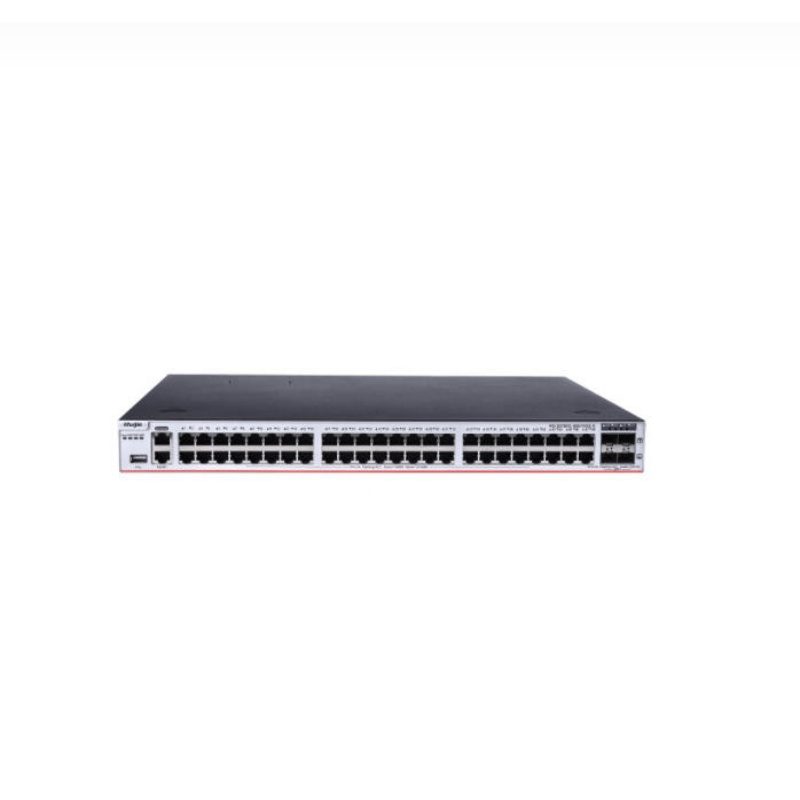

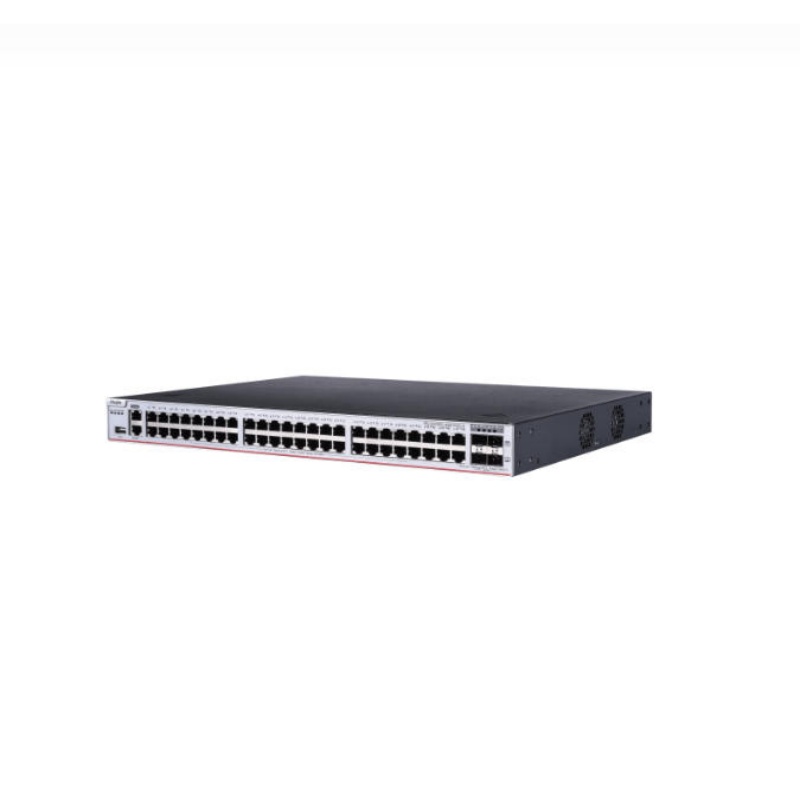

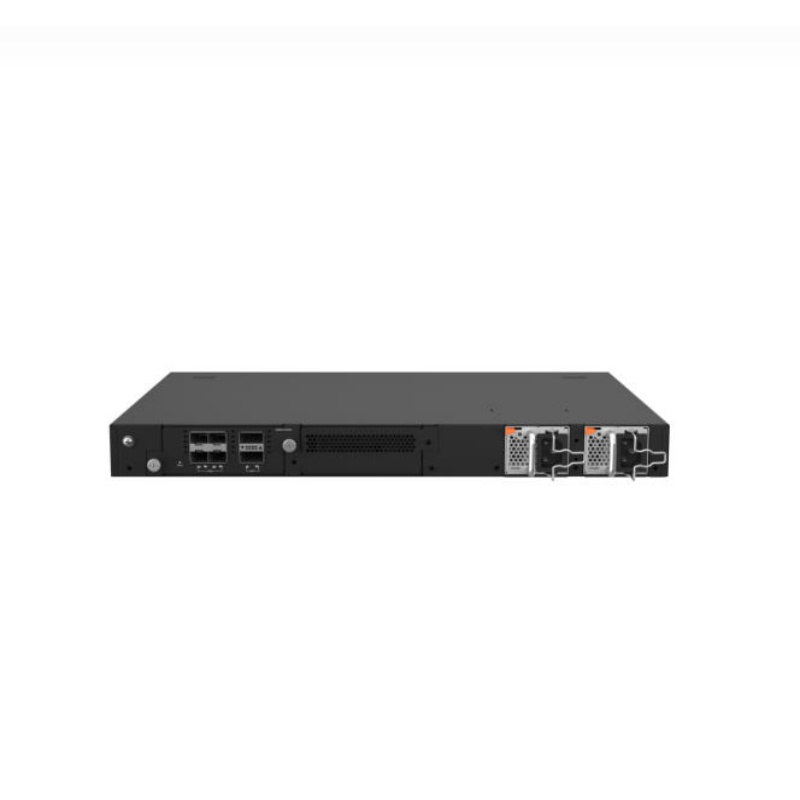

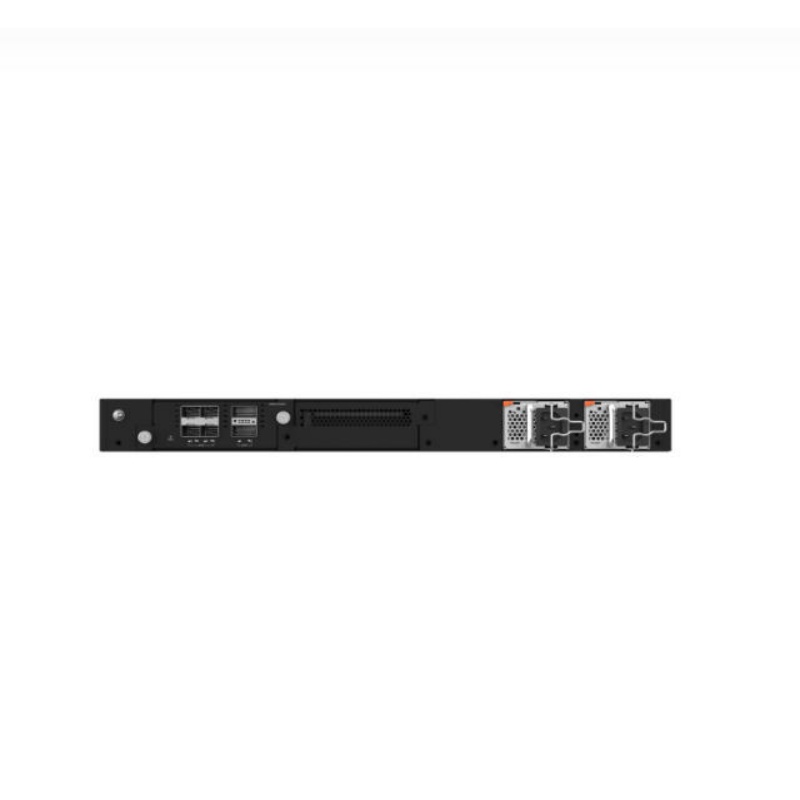

Ruijie RG-S5760C-48GT4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink switch

The Ruijie RG-S5760C-48GT4XS-X is a high-performance Layer 3 enterprise switch designed for large-scale network aggregation, small and medium-sized network cores, and data center deployments. It provides 48 × 10/100/1000M Gigabit Ethernet ports and 4 × 1G/10G SFP+ uplink ports, delivering high-density access and fast backbone connectivity.

The switch supports advanced Layer 3 routing capabilities, including IPv4/IPv6 routing, RIP, OSPF, BGP, IS-IS, and routing policies, making it suitable for complex enterprise network architectures. It also supports VSU virtualization, helping simplify network topology, improve bandwidth utilization, and enhance network scalability.

For reliability, the RG-S5760C-48GT4XS-X supports hardware-level protection, redundant power options, and multiple network protection technologies. Its 4 × 10G SFP+ ports provide high-speed connections to core switches, aggregation switches, servers, and other high-bandwidth equipment.

The RG-S5760C-48GT4XS-X is ideal for enterprise networks, campus aggregation, data centers, server access, and small-to-medium-sized network cores. With high-density Gigabit access, 10G uplinks, powerful Layer 3 functions, VSU virtualization, and flexible management capabilities, it provides a reliable and scalable foundation for modern network infrastructure.

  • RG-S5760C-48GT4XS-X

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

Order switches, expansion modules, power modules, and other components as needed. Before ordering an expansion module or power module, contact our online customer service team for the latest support information about the module.

Switches and Power Modules

Model

Description

RG-S5760C-24GT8XS-X

24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48GT4XS-X

48 x 10/100/1000BAST-T ports，4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-24SFP/8GT8XS-X

24 x 1GE SFP ports (ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps, ports 1 to 8 are 10/100/1000BASE-T combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-S5760C-48SFP4XS-X

48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots.

Purchase at least one RG-PA150IB-F module.

RG-PA150IB-F

150 W AC power module

RG-PD150IB-F

150 W DC power module



Model

Description

RG-S5760C-48GT4XS-HP-X

48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots

Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module



Expansion module

Model

Description

M5000X-4XS2CQ

4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports

Note:

  • 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.

  • 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.

  • 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.


Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF



10GE

Model

Description

XG-SFP-SR-MM850

10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF

XG-SFP-LR-SM1310

10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF

XG-SFP-ER-SM1550

10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF

XG-SFP-ZR-SM1550

10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF

XG-SFP-LR10-SM1270-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF

XG-SFP-LR10-SM1330-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

XG-SFP-AOC1M

10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers

XG-SFP-AOC3M

10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers

XG-SFP-AOC5M

10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


40GE

Model

Description

40G-QSFP-LR4-SM1310

40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF

40G-QSFP-iLR4-SM1310

40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF

40G-AOC-5M

40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


100GE

Model

Description

100G-QSFP-SR-MM850

100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF

100G-QSFP-LR4-SM1310

100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF

100G-AOC-10M

100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S5760C-48GT4XS-X?
A: It is a high-performance Layer 3 enterprise switch designed for network aggregation, campus networks, and small-to-medium-sized network cores.

Q2: How many ports does the RG-S5760C-48GT4XS-X provide?
A: It provides 48 Gigabit Ethernet ports and 4 × 1G/10G SFP+ ports, offering high-density access and flexible high-speed uplink connectivity.

Q3: Does the RG-S5760C-48GT4XS-X support VSU virtualization?
A: Yes. VSU virtualization allows multiple physical switches to operate as a single logical device, helping simplify network management and improve redundancy. The S5760C series supports up to four VSU members.

Q4: What applications is this switch suitable for?
A: It is suitable for enterprise aggregation, campus networks, server access, and small-to-medium-sized network cores where reliable Gigabit access and 10G uplinks are required.

Q5: Can the switch support cloud management?
A: Yes. The RG-S5760C-48GT4XS-X supports cloud management, providing an additional option for centralized network monitoring and management.
