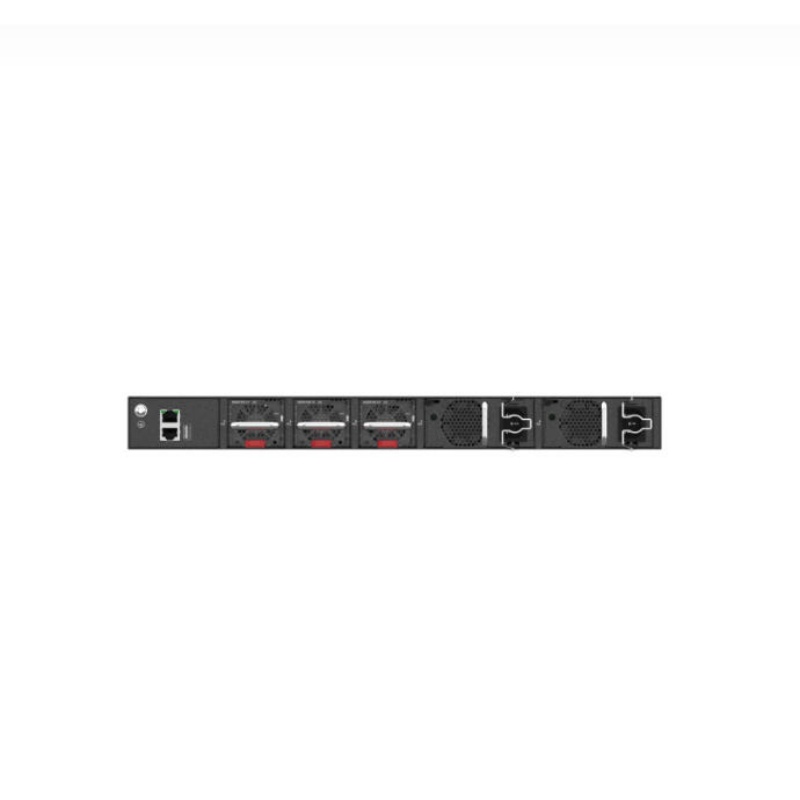

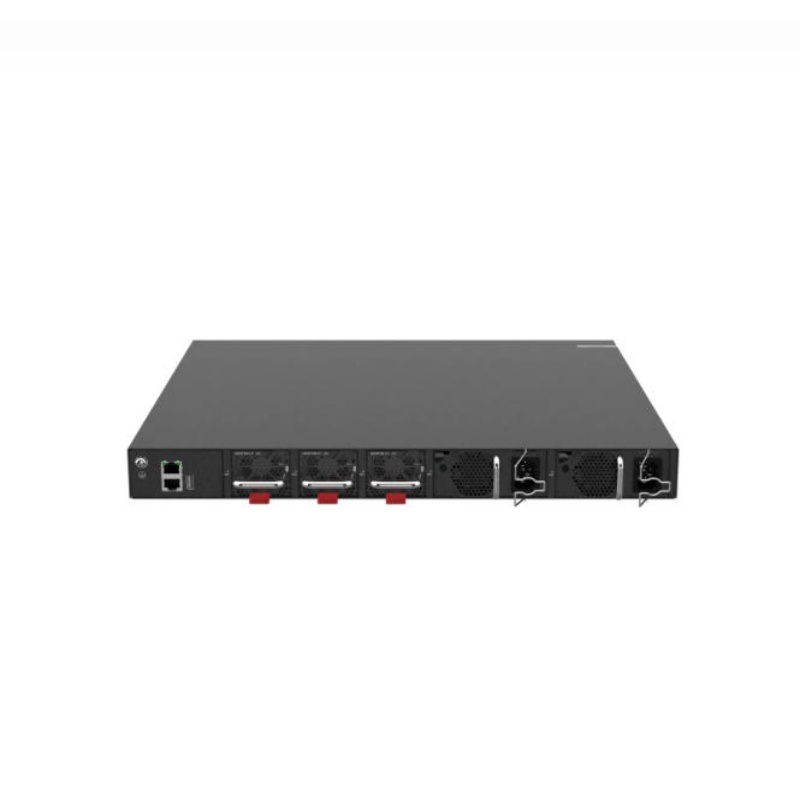

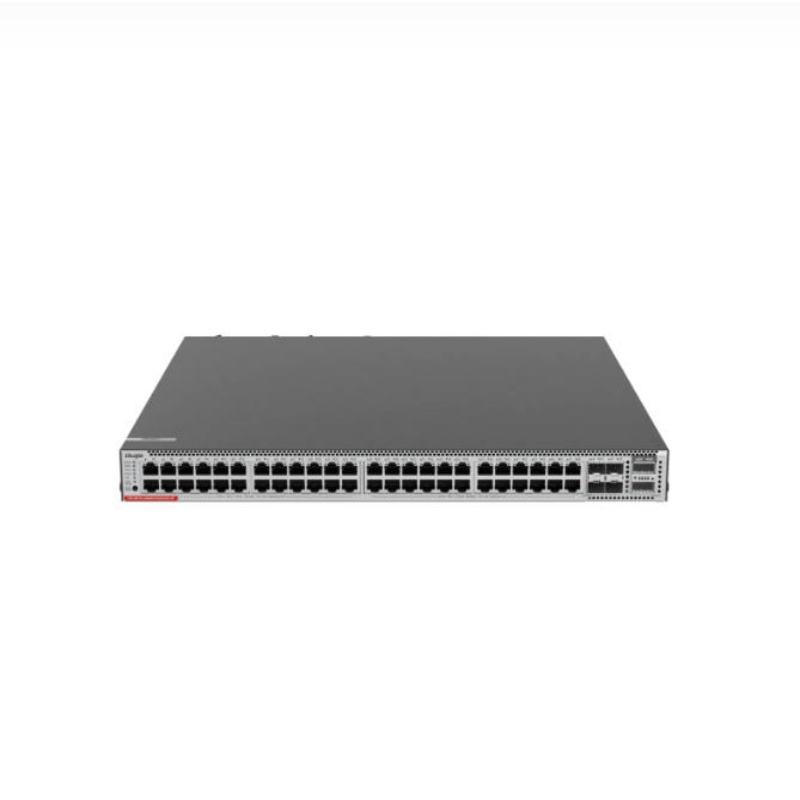

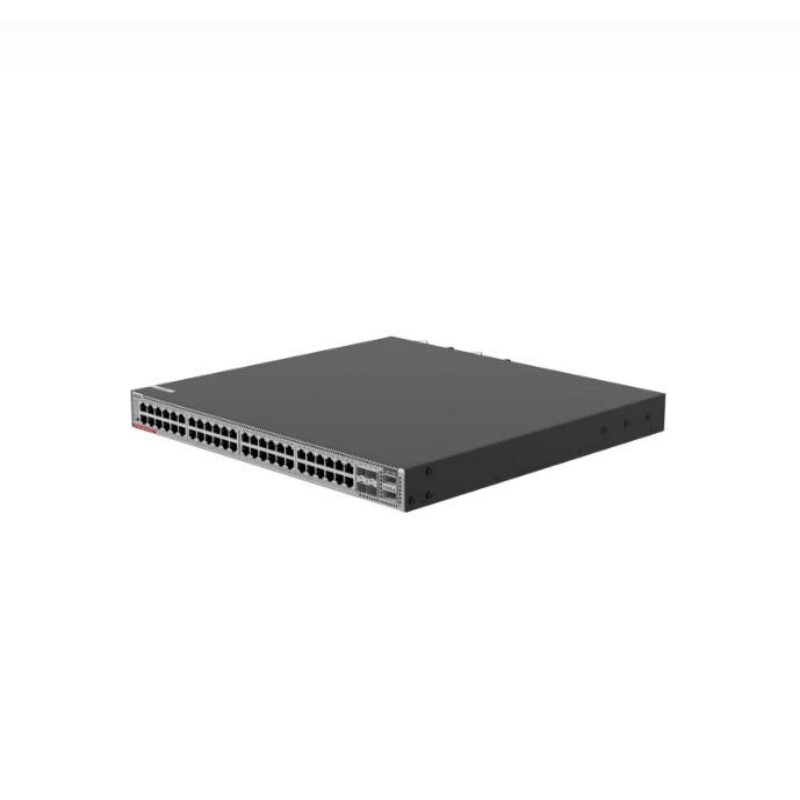

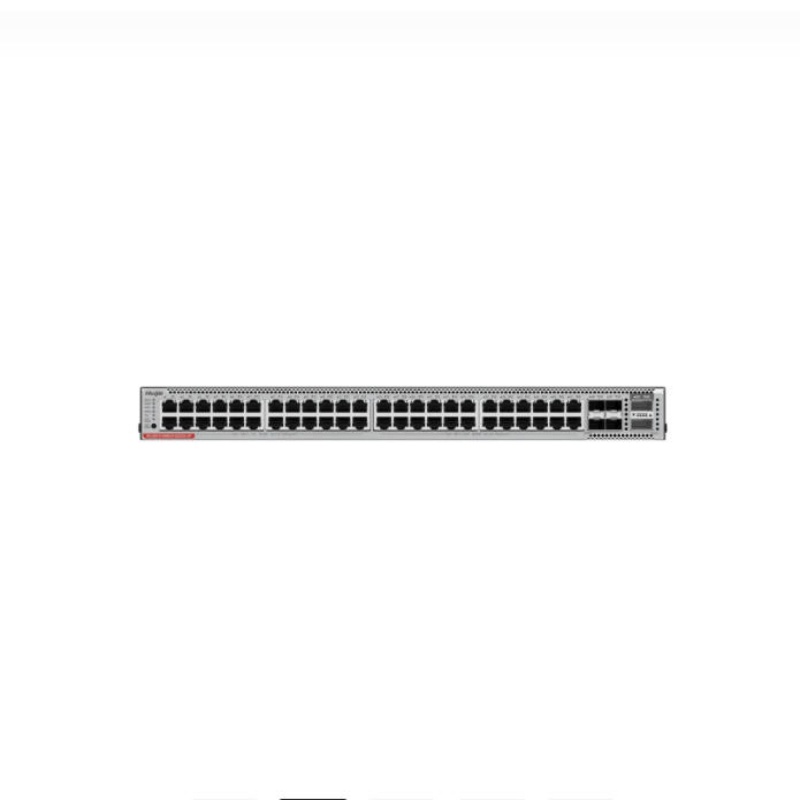

Ruijie RG-S6110-48MG4VS2QXS-UP 48-Port 5GE Managed Multi-GE Access Switches with 40GE uplink Ports

The Ruijie RG-S6110-48MG4VS2QXS-UP is a high-density multi-gigabit managed PoE switch designed for modern enterprise and high-performance network deployments. With 48 multi-gigabit access ports, it provides high-speed connectivity for Wi-Fi access points, workstations, IP phones, IP cameras, and other bandwidth-intensive network devices.

Its high-power PoE capability enables compatible devices to receive both data and power through a single Ethernet cable, helping simplify installation and reduce additional cabling requirements. This makes it particularly suitable for high-density Wi-Fi deployments, IP surveillance, IP telephony, and smart building applications.

The switch also provides high-speed uplink interfaces for connecting to aggregation switches, core networks, servers, and other network infrastructure. These high-bandwidth uplinks help reduce network bottlenecks and provide sufficient capacity for growing traffic and demanding applications.

The RG-S6110-48MG4VS2QXS-UP is well suited for enterprise offices, campus networks, education, commercial buildings, hotels, smart buildings, and other professional environments. Combining multi-gigabit access, high-power PoE, and high-speed uplink capabilities, it provides a scalable and reliable foundation for next-generation network infrastructure.

  • RG-S6110-48MG4VS2QXS-UP

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

The switch, expansion module, power module, and other components can be ordered as needed. Before ordering an expansion module or power module, contact the online customer service personnel for the latest support information about the module.

Switches and Power Modules

Model

Description

RG-S6110-24MG4VS-UP

24 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports

RG-S6120-24XMG4XS4VS-UP-H

24 x 100/1000/2.5G/5G/10GBASE-T ports, supporting PoE/PoE+/PoE++, 4 x 1GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports

RG-S6110-48MG4VS2QXS-UP

48 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports

RG-S6120-48XMG4VS2QXS-UP-H

48 x 100/1000/2.5G/5G/10GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module

Note:

  • 4x 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.

  • 4 x10GE/25GE SFP28 ports support 10GE SFP+ transceivers and 25GE SFP28 transceivers. All 10GE/25GE SFP28 ports must work at the same rate, either 25G or 10G.

  • 2 x 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.


Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.


10GE

Model

Description

XG-SFP-SR-MM850

10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF

XG-SFP-LR-SM1310

10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF

XG-SFP-ER-SM1550

10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF

XG-SFP-ZR-SM1550

10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF

XG-SFP-LR10-SM1270-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF

XG-SFP-LR10-SM1330-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

XG-SFP-AOC1M

10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers

XG-SFP-AOC3M

10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers

XG-SFP-AOC5M

10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


25GE

Model

Description

VG-SFP-SR-MM850

25GBASE-SR, SFP28 transceiver, 850 nm, Duplex LC, 100 m over OM4 MMF, 70 m over OM3 MMF

VG-SFP-AOC7M(M)

25GBASE, SFP28 active optical cable (AOC), 7 m, including one cable and two optical transceivers


40GE

Model

Description

40G-QSFP-LSR-MM850

40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF

40G-QSFP-LR4-SM1310

40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF

40G-QSFP-iLR4-SM1310

40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF

40G-QSFP-LX4-SM1310

40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF

40G-AOC-5M

40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S6110-48MG4VS2QXS-UP?
A: It is a high-density multi-gigabit managed PoE switch designed for enterprise, campus, and high-performance network deployments.

Q2: What devices can be powered by the RG-S6110-48MG4VS2QXS-UP?
A: It can provide PoE power to compatible devices such as Wi-Fi access points, IP cameras, IP phones, and other PoE-enabled network terminals.

Q3: What are the key advantages of its multi-gigabit ports?
A: Multi-gigabit ports provide higher network speeds for bandwidth-intensive devices, making the switch particularly suitable for Wi-Fi 6/6E access points and high-performance workstations.

Q4: What network environments is this switch suitable for?
A: It is ideal for enterprise offices, campus networks, high-density Wi-Fi deployments, surveillance systems, smart buildings, education, and commercial environments.

Q5: Does the RG-S6110-48MG4VS2QXS-UP support network expansion?
A: Yes. Its high-density multi-gigabit access ports, PoE capabilities, and high-speed uplinks provide sufficient bandwidth and flexibility for future network expansion.
