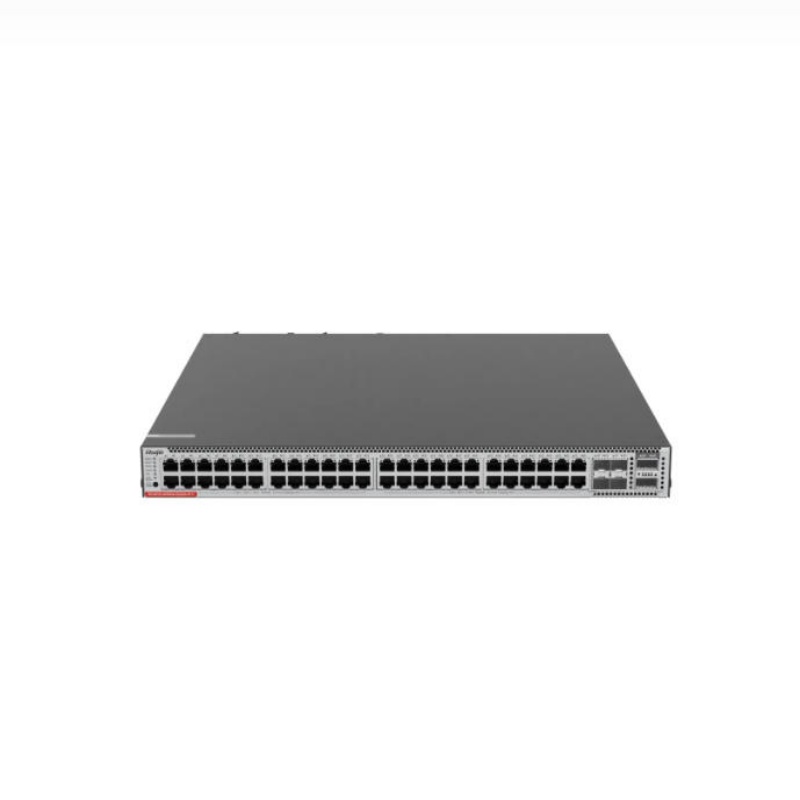

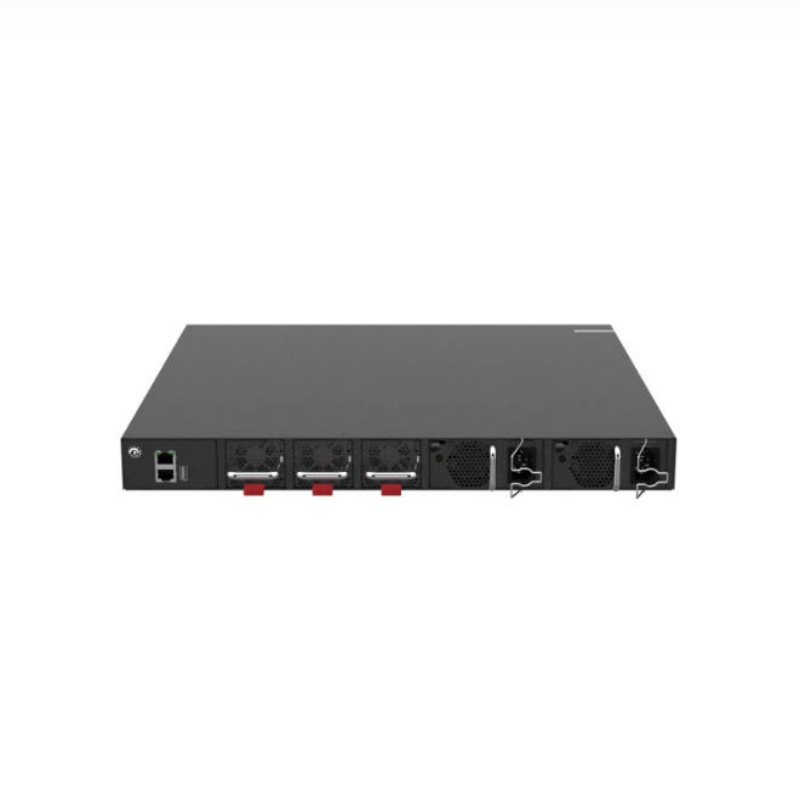

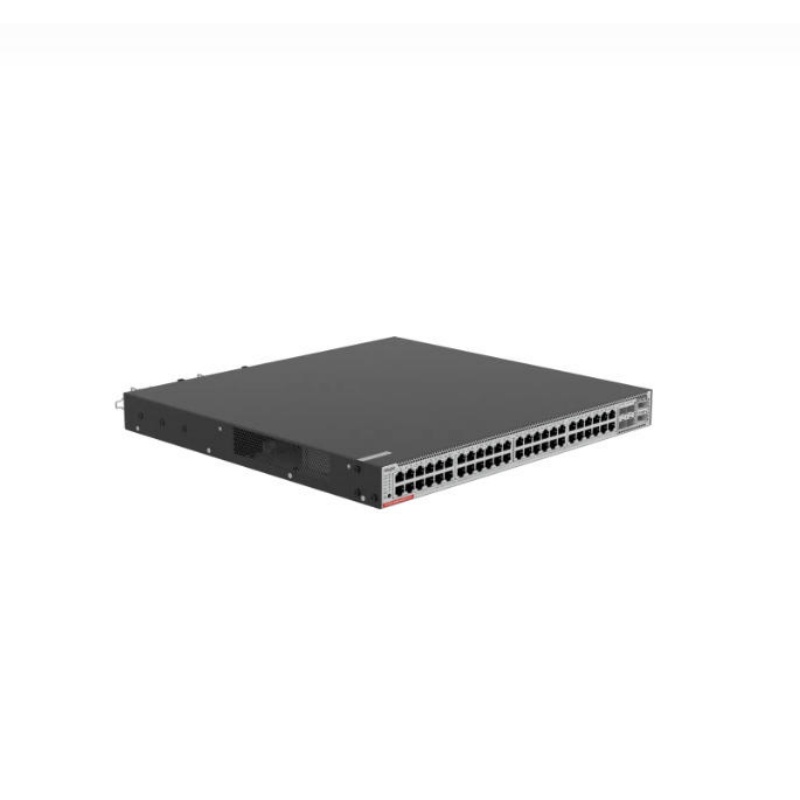

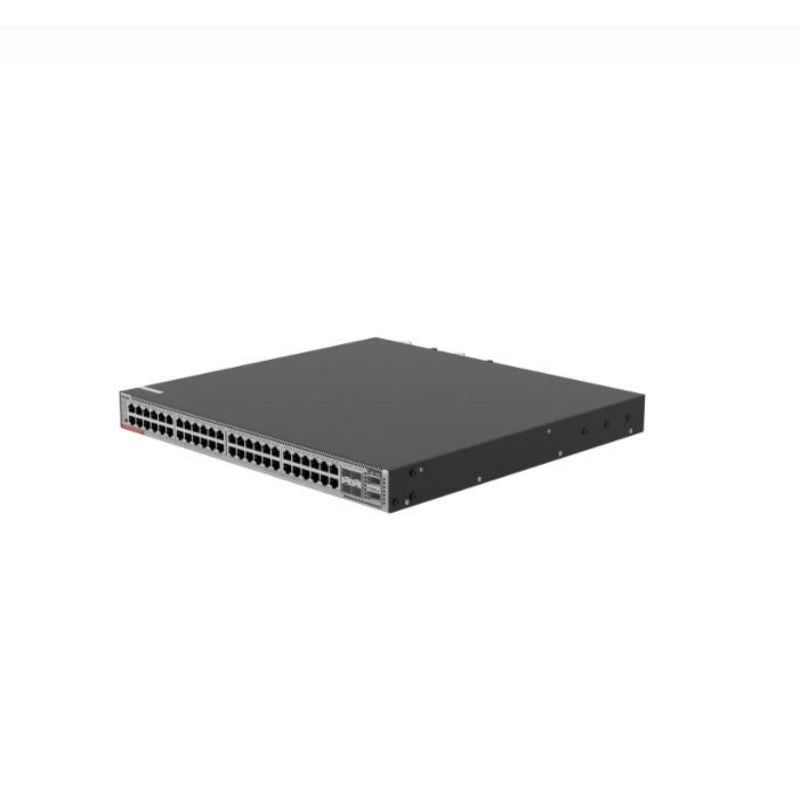

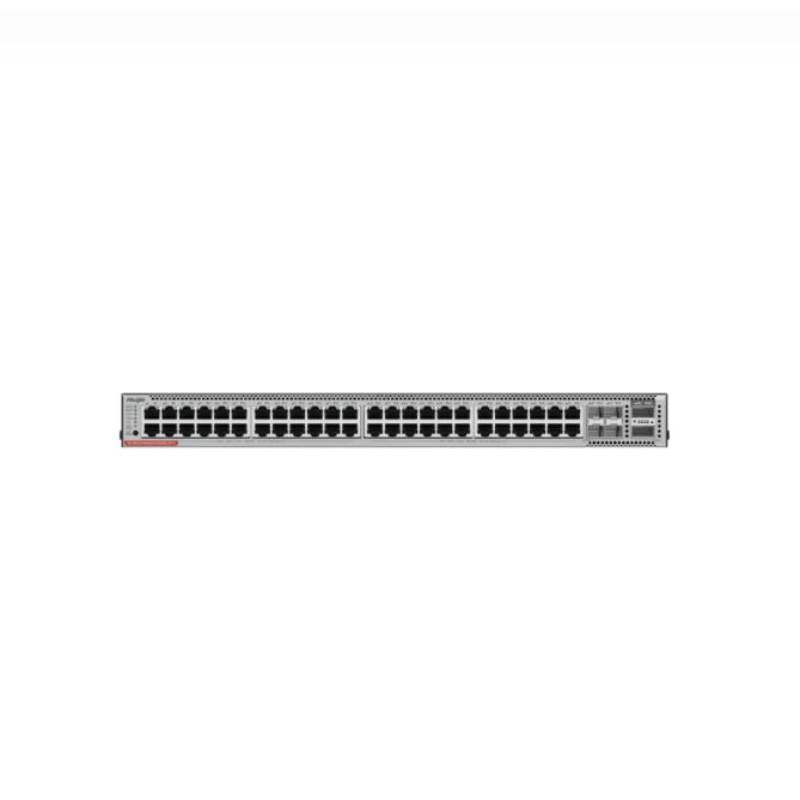

Ruijie RG-S6120-48XMG4VS2QXS-UP-H 48-Port 10GE Managed Multi-GE Access Switches with 40GE Uplink Ports

The Ruijie RG-S6120-48XMG4VS2QXS-UP-H is a high-density managed PoE switch designed to meet the growing bandwidth and connectivity requirements of modern enterprise networks. With 48 high-speed multi-gigabit access ports, it provides reliable connectivity for high-performance wireless access points, workstations, IP phones, IP cameras, and other network devices.

The switch is designed for high-density deployments where both network performance and power delivery are important. Its high-power PoE capability allows compatible devices to receive data and power through a single Ethernet cable, helping simplify installation and reduce the need for separate power infrastructure.

High-bandwidth uplink interfaces provide fast connections to aggregation switches, core networks, servers, and other network infrastructure. This helps support high-traffic applications and provides additional bandwidth for growing network requirements, making the switch well suited for next-generation enterprise and campus networks.

The RG-S6120-48XMG4VS2QXS-UP-H is ideal for enterprise offices, campus networks, schools, hotels, commercial buildings, smart buildings, high-density Wi-Fi deployments, and surveillance environments. Its combination of 48 high-speed access ports, high-power PoE, and high-bandwidth uplinks provides a scalable foundation for reliable and efficient network infrastructure.

For organizations upgrading their network infrastructure, this switch offers a practical solution for connecting large numbers of high-speed devices while supporting flexible network expansion. It is particularly suitable for Wi-Fi 6/6E deployments and other applications where increased bandwidth, stable connectivity, and efficient PoE delivery are required.

  • RG-S6120-48XMG4VS2QXS-UP-H

  • Ruijie

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

The switch, expansion module, power module, and other components can be ordered as needed. Before ordering an expansion module or power module, contact the online customer service personnel for the latest support information about the module.

Switches and Power Modules

Model

Description

RG-S6110-24MG4VS-UP

24 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports

RG-S6120-24XMG4XS4VS-UP-H

24 x 100/1000/2.5G/5G/10GBASE-T ports, supporting PoE/PoE+/PoE++, 4 x 1GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports

RG-S6110-48MG4VS2QXS-UP

48 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports

RG-S6120-48XMG4VS2QXS-UP-H

48 x 100/1000/2.5G/5G/10GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module

Note:

  • 4x 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.

  • 4 x10GE/25GE SFP28 ports support 10GE SFP+ transceivers and 25GE SFP28 transceivers. All 10GE/25GE SFP28 ports must work at the same rate, either 25G or 10G.

  • 2 x 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.


Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.


10GE

Model

Description

XG-SFP-SR-MM850

10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF

XG-SFP-LR-SM1310

10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF

XG-SFP-ER-SM1550

10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF

XG-SFP-ZR-SM1550

10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF

XG-SFP-LR10-SM1270-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF

XG-SFP-LR10-SM1330-BIDI-I

10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

XG-SFP-AOC1M

10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers

XG-SFP-AOC3M

10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers

XG-SFP-AOC5M

10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers


25GE

Model

Description

VG-SFP-SR-MM850

25GBASE-SR, SFP28 transceiver, 850 nm, Duplex LC, 100 m over OM4 MMF, 70 m over OM3 MMF

VG-SFP-AOC7M(M)

25GBASE, SFP28 active optical cable (AOC), 7 m, including one cable and two optical transceivers


40GE

Model

Description

40G-QSFP-LSR-MM850

40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF

40G-QSFP-LR4-SM1310

40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF

40G-QSFP-iLR4-SM1310

40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF

40G-QSFP-LX4-SM1310

40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF

40G-AOC-5M

40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q1: What type of switch is the RG-S6120-48XMG4VS2QXS-UP-H?
A: It is a high-density managed PoE switch designed for enterprise, campus, high-density Wi-Fi, and other bandwidth-intensive network environments.

Q2: What devices can be connected to this switch?
A: It is suitable for high-performance Wi-Fi access points, IP phones, IP cameras, workstations, IoT devices, and other compatible network terminals.

Q3: What are the main advantages of this switch?
A: Its key advantages include 48 high-speed access ports, high-power PoE, high-bandwidth uplinks, reliable connectivity, and flexible network expansion.

Q4: Is it suitable for Wi-Fi 6/6E deployments?
A: Yes. Its high-speed access and PoE capabilities make it well suited for high-density Wi-Fi 6/6E access point deployments and other bandwidth-intensive applications.

Q5: What network environments can use the RG-S6120-48XMG4VS2QXS-UP-H?
A: It is ideal for enterprise offices, campus networks, schools, hotels, commercial buildings, smart buildings, surveillance systems, and other professional network environments.
