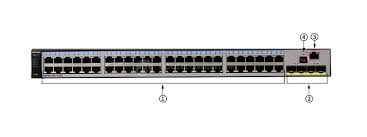

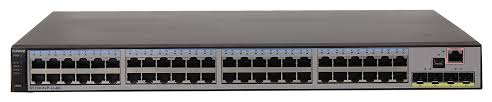

S5700-52P-LI-AC 48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V

Table 1 shows the Quick Specs.

Product Code

S5700-52P-LI-AC

Downlink Ports

48 x 10/100/1000 Base-T Ethernet Ports

Uplink Ports

4 x GE SFP Ports

MAC Address

16K

VLAN

4K

Forwarding Performance

78 Mpps

Switching Capacity

256 Gbit/s

Stack

Supported

Stack Ports

-V200R001: the last two uplink 1000Base-X optical ports

-V200R002 and later versions: four uplink 1000Base-X optical ports

Power

AC 110/220 V & RPS1800 redundant power supply

Heat Dissipation

Forced air cooling by Built-in fans

Memory (RAM)

256 MB

Flash

-V200R001: 64 MB

-V200R002 and later versions: 200 MB

Dimensions (W x D x H)

442.0mm × 310.0mm × 43.6mm

S5700-52P-LI-AC Specification

S5700-52P-LI-AC Specification
Manufacturer	Huawei
Manufacturer Part Number	S5700-52P-LI-AC
Form Factor	Fixed, Stackable
Switch Port	48 GE ports, 4 GE SFP ports
Power Over Ethernet (PoE)	Non-POE
Max Number of Stacks	48Gbps
DRAM Memory	256 MB
Flash Memory	32 MB
Performance
Forwarding performance	78 Mpps
MAC address table	IEEE 802.1d compliance
	16 K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4 K VLANs
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	E-Trunk
IP routing	Static routing, ECMP
IP routing	RIPv1, RIPv2 and RIPng
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination
	MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
