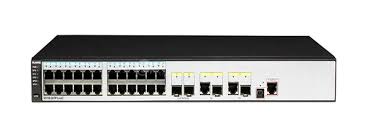

S5700S-28X-LI-AC
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
Table 1 shows the Quick Specs.
Note:① | Switch LEDs | ④ | 4 x 10G SFP+ Ethernet Optical Ports |
② | Mode Button | ⑤ | One Mini USB Port |
③ | 24 x 10/100/1000 BASE-T Ethernet Electrical Ports | ⑥ | One RJ45 Console Port |
·4 x 10G SFP+ Ethernet Optical Ports supports GE, GE-CWDM, GE-DWDM, 10GE SFP+, 10GE-CWDM optical modules, and GE cooper modules.
·Huawei S5700S-28X-LI-AC switch supports USB or RJ45 to console the device.
Table 2 shows the recommended GE optical transceivers.
Models | Description |
LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
SFP-GE-BXU1-SC | 1000Base,BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC) |
SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx) ,80km, LC) |
eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
Table 3 shows the comparison of Huawei S5700S-28X-LI-AC and S5700-28X-LI-24S-AC switch.
Models | S5700S-28X-LI-AC | S5700-28X-LI-24S-AC |
Downlink Ports | 24 x 10/100/1,000 Base-T Ethernet ports | 24 x GE SFP ports 4 x Combo 10/100/1,000 Base-T Ethernet ports |
Uplink Ports | 4 x 10 GE SFP+ ports | 4 x 10 GE SFP+ ports |
Power Supply | AC model, supporting RPS | AC model, supporting RPS |
Product Code | S5700S-28X-LI-AC |
Downlink Ports | 24 x Ethernet 10/100/1000 ports |
Uplink Ports | 4 x 10G SFP+ |
MAC Address | 16K |
VLAN | 4K |
Forwarding Performance | 96 Mpps |
Switching Capacity | 256 Gbit/s |
Stack | Supported |
Stack connection mode | Service port connection |
Power | AC 110/220V & RPS1800 redundant power supply |
Heat Dissipation | Forced air cooling by Built-in fans |
Installation mode | Rack mounting, desk mounting, wall mounting |
300-mm deep cabinet | Not Supported |
Dimensions (W x D x H) | 44.2 cm x 22 cm x 4.36 cm |
