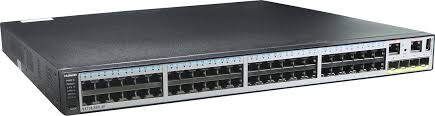

S5730-68C-SI-AC
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
S5730-68C-SI-AC Specification | |

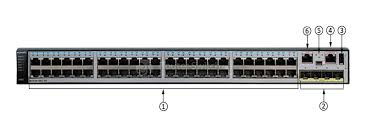

Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ |
MAC Address Table | 32K MAC |
Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm |
Slot | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card |
Forwarding performance | 240 Mpps |
Switching capacity | 680 Gbit/s |
Power Supply | Dual pluggable AC or DC power supplies, one 150W AC power supply equipped by default |
Input Voltage | AC: Rated AC voltage: 100V to 240V; 50/60 Hz Max AC voltage: 90V to 264V; 47 Hz to 63 Hz |
DC: Rated DC power: -48V to -60V Max DC voltage: -36V to -72V | |
Maximum Power Consumption | Without card: 65. 4W |
Typical Power Consumption (without PD) | Without card: 42.3W |
Operating Temperature | 0m to 1,800m altitude: 0°C to 45°C (long-term); -5°C to 50°C (short-term) |
Relative Humidity | 5% to 95% (non-condensing) |
Heat Dissipation | Heat dissipation using fans supporting intelligent speed adjustment |
Surge Protection | Surge protection capability of service ports: 7 kV |
MAC Address Table | IEEE 802.1d compliance |
32K MAC address entries | |
MAC address learning and aging | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
VLAN | 4094 VLANs |
Guest VLAN and voice VLAN | |
GVRP | |
MUX VLAN | |
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
1:1 and N:1 VLAN mapping | |
Reliability | RRPP ring topology and RRPP multi-instance |
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover | |
SEP | |
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
ERPS (G.8032) | |
BPDU protection, root protection, and loop protection | |
IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 |
Multicast | PIM DM, PIM SM, and PIM SSM |
IGMP v1/v2/v3 and IGMP v1/v2/v3 snooping and IGMP fast leave | |
MLD v1/v2 and MLD v1/v2 snooping | |
Multicast forwarding in a VLAN and multicast replication between VLANs | |
Multicast load balancing among member ports of a trunk | |
Controllable multicast | |
Port-based multicast traffic statistics | |
IPv6 Features | Neighbor Discovery (ND) |
Path MTU (PMTU) | |
IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
QoS/ACL | Rate limiting on packets sent and received by a port |
Packet redirection | |
Port-based traffic policing and two-rate three-color CAR | |
Eight queues on each port | |
WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms | |
Re-marking of the 802.1p priority and DSCP priority | |
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID | |
Rate limiting in each queue and traffic shaping on ports | |
Security | Hierarchical user management and password protection |
DoS attack defense, ARP attack defense, and ICMP attack defense | |
Binding of the IP address, MAC address, port number, and VLAN ID | |
Port isolation, port security, and sticky MAC | |
MFF | |
Blackhole MAC address entries | |
Limit on the number of learned MAC addresses | |
IEEE 802.1x authentication and limit on the number of users on a port | |
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
SSH v2.0 | |
HTTPS | |
CPU defense | |
Blacklist and whitelist | |
IEEE 802.1x authentication, MAC address authentication, and Portal authentication | |
DHCPv4/v6 client/relay/server/snooping | |
Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets | |
SVF | Plug-and-play SVF client |
Automatic software and patch loading to clients | |
One-click and automatic delivery of service configurations | |
Independent client running | |
OAM | Software OAM |
EFM OAM | |
CFM OAM | |
Y.1731 performance test | |
Management and Maintenance | iStack (using service ports as stack ports) |
Virtual cable test | |
SNMP v1/v2c/v3 | |
RMON | |
Web-based NMS | |
System logs and alarms of different levels | |
802.3az EEE | |
sFlow | |
Intelligent O&M | |
Interoperability | Supports VBST (compatible with PVST/PVST+/RPVST) |
Supports LNP (similar to DTP) | |
Supports VCMP (similar to VTP) | |
