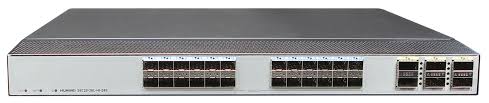

S6720-30L-HI-24S-AC Huawei S6720 Switch with 24 10GE SFP+ ports

Item

Description

Memory (RAM)

2 GB

Flash

1 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

61.42 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

NA

Power supply surge protection

• Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

• Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

• Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 445.6 mm (1.72 in. x 17.4 in. x 17.54 in.)

Stack ports

• Any 10GE SFP+ ports (a maximum of 16 physical ports)

• Any 40GE QSFP+ ports (a maximum of 6 physical ports)

• Any 100GE QSFP28 ports (a maximum of 2 physical ports)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

232 W

Typical power consumption (30% of traffic load, tested according to ATIS standard)

138 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 65 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

• EMC certification

• Safety certification

• Manufacturing certification
