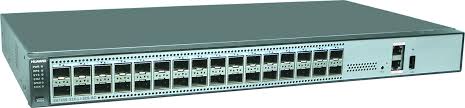

S6720S-32X-LI-32S-AC
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
S6720S-32X-LI-32S-AC Specification | |
Fixed port | 32x10GE SFP+ |
Forwarding performance | 240 Mpps |
Typical power consumption | 71.8W |
Extended slot | Not supported |
MAC address table | 32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
VLAN features | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN Mapping Basic QinQ and selective QinQ |
IPv4 routing | Static routing, RIP, and OSPF VRRP Policy-based routing Routing policies |
IPv6 routing | Static routing RIPng OSPFv3 |
IPv6 features | Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay |
Multicast | IGMPv1/v2/v3 snooping Fast leave IGMP snooping proxy Multicast Listener Discovery (MLD) snooping Port-based multicast traffic suppression Inter-VLAN multicast replication, Controllable multicast |
QoS/ACL | Traffic classification based on ACLs Traffic classification based on outer 802.1p fields, outer VL AN IDs, Access control after traffic classification Traffic policing based on traffic classifiers Re-marking based on traffic classifiers Class-based packet queuing Associating traffic classifiers with traffic behaviors Rate limiting on inbound and outbound ports Traffic shaping based on ports and queues Tail drop Priority Queuing (PQ) Deficit Round Robin (DRR) PQ + DRR scheduling Weighted Round Robin (WRR) PQ + WRR scheduling |
Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) Enhanced trunk (E-trunk) |
Security features | Defense against DoS, ARP, and ICMP attacks Binding of the IP address, MAC address, port number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC-Forced Forwarding (MACFF) Limit on the number of learned MAC addresses IEEE 802.1X authentication and the limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC CPU defense |
Super Virtual Fabric (SVF) | SVF Client |
Management and | iStack (using service ports as stack ports) Virtual Cable Test (VCT) Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) SNMPv1/v2/v3 RMON Web-based network management system and relevant features System logs and multi-level alarms GVRP MUX VLAN sFlow SSH2 HTTPS |
Operating environment | Working temperature: 0 m–1800 m, 0°C–45°C; 1800 m–5000 m, the highest operating |
Input AC voltage | AC: |
Dimensions | 420 (W)×220 (W)×43.6 (H) |
