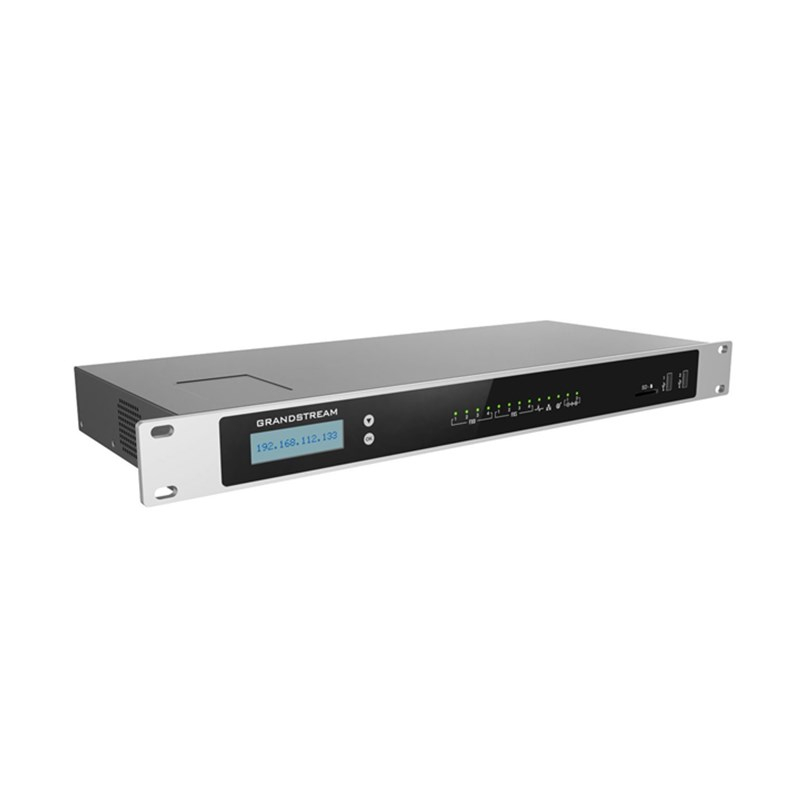

UCM6304
Grandstream
Original New
1 year
| Quantity: | |
|---|---|
Unified Communication & Collaboration Solution
UCM6300 series
The UCM6300 series allows businesses to build powerful and scalable unified communication and collaboration solutions. This series of IP PBXs provide a platform that unifies all business communication on one centralized network, including voice, video calling, video conferencing, video surveillance, web meetings, data, analytics, mobility, facility access, intercoms and more. The UCM6300 series supports up to 3000 users and includes a built-in web meetings and video conferencing solution that allows employees to connect from the desktop, mobile, GVC series devices and IP phones. It can be paired with the UCM6300 ecosystem to offer a hybrid platform that combines the control of an on-premise IP PBX with the remote access of a cloud solution.
| UCM6304 | |

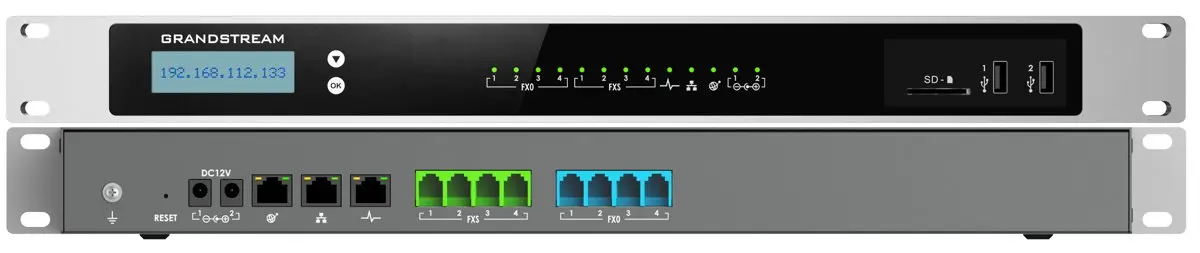

| Analog Telephone FXS Ports | 4 RJ11 Ports |
| All ports have lifeline capability in case of power outage | |
| PSTN Line FXO Ports | 4 RJ11 Ports |
| All ports have lifeline capability in case of power outage | |
| Network Interfaces | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ |
| NAT Router | Yes (supports router mode and switch mode) |
| Peripheral Ports | 2*USB 3.0, 1*SD card interface |
| LED Indicators | Power 1/2, FXS, FXO, LAN, WAN, Heartbeat |
| LCD Display | 128x32 dot matrix graphic LCD with DOWN and OK buttons |
| Reset Switch | Yes, long press for factory reset and short press for reboot |
| Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss |
| Voice and Fax Codecs | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 |
| Video Codecs | H.264, H.263, H263+, H.265, VP8 |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| API | Full API available for third-party platform and application integration |
| Telephony Operating System | Based on Asterisk version 16 |
| DTMF Methods | n-band audio, RFC2833, and SIP INFO |
| Provisioning Protocol & Plug-and-Play | Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
| Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN |
| Disconnect Methods | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect |
| Media Encryption | SRTP, TLS, HTTPS, SSH, 802.1X |
| Universal Power Supply | 2x DC 12V Power Jack Input: 100~240VAC, 50/60Hz;Output: DC 12V, 2A |
| Dimensions | 485mm(L) x 187.2mm(W) x 46.2mm(H) |
| Weight | Unit Weight: 2490g; Package Weight: 3260g |
| Temperature & Humidity | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) |
| Mounting | Rack mount & Desktop |
| Multi-Language Support | -Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech,Turkish -Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands -Customizable language pack to support any other languages |
| Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT |
| Polarity Reversal/Wink | Yes, with enable/disable option upon call establishment and termination |
| Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement |
| Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages |
| Maximum Call Capacity | Users: 2000 Concurrent calls (G.711): 300 Max concurrent SRTP calls (G.711): 200 |
| Maximum Attendees of Conference Bridges | 4 Video Conference rooms and up to 40 parties with 1080p, assuming 4 video feeds + 1 screen sharing (H.264 & G.711) Voice Conference: Up to 200 parties (G.711) |
| Wave Mobile App | Allows Android & iOS users to join UCM-hosted meetings & communicate with other users/solutions registered to the UCM6300 |
| Call Features | Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control |
| Firmware Upgrade | Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products |
| Compliance | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21 IC: ICES-003, CS-03 Part I Issue 9 RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2 Power adapter: UL 60950-1 or UL 62368-1 |
