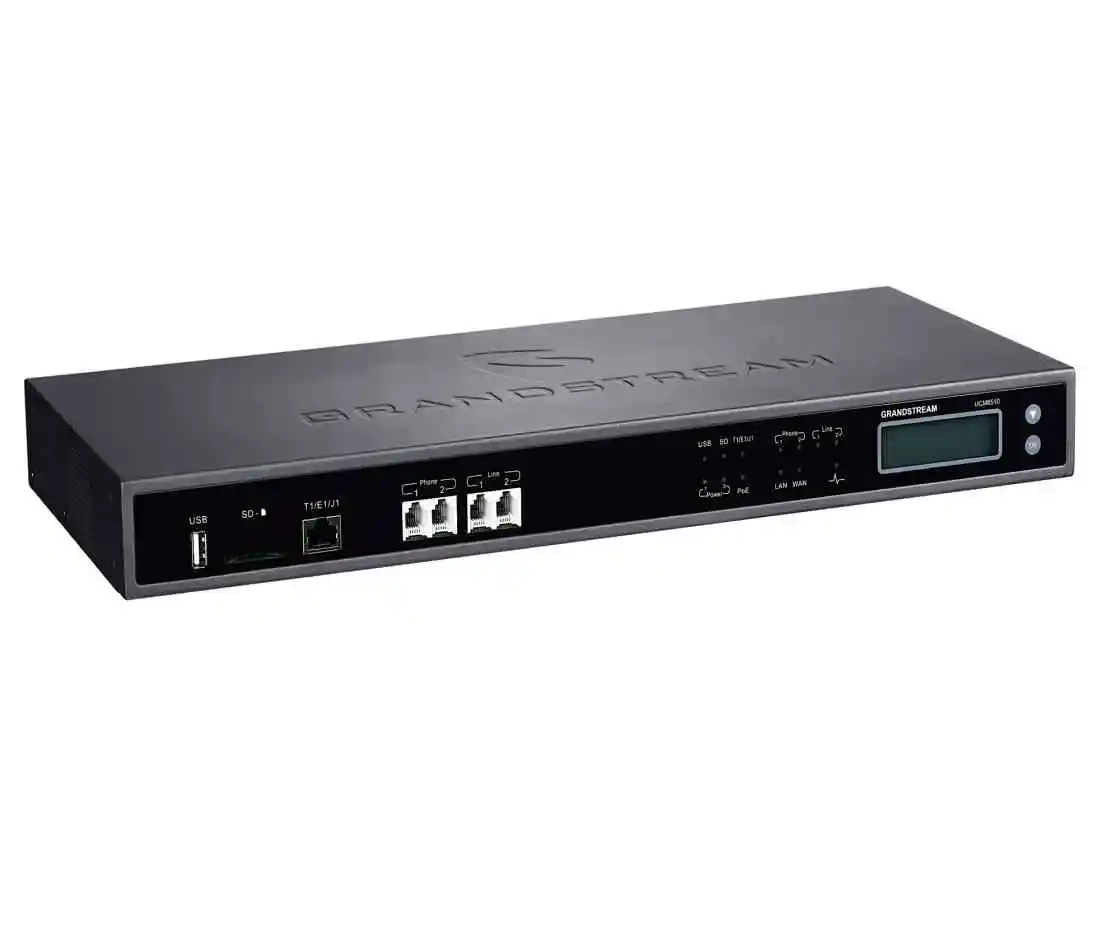

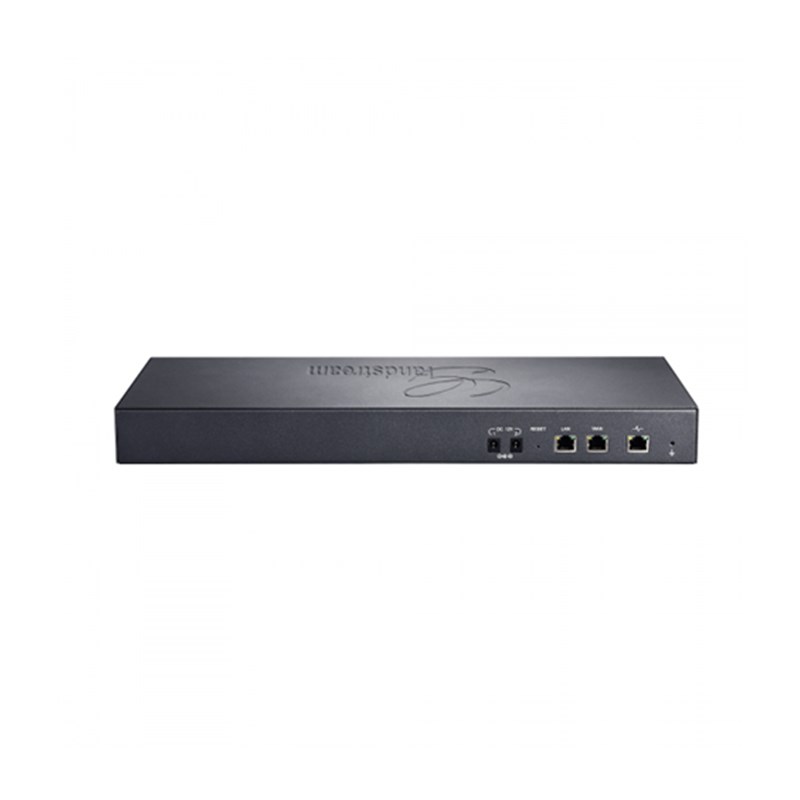

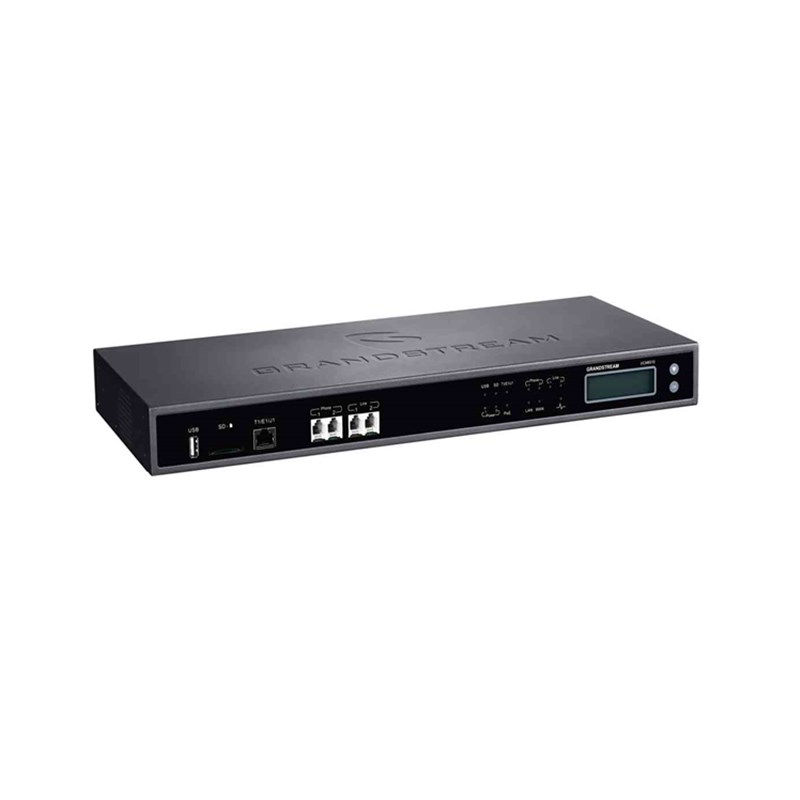

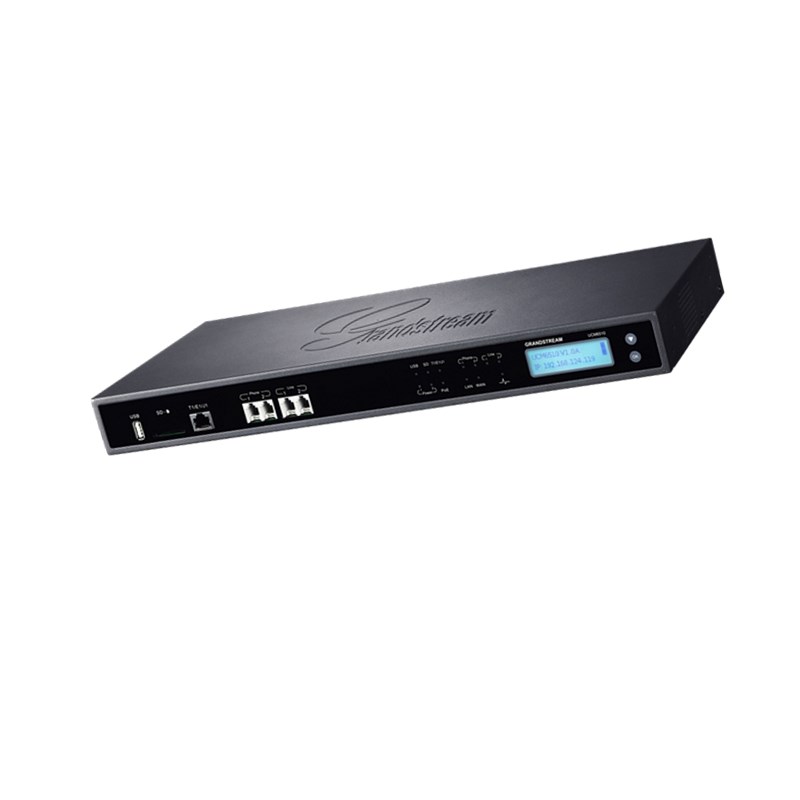

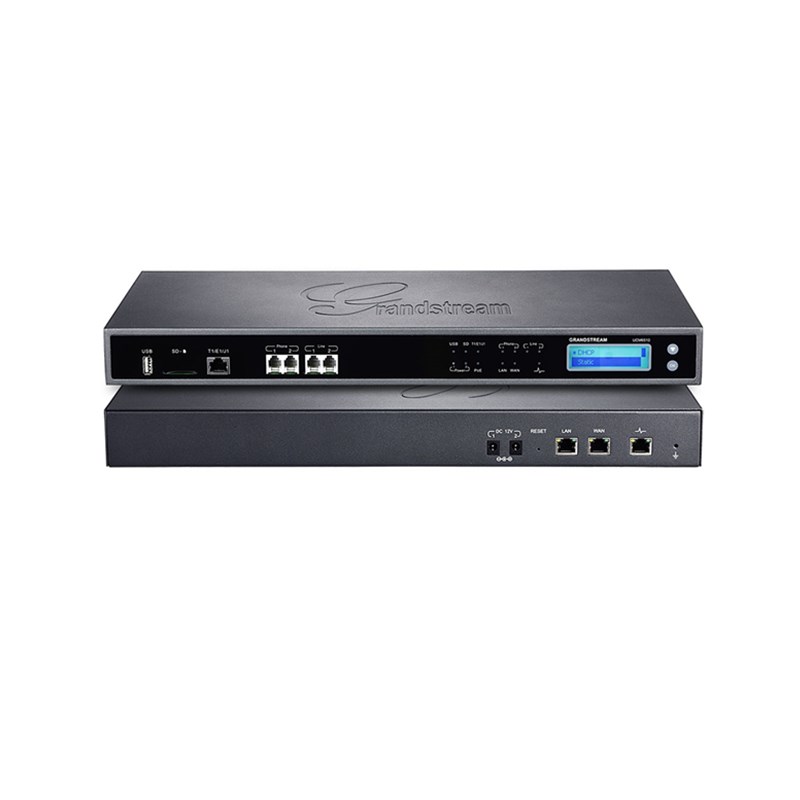

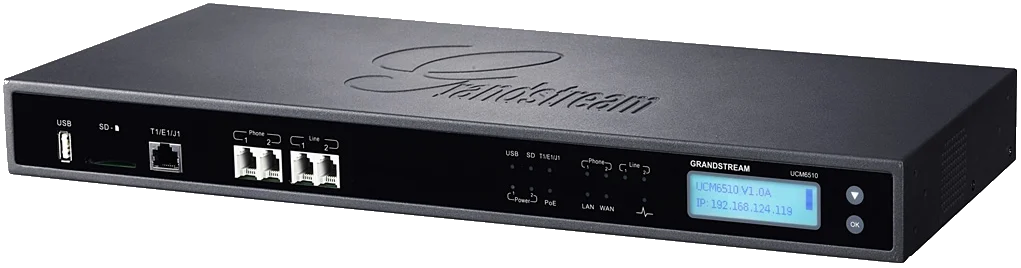

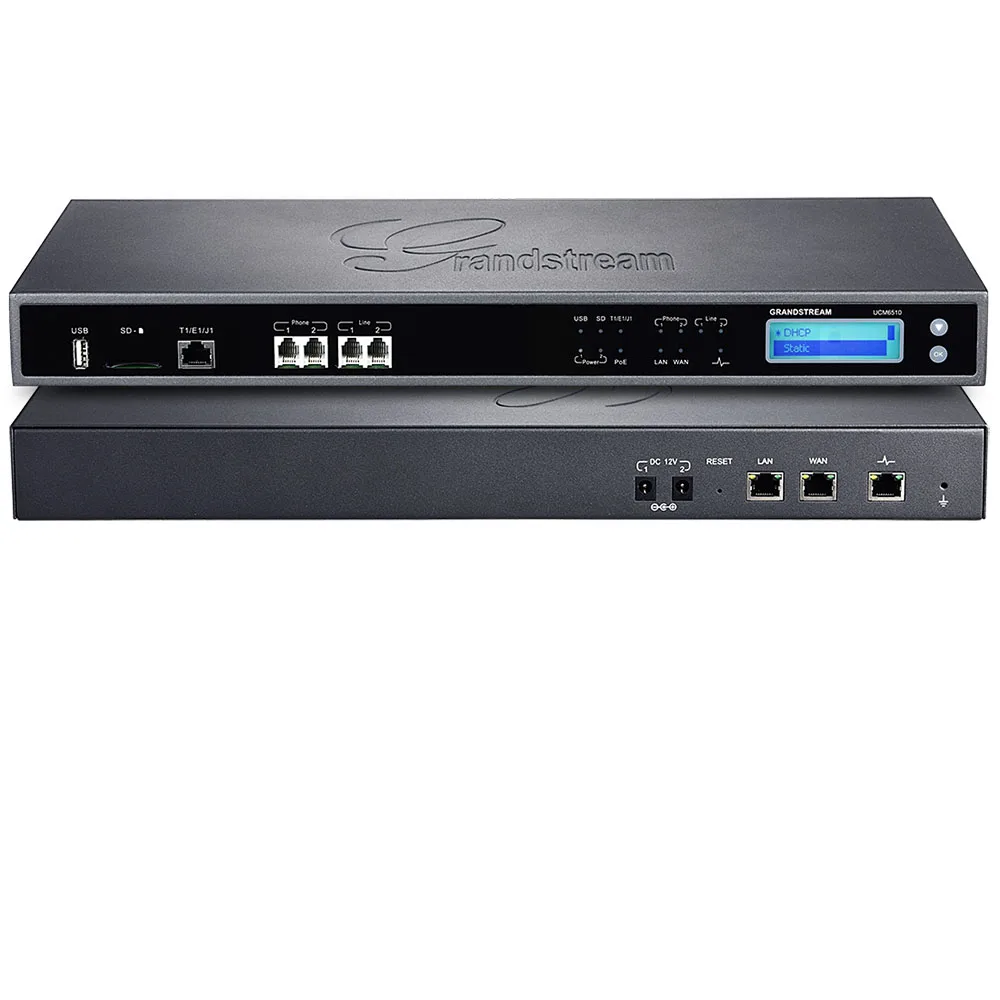

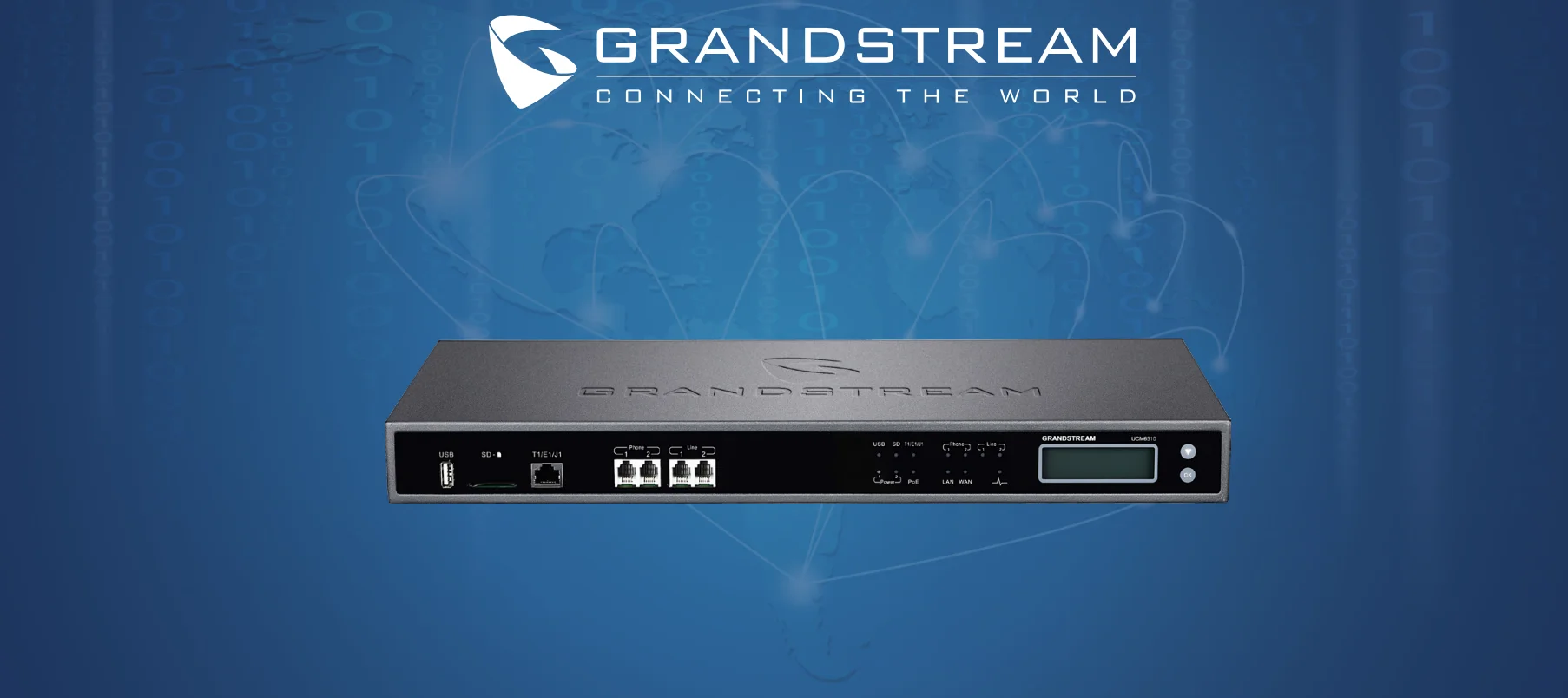

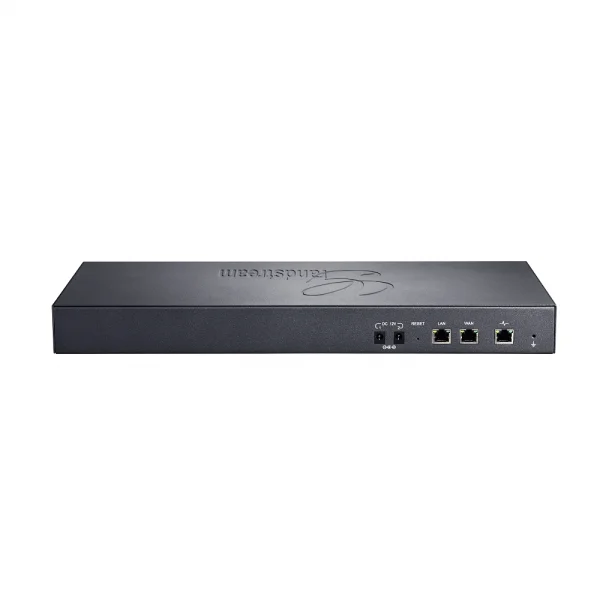

UCM6500
Grandstream
Original New
1 year
| Quantity: | |
|---|---|
| UCM6500 | |
| Interfaces | |
| Analog Telephone FXS Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
| PSTN Line FXO Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
| T1/E1/J1 Interface | 1 RJ45 port |
| Network Interfaces | Dual Gigabit ports (switched or routed) with PoE+ |
| NAT Router | Yes (user configurable) |
| Peripheral Ports | USB, SD |
| LED Indicators | Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN |
| LCD Display | 128x32 dot matrix graphic LCD with DOWN and OK buttons |
| Reset Switch | Yes, long press for factory reset and short press for reboot |
| Voice/Video Capabilities | |
| Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dyna-mic Jitter Buffer, Modem detection & auto-switch to G.711 |
| Voice and Fax Codecs | G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
| Video Codecs | H.264, H.263, H263+ |
| QoS | Layer 3 QoS, Layer 2 QoS |
| Signaling & Control | |
| DTMF Methods | In Audio, RFC2833, and SIP INFO |
| Digital Signaling | TPRI, SS7, MFC/R2, RBS (pending) |
| Provisioning Protocol & Plug-and-Play | TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
| Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending) |
| Disconnect Methods | Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
| Security | |
| Media Encryption | SRTP, TLS, HTTPS, SSH |
| Advanced Defense | Fail2ban, alert events, Whitelist, Blacklist, strong password based access control |
| Physical | |
| Universal Power Supply | Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A |
| Physical | Unit Weight: 2.165 kg; Package Weight: 3.012 kg |
| Dimensions | 440mm(L) x 185mm(W) x 44mm(H) |
| Environmental | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) |
| Mounting | Rack mount & Desktop |
| Additional Features | |
| Multi-Language Support | English/Simplified Chinese/Traditional Chinese/Spanish/French/Portuguese/German/Russian/Italian/ Polish/Czech for Web UI; Customizable IVR/voice prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic; Custo mizable language pack to support any other languages |
| Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT |
| Polarity Reversal/Wink | Yes, with enable/disable option upon call establishment and termination |
| Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement |
| Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |

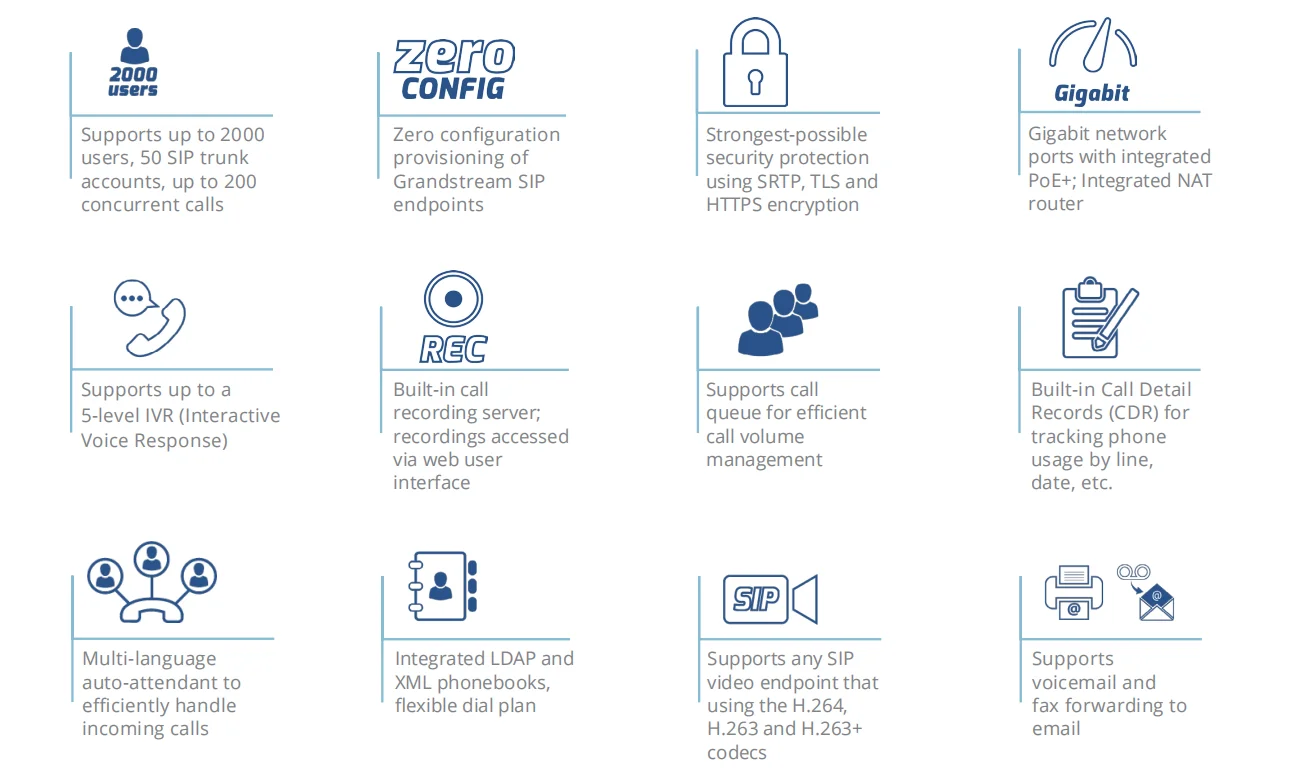

| Maximum Call Capacity | Up to 2000 registered SIP endpoints, up to 200 concurrent calls |
| Conference Bridges | Up to 8 bridges, up to 64 simultaneous conference attendees |
| Call Features | Call park, call forward, call transfer, DND, DISA, ring group, pickup group, blacklist, paging/intercom etc. |
| Compliance | FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS RCM: AS/NZS CISPR 22, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002 ITU-T K.21 (Basic Level); UL 60950 (power adapter) T1: TIA-968-B Section 5.2.4 E1: TBR4/TBR12/TBR13, E1: AS/ACIF |
