UA-G3-SK-Pro
Ubiquiti
Original New
1 year
| Quantity: | |
|---|---|
Item | Specification |
|---|---|
Product Name | UniFi Access G3 Starter Kit Pro |
Model | UA-G3-SK-Pro |
Brand | Ubiquiti |

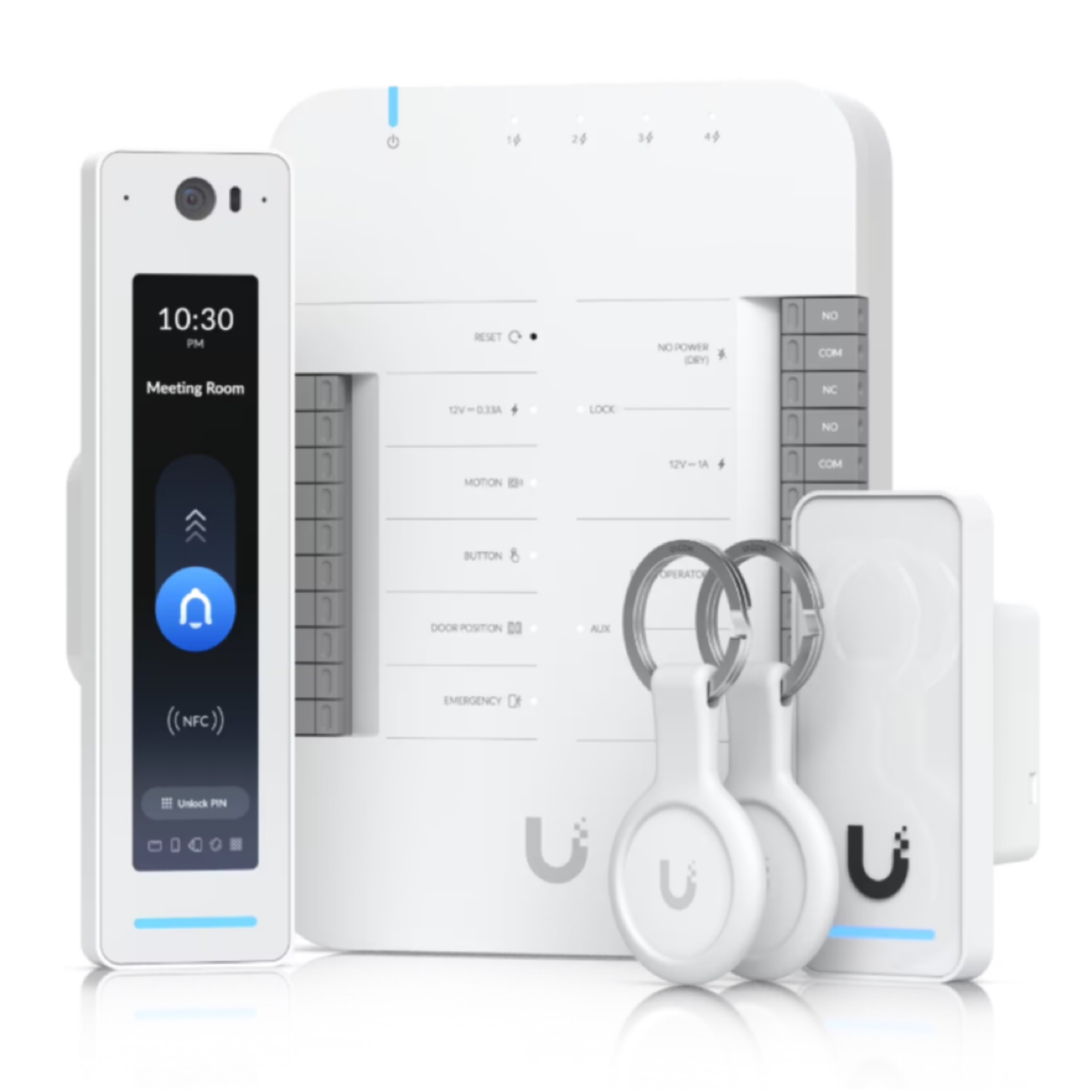

Kit Contents | 1× Door Hub, 1× G3 Reader Pro, 1× G3 Reader, 2× Pocket Keyfobs, 10 free 1-year Touch Pass licenses |
Supported Door | Single door entry & exit control |
Max. Supported Users | 6,000 |

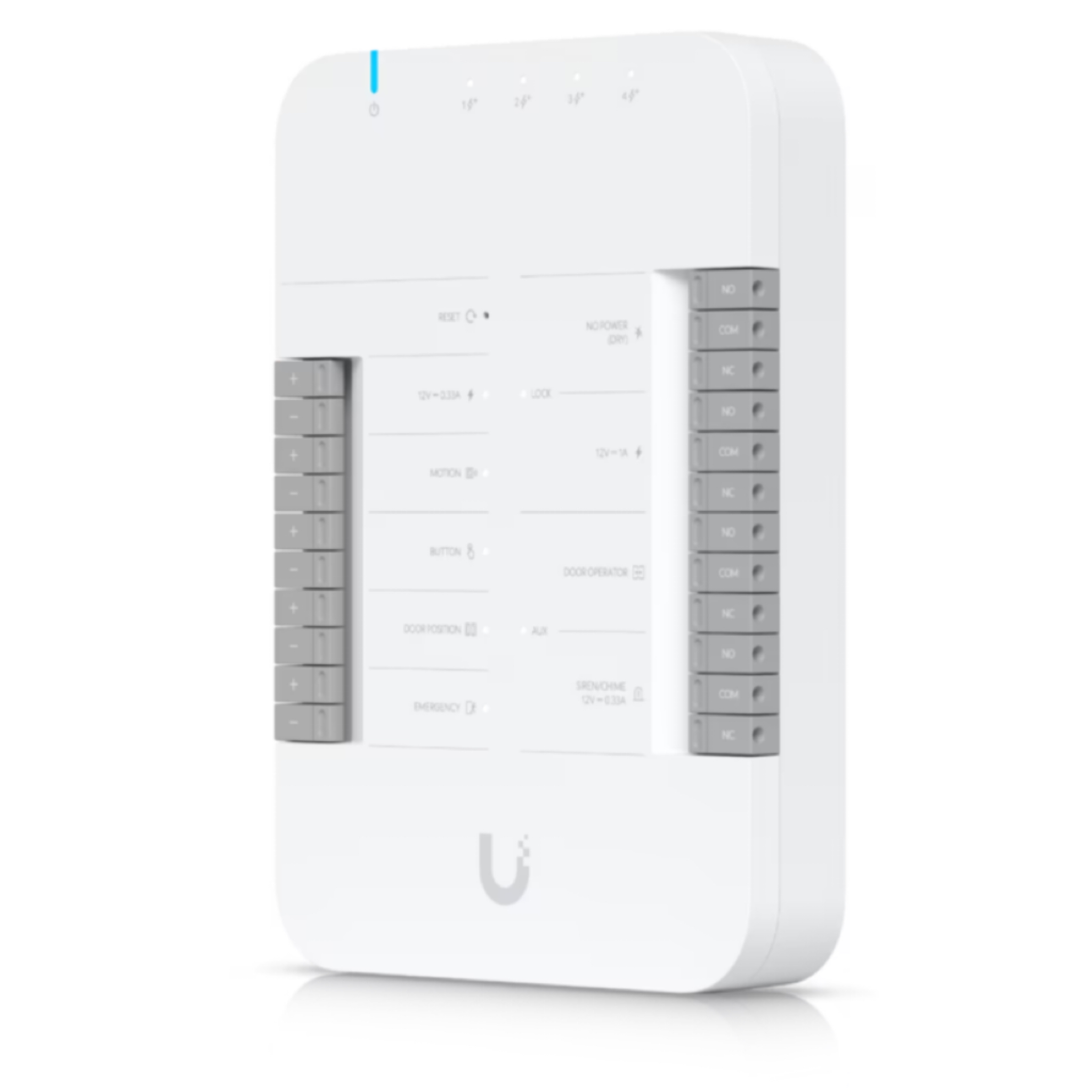

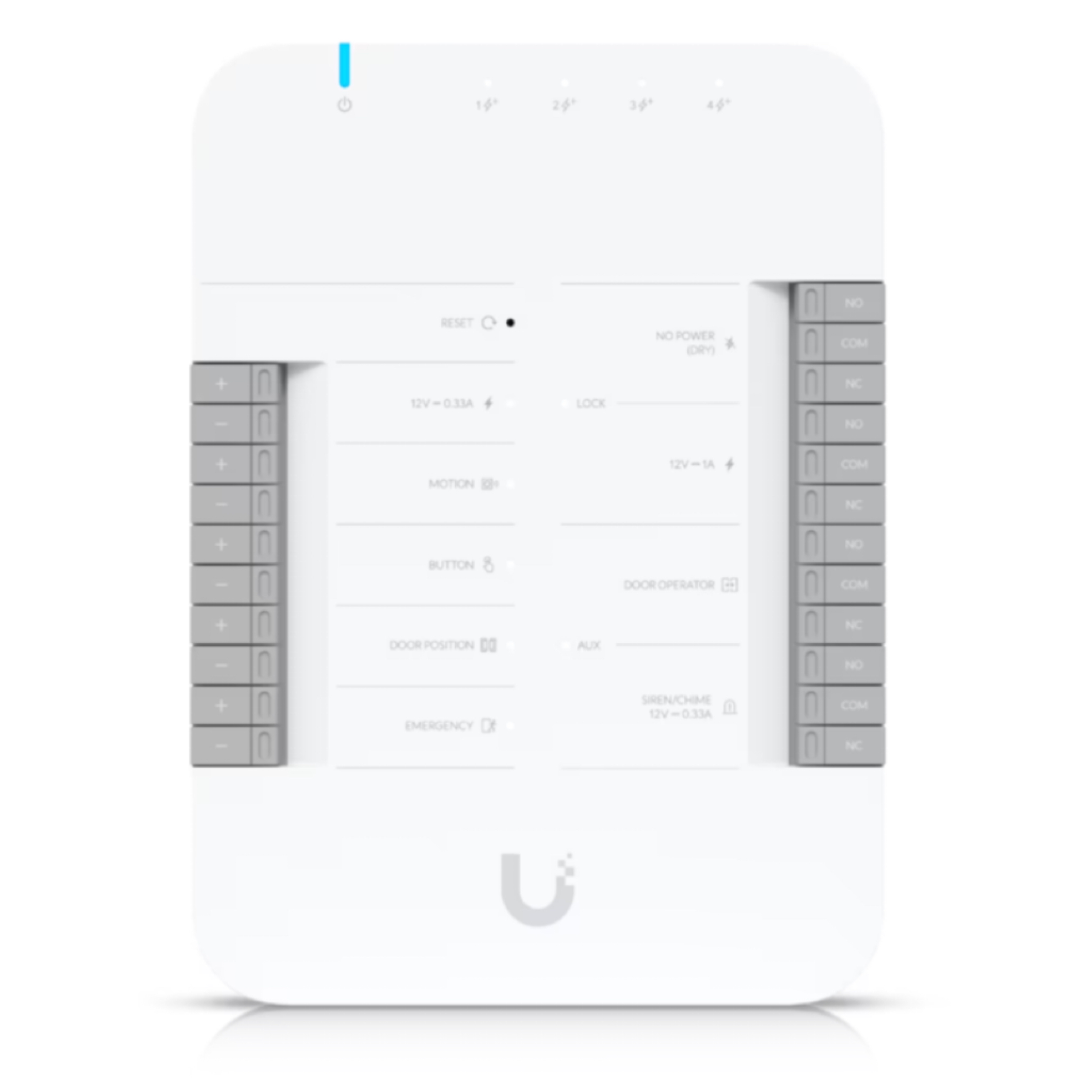

Door Hub | |
Ethernet Ports | 5× 10/100/1000 Mbps RJ45 |
PoE Input | PoE++, 50V DC, 1A |
PoE Output | 4× PoE ports, 50V DC, max 45W aggregated |
Max Power Consumption | 30W (without PoE output); 50W (with PoE output) |
Relay Output | Dry relay: Lock 30V DC 1A, Aux 30V DC 1A Powered relay: Lock 12V DC 1A, Aux 12V DC 0.33A |
Digital Input | Door exit request, door position sensor, emergency input |
Dimensions | 174.9 × 126 × 32.9 mm |
Weight | 363 g |

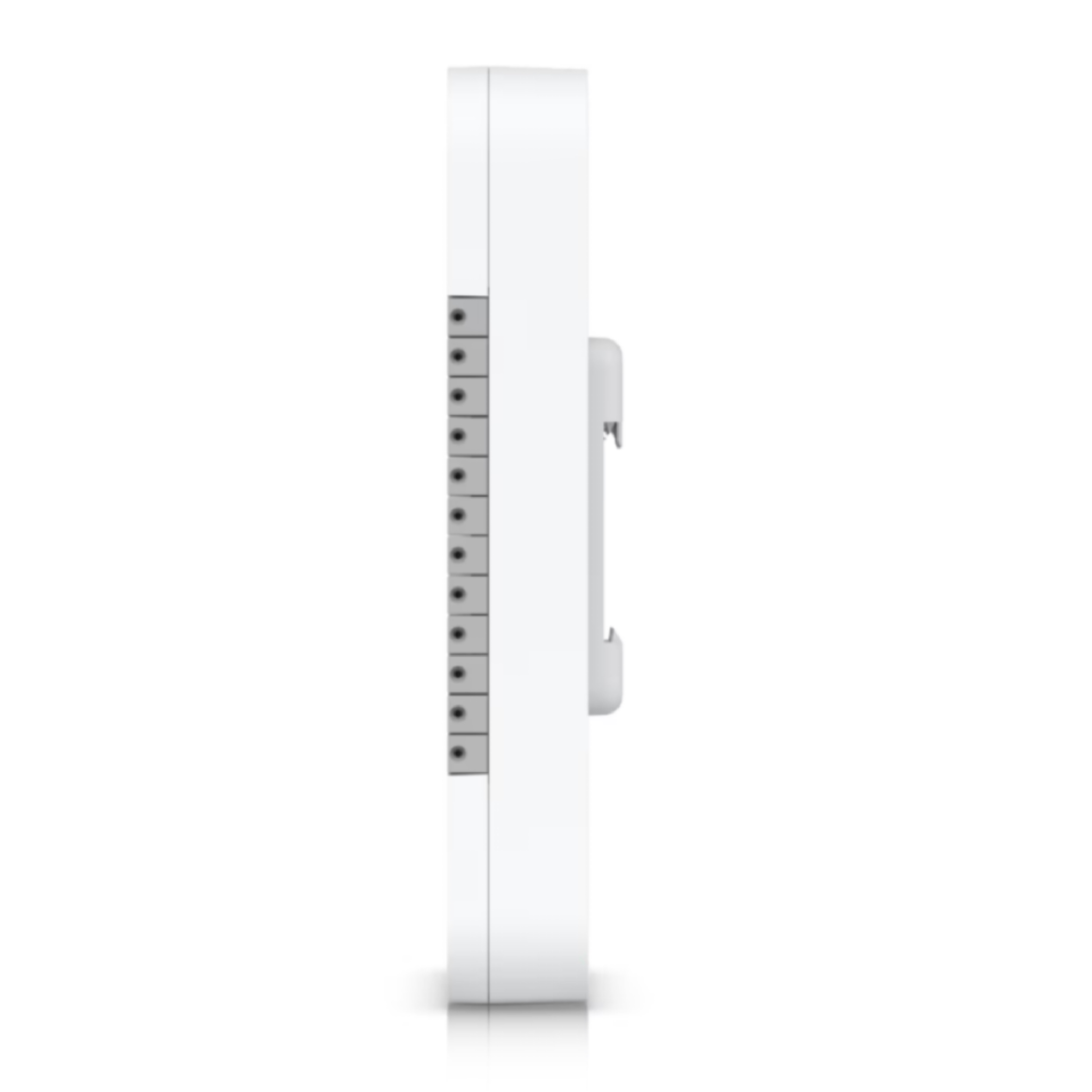

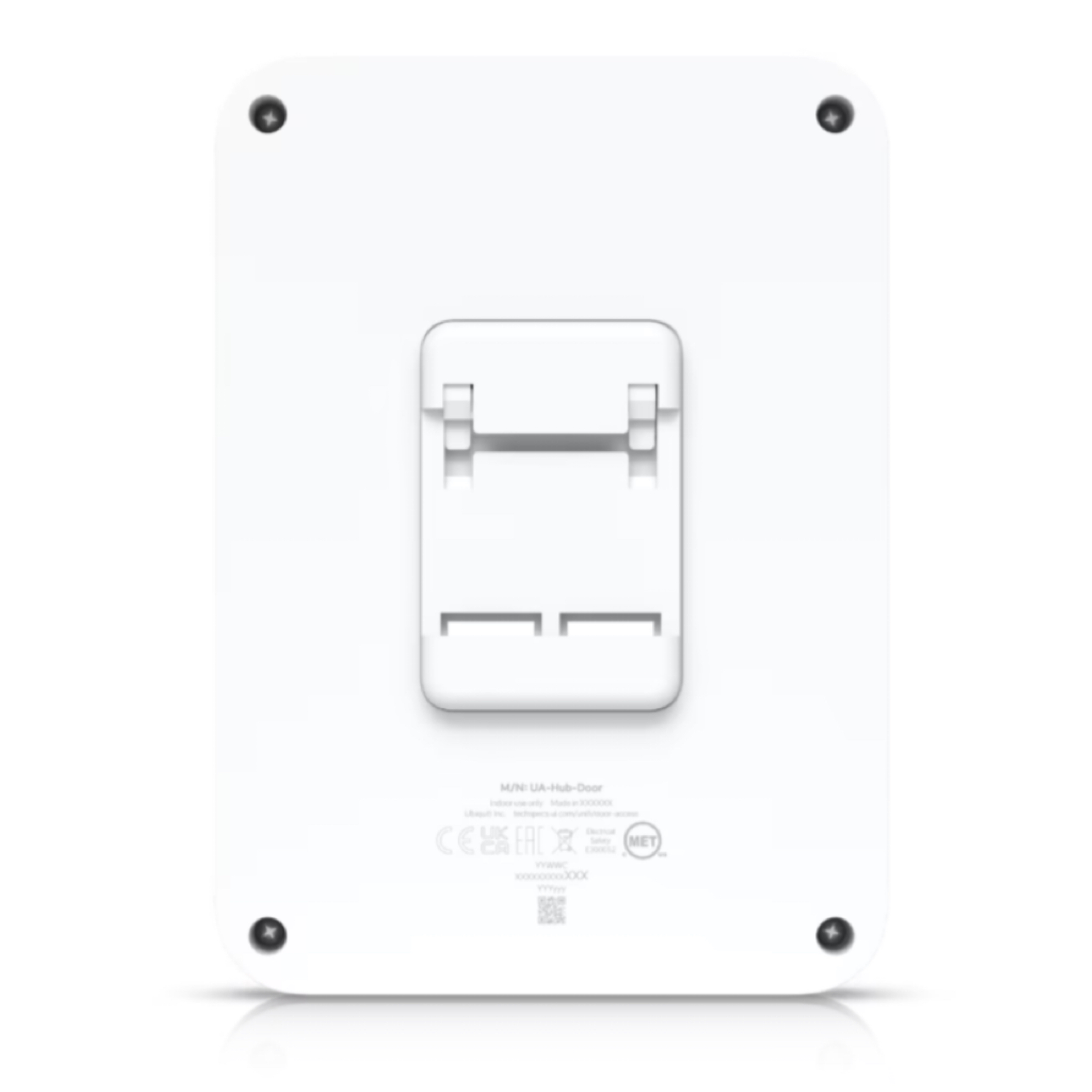

Mounting | DIN-rail mount |
Operating Temp | 0 ~ 40°C |
Operating Humidity | 5 ~ 95% non-condensing |
G3 Reader Pro | |
Display | 4.7" capacitive touch screen, 1280 × 286 px, 480 nits |
Camera | 2MP (1200 × 1600), 30 FPS |
Field of View | H:98.6°, V:125.7°, D:157.8° |
Connectivity | Gigabit RJ45, BLE 4.2, NFC 13.56MHz |
Waterproof Rating | IP55 |
Max Power Consumption | 6W, 48V DC PoE |
Speaker | 1.5W, Two-way audio intercom |
Unlock Methods | NFC Card, PIN, UniFi Identity App, Face Unlock, Touch Pass |
Dimensions | 160 × 40.4 × 40.55 mm |
Weight | 136 g |
Operating Temp | -30 ~ 45°C |
G3 Reader | |
Interface | 10/100 Mbps RJ45, BLE4.1, NFC 13.56MHz |
Waterproof Rating | IP55 |
Max Power Consumption | 5W, 48V DC PoE |
Unlock Methods | NFC Card, Touch Pass, Handwave unlock |
Dimensions | 93 × 40 × 36.5 mm |
Weight | 82 g |
Operating Temp | -30 ~ 45°C |
General & Certification | |
ESD Protection | Air ±15kV, Contact ±8kV |
Supported NFC Standards | ISO/IEC 14443A/B, 15693, MIFARE Classic/DESFire, FeliCa |
Certifications | CE, FCC, IC, UL294, CAN/ULC-60839-11-1 |
Management | UniFi Access Application |
