Ubiquiti UniFi Access G3 Elevator Starter Kit UA-G3-SK-Elevator – Elevator Access Control Kit with Elevator Hub, G3 Reader, 2x 2-Wire PoE Extenders, Up to 18 Floors, 6,000 Users, PoE++

Share to:

Ubiquiti UniFi Access G3 Elevator Starter Kit UA-G3-SK-Elevator – Elevator Access Control Kit with Elevator Hub, G3 Reader, 2x 2-Wire PoE Extenders, Up to 18 Floors, 6,000 Users, PoE++

The Ubiquiti UA-G3-SK-Elevator is a dedicated elevator access control solution designed to integrate secure vertical transportation management into modern access control systems. Built for commercial buildings, office towers, residential properties, hotels, and other multi-floor facilities, this solution helps control and manage elevator access based on authorized users and configured access policies. As part of the Ubiquiti Access ecosystem, the UA-G3-SK-Elevator can be used to extend access control functionality to elevator environments, helping organizations improve security while providing a convenient experience for employees, residents, guests, and authorized personnel. It is well suited for installations where elevator access needs to be coordinated with building entry points and user permissions, allowing administrators to manage access more efficiently from a centralized system. The solution is particularly useful for properties with multiple floors or restricted areas, where controlling which users can access specific elevator functions can help reduce unauthorized movement within the building. With Ubiquiti’s integrated approach to networking and access control, the UA-G3-SK-Elevator provides a practical option for professional installers, system integrators, property managers, and businesses looking to build a scalable and organized building security infrastructure. Its application in elevator access management makes it a valuable component for modern commercial and residential access control deployments, especially when reliable user authentication, centralized administration, and controlled floor access are important requirements. For customers sourcing genuine Ubiquiti equipment for new installations, system expansion, replacement, or project-based deployment, the UA-G3-SK-Elevator is an effective choice for extending Ubiquiti Access capabilities to elevator control applications.

Model:
UA-G3-SK-Elevator
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Specification
Product Name	UniFi Access G3 Elevator Starter Kit
Model	UA-G3-SK-Elevator
Application	Elevator floor access control, supports up to 18 floors authorization

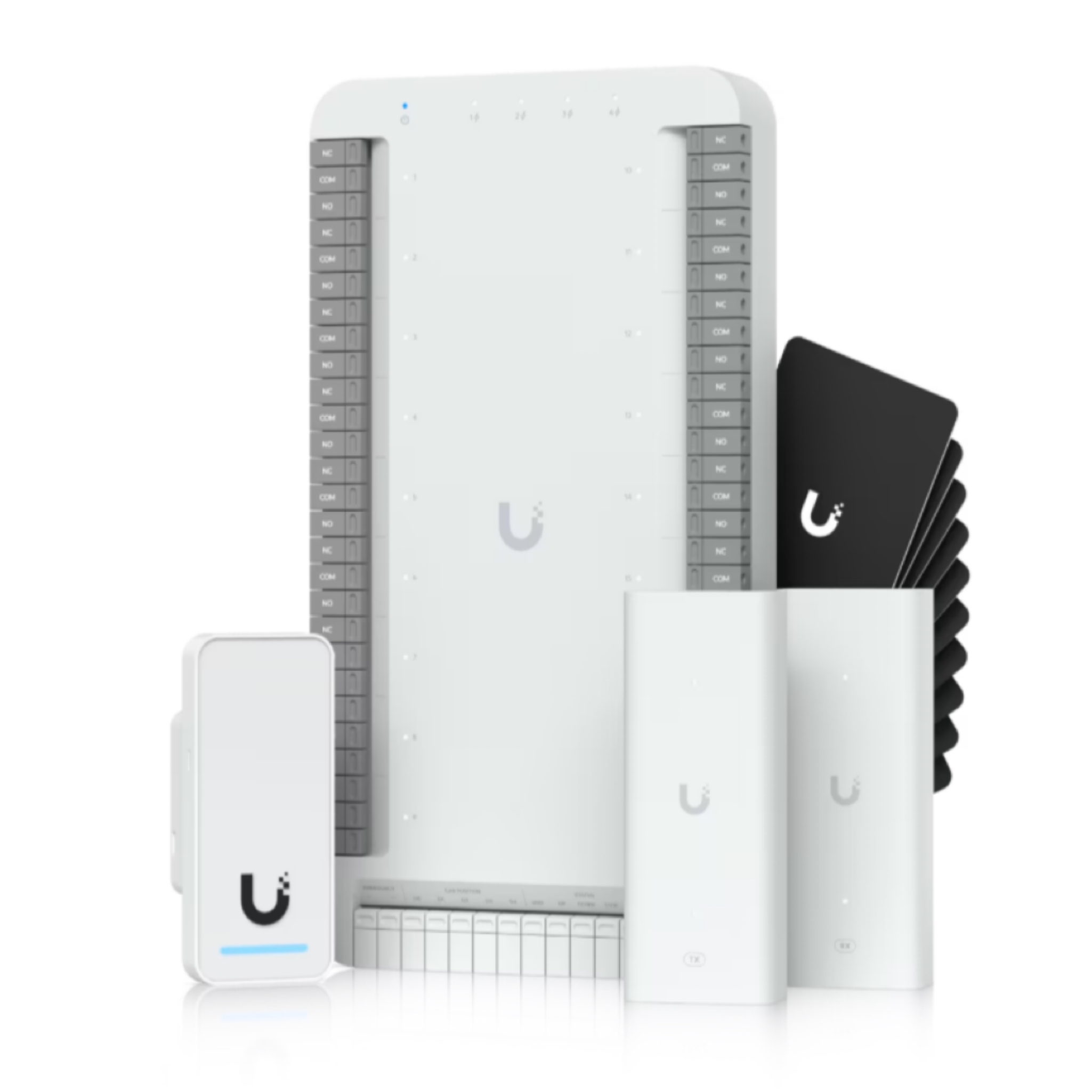

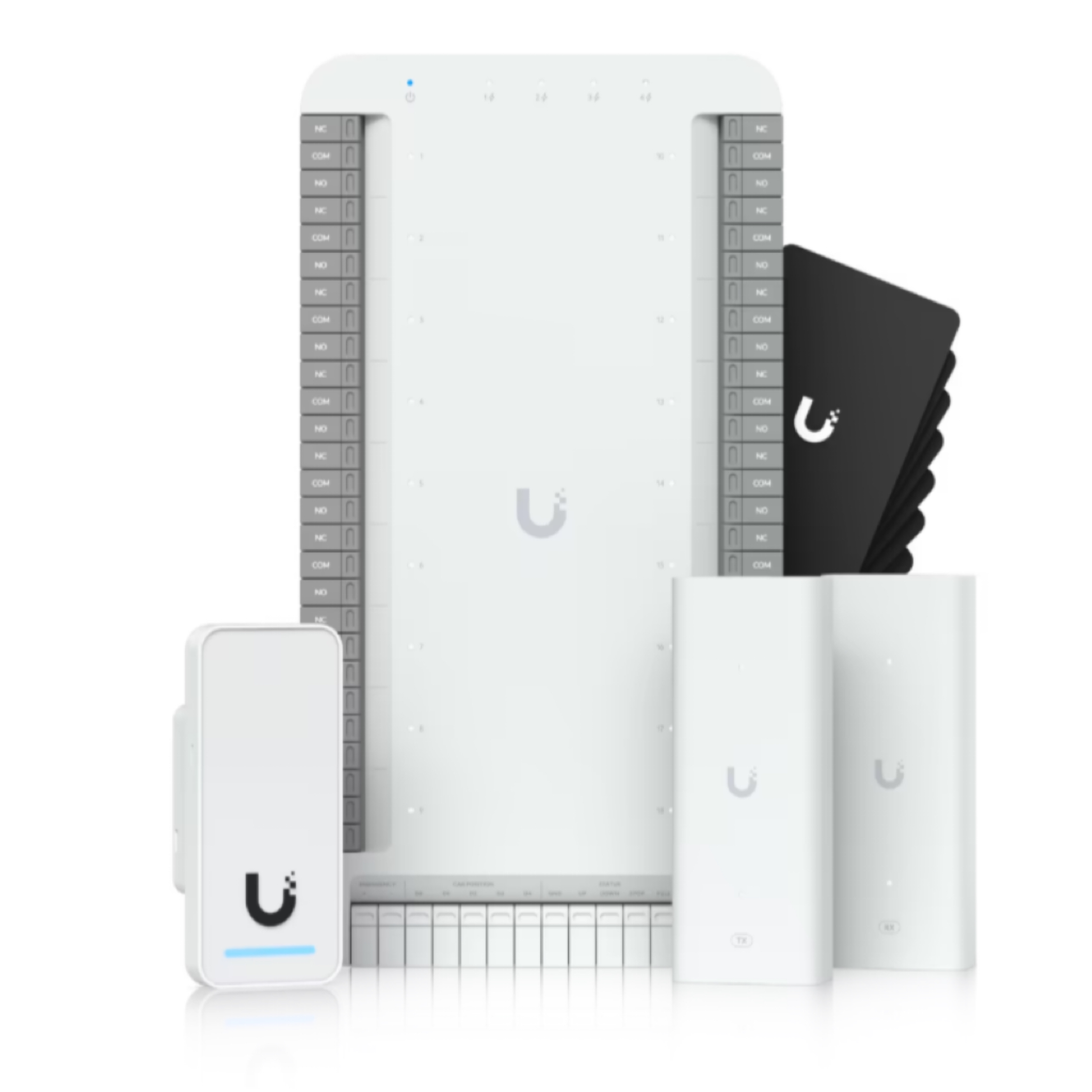

Package Contents	1×Elevator Hub, 1×G3 Reader, 2×2-wire PoE extenders, 10×Access Cards
Network Interface	1×PoE++ Input (10/100/1000 Base-T); 4×PoE+ Output (10/100/1000 Base-T)
PoE Spec	PoE++ Input: 50V DC,1.2A; PoE+ Output: 50V DC, 30W per port, Max aggregated 45W
Power Consumption	7W (Without PoE output)
Relay Outputs	18 relays, Rating: 30V DC / 2A
Digital Inputs	Emergency input, 5-bit car position input, car status input(Up/Down/Stop/Full), door status input(Open/Close)
NFC Frequency	13.56 MHz
NFC Protocol	ISO/IEC 14443A / 14443B / 15693 / 18092, MIFARE, DESFire, FeliCa
Protection	ESD: Air ±8kV, Contact ±4kV
Enclosure Material	Polycarbonate
Operating Temperature	-10°C ~ 40°C (14°F ~104°F)
Operating Humidity	5% ~ 95% Non-condensing
Mounting	DIN Rail / Wall Mount
Certifications	CE, FCC, IC, UL 62368-1, NDAA Compliant
Software	Managed by UniFi Access Application
