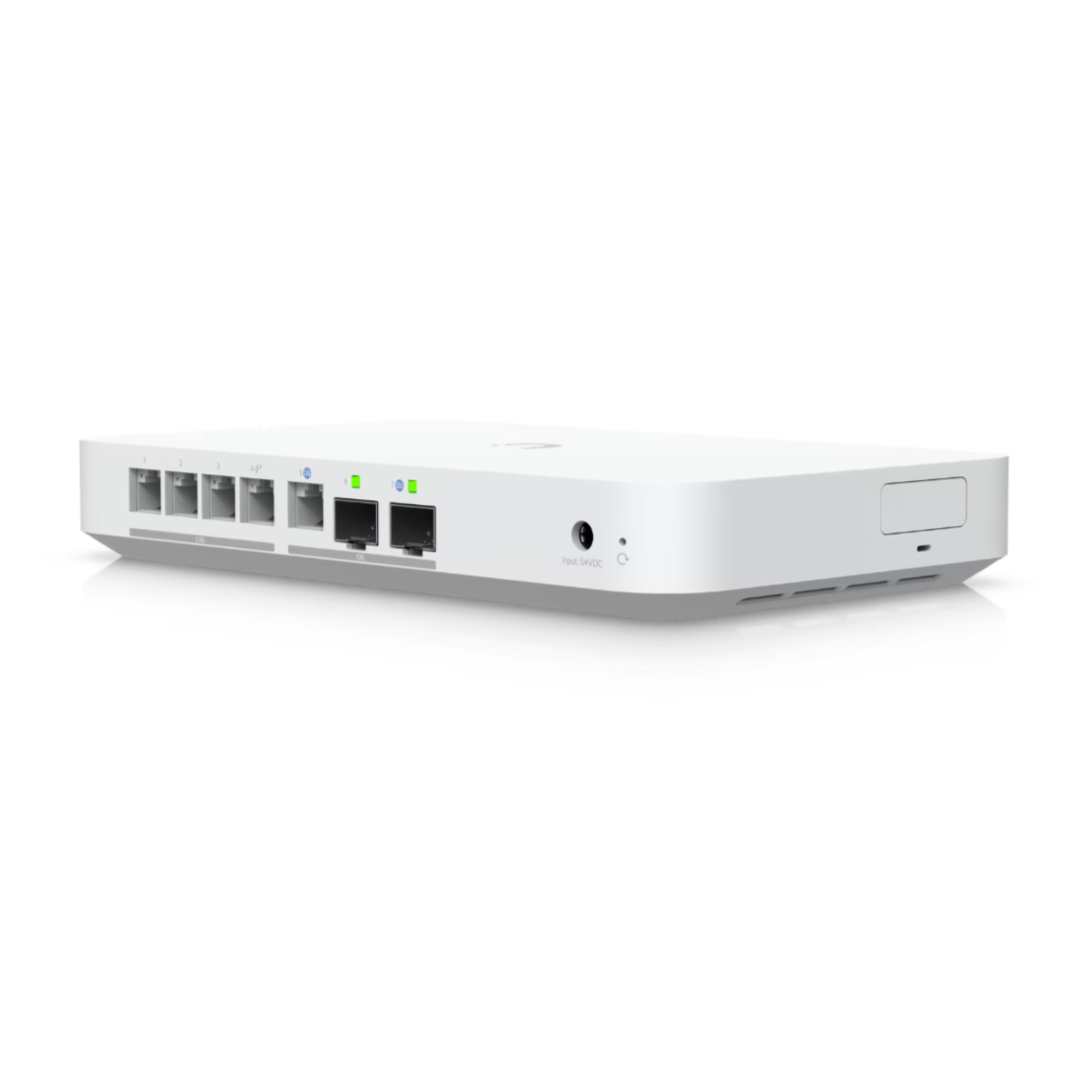

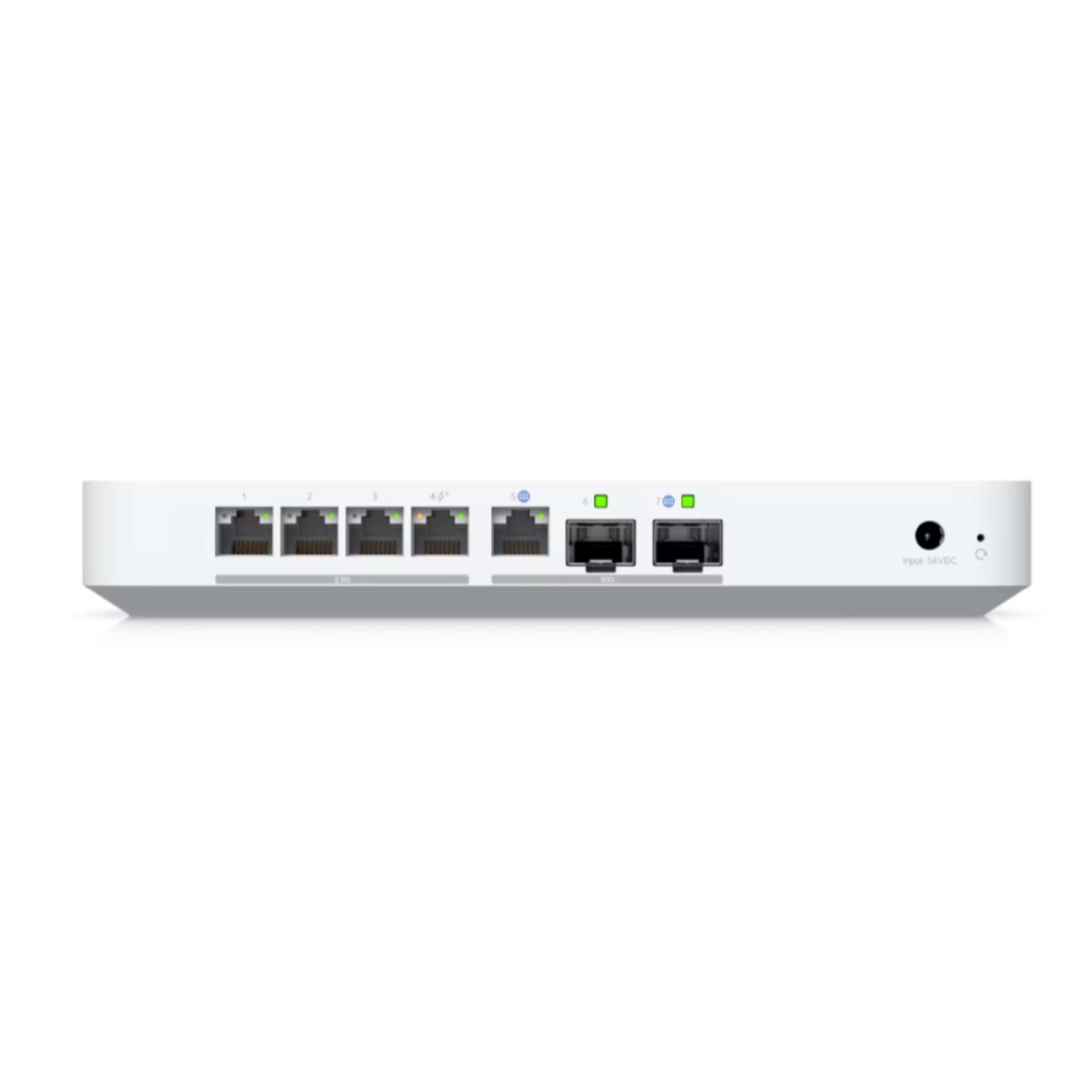

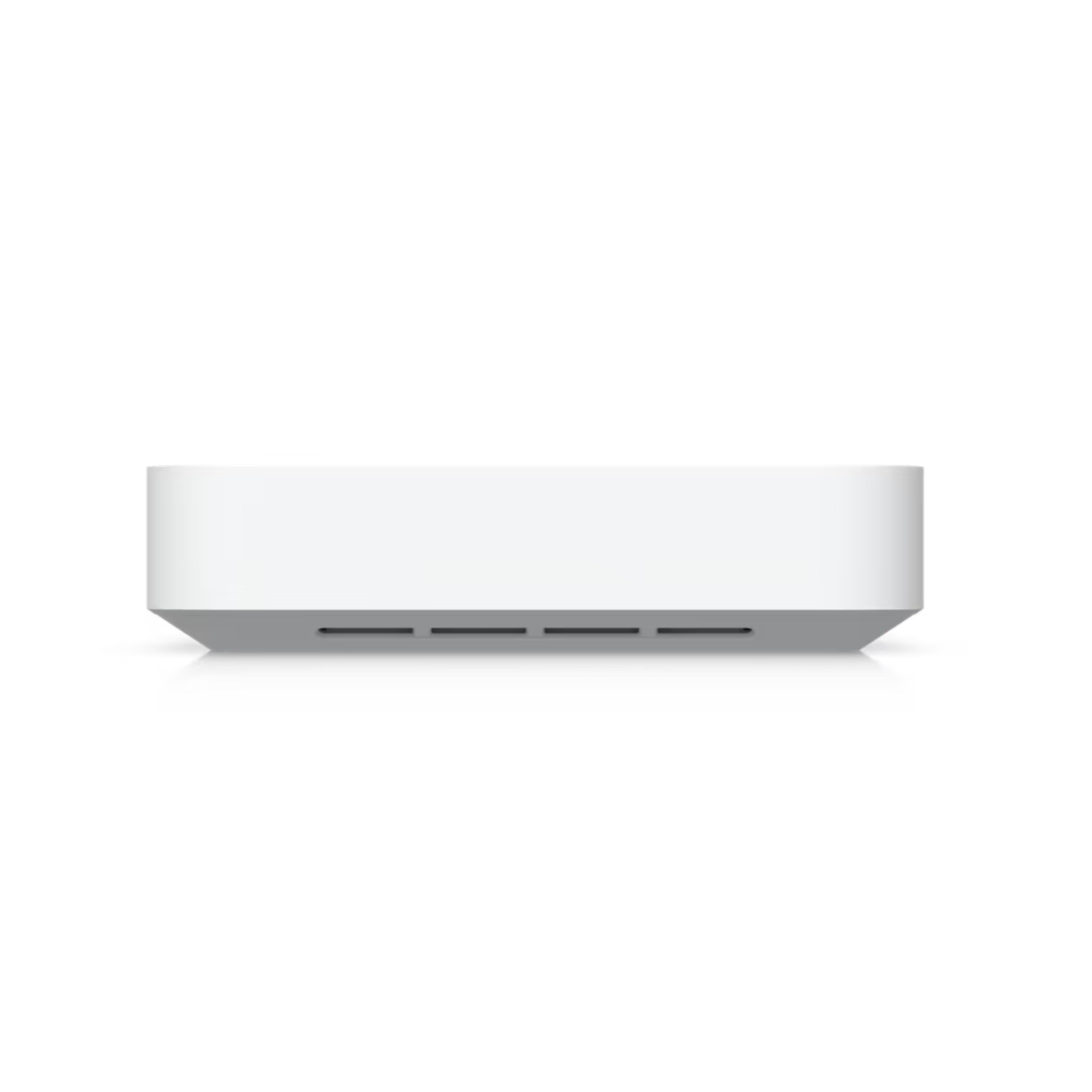

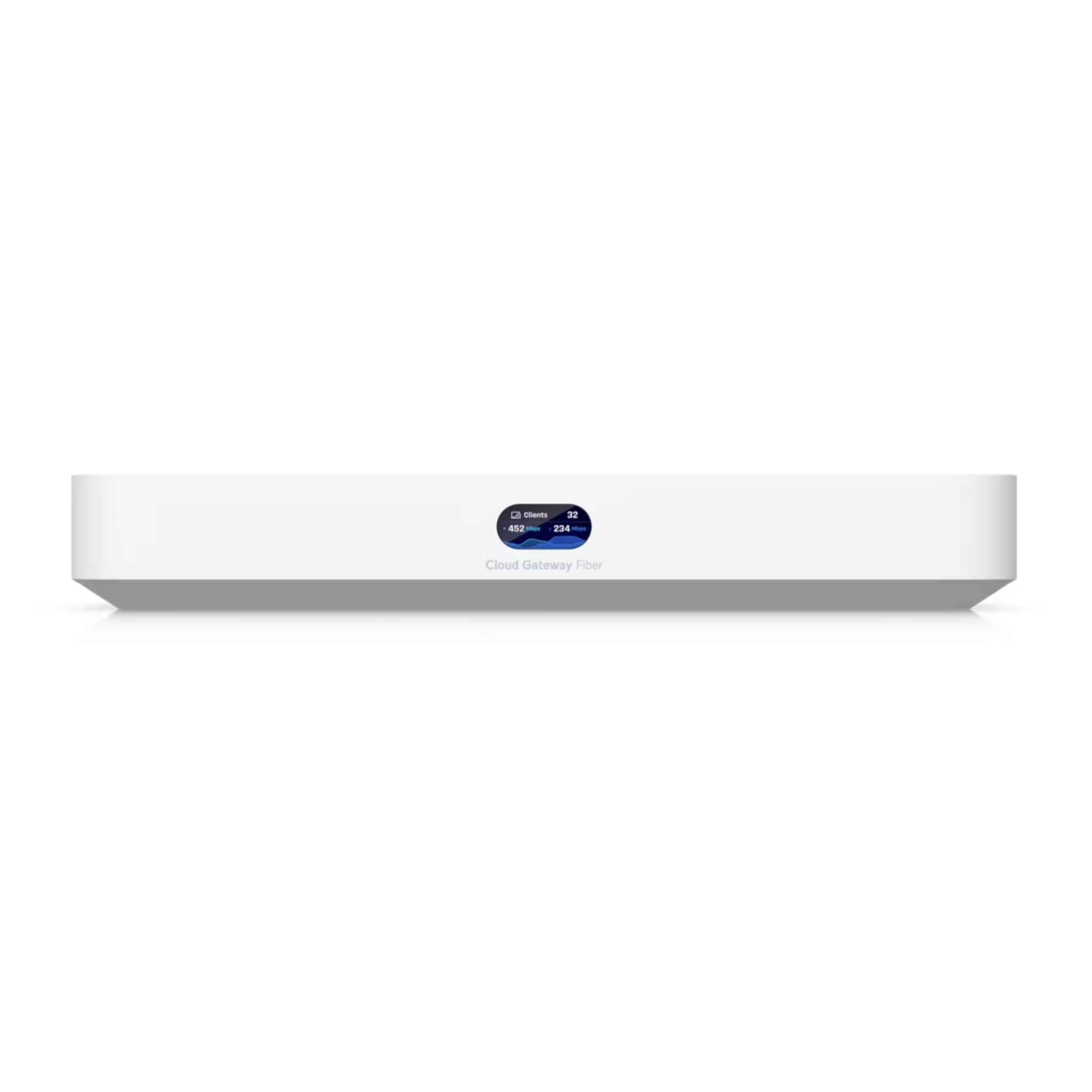

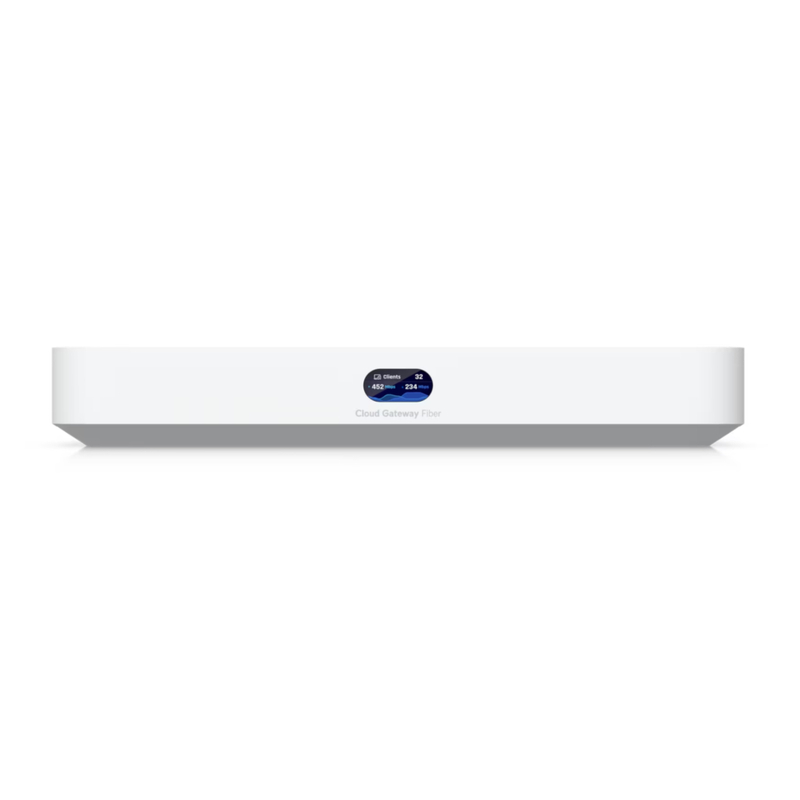

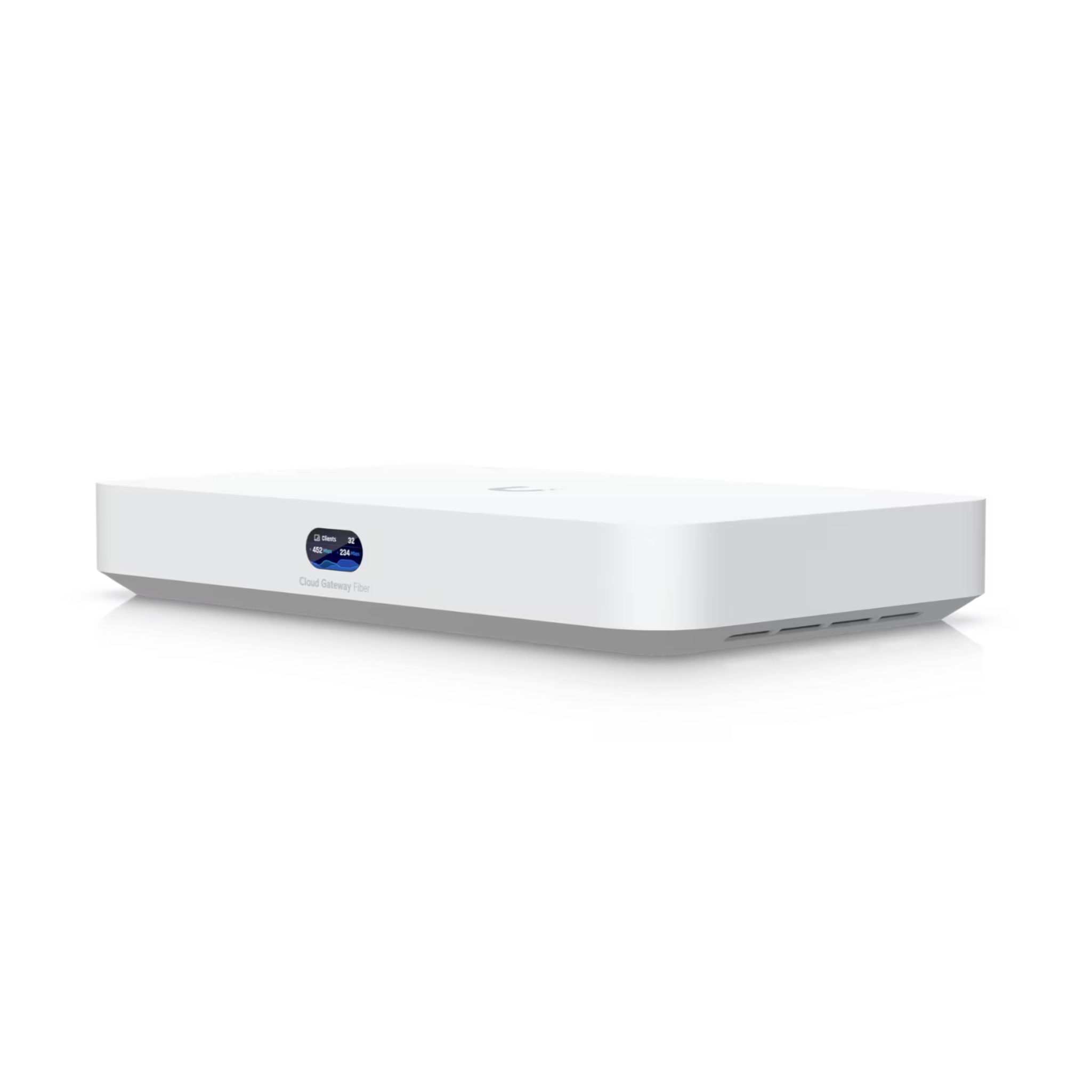

Ubiquiti UniFi Cloud Gateway Fiber UCG-Fiber – Desktop 10G Cloud Gateway, 10G SFP+ & 10 GbE WAN, 4-Port 2.5 GbE Switch with PoE+, 5 Gbps IDS/IPS, NVMe SSD Support, UniFi Managed

The Ubiquiti UCG-Fiber is a high-performance Cloud Gateway designed to provide advanced routing, security, and network management for modern business and professional networking environments. Combining powerful gateway functionality with high-speed fiber connectivity, the UCG-Fiber is well suited for organizations that require reliable WAN access, centralized network management, and efficient traffic control. It integrates seamlessly with the UniFi ecosystem, allowing network administrators to manage compatible UniFi devices, monitor network activity, configure security policies, and optimize network performance through a unified management interface. The UCG-Fiber is an excellent choice for offices, small and medium-sized businesses, retail locations, hospitality environments, and other deployments where dependable connectivity and simplified network administration are important. With its compact and professional design, advanced gateway capabilities, and support for high-speed network infrastructure, the UCG-Fiber can help create a scalable and secure UniFi network while reducing the complexity of managing multiple networking functions. For customers looking for a reliable Ubiquiti Cloud Gateway with fiber-oriented connectivity and centralized UniFi management, the UCG-Fiber provides a practical solution for building and maintaining a modern enterprise network.

  • UCG-Fiber

  • Ubiquiti

  • Original New

  • 1 year

Availability:
Quantity:

Parameter

Specification

Model

UCG‑FiberPCS System...

Brand

Ubiquiti UniFiPCS System...

Processor

Quad‑core ARM Cortex‑A73 @ 2.2 GHz

System Memory

3 GB RAM

Storage

Optional M.2 NVMe SSD, max 2 TB (for NVR)UniFi

Network Ports

1× 10GbE RJ45 WAN

1× 10G SFP+ WAN

1× 10G SFP+ LAN

4× 2.5GbE RJ45 LAN (1 port supports 802.3at PoE+)

PoE Budget

30W total (PoE+)UniFi

IDS/IPS Throughput

5 Gbps

Max Connected Clients

500+

Display

0.96‑inch LCM status displayUbiquiti

Management

UniFi Controller, Bluetooth, EthernetUbiquiti

Power Input

54V DC / 1.1A (power adapter included)

AC Voltage Range

100‑240V AC, 50‑60Hz

Max Power Consumption

29.4W (excluding PoE output)UniFi

Dimensions

212.8 × 127.6 × 30 mmPCS System...

Weight

675 g (without SSD); 734 g (with SSD)Ubiquiti

Enclosure Material

Polycarbonate (PC)Ubiquiti

Form Factor

Desktop

Operating Temperature

0‑40°C (32‑104°F)Ubiquiti

Operating Humidity

5‑95% non‑condensingUbiquiti

ESD Protection

Air: ±8 kV; Contact: ±4 kVUbiquiti

Certifications

CE, FCC, IC, SRRC, Anatel

Supported VPN

WireGuard, OpenVPN, IPsec, L2TP, TeleportUniFi

Routing Features

Multi‑WAN load‑balancing, OSPF, BGP, Advanced QoS, Advanced NAT, Integrated RADIUS ServerUniFi

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the UCG-Fiber?

A: The UCG-Fiber is ideal for small and medium-sized business networks, providing high-speed connectivity, centralized management, and secure network control.

Q: How to install the UCG-Fiber?

A: The UCG-Fiber can be installed on a desktop or suitable network location. Follow the included installation guide for detailed setup and connection instructions.

Q: Does the UCG-Fiber need firmware updates?

A: Regular firmware updates are recommended for the UCG-Fiber to maintain optimal performance, security, and compatibility with the latest UniFi features.

Q: Are there alternative products to the UCG-Fiber?

A: Alternatives to the UCG-Fiber include other UniFi Cloud Gateway models, offering different performance levels, port configurations, and network management features.

Q: What are common troubleshooting tips for the UCG-Fiber?

A: For common issues, check power and network connections, verify configuration settings, and ensure the device firmware is up-to-date.
