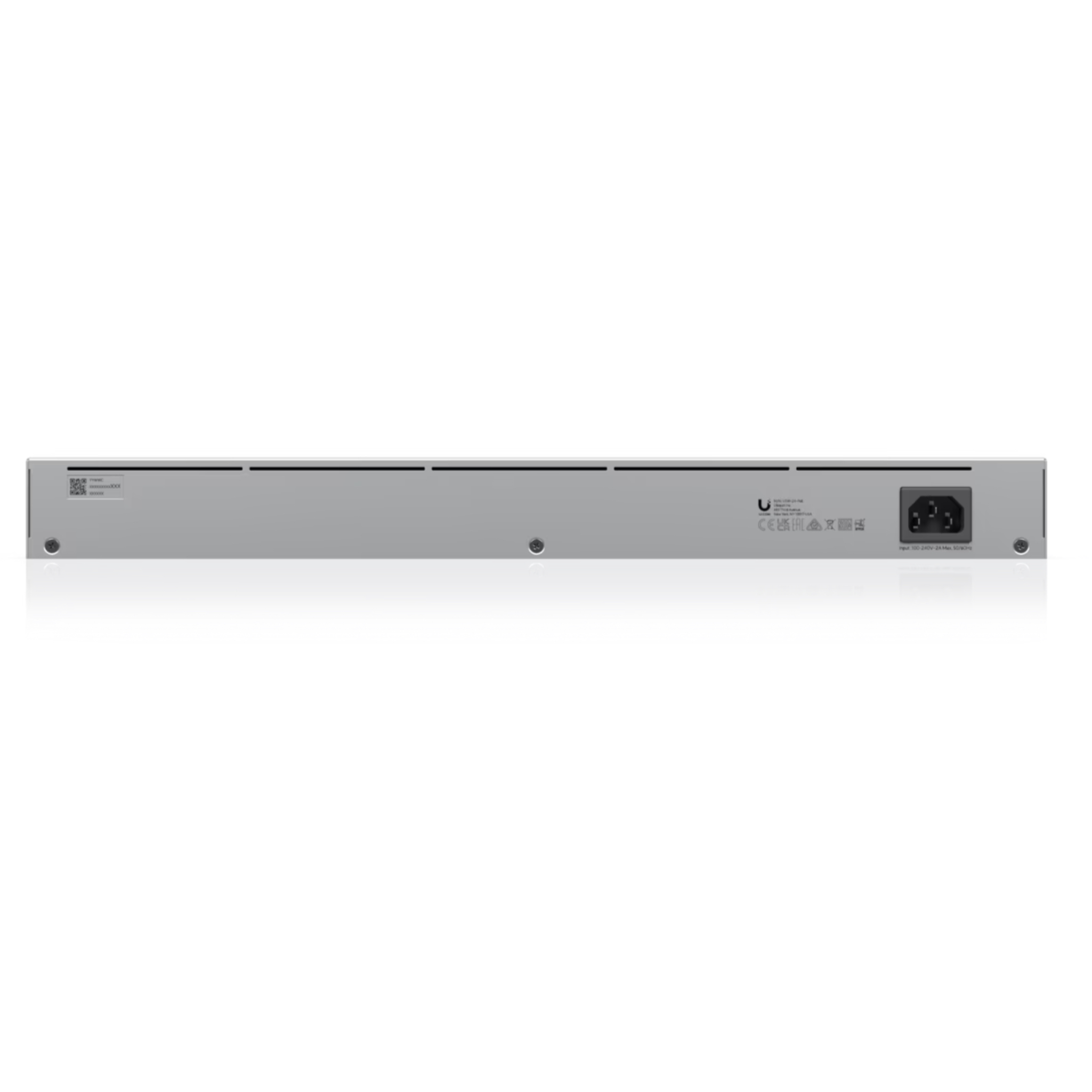

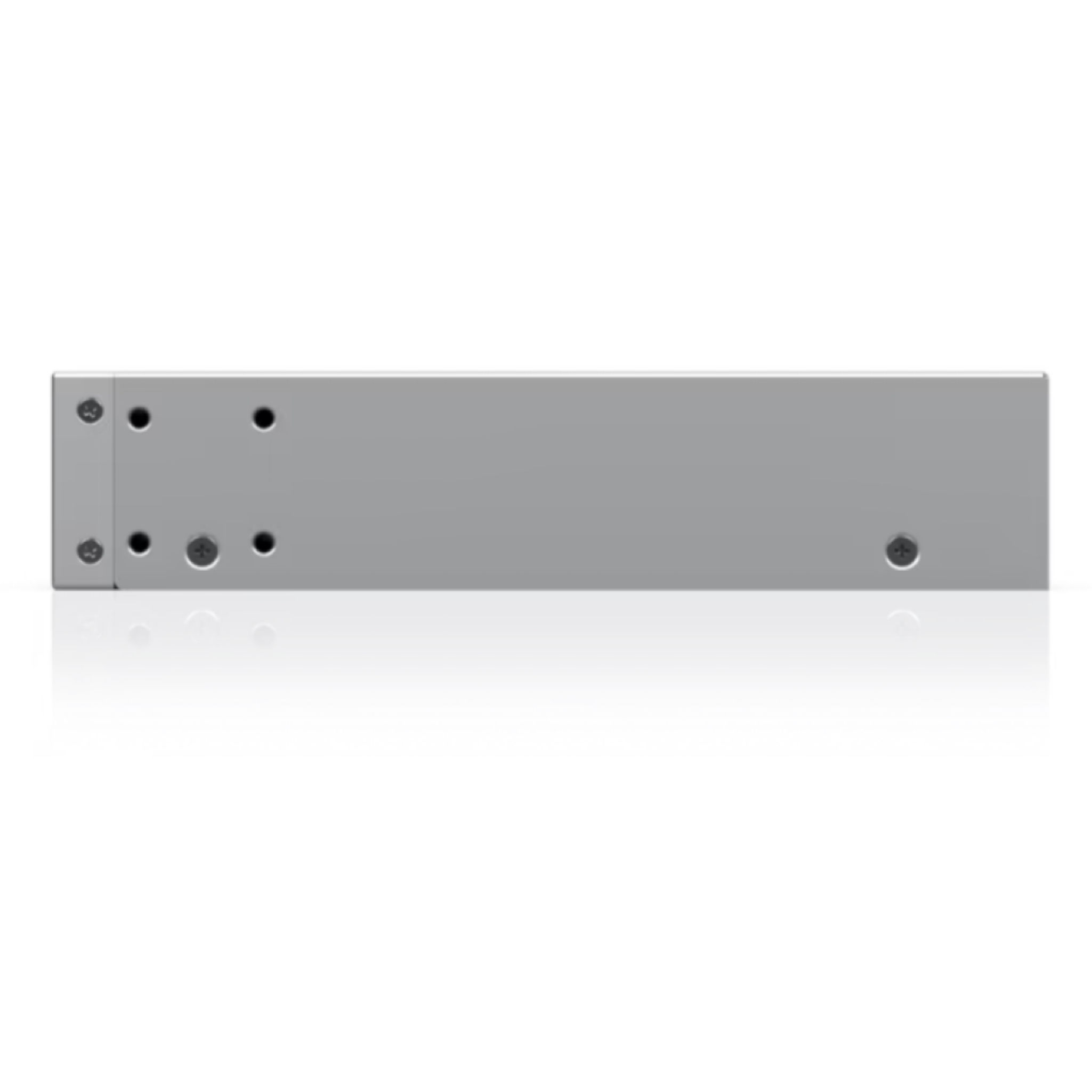

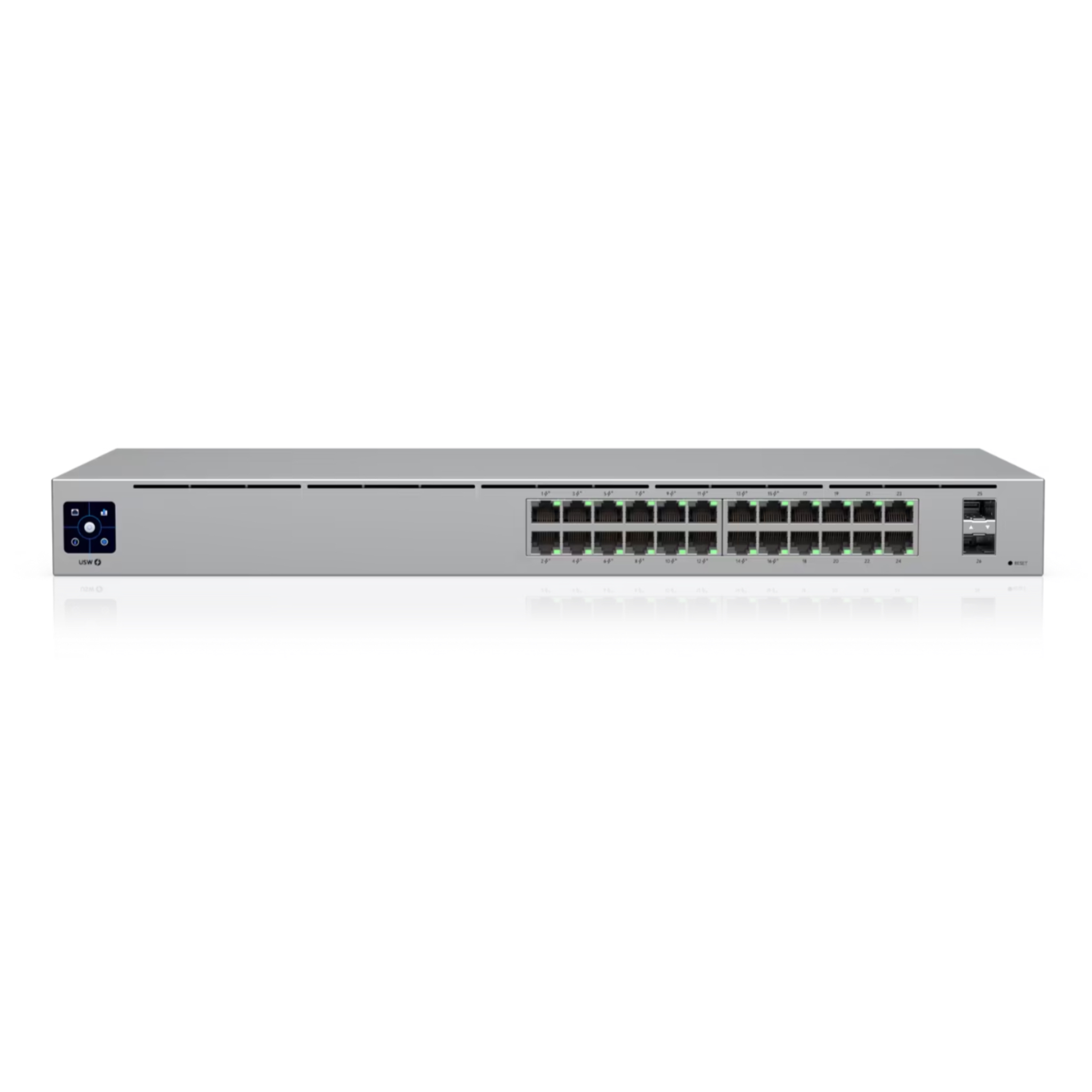

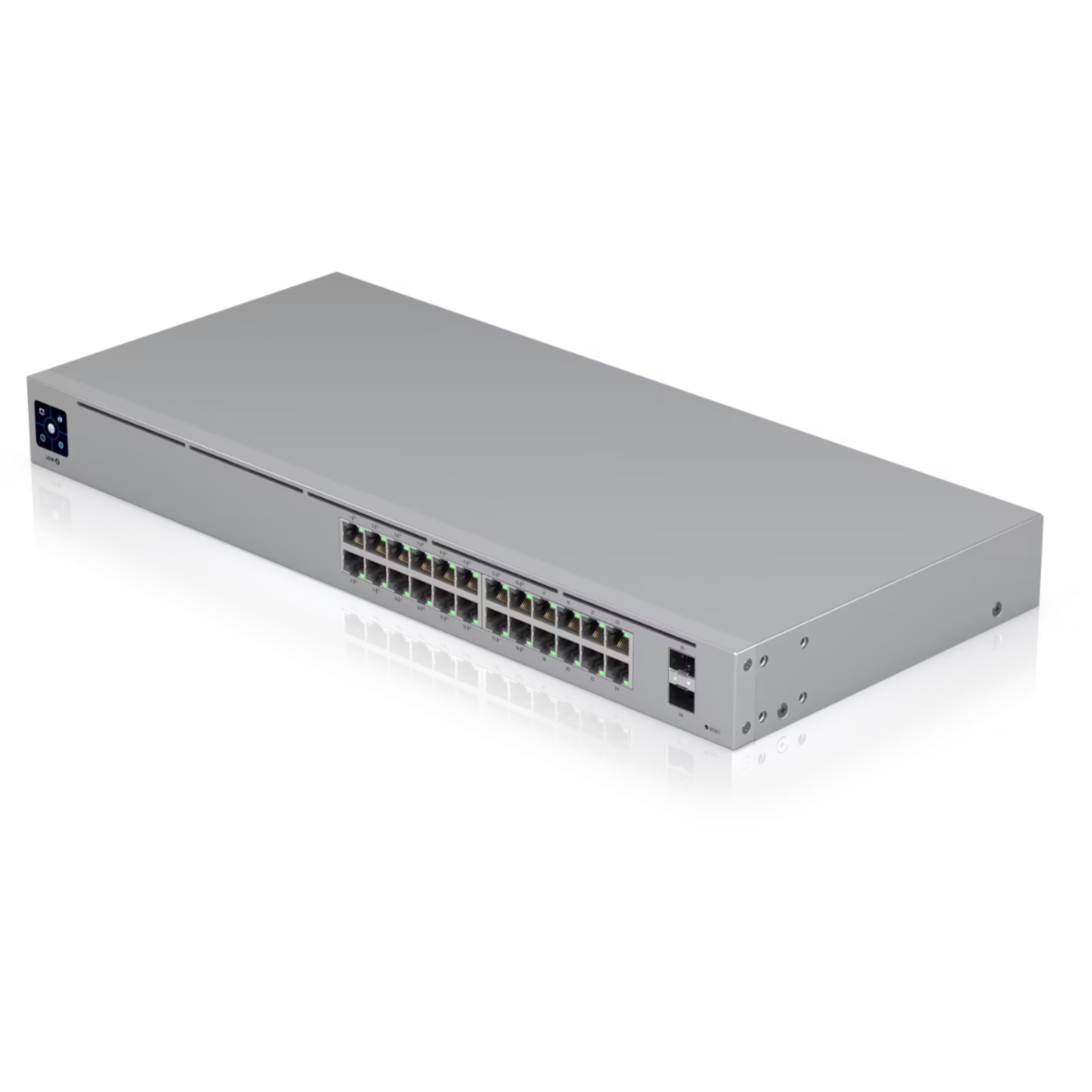

Ubiquiti UniFi Switch 24 PoE USW-24-POE – 24-Port Gigabit Layer 2 Managed Switch, 16x PoE+ 802.3at (95W Budget), 2x 1G SFP, Fanless Silent Cooling, 1.3" Touchscreen, Rackmount

Share to:

Ubiquiti UniFi Switch 24 PoE USW-24-POE – 24-Port Gigabit Layer 2 Managed Switch, 16x PoE+ 802.3at (95W Budget), 2x 1G SFP, Fanless Silent Cooling, 1.3" Touchscreen, Rackmount

Ubiquiti USW-24-PoE is a professional 24-port managed PoE switch designed to provide reliable network connectivity and convenient power delivery for business, enterprise, and professional UniFi network deployments. As part of the Ubiquiti UniFi switching family, the USW-24-PoE combines multiple Gigabit Ethernet ports with Power over Ethernet support, allowing compatible devices such as UniFi access points, IP phones, security cameras, and other PoE-enabled network devices to receive both data and power through a single Ethernet cable. The switch can be centrally managed through the UniFi Network platform, giving network administrators an intuitive way to monitor connected devices, configure VLANs, manage traffic, apply network policies, and maintain overall network performance. With its 24-port capacity, the USW-24-PoE is well suited for expanding office networks, campus environments, retail locations, hotels, warehouses, and other installations that require multiple wired connections and PoE-powered devices. Its managed switching capabilities, PoE functionality, and seamless integration with the UniFi ecosystem make the Ubiquiti USW-24-PoE a practical solution for building a scalable, organized, and efficiently managed business network.

Model:
USW-24-POE
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Category	Parameter	Specification
Product	Product Name	UniFi Switch Standard 24 PoE
	Model / Part Number	USW-24-POE
	Product Type	Layer 2 Managed Gigabit PoE Switch
	Form Factor	Rack mount (1U)
Ports	Gigabit RJ45 Ports	24 × 1GbE (16 PoE+), 10/100/1000 Mbps
	SFP Ports	2 × 1G SFP
	PoE Ports	16 × PoE+ (IEEE 802.3af/at)
	Max PoE Wattage per Port	PoE: 15.4W / PoE+: 32W
	Total PoE Budget	95W
Performance	Switching Capacity	52 Gbps
	Total Non-Blocking Throughput	26 Gbps
	Forwarding Rate	39 Mpps
	MAC Address Table Size	8,000
	Supported VLANs	1,000
	Packet Buffer Size	0.5 MB
	Jumbo Frames	Supported
	Layer 2 Features	LACP, STP/RSTP, IGMP Snooping, 802.1X, DHCP Snooping, Port Isolation, Port Mirroring, LLDP-MED, Voice VLAN, Loop Protection, etc.
Power	Power Method	Universal AC input, 100–240V AC, 50/60 Hz
	Power Supply	Internal AC/DC, 120W
	Max. Power Consumption	25W (excluding PoE output) / 120W (including PoE output)
Physical	Dimensions	442 × 200 × 44 mm (17.4 × 7.9 × 1.7 in)
	Weight	3.0 kg (6.6 lb) without brackets; 3.1 kg (6.8 lb) with brackets
	Enclosure Material	SGCC steel
	Display	1.3" LCM color touchscreen
	Cooling	Fanless, silent design
Environment	Operating Temperature	-5°C to 40°C (23°F to 104°F)
	Operating Humidity	10% – 90% noncondensing
	ESD Protection	Air: ±16kV, Contact: ±12kV
	Heat Dissipation	85.3 BTU/hr (excluding PoE output)
Management	Management Interface	UniFi Network application (Version 7.2.94 and later)
Certifications	Compliance	CE, FCC, IC, Anatel; NDAA compliant
