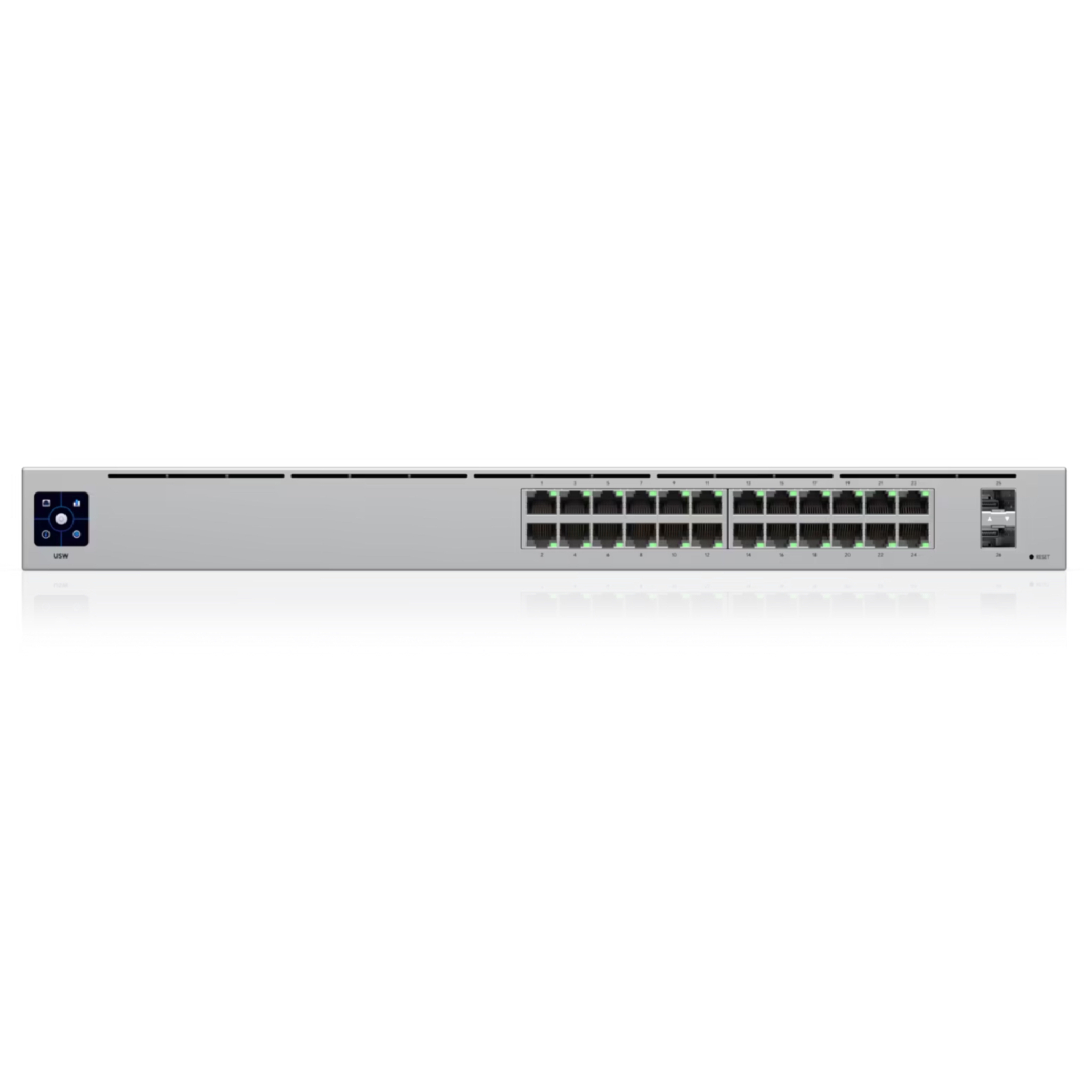

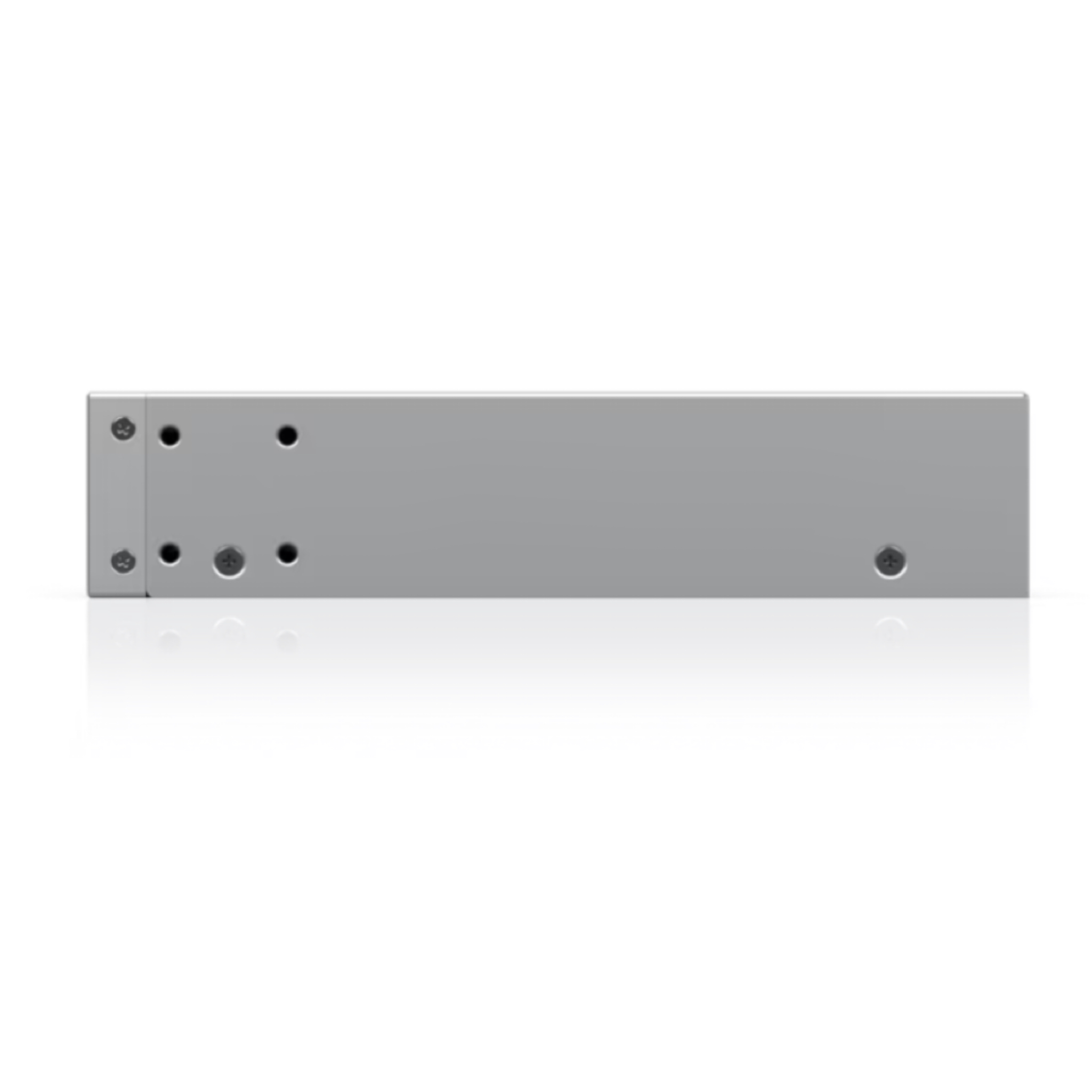

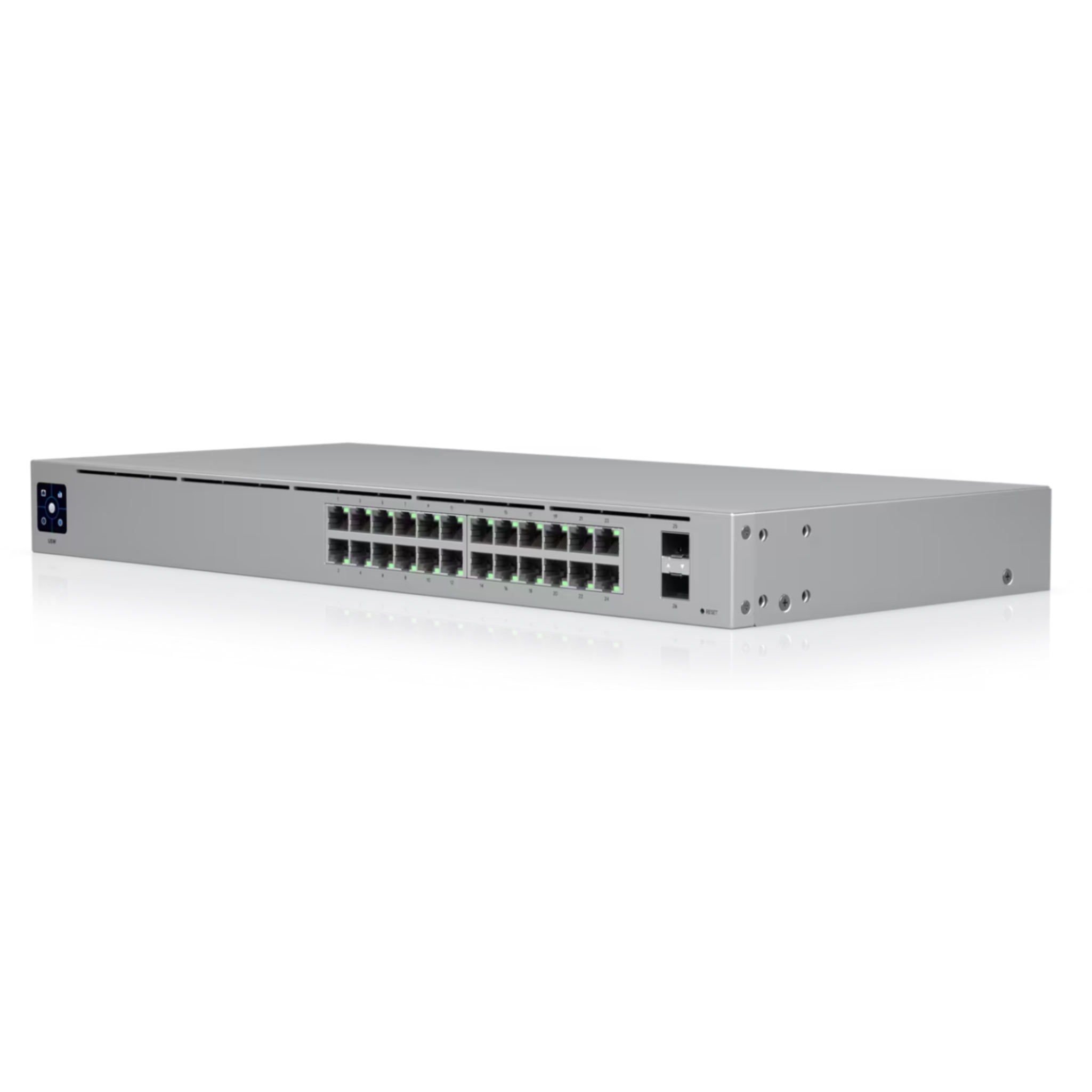

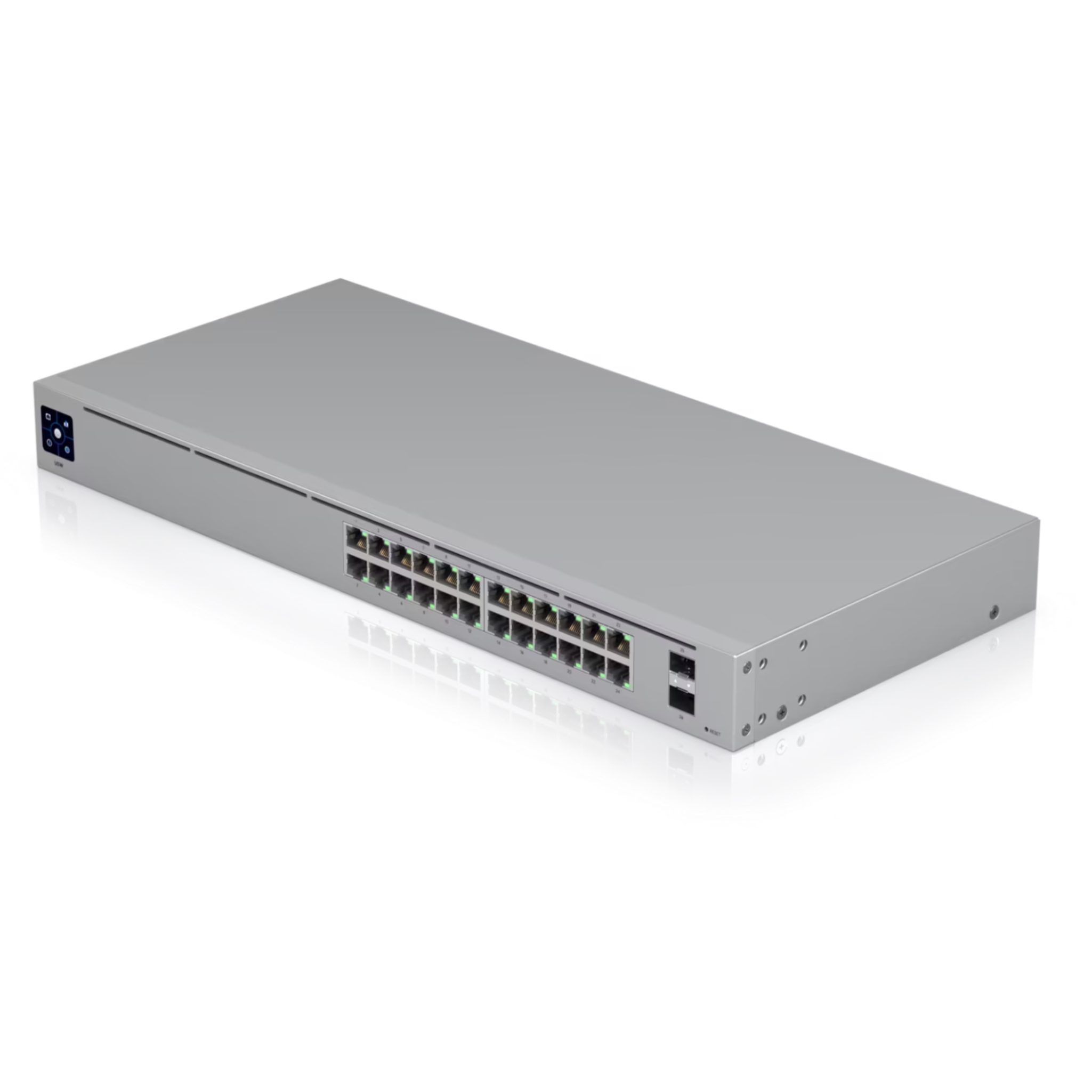

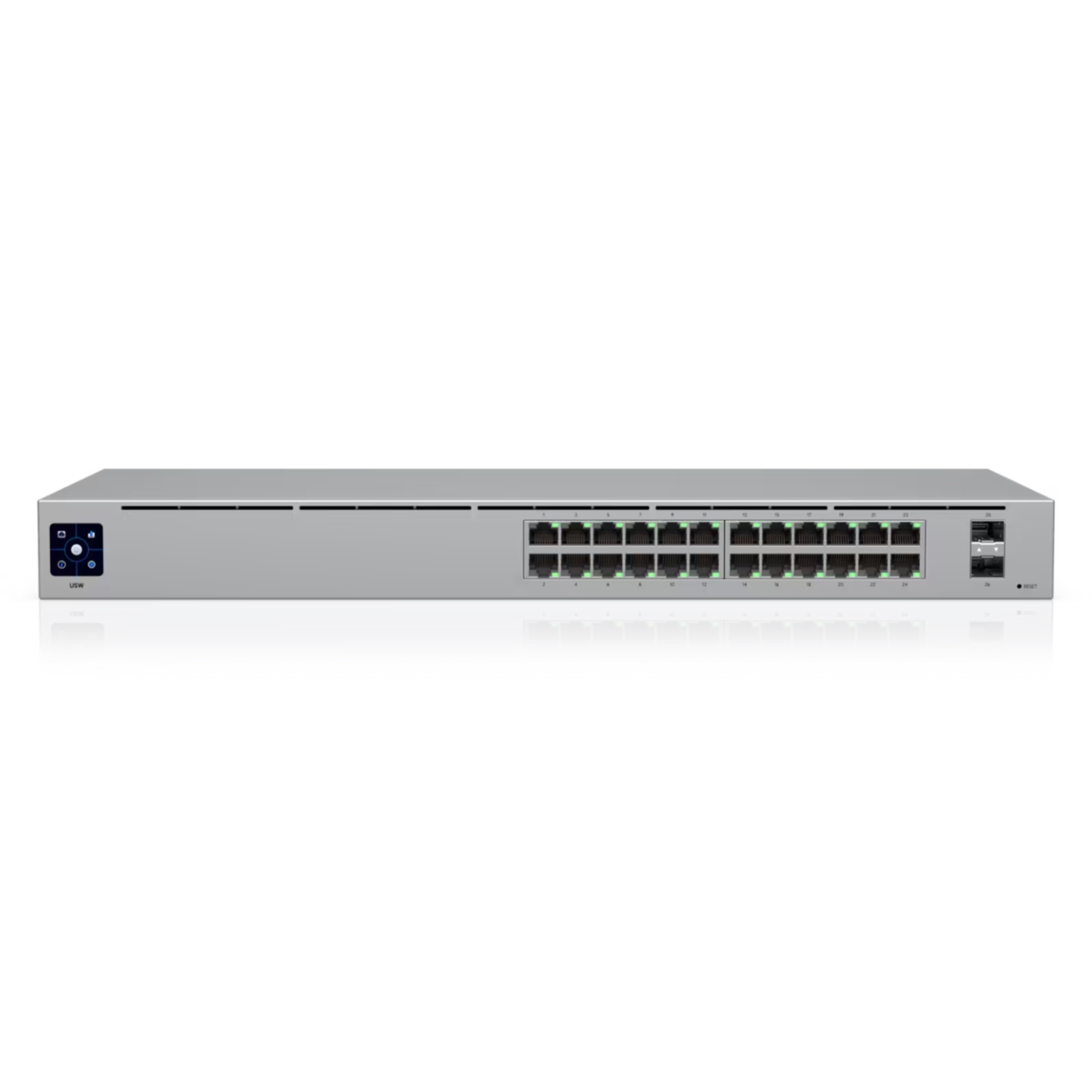

USW-24
Ubiquiti
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Overview | Model | USW-24 |
Product Name | UniFi Switch 24 (Standard 24) | |
Type | Managed Layer 2 Gigabit Switch | |
Cooling | Fanless, silent passive cooling | |
Display | 1.3" LCM color touchscreen with AR switch management | |
Form Factor | Rack-mount (1U) | |
Ports | RJ45 Ports | (24) 10/100/1000 Mbps RJ45 Ethernet ports |
SFP Ports | (2) 1 Gbps SFP Ethernet ports | |
PoE Support | None (non-PoE model) | |
Performance | Switching Capacity | 52 Gbps |
Total Non-Blocking Throughput | 26 Gbps | |
Forwarding Rate | 39 Mpps | |
Supported VLANs | 1,000 | |
MAC Address Table Size | 8,000 | |
Packet Buffer Size | 0.5 MB | |
Access Lists | IPv4: 128 / MAC: 128 | |
Layer 2 Features | Port Aggregation | LACP |
Spanning Tree | STP & RSTP | |
Multicast | IGMP Snooping, IGMP Querier/Fast Leave/Router Port | |
Security | 802.1X, MAC/IP ACLs, Device Isolation, DHCP Snooping & Guarding | |
Traffic Control | Storm Control, Egress Rate Limit, Flow Control, Multicast/Broadcast Rate Limiting | |
Advanced Features | Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection | |
Hardware | Max. Power Consumption | 25W |
Power Supply | AC/DC, internal, 36W | |
Power Method | Universal input, 100–240V AC, 50/60 Hz | |
Heat Dissipation | 85.3 BTU/hr | |
Enclosure Material | SGCC steel | |
Supported Rack Depth | 400–1200 mm (15.7–47.2") | |
Physical | Dimensions | 442 × 200 × 44 mm (17.4 × 7.9 × 1.7") |
Weight | 2.7 kg (6 lb) without brackets / 2.8 kg (6.2 lb) with brackets | |
Environment | Operating Temperature | -5°C to 45°C (23°F to 113°F) |
Operating Humidity | 10% to 90% noncondensing | |
Certifications | Compliance | CE, FCC, IC, Anatel (17193-20-08356) |
NDAA Compliant | Yes | |
Management | Management Software | UniFi Network application (v7.2.94 or later) |
Management Interface | Ethernet (in-band), AR management |
