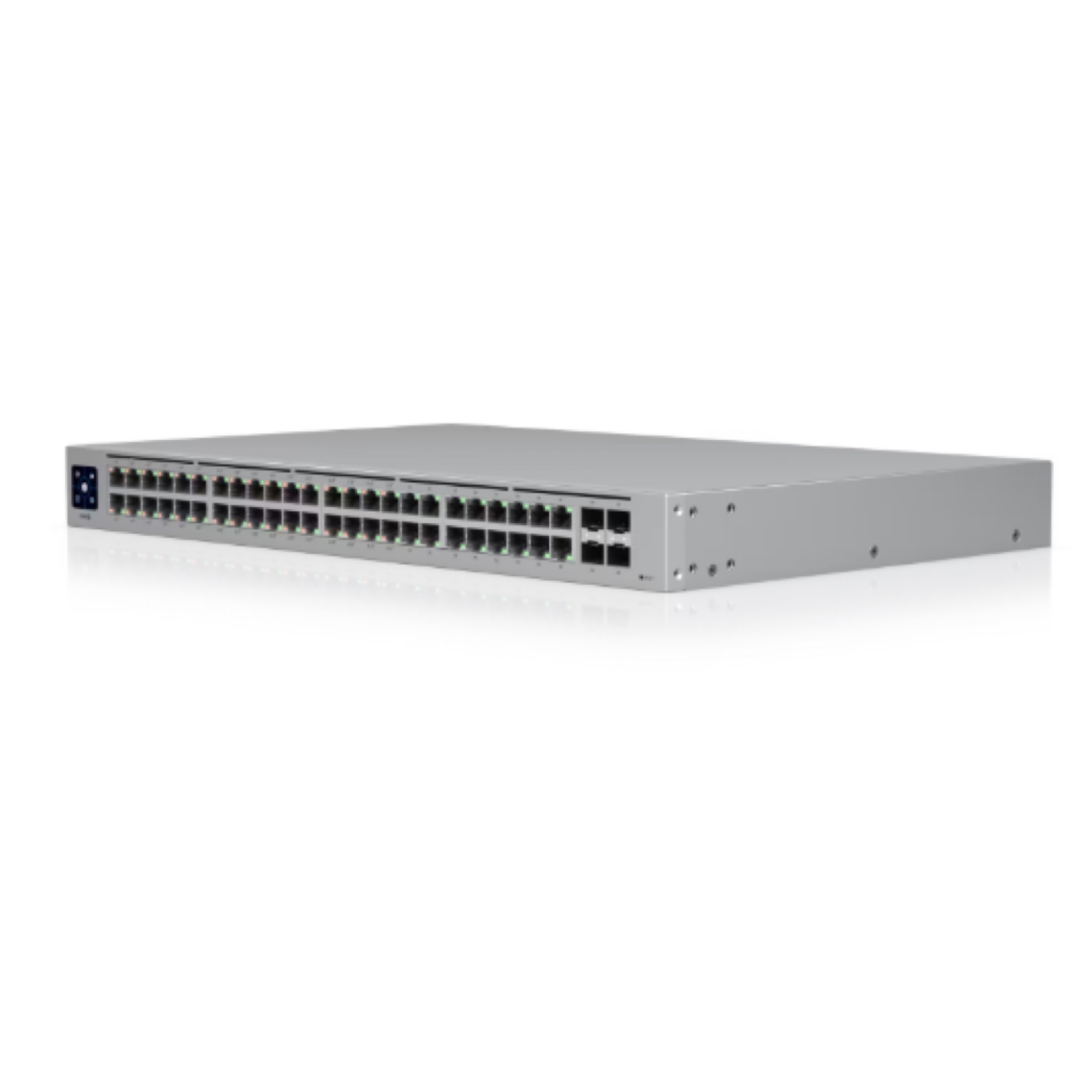

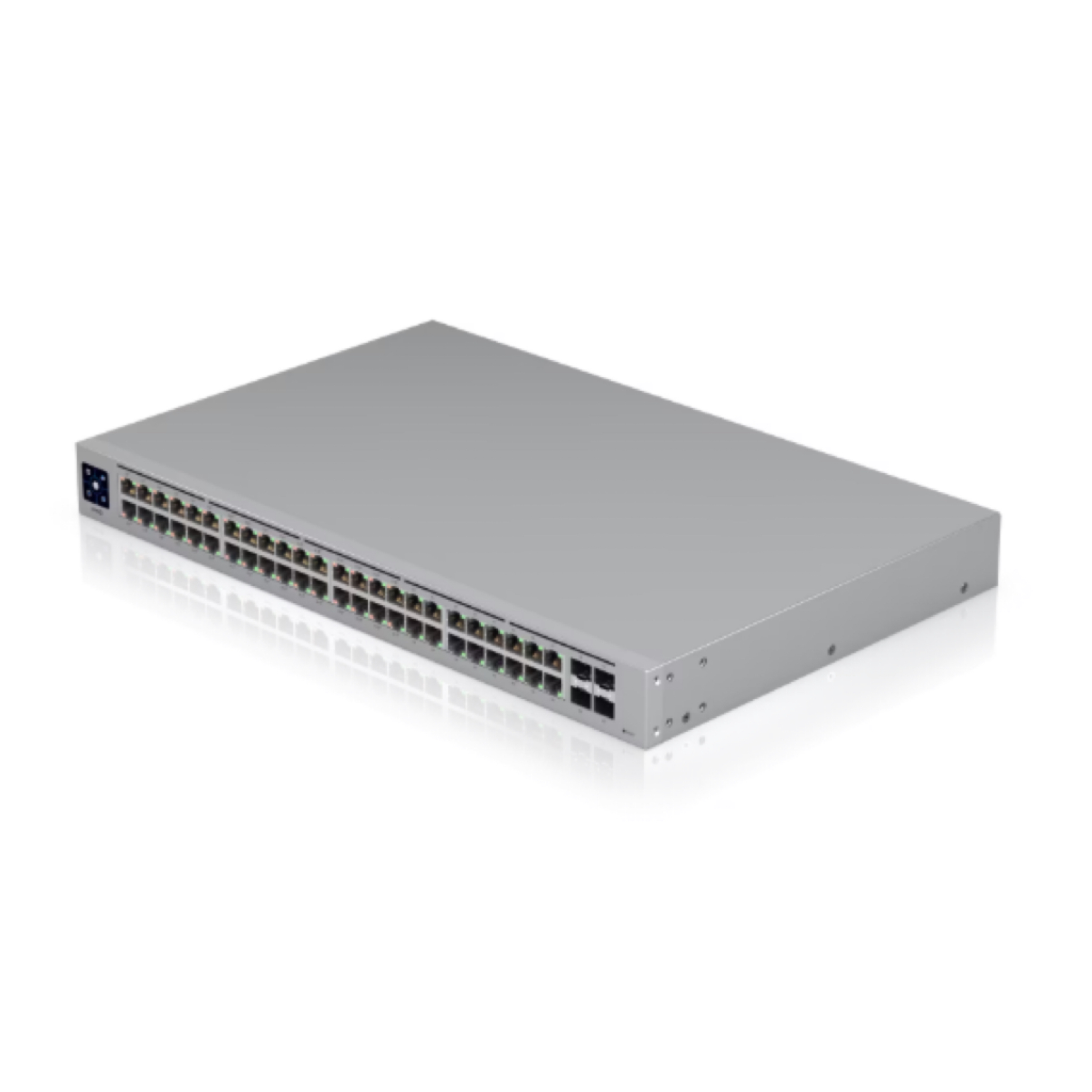

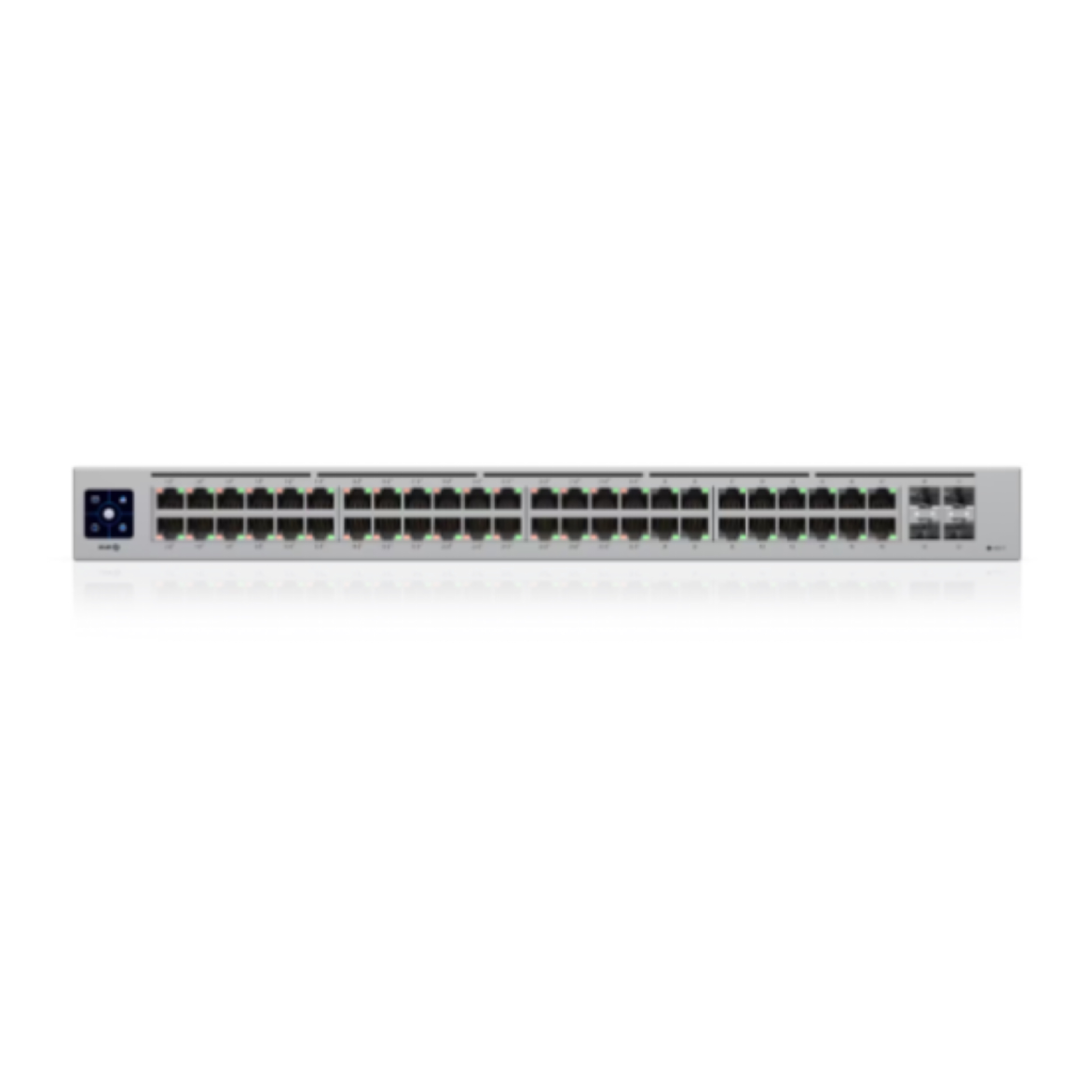

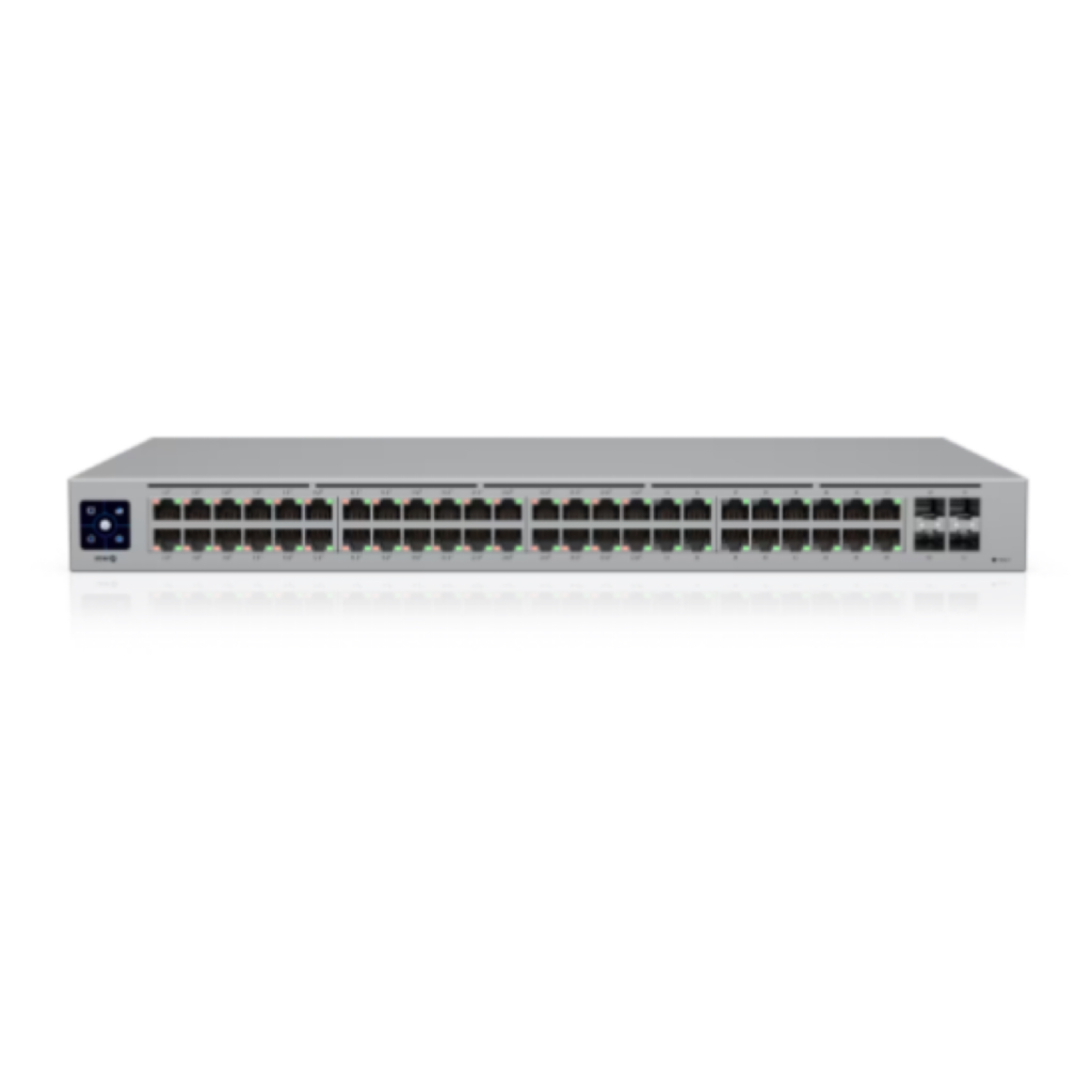

Ubiquiti UniFi Switch 48 PoE USW-48-POE – 48-Port Gigabit Layer 2 Managed Switch, 32x PoE+ 802.3at (195W Budget), 4x 1G SFP, Fanless Silent Cooling, 1.3" Touchscreen, Rackmount

Share to:

Ubiquiti UniFi Switch 48 PoE USW-48-POE – 48-Port Gigabit Layer 2 Managed Switch, 32x PoE+ 802.3at (195W Budget), 4x 1G SFP, Fanless Silent Cooling, 1.3" Touchscreen, Rackmount

Ubiquiti USW-48-PoE is a managed Layer 2 switch from the UniFi Switch series, designed to provide reliable network connectivity and Power over Ethernet for business, enterprise, and professional network environments. Featuring 48 Gigabit Ethernet ports, the USW-48-PoE enables high-density wired connectivity for computers, IP phones, wireless access points, surveillance devices, and other network endpoints, while PoE support allows compatible devices to receive both data and power through a single Ethernet cable, helping simplify installation and reduce additional power requirements. The switch can be centrally configured and monitored through the UniFi Network platform, providing convenient management of connected devices, network traffic, VLANs, port settings, and other network functions from an intuitive interface. Its practical port capacity makes the Ubiquiti USW-48-PoE suitable for office networks, schools, hotels, retail locations, warehouses, and other environments requiring a scalable wired infrastructure with PoE capabilities. With dependable Gigabit connectivity, centralized UniFi management, and flexible PoE deployment, the USW-48-PoE is a practical choice for building efficient and professionally managed network systems.

Model:
USW-48-POE
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Specification	Details
Brand	Ubiquiti (UniFi)
Model / SKU	USW-48-POE
Product Type	Managed Layer 2 Gigabit PoE+ Switch
Form Factor	Rack-mountable (1U), desktop
Networking Interfaces	(48) 10/100/1000 Mbps RJ45 ports (4) 1 Gbps SFP ports
PoE Interfaces	(32) PoE+ ports (Ports 1–32, IEEE 802.3af/at, Pins 1, 2+; 3, 6-)
Total PoE Budget	195W
Max. PoE Wattage per Port	32W (802.3at / PoE+)
PoE Voltage Range	802.3af: 44–57V DC 802.3at: 50–57V DC
Switching Capacity	104 Gbps
Total Non-Blocking Throughput	52 Gbps
Forwarding Rate	77.38 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
Access Control Lists (ACL)	IPv4: 128, MAC: 128
Layer 2 Features	LACP port aggregation, STP/RSTP, IGMP snooping & querier, 802.1X control, DHCP snooping/guarding, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, storm control, flow control, egress rate limit, MAC-based/IP-based ACLs
Management Interface	Ethernet In-Band, UniFi Network application (v7.2.94 or later)
Display	1.3" LCM touchscreen
Power Method	100–240V AC, 50/60 Hz, universal input
Power Supply	AC/DC, internal, 240W
Max. Power Consumption	45W (excluding PoE output)
Heat Dissipation	153.5 BTU/hr (excluding PoE output)
Dimensions (W×D×H)	442.4 × 285 × 43.7 mm (17.4 × 11.2 × 1.7")
Weight	4.52 kg (9.97 lb) without brackets 4.61 kg (10.16 lb) with brackets
Enclosure Material	SGCC steel
ESD/EMP Protection	Air: ±16 kV, Contact: ±12 kV
Operating Temperature	-5°C to 40°C (23°F to 104°F)
Operating Humidity	10–90% noncondensing
Cooling	Fanless, silent passive cooling
Certifications	CE, FCC, IC
Compliance	NDAA compliant
Package Contents	UniFi Switch, rack-mount brackets (×2), bracket screws (×8), mounting screws (×4), cage nuts (×4), power cord, rubber feet (×4)
