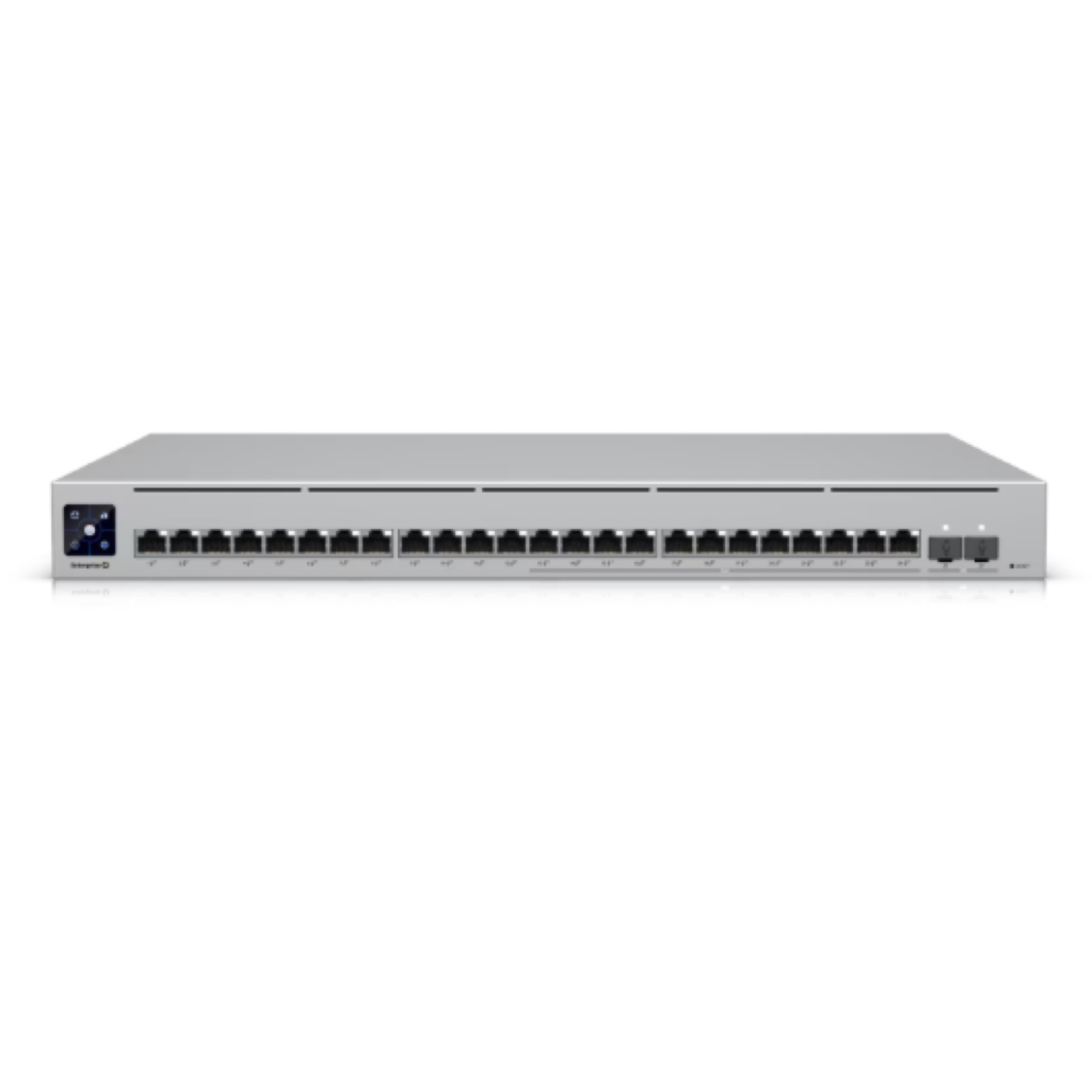

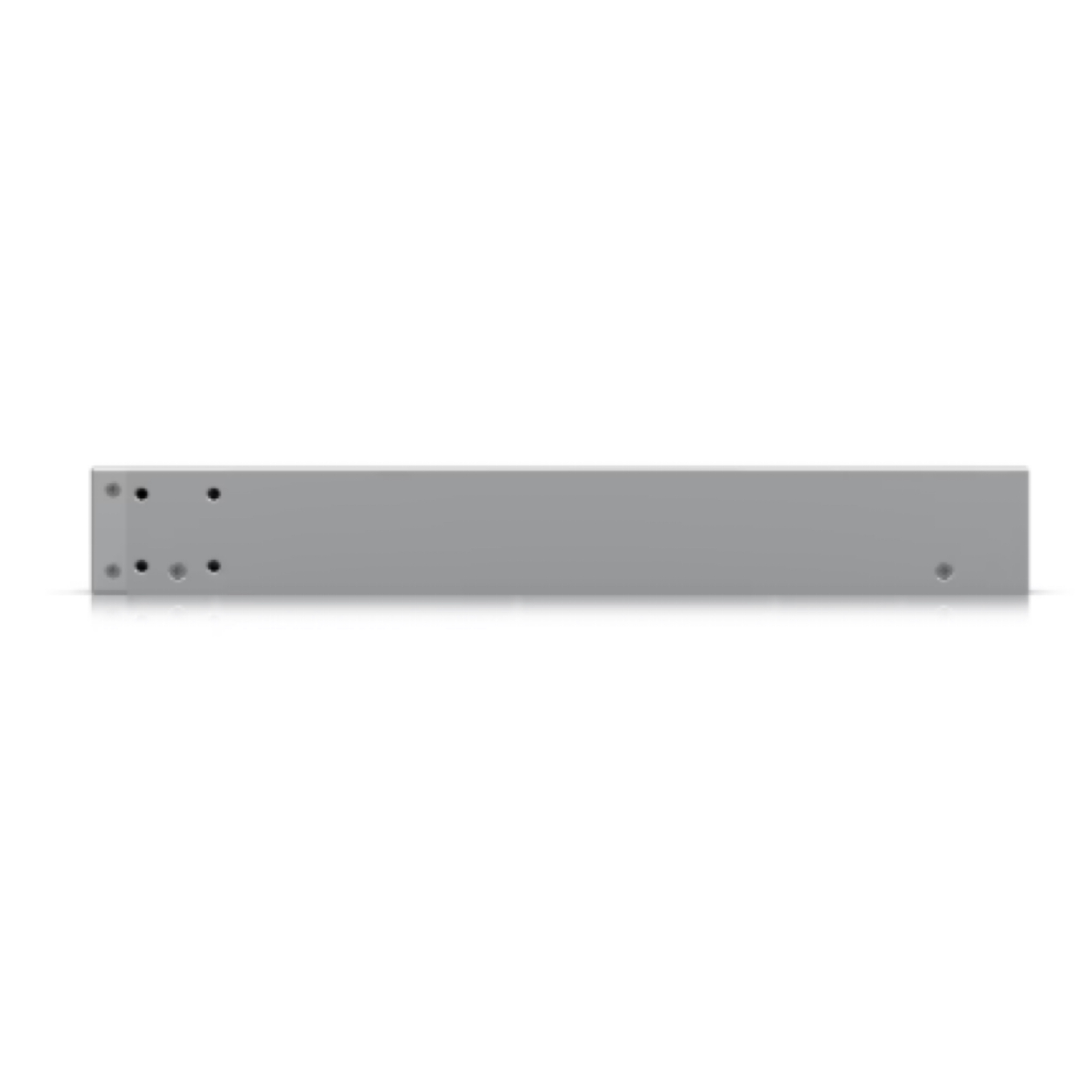

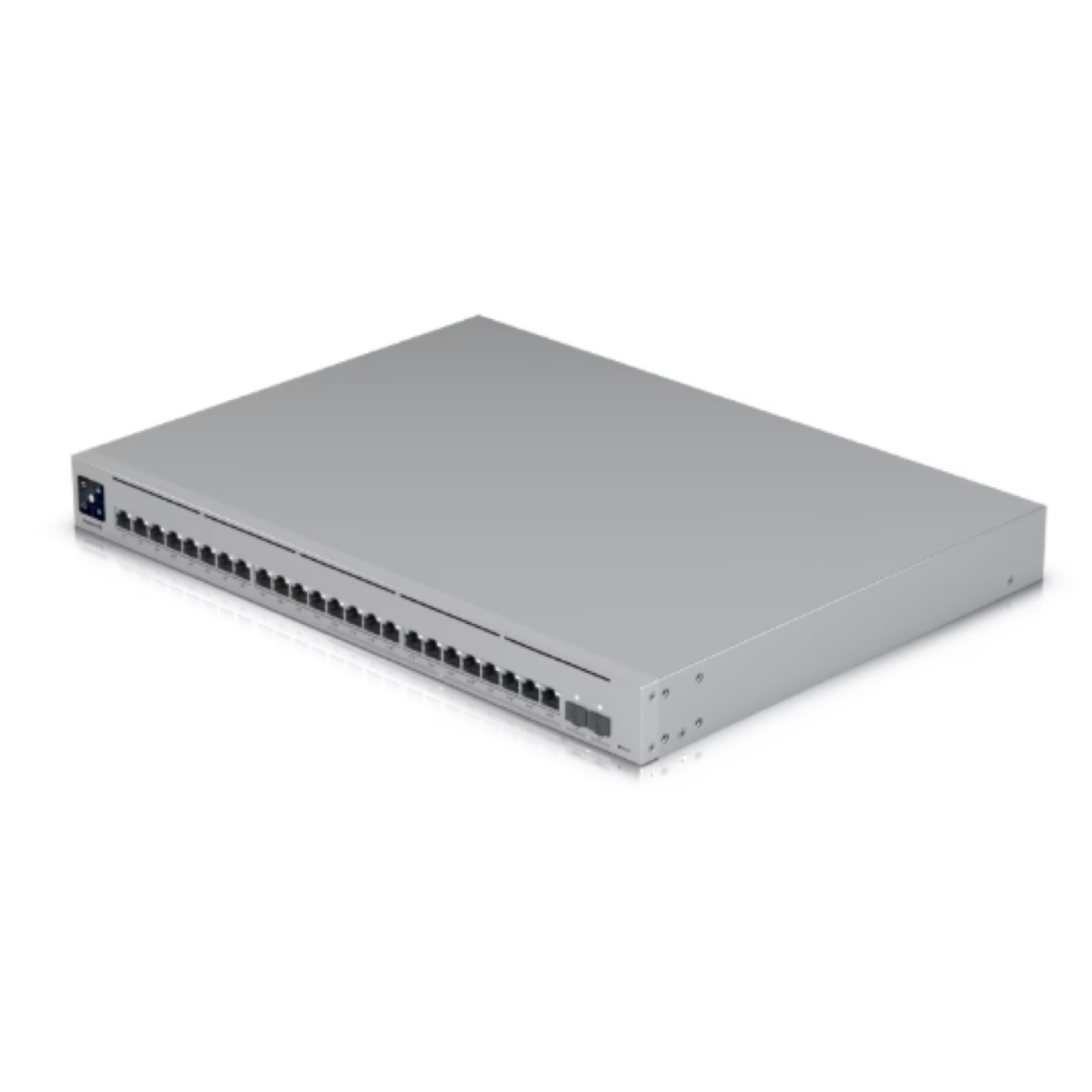

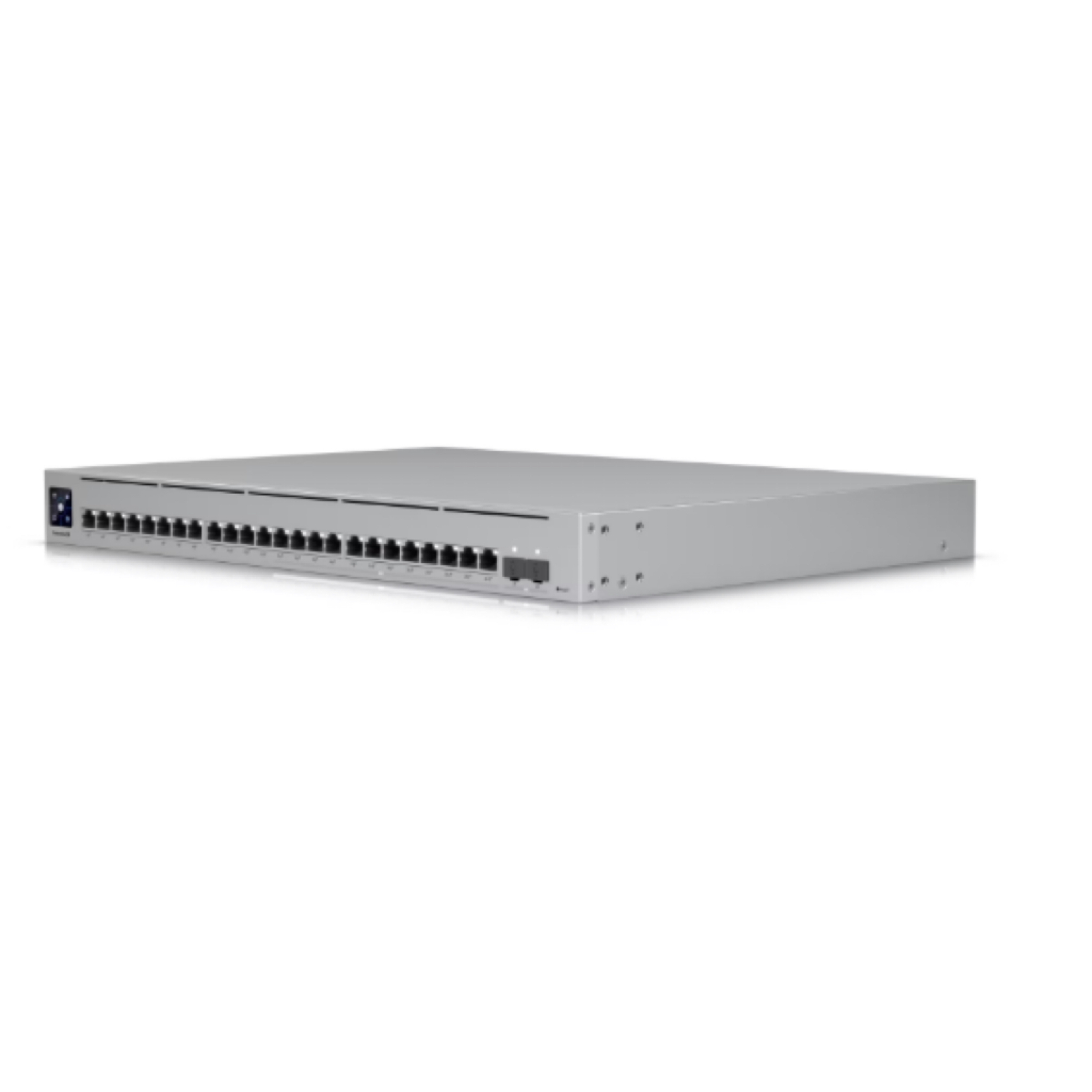

Ubiquiti UniFi Switch Enterprise 24 PoE USW-Enterprise-24-PoE – 24-Port Layer 3 Managed Switch, 12x 2.5GbE + 12x 1GbE PoE+ (400W Budget), 2x 10G SFP+, 1.3" Touchscreen, Rackmount

Share to:

Ubiquiti UniFi Switch Enterprise 24 PoE USW-Enterprise-24-PoE – 24-Port Layer 3 Managed Switch, 12x 2.5GbE + 12x 1GbE PoE+ (400W Budget), 2x 10G SFP+, 1.3" Touchscreen, Rackmount

Ubiquiti USW-Enterprise-24-PoE is a high-performance managed PoE switch designed for enterprise networks, high-density deployments, and modern business environments that require reliable wired connectivity and high-speed uplink capabilities. As part of the UniFi Enterprise series, this switch provides 24 Gigabit Ethernet ports with PoE support, allowing compatible devices such as UniFi access points, IP cameras, VoIP phones, and other network devices to receive both data connectivity and power through a single Ethernet cable. The USW-Enterprise-24-PoE also features high-speed 10G SFP+ uplink ports, providing additional bandwidth for connecting the switch to aggregation switches, core networks, servers, or other high-capacity network infrastructure. With Layer 2 switching features, VLAN support, traffic management, network monitoring, and centralized configuration through the UniFi Network application, administrators can efficiently manage and monitor the entire network from a unified interface. Its rack-mountable design makes it suitable for server rooms, data centers, offices, educational institutions, hotels, and other professional installations. Combining Gigabit PoE connectivity, 10G uplinks, enterprise-class network management, and seamless integration with the UniFi ecosystem, the Ubiquiti USW-Enterprise-24-PoE is a practical solution for building scalable, secure, and high-performance business networks.

Model:
USW-Enterprise-24-PoE
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Parameter	Specification
Product Model	Ubiquiti USW-Enterprise-24-PoE (UniFi Switch Enterprise 24 PoE)
Product Type	Managed Layer 3 PoE+ Gigabit Switch, rack-mountable (1U)
Ethernet Ports	(12) 10/100/1,000 MbE RJ45 ports + (12) 100/1,000/2,500 MbE RJ45 ports (24 total, all PoE+)
SFP+ Uplink Ports	(2) 10G SFP+ ports (10G/1G)
PoE Interface	(24) PoE/PoE+ (IEEE 802.3af/at), Pins 1, 2+; 3, 6-
Max. PoE+ Wattage per Port	34.2W
Total PoE Budget	400W
PoE Voltage Range	PoE: 44–57V / PoE+: 50–57V
Total Non-Blocking Throughput	62 Gbps
Switching Capacity	124 Gbps
Forwarding Rate	92.25 Mpps
Layer 3 Features	Yes (static routing, SMB Layer 3 switch)
Management	UniFi Network application (v5.14.12+), Ethernet in-band, 1.3" LCM color touchscreen display
Power Method	(1) Universal AC input, 100–240V AC, 8.5A max, 50/60 Hz; (1) USP-RPS DC input: 52V DC, 7.7A / 11.5V DC, 8.7A
Max. Power Consumption	550W
Power Supply	Internal AC/DC, 550W (redundant power ready with USP-RPS)
Enclosure Material	SGCC steel
Dimensions	442.4 × 43.7 × 325 mm (17.4 × 1.7 × 12.8 in)
Weight	5.11 kg (11.27 lb) without rack-mount brackets; 5.2 kg (11.46 lb) with brackets
Operating Temperature	-5°C to 40°C (23°F to 104°F)
Certifications	CE, FCC, IC
