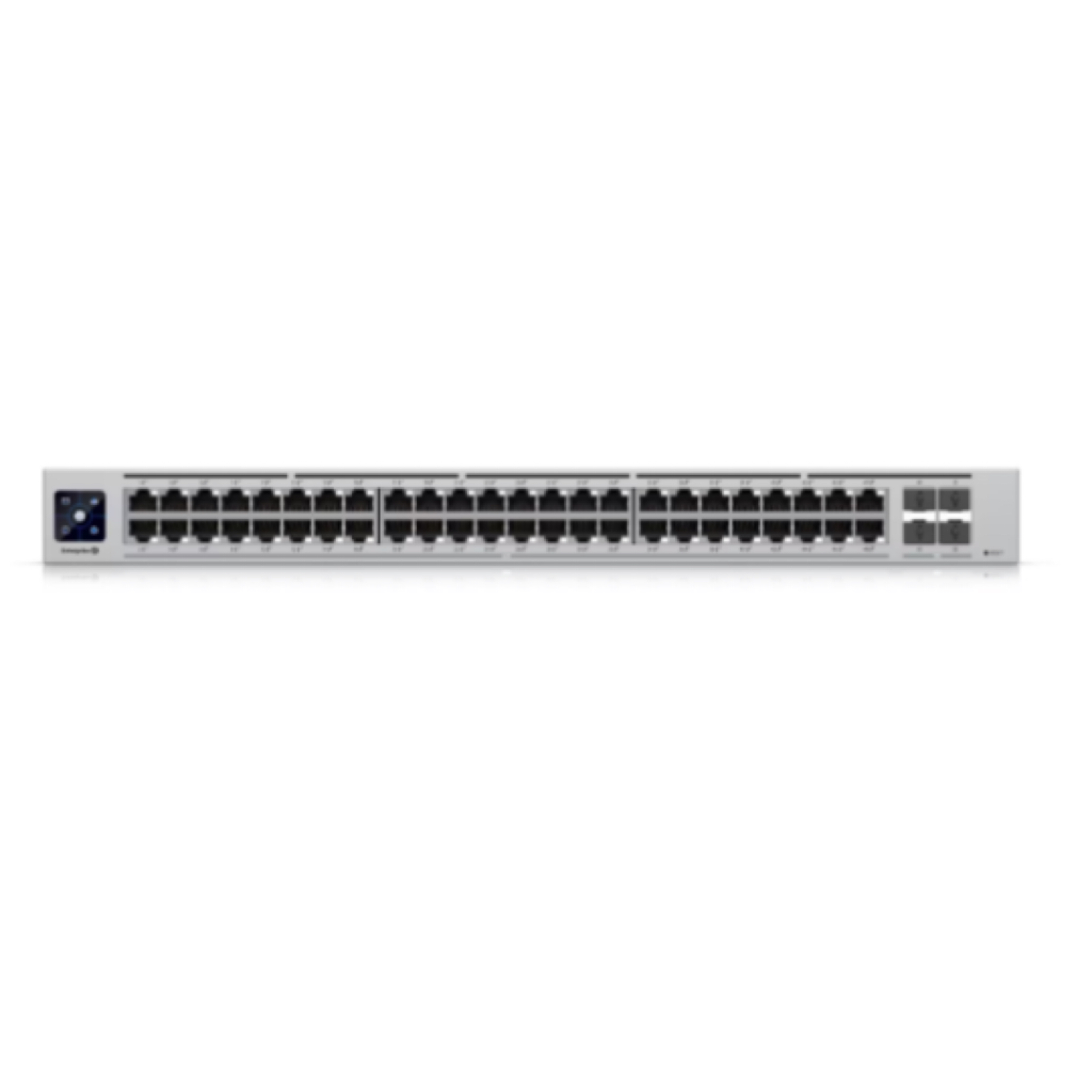

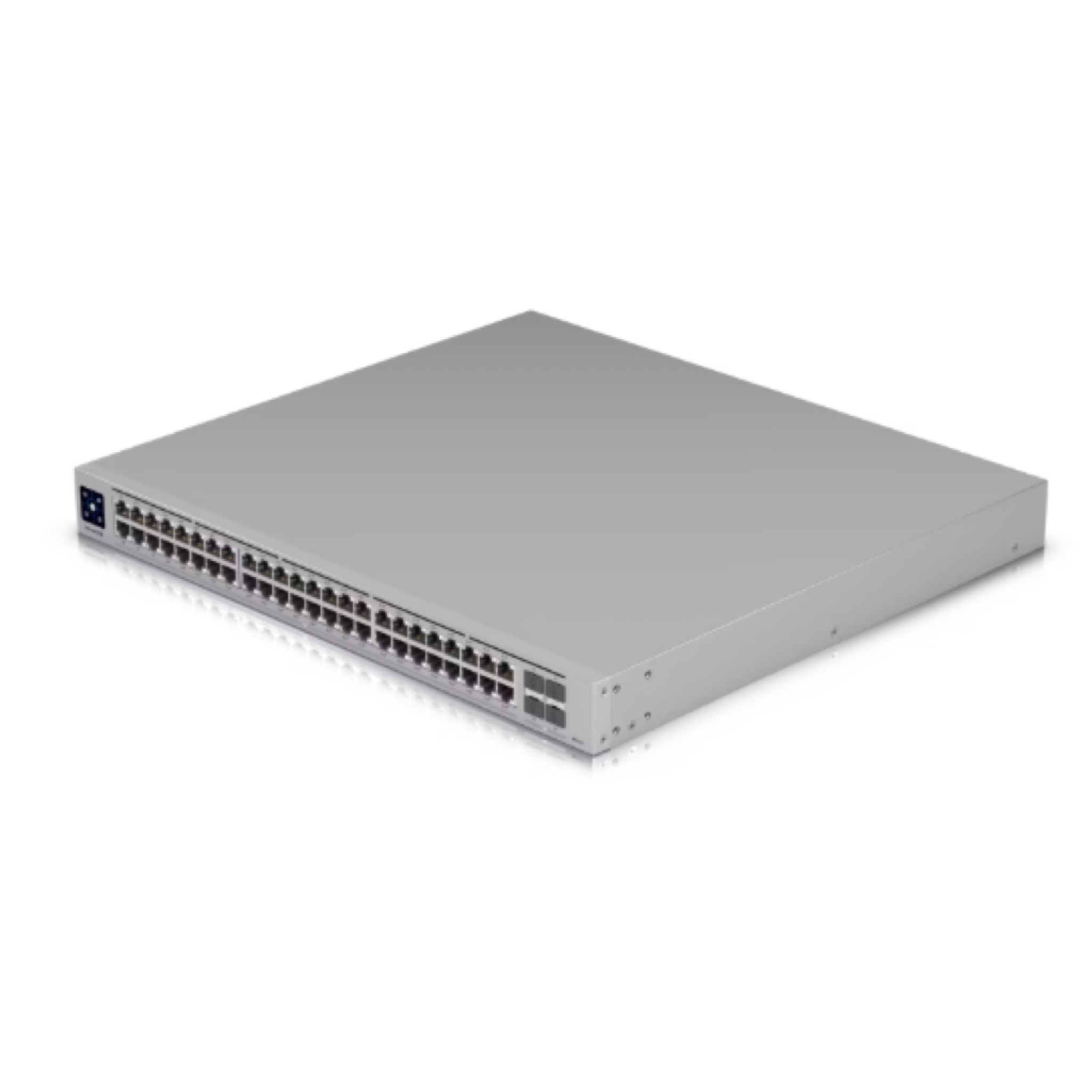

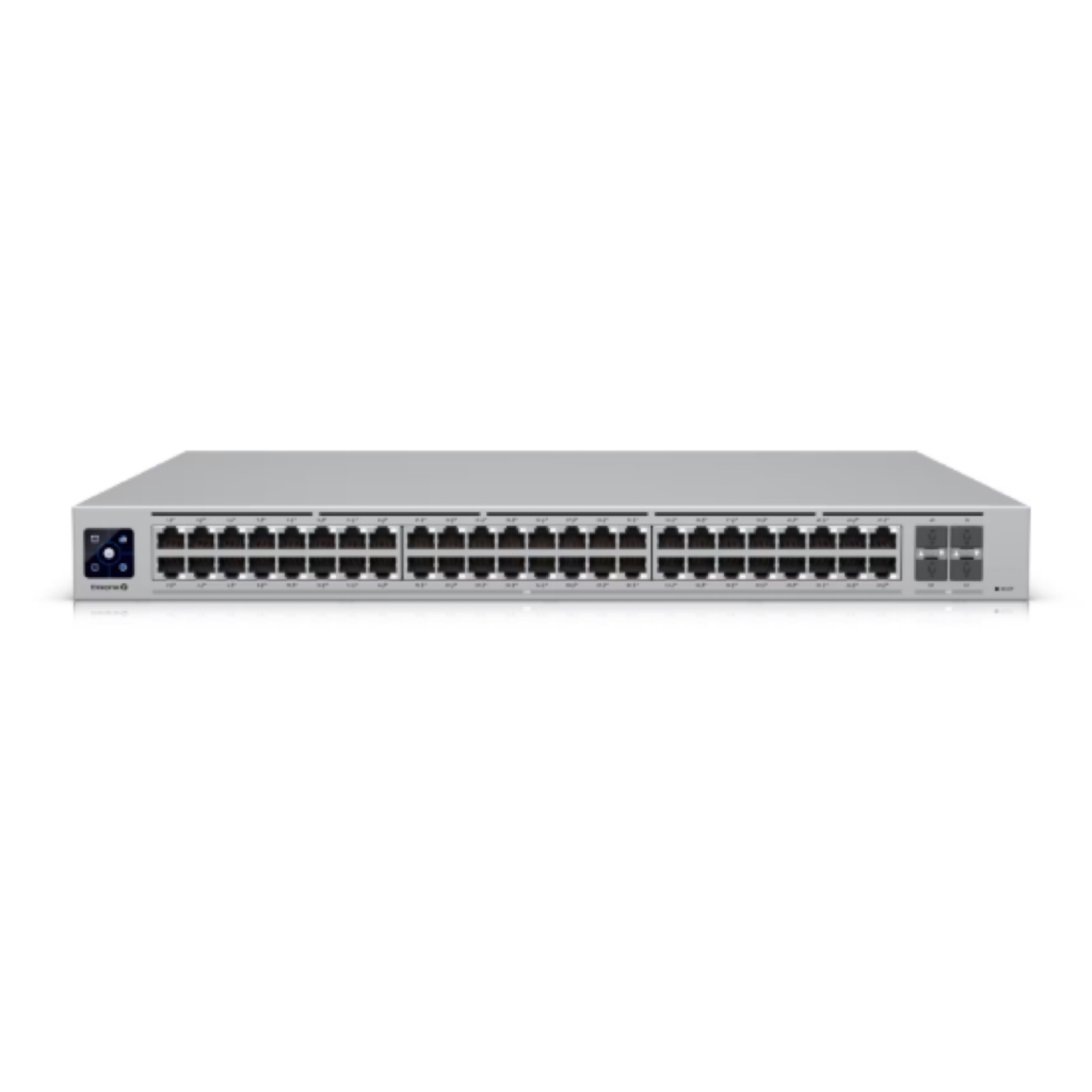

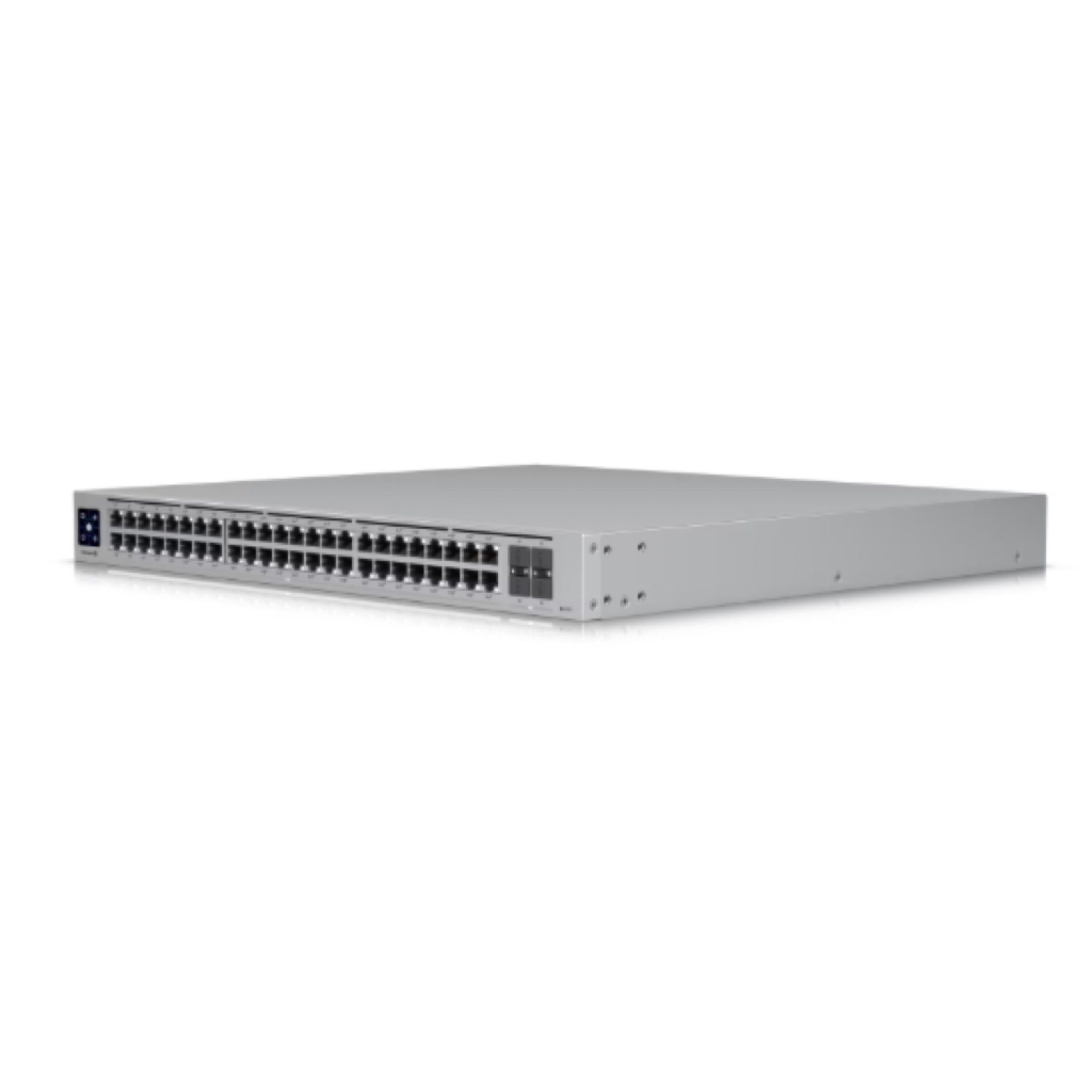

Ubiquiti UniFi Switch Enterprise 48 PoE USW-Enterprise-48-PoE – 48-Port 2.5GbE Layer 3 Managed PoE+ Switch, 4x 10G SFP+ Uplinks, 720W PoE Budget, 1.3" Touchscreen, Rackmount

Share to:

Ubiquiti UniFi Switch Enterprise 48 PoE USW-Enterprise-48-PoE – 48-Port 2.5GbE Layer 3 Managed PoE+ Switch, 4x 10G SFP+ Uplinks, 720W PoE Budget, 1.3" Touchscreen, Rackmount

Ubiquiti USW-Enterprise-48-PoE is a high-performance UniFi Enterprise switch designed for businesses, enterprise networks, campus environments, and other demanding applications that require high-speed connectivity and reliable Power over Ethernet. The switch provides 48 Ethernet ports with PoE support, allowing organizations to connect and power compatible devices such as UniFi access points, IP cameras, VoIP phones, and other network endpoints through a single network cable, helping simplify installation and reduce additional power infrastructure. With high-speed uplink capabilities, the USW-Enterprise-48-PoE is well suited for handling bandwidth-intensive applications and connecting access-layer devices to core or aggregation networks. As part of the UniFi ecosystem, it can be centrally managed through the UniFi Network platform, providing convenient configuration, monitoring, VLAN management, traffic control, device management, and network troubleshooting from an intuitive interface. Its combination of high port density, PoE capability, high-speed networking, and centralized management makes the Ubiquiti USW-Enterprise-48-PoE a practical solution for expanding modern business networks while maintaining reliable performance, flexible deployment, and efficient network administration.

Model:
USW-Enterprise-48-PoE
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Specification	Details
Product Name	Ubiquiti UniFi Enterprise 48 PoE Switch
Model	USW-Enterprise-48-PoE (720W)
Switch Type	Managed Layer 3 Gigabit Ethernet Switch
Ports	(48) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M), all PoE+
Uplink Ports	(4) 10G SFP+ ports (10G/1G)
PoE Standard	PoE+ (IEEE 802.3af/at)
PoE Ports	48 (PoE+)
Max. PoE Wattage per Port	32W
Total PoE Availability	720W
Switching Capacity	320 Gbps
Total Non-Blocking Throughput	160 Gbps
Forwarding Rate	238.095 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
IPv4 Static Routes	256
Packet Buffer Size	4 MB
Access Lists	128 (IPv4) + 128 (MAC)
Layer 3 Features	DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing, Static Routing
Layer 2 Features	LACP Port Aggregation, STP/RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration, IGMP Snooping, 802.1X Control, MAC/IP-Based ACLs, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
Power Supply	Internal AC/DC, 870W; (1) Universal input 100–240V AC, 50/60 Hz; (1) USP RPS DC input for power redundancy
Max. Power Consumption	150W (excluding PoE output) / 870W (including PoE output)
Heat Dissipation	511.8 BTU/hr (excluding PoE output)
Management	UniFi Network application (version 6.2.26 and later), 1.3" touchscreen LCM display with AR switch management
ESD Protection	Air: ±16kV, Contact: ±12kV
Form Factor	Rack-mount (1U), SGCC steel enclosure
Dimensions	442 × 400 × 44 mm (17.4 × 15.7 × 1.7 in)
Weight	6.2 kg (13.7 lb) without brackets / 6.3 kg (13.9 lb) with brackets
Supported Rack Depth	600 – 1,200 mm (23.6 – 47.2 in)
Operating Temperature	-5°C to 40°C (23°F to 104°F)
Operating Humidity	10% – 90% noncondensing
Certifications	CE, FCC, IC, Anatel
NDAA Compliant	Yes
Package Contents	Switch, mounting brackets, power cord, quick start guide
