USW-EnterpriseXG-24
Ubiquiti
Original New
1 year
| Quantity: | |
|---|---|
USW-EnterpriseXG-24 — Product Specifications | |
|---|---|
Product Name | UniFi Switch Enterprise XG 24 |
Model | USW-EnterpriseXG-24 |
Product Type | Managed Layer 3 Ethernet Switch |
Form Factor | 1U Rack-Mountable |
Ports / Interfaces | |

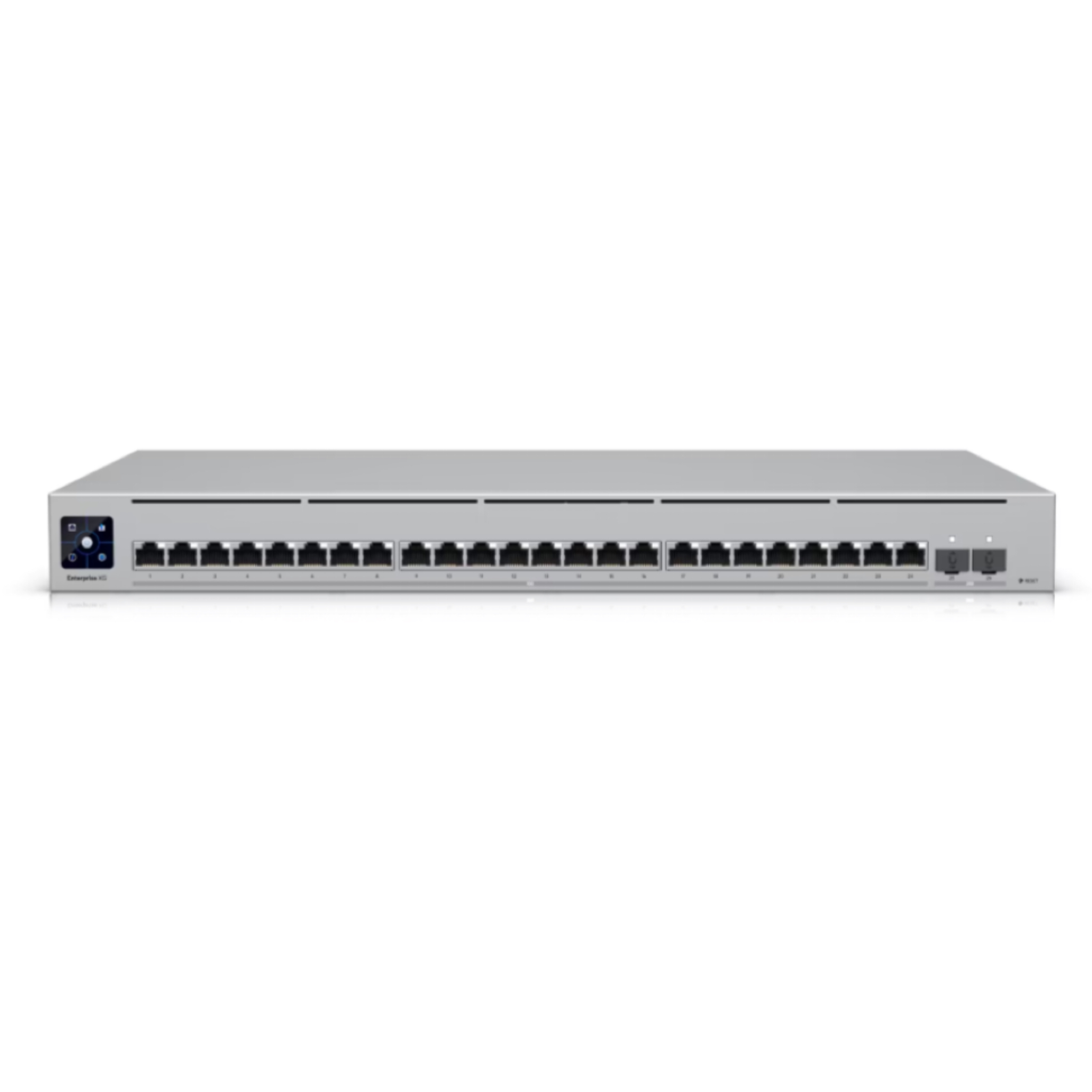

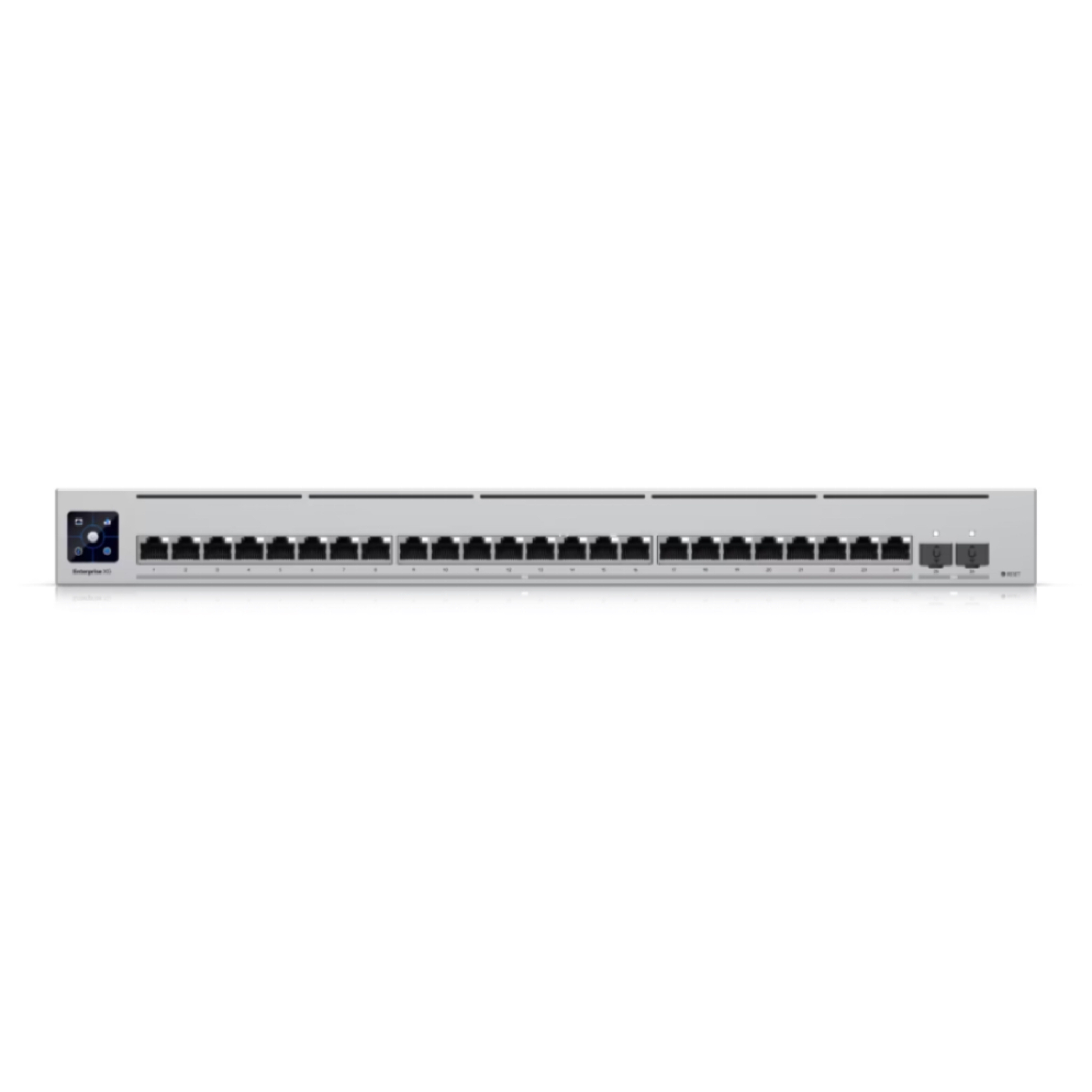

10GbE RJ45 Ports | 24 (10G / 5G / 2.5G / 1G / 100M auto-negotiation) |
25G SFP28 Ports | 2 (25G / 10G / 1G) |
PoE Support | No |
Performance | |
Switching Capacity | 580 Gbps |
Total Non-Blocking Throughput | 290 Gbps |
Forwarding Rate | 432 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 32,000 |
IPv4 Static Routes | 256 |
Packet Buffer Size | 4 MB |
Layer 2 / Layer 3 Features | |
Layer 3 | Static Routing, Inter-VLAN Routing, DHCP Server & Relay |
Layer 2 | LACP, STP/RSTP, IGMP Snooping, 802.1X, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection |
QoS | DSCP-based QoS, Pro AV profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Power | |

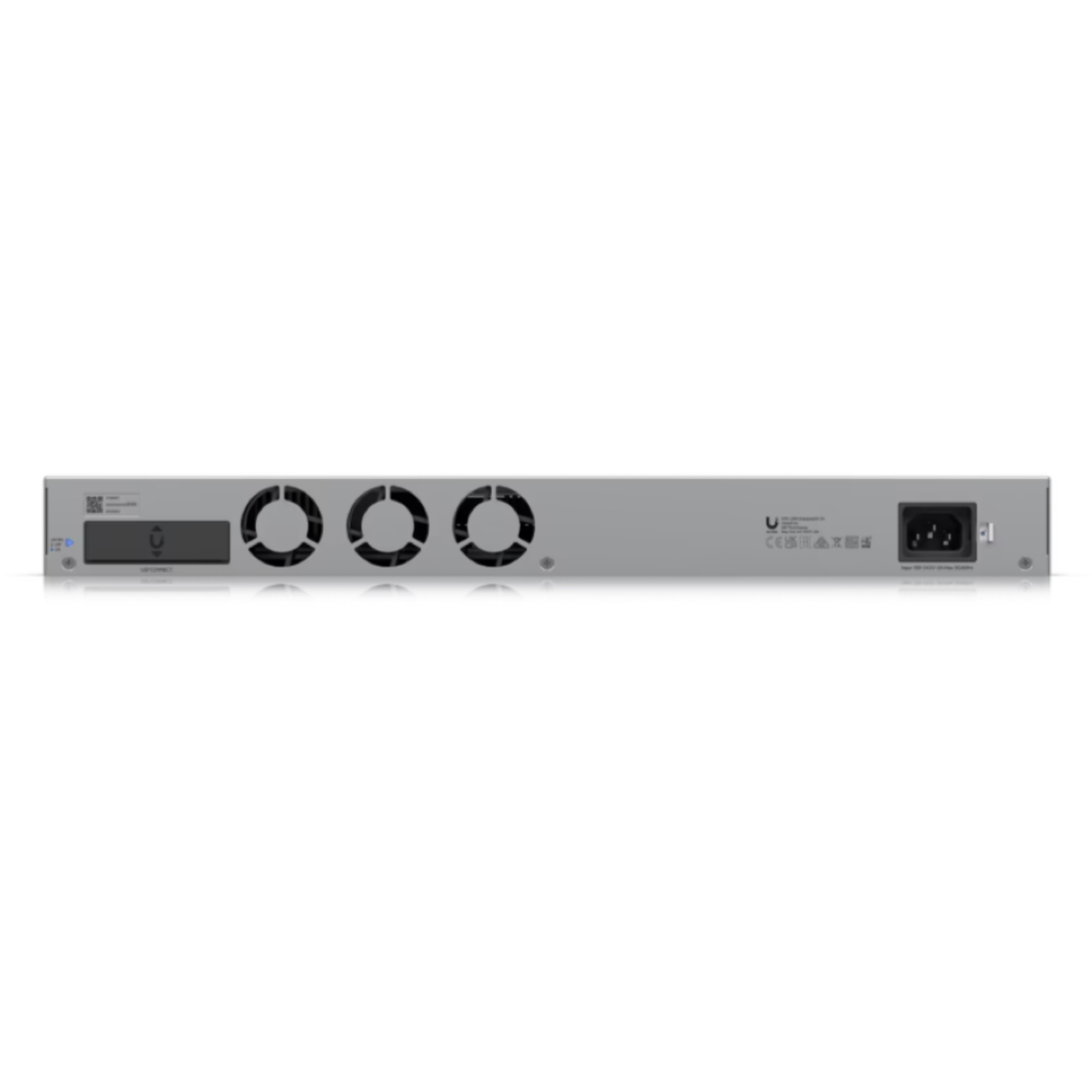

Power Method | Internal AC/DC power supply, 100–240V AC, 50/60 Hz; USP RPS DC backup input |
Max. Power Consumption | 100 W |
Heat Dissipation | 341.2 BTU/hr |
Physical | |
Dimensions | 442 × 285 × 44 mm (17.4 × 11.2 × 1.7 in) |
Weight | 4.5 kg (9.9 lb) without brackets; 4.6 kg (10.1 lb) with brackets |
Enclosure Material | SGCC steel |
Display | 1.3" touchscreen LCD |
Cooling | Fan |
Environment | |
Operating Temperature | −5 to 40 °C (23 to 104 °F) |
Operating Humidity | 10–95% non-condensing |
Management & Compliance | |
Management | UniFi Network software (Web UI / UniFi Network Controller, v6.1.67 and later), Ethernet AR |
Certifications | CE, FCC, IC, NDAA compliant |
ESD Protection | Air: ±16 kV, Contact: ±12 kV |
