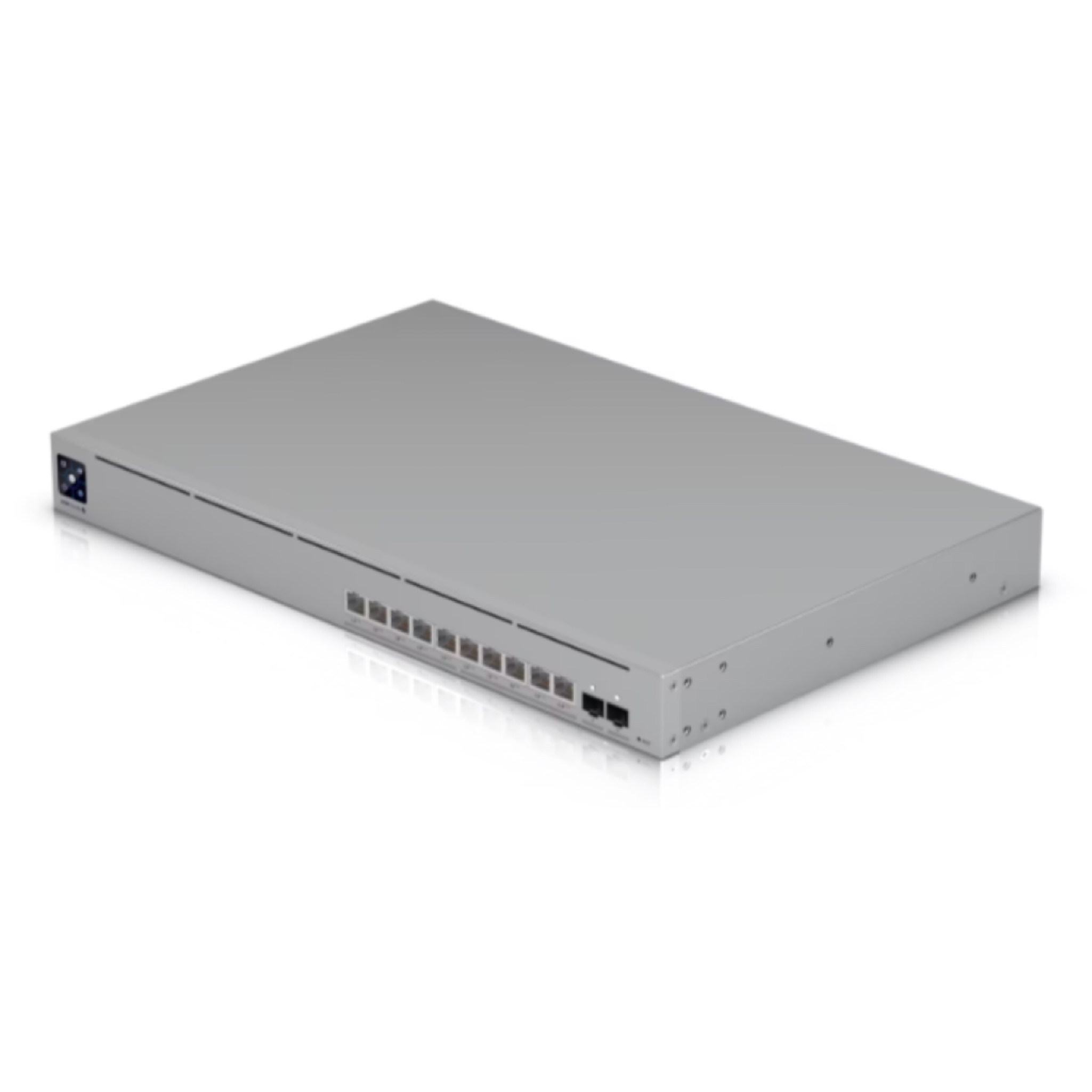

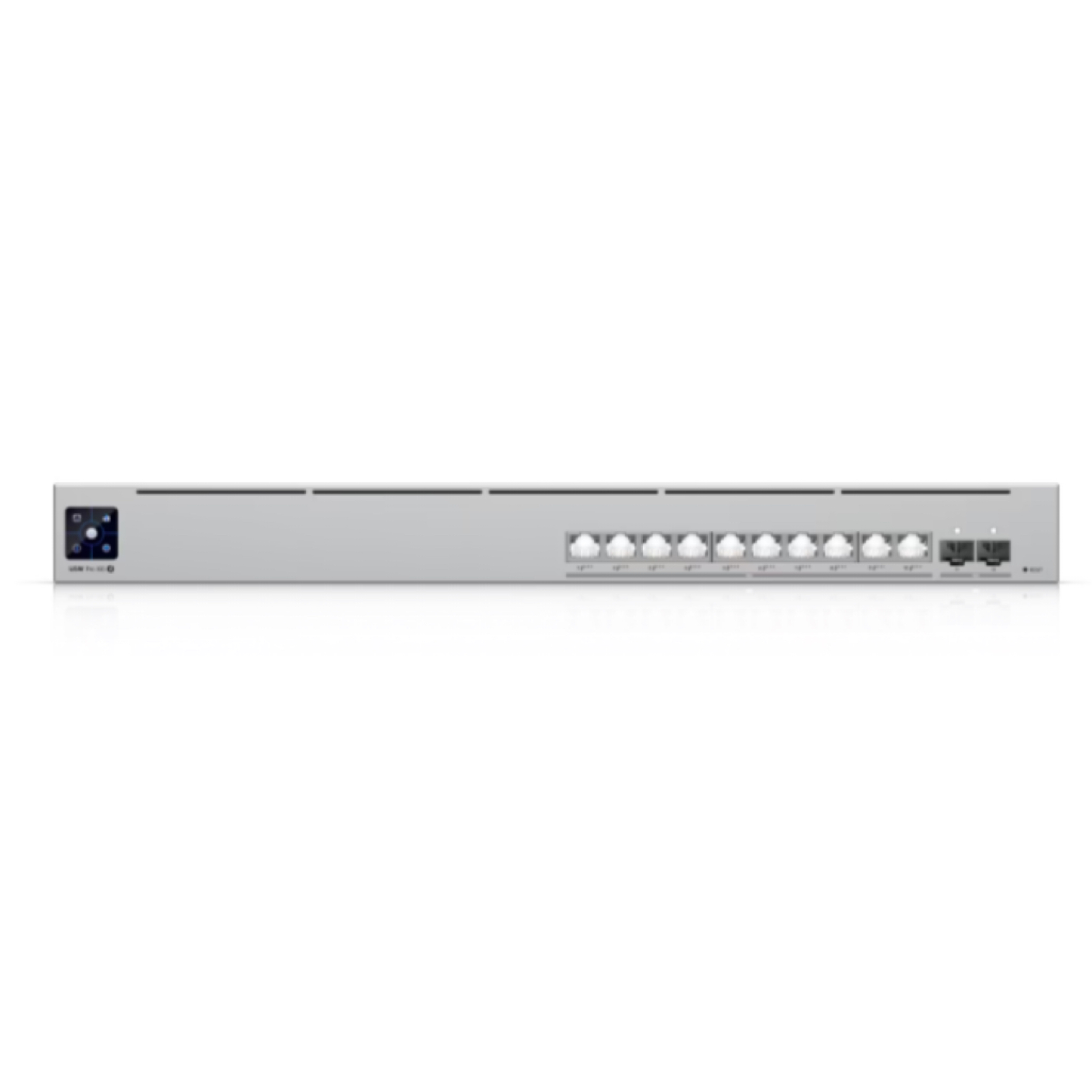

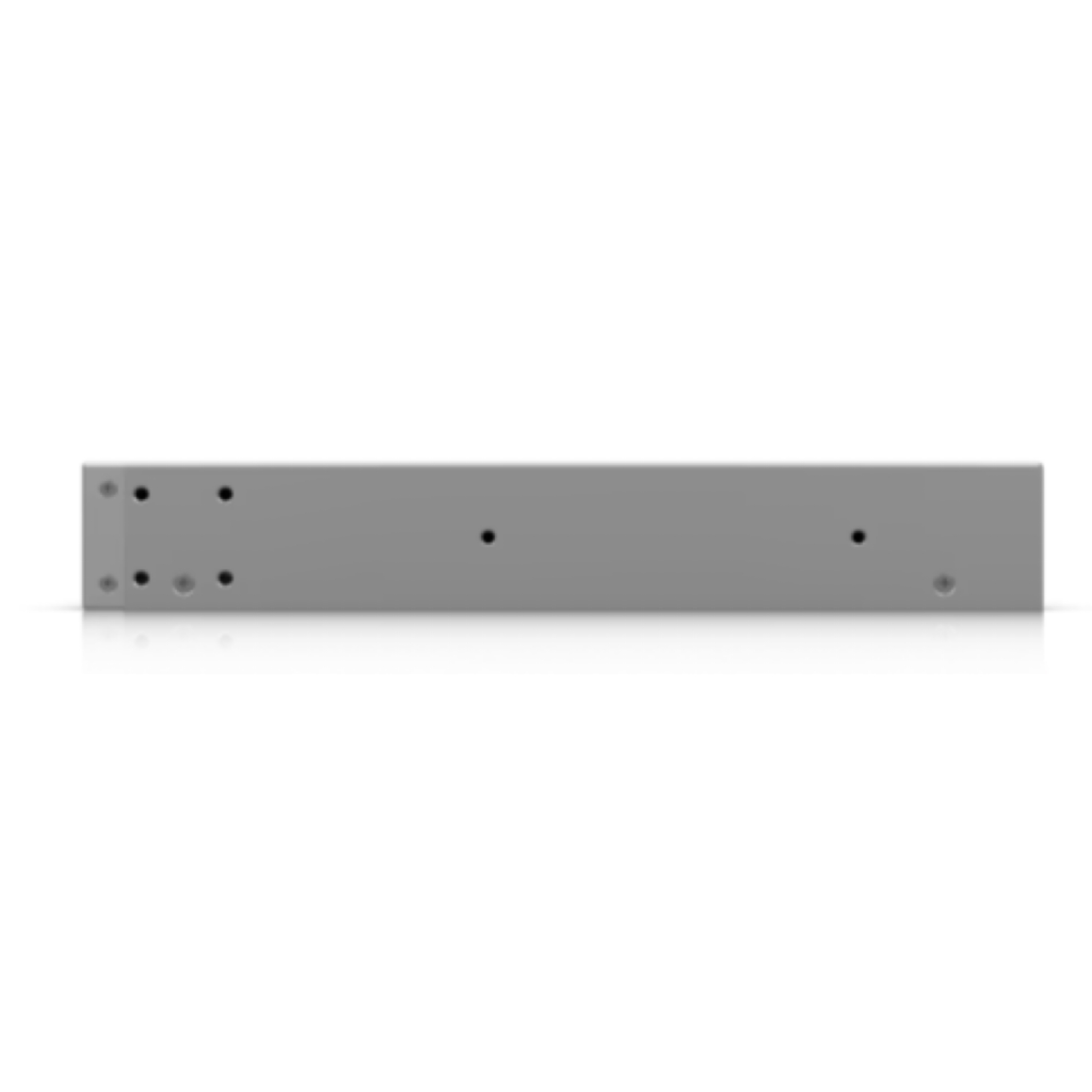

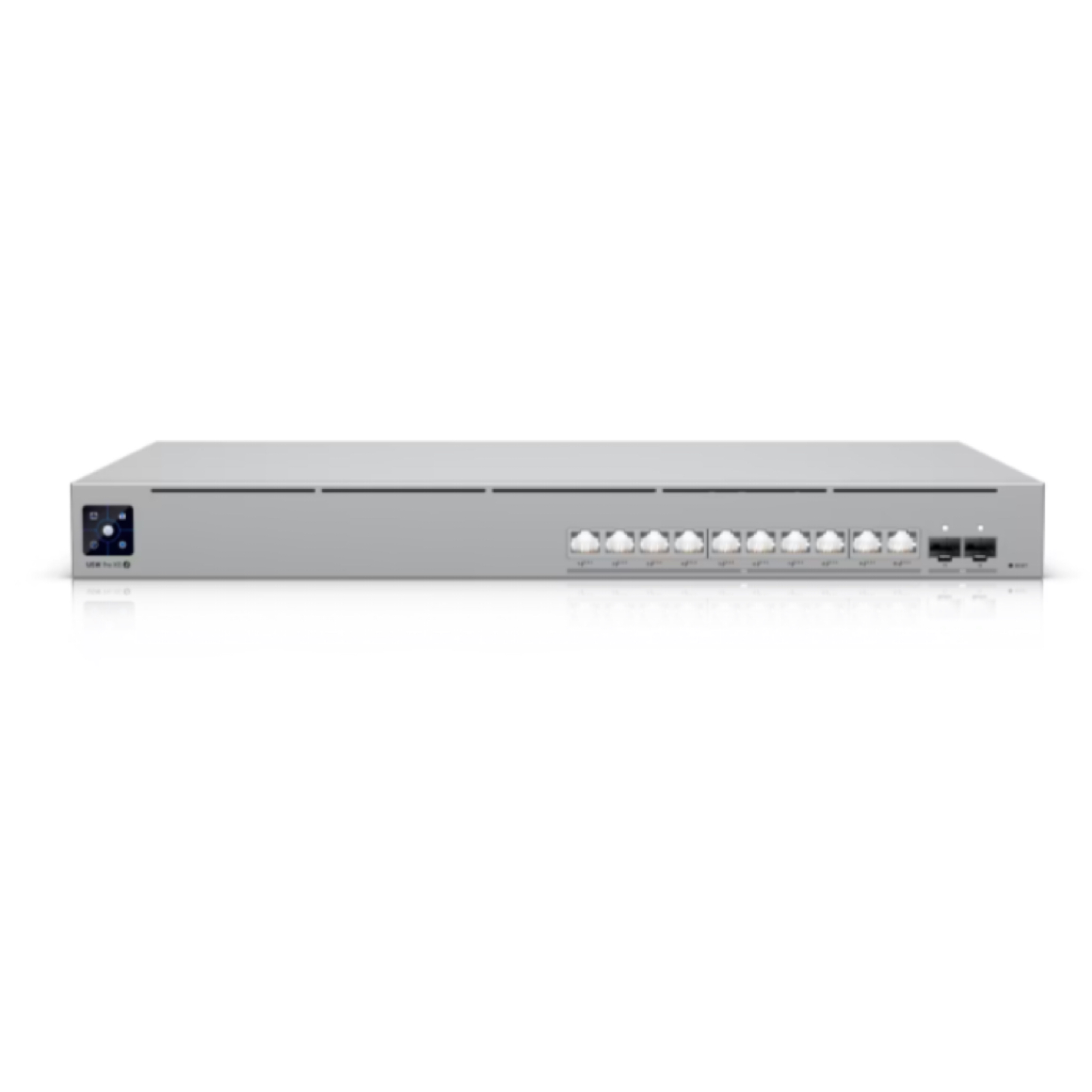

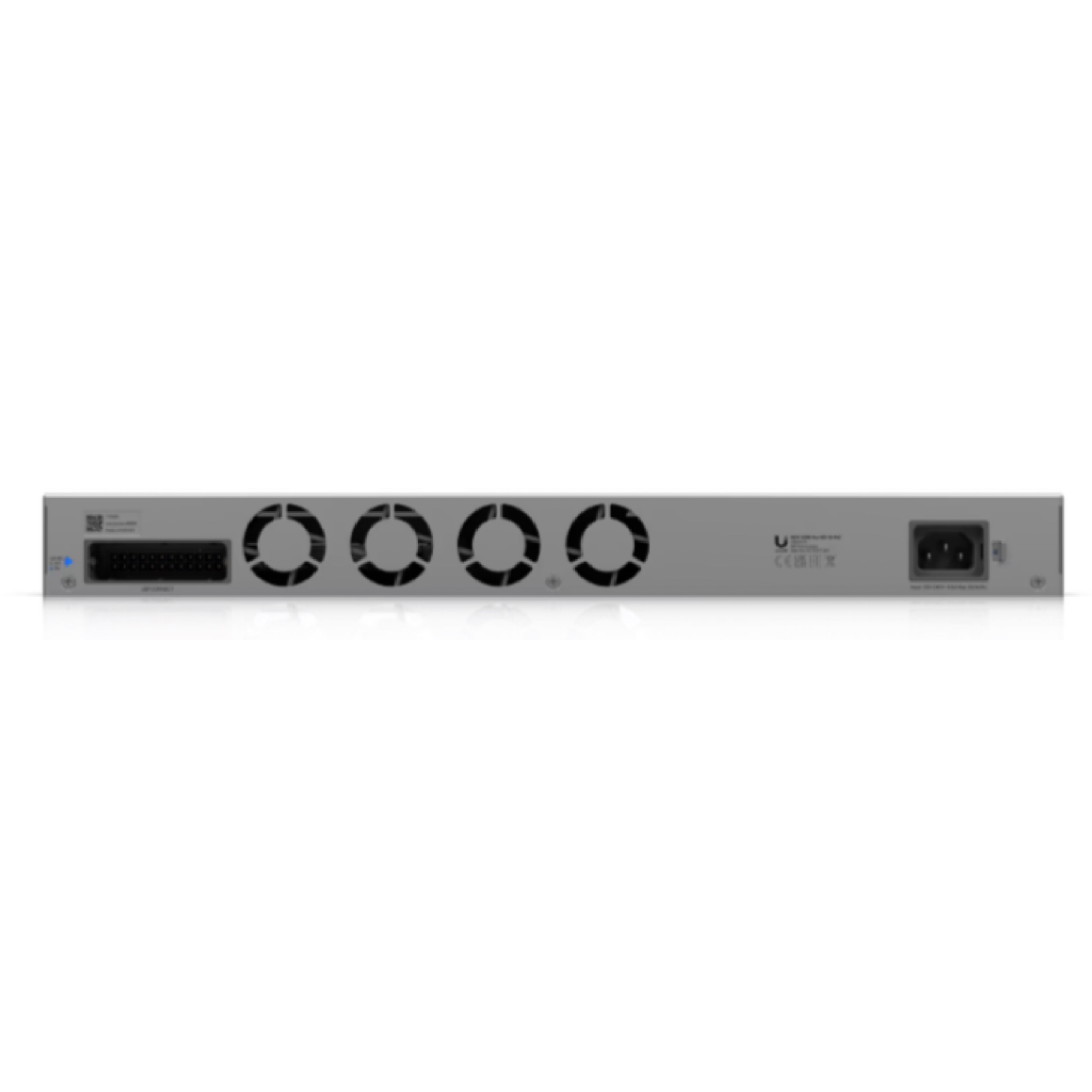

Ubiquiti UniFi Switch Pro XG 10 PoE USW-Pro-XG-10-PoE – 1U 10-Port Layer 3 Etherlighting PoE+++ Switch, 10x 10GbE RJ45, 2x 10G SFP+, 400W PoE Budget, 90W Per Port, Rackmount

Share to:

Ubiquiti UniFi Switch Pro XG 10 PoE USW-Pro-XG-10-PoE – 1U 10-Port Layer 3 Etherlighting PoE+++ Switch, 10x 10GbE RJ45, 2x 10G SFP+, 400W PoE Budget, 90W Per Port, Rackmount

The Ubiquiti USW-Pro-XG-10-PoE is a high-performance UniFi managed switch designed for enterprise networks, high-bandwidth applications, and demanding business environments. Featuring 10 high-speed Ethernet ports with multi-gigabit and 10G connectivity, along with Power over Ethernet (PoE) support, it provides flexible network expansion and efficient power delivery for compatible devices such as Wi-Fi access points, IP cameras, and other PoE-enabled equipment. Its high-speed interfaces help support bandwidth-intensive workloads, fast data transfers, and reliable connectivity for modern office networks, campus infrastructures, and professional IT deployments. Integrated with the UniFi Network application, the USW-Pro-XG-10-PoE enables centralized configuration, real-time network monitoring, VLAN management, traffic control, and convenient administration of connected devices. Advanced Layer 2 switching capabilities and support for enterprise network management features help IT teams optimize network performance, improve traffic segmentation, and simplify daily operations. With its combination of high-speed connectivity, PoE functionality, and centralized management, the Ubiquiti USW-Pro-XG-10-PoE is an excellent choice for businesses, system integrators, and network professionals seeking a scalable, efficient, and easy-to-manage switching solution.

Model:
USW-Pro-XG-10-PoE
Brand:
Ubiquiti
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Specification
Model	USW‑Pro‑XG‑10‑PoE
Brand	Ubiquiti UniFi
Switch Type	Layer 3 Managed Switch
RJ45 Ports	10 × 10/5/2.5/1‑Gbps RJ45 (PoE+++ capable)
SFP+ Ports	2 × 10G SFP+ Uplink Ports
PoE Standard	802.3bt Type 4 Class 8 (PoE+++)
Max PoE Per Port	90W
Total PoE Budget	400W
Non‑Blocking Throughput	120 Gbps
Switching Capacity	240 Gbps
Forwarding Rate	178.57 Mpps
MAC Address Table	32000 Entries
Supported VLANs	1000
Packet Buffer	2 MB
Display	1.3" LCM Touchscreen
Power Supply	Internal 550W AC/DC
AC Input	100‑240V AC, 50/60Hz
RPS Support	USP‑RPS DC Redundant Power Input
Power Consumption	65W (without PoE); 520W max (including PoE)
Enclosure	1U Rack‑mount, SGCC Steel
Operating Temperature	-5 °C ~ 40 °C (23 °F ~ 104 °F)
Operating Humidity	10%‑90% Non‑condensing
ESD Protection	Air ±30kV, Contact ±30kV
Software Requirement	UniFi Network Controller 9.1.120 or higher
Special Features	Etherlighting™, Pro AV Support, LACP, STP/RSTP, DHCP Snooping, ACL, QoS, Inter‑VLAN Routing
Certifications	CE, FCC, IC, NDAA Compliant
