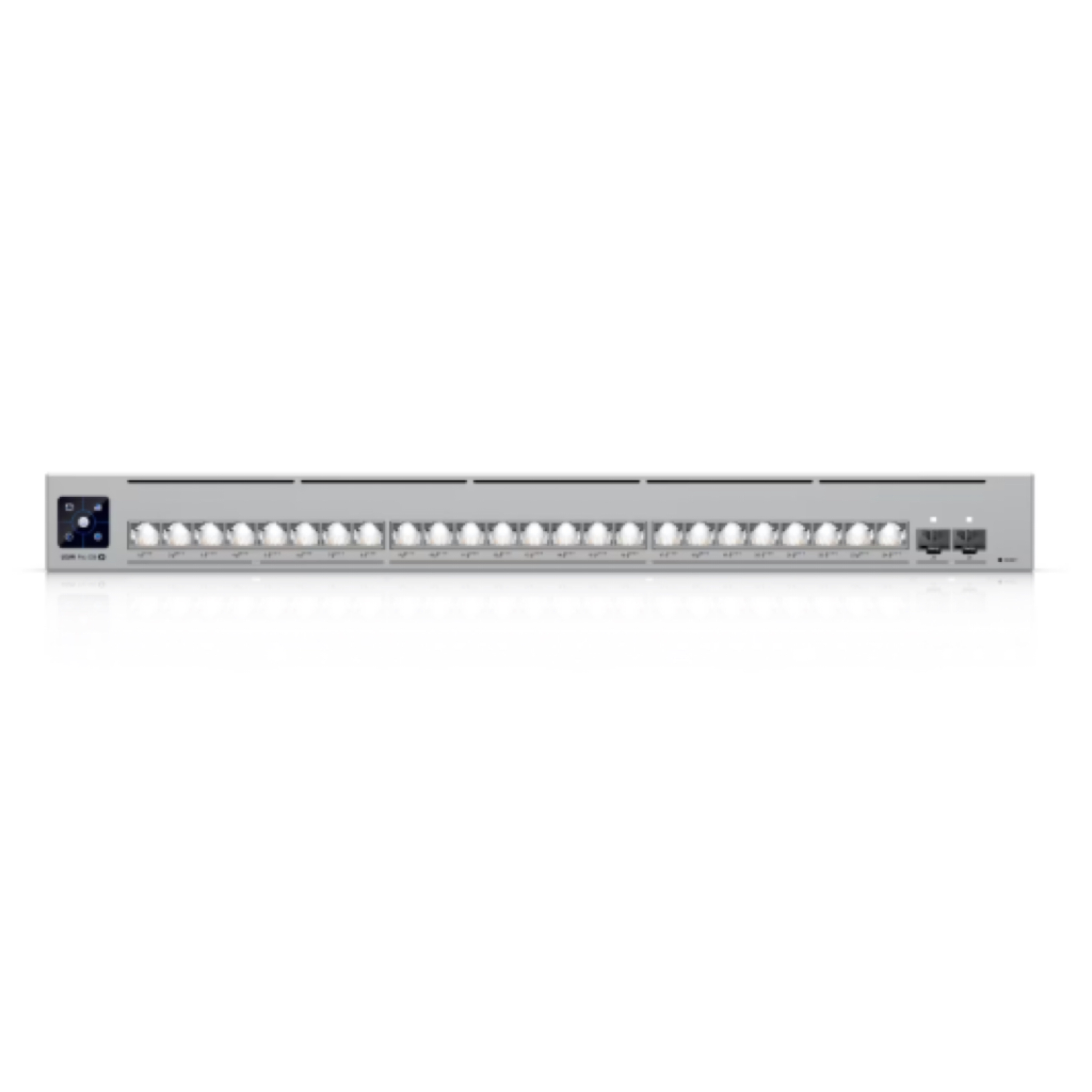

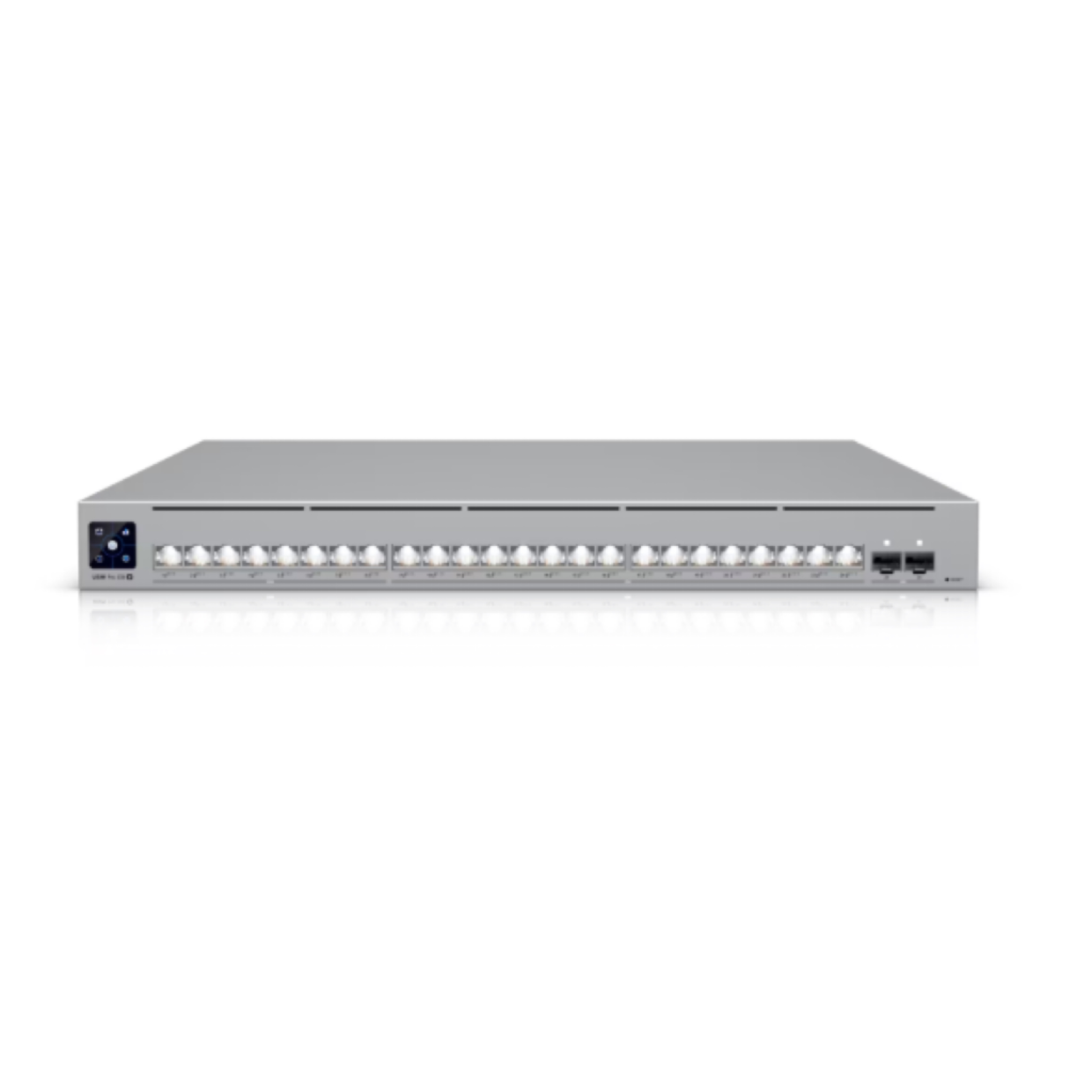

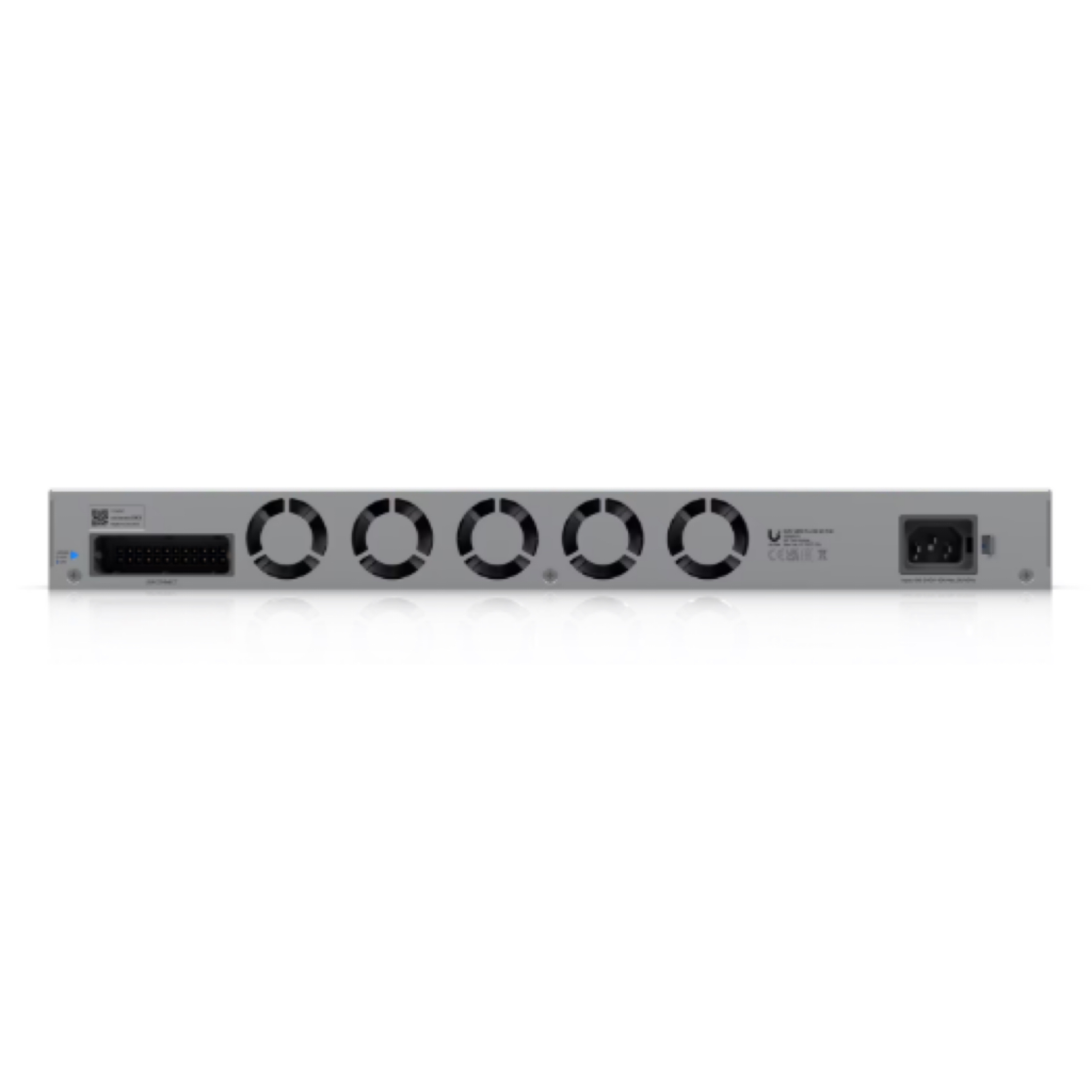

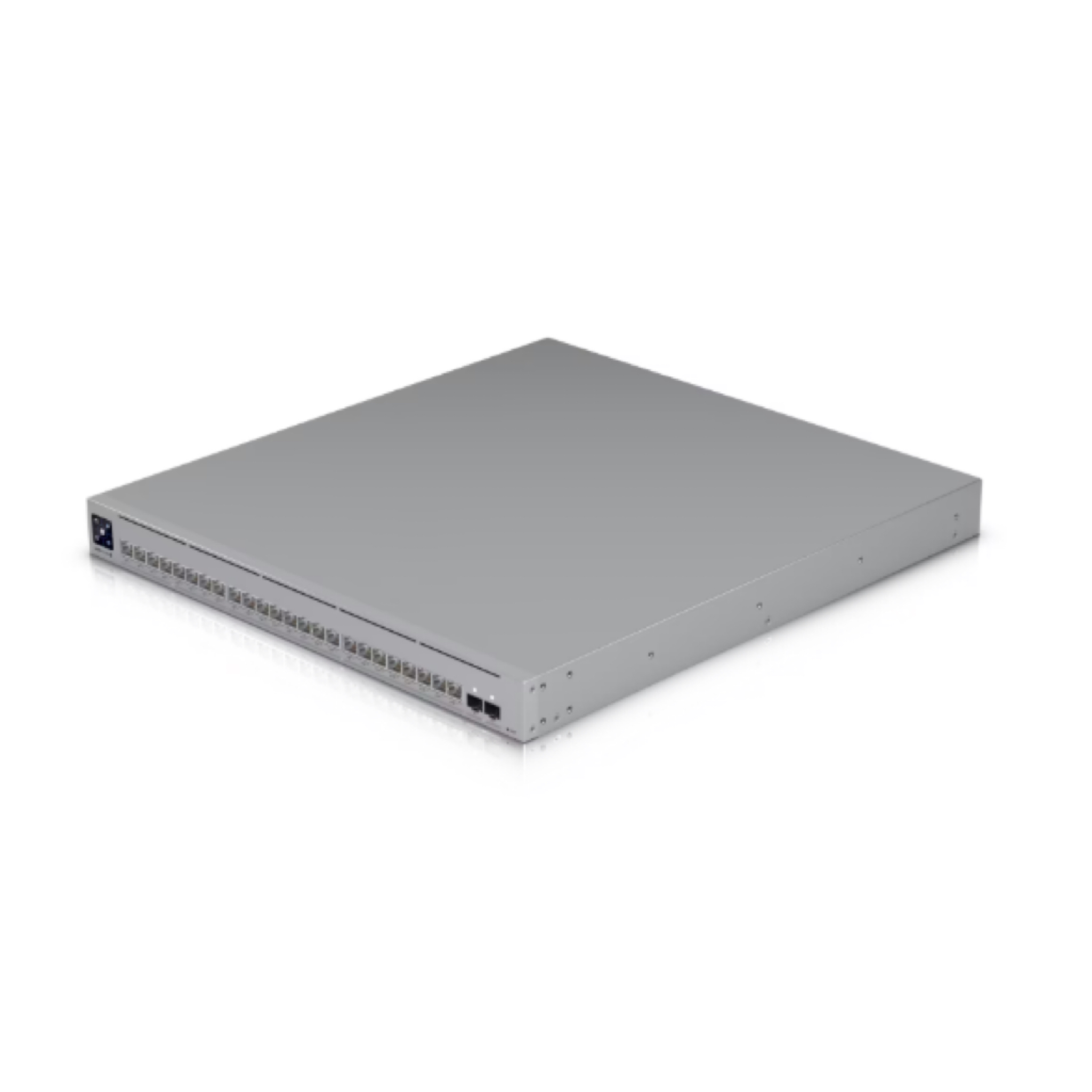

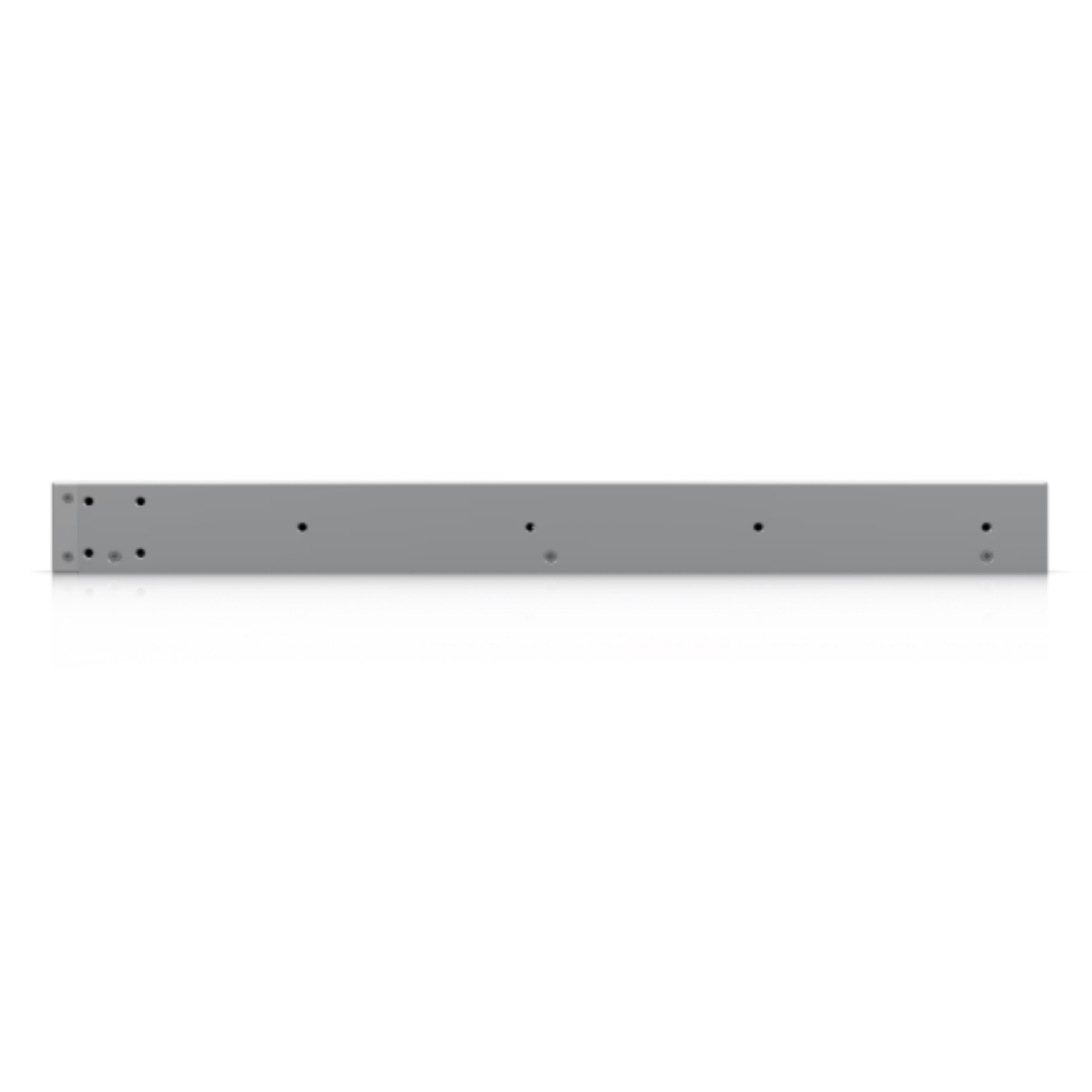

Ubiquiti UniFi Switch Pro XG 24 PoE USW-Pro-XG-24-PoE – 24-Port Layer 3 Etherlighting PoE+++ Switch, 16x 10GbE + 8x 2.5GbE RJ45, 2x 25G SFP28, 720W PoE Budget, 1.3" Touchscreen, 1U Rackmount

The Ubiquiti USW-Pro-XG-24-PoE is a high-performance Layer 3 managed switch designed for enterprise networks, high-density Wi-Fi deployments, and demanding business environments. Featuring 24 high-speed 10 GbE ports with PoE++ support and high-capacity uplink connectivity, it provides fast data transmission and flexible power delivery for compatible Wi-Fi access points, IP cameras, VoIP phones, and other PoE-enabled devices. With advanced switching capabilities, VLAN segmentation, traffic management, and enterprise-grade network control, the USW-Pro-XG-24-PoE helps businesses build secure, scalable, and efficient network infrastructures. Its integration with the UniFi Network application enables centralized configuration, real-time monitoring, and simplified management of compatible UniFi devices, making network administration more convenient for IT teams and system integrators. Designed for professional deployments in offices, campuses, data-intensive environments, and modern enterprise networks, the Ubiquiti USW-Pro-XG-24-PoE combines high-speed connectivity, intelligent PoE power distribution, and centralized network management in a powerful switching solution.
  • USW-Pro-XG-24-PoE

  • Ubiquiti

  • Original New

  • 1 year

Availability:
Quantity:

Item

Specification

Brand

Ubiquiti UniFi

Model

USW‑Pro‑XG‑24‑PoEUbiquiti S...

RJ45 Ports

16×10GbE PoE+++ (10G/5G/2.5G/1G/100M/10M); 8×2.5GbE PoE+++ (2.5G/1G/100M/10M)Ubiquiti

SFP28 Uplink Ports

2×25G SFP28 (25G/10G/1G)Ubiquiti

PoE Standard

PoE+++ (802.3bt), up to 90W per portUBIQUITI

Total PoE Output

720WUbiquiti S...

Switching Capacity

460 GbpsUniFi

Non‑Blocking Throughput

230 GbpsUniFi

Forwarding Rate

342 MppsUniFi

Packet Buffer

8 MBUniFi

MAC Address Table

32,000 entriesUniFi

Supported VLANs

1000UniFi

Layer Feature

Layer 2 & Layer 3, Inter‑VLAN Routing, Static Routing, DHCP Server/RelayUniFi

Special Function

Etherlighting™ Port Indicator, Pro AV Profiles, 1.3" Touchscreen DisplayUbiquiti S...

Management

UniFi Network Controller (v9.1.120 and above)UniFi

Form Factor

1U 19‑inch Rack‑mountableUbiquiti

Dimensions

442 × 480 × 44 mmUbiquiti

Weight

7.9 kg (without brackets); 8.0 kg (with brackets)UniFi

Power Input

100‑240V AC 50/60Hz, DC RPS backup supportUBIQUITI

Operating Temperature

-5 °C ~ 40 °C (23 °F ~ 104 °F)UniFi

Operating Humidity

10‑90% non‑condensingUniFi

Certifications

CE, FCC, IC, NDAA CompliantUniFi

Enclosure Material

SGCC SteelUniFi

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the USW-Pro-XG-24-PoE?

A: The USW-Pro-XG-24-PoE is ideal for enterprise networks, high-performance Wi-Fi deployments, and businesses requiring high-speed connectivity and PoE power.

Q: How to install the USW-Pro-XG-24-PoE switch?

A: The USW-Pro-XG-24-PoE can be installed in a standard rack. Follow the installation guide for mounting, cabling, and power connection instructions.

Q: Does the USW-Pro-XG-24-PoE need upgrades?

A: Regular firmware updates are recommended to maintain optimal performance and security. Use the UniFi Network application to manage updates.

Q: Are there alternative products to the USW-Pro-XG-24-PoE?

A: Alternatives include other Ubiquiti UniFi Pro switches, depending on your network speed, PoE power budget, and port requirements.

Q: What are common troubleshooting tips for the USW-Pro-XG-24-PoE?

A: Check power connections, Ethernet cables, port settings, and PoE status. Ensure the firmware is up to date and review UniFi Network diagnostics for further guidance.
