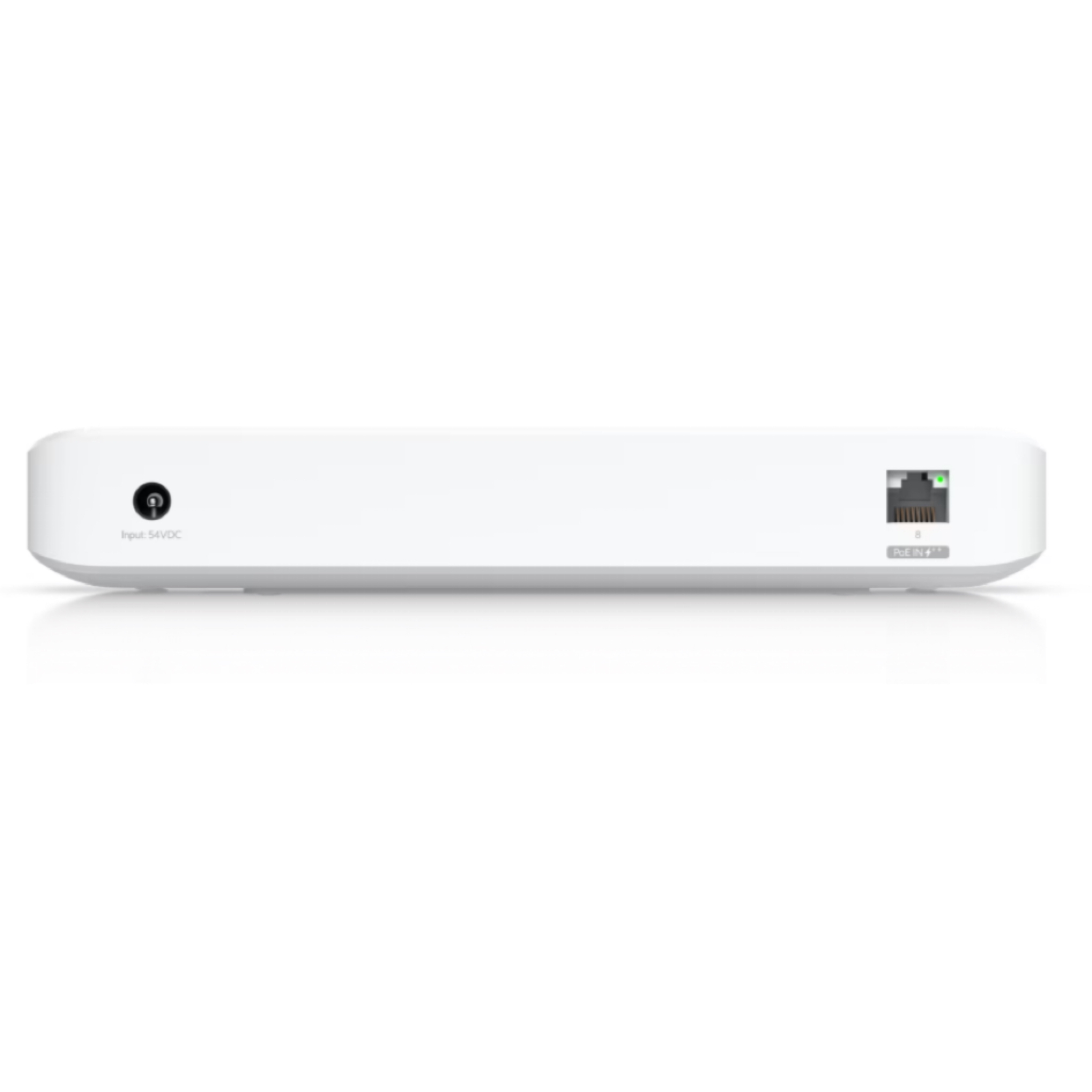

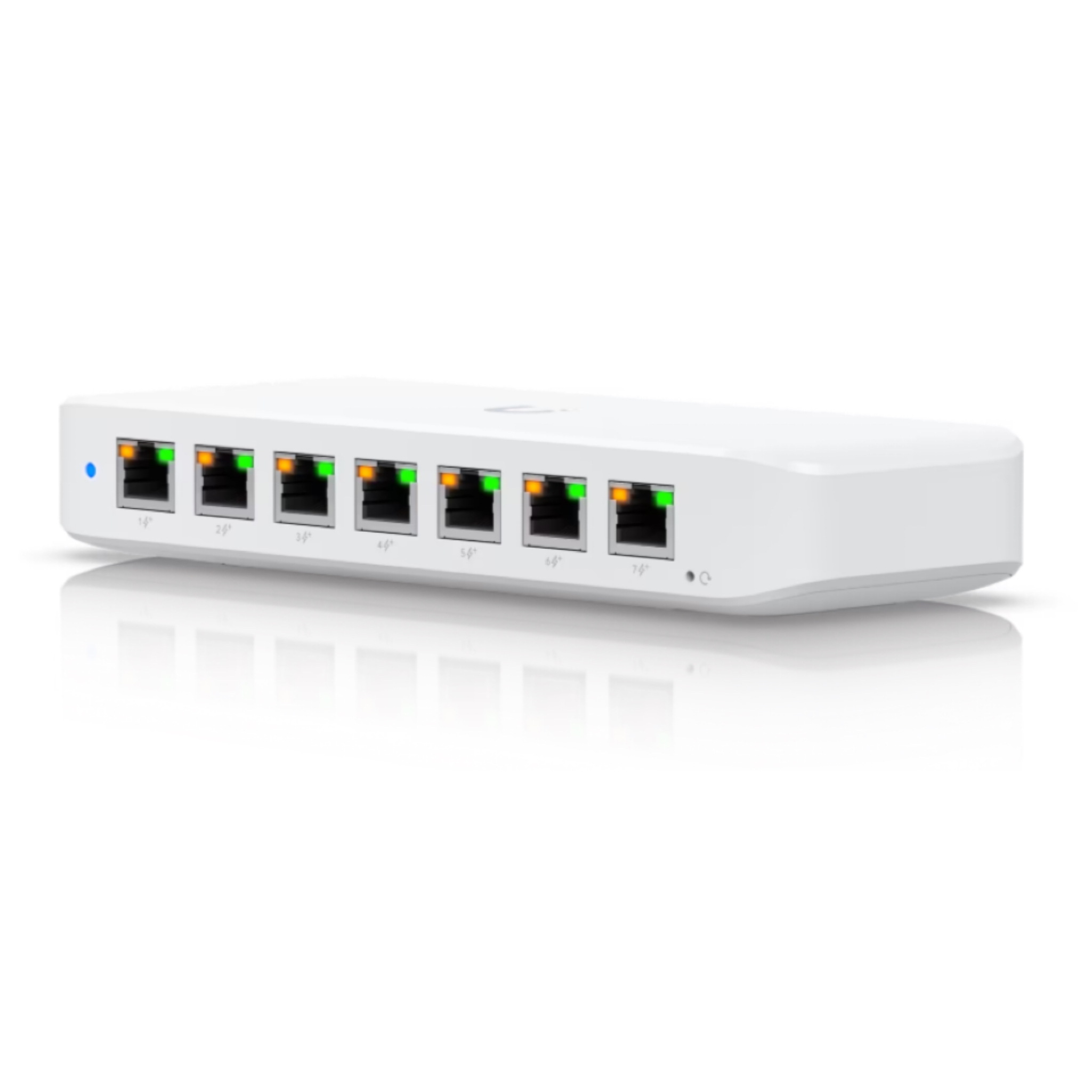

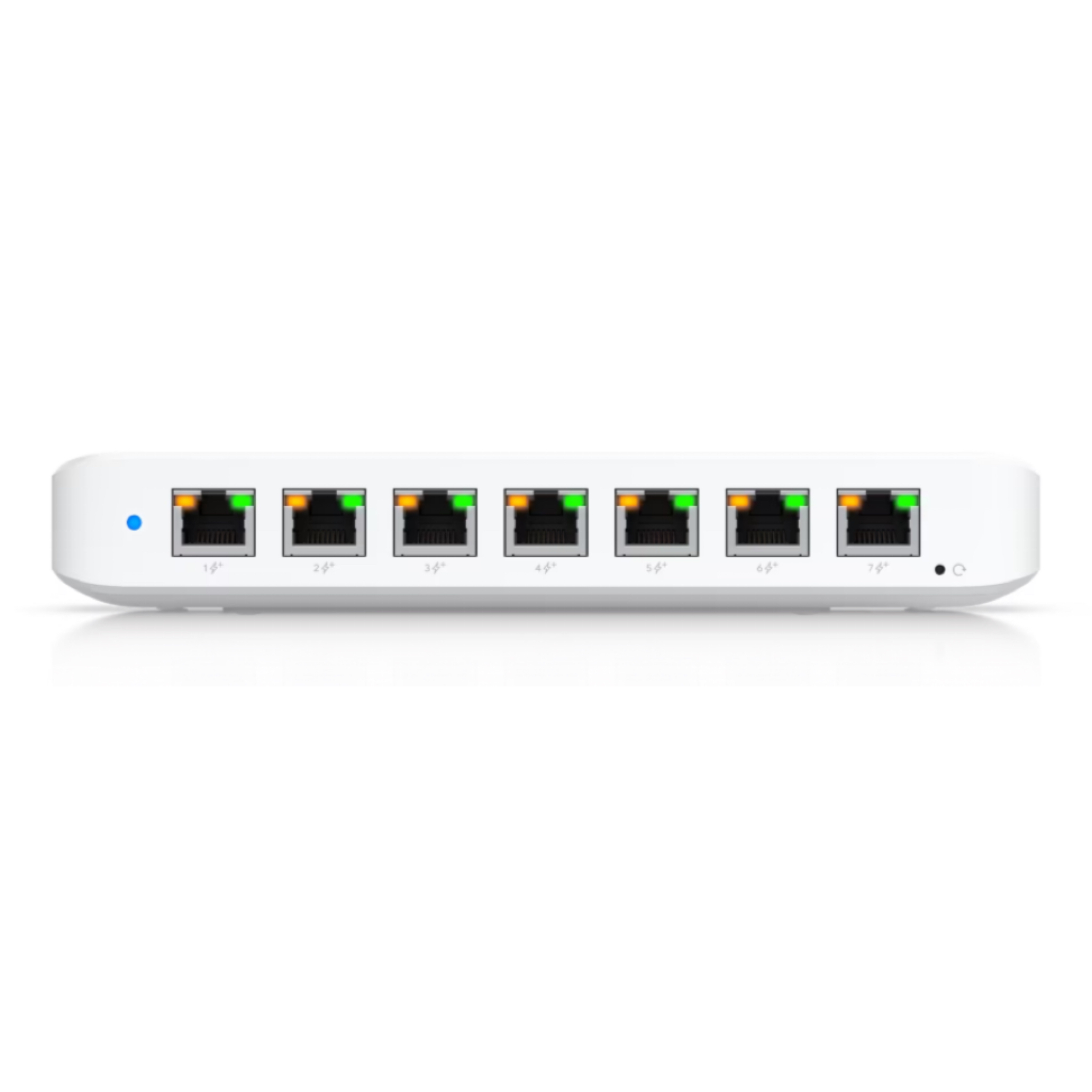

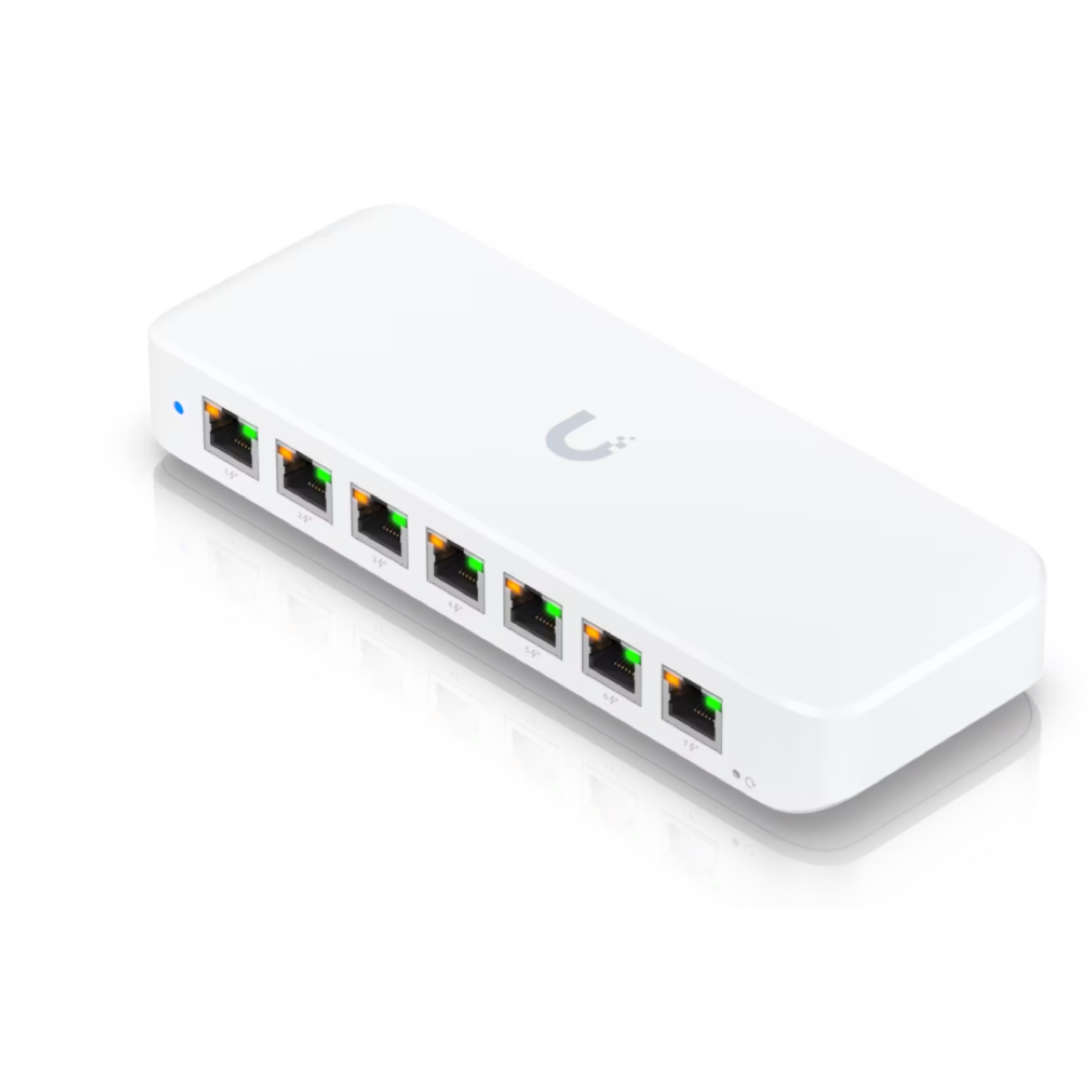

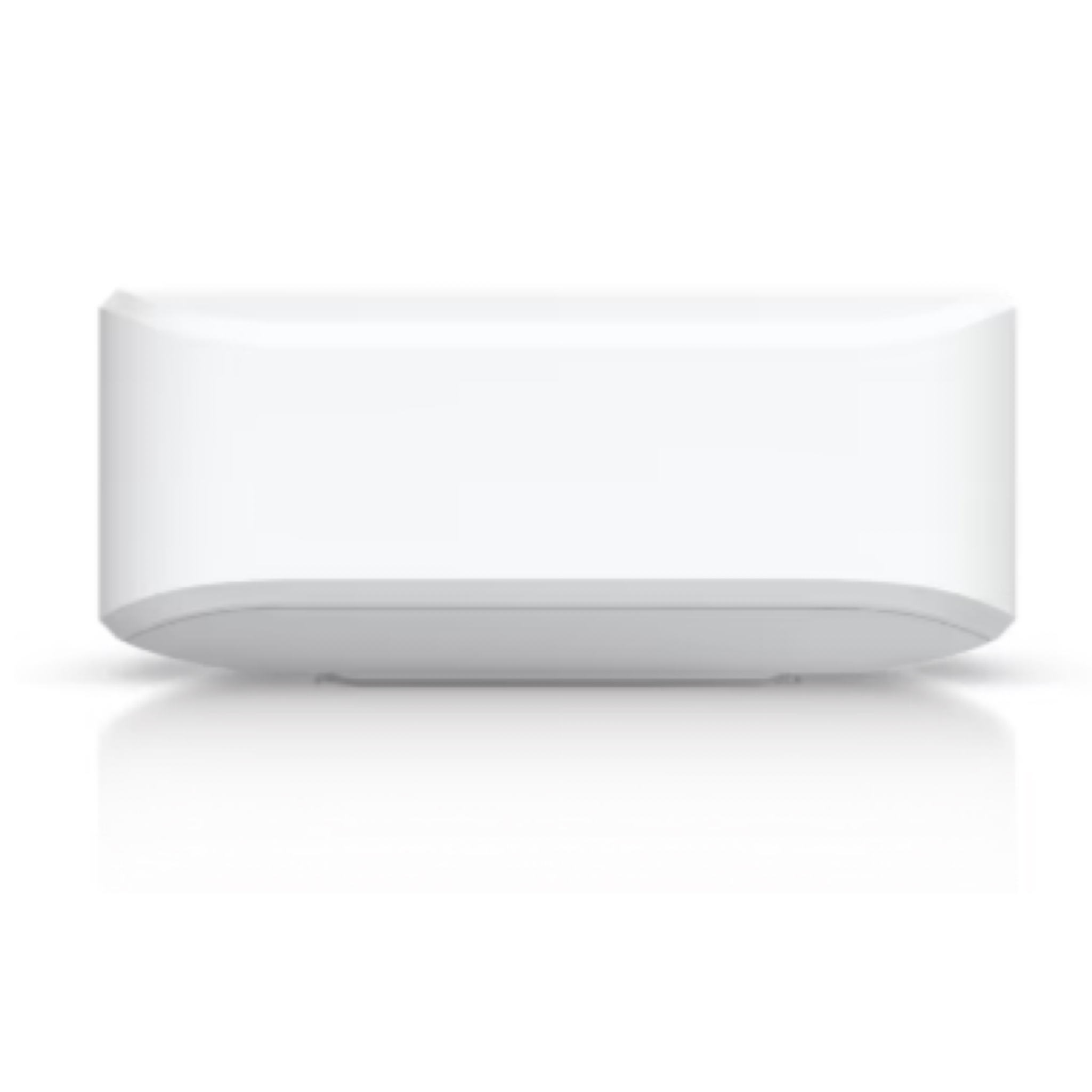

USW-Ultra-210W
Ubiquiti
Original New
1 year
| Quantity: | |
|---|---|
Item | Specification |
|---|---|
Product Model | USW‑Ultra‑210W |
Brand | Ubiquiti UniFi |
Switch Type | Layer 2 Managed Switch |
Total Ports | 8 x GbE RJ45 PortsUbiquiti |
PoE Ports | 7 x PoE/PoE+ Output Ports; 1 x PoE++ Input PortUbiquiti |
Max PoE Power Per Port | 30W (PoE+)insight-di... |
Total PoE Budget | 202W (with included 210W adapter @45°C)Ubiquiti S... |
Switching Capacity | 16 GbpsUniFi |
Non‑Blocking Throughput | 8 GbpsUniFi |
Forwarding Rate | 12 MppsUniFi |
MAC Address Table | 4,000 EntriesUniFi |
Supported VLANs | 256UniFi |
Jumbo Frame | Support |
L2 Features | STP/RSTP, Port Mirroring, Port Isolation, Storm Control, Flow Control, Loop ProtectionUniFi |
Management | UniFi Network Controller, In‑Band Ethernet ManagementUbiquiti |
Power Input | External 210W AC/DC Adapter (Included), PoE++ Inputinsight-di... |
Input Voltage | 44‑57V DCinsight-di... |
Max Power Consumption | 8W‑9W (device only, exclude PoE output)insight-di... |
Reset Button | Factory Reset Button |
Enclosure | Polycarbonate Housing |
Operating Temperature | -20°C ~ 60°C (with 210W adapter)Ubiquiti S... |
Operating Humidity | 10‑90% Non‑condensing |
Dimensions (W×D×H) | 202.9 × 76 × 33 mm |
Unit Weight | 320g |
Mounting | Wall‑mountable |
Certifications | CE, FCC, IC |
