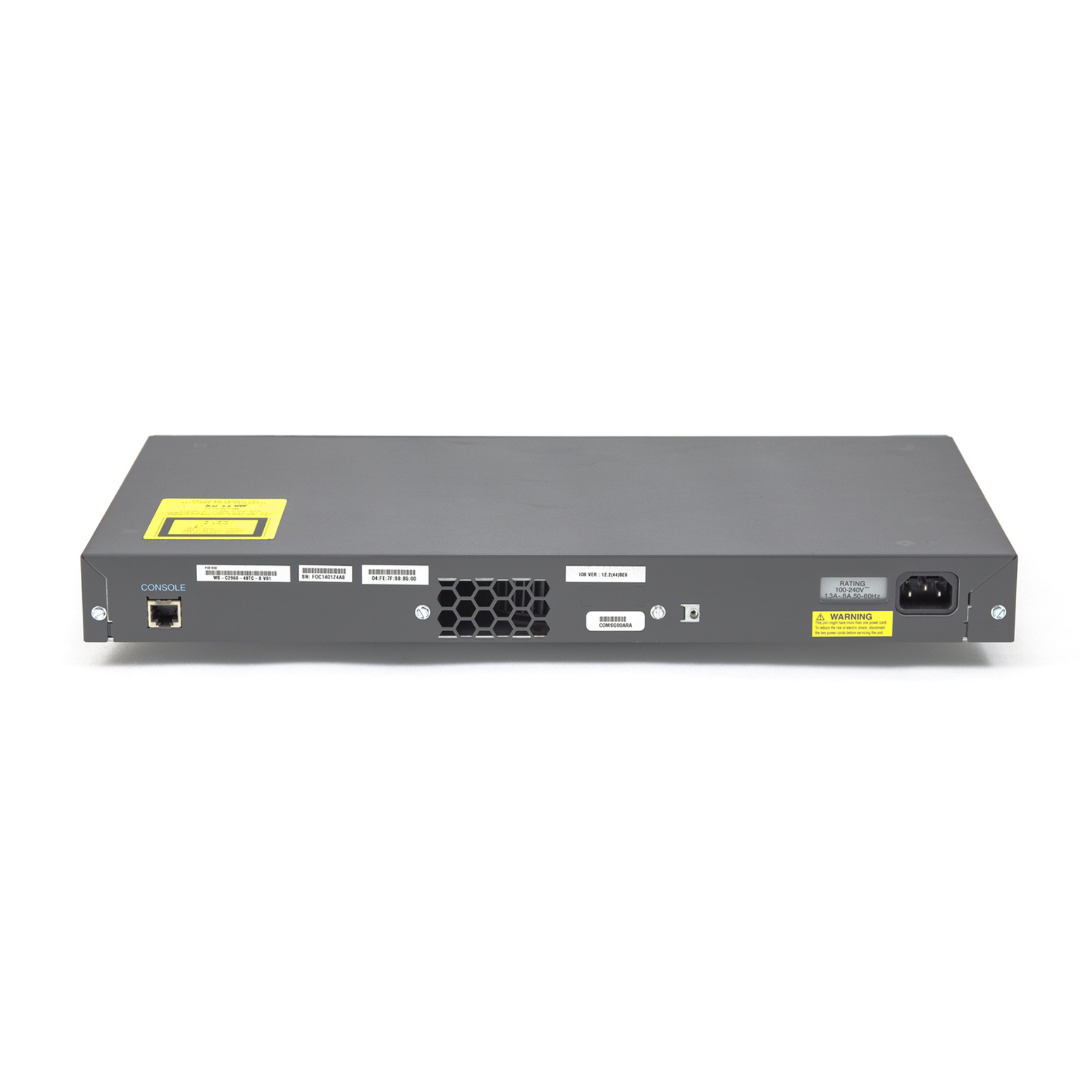

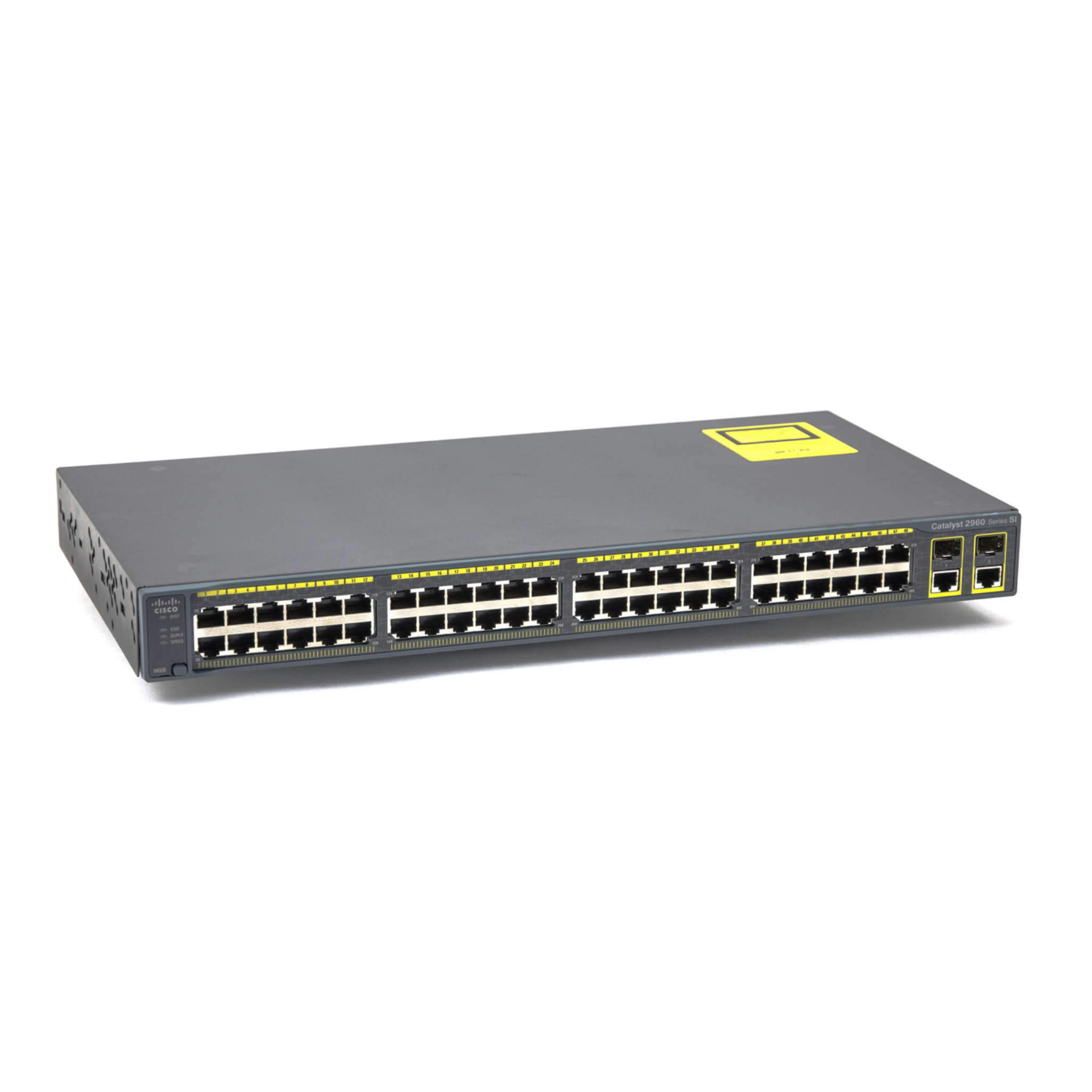

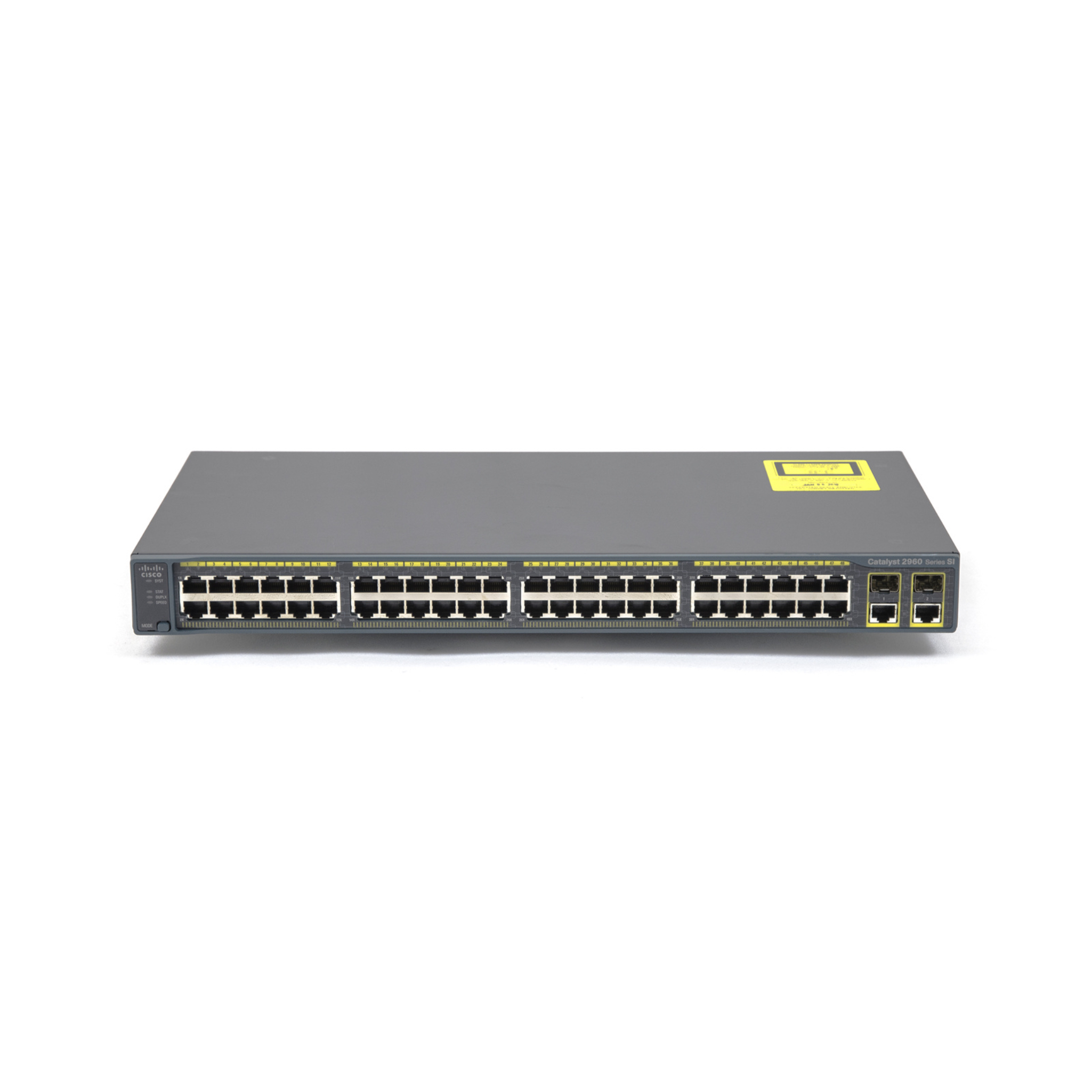

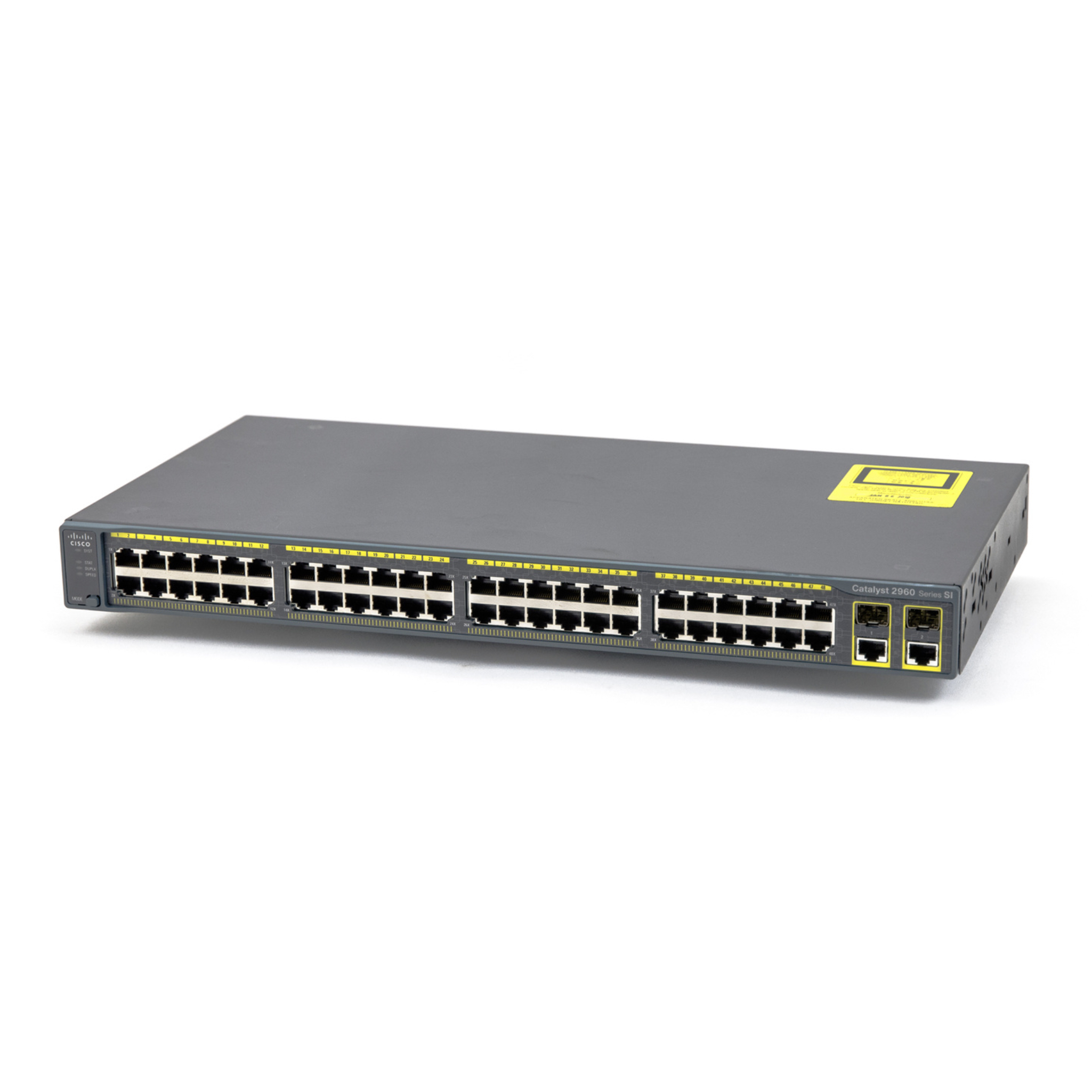

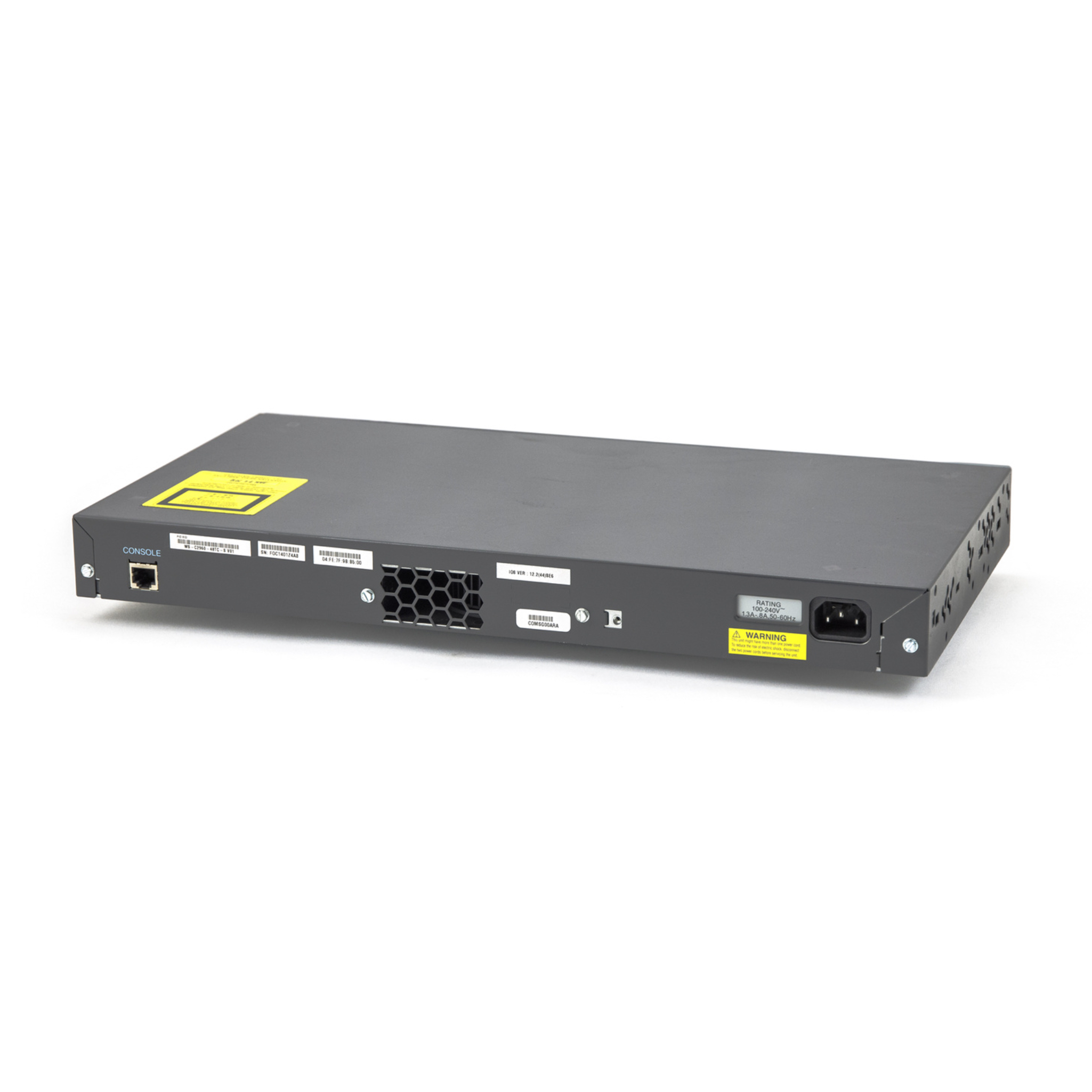

WS-C2960+48TC-S
Cisco
Original Used
3 months
| Availability: | |
|---|---|
| Quantity: | |
Item | Official Specification |
|---|---|
Model Number | WS-C2960+48TC-S |
Product Series | Cisco Catalyst 2960-Plus Layer 2 Managed Switch |
IOS Feature Set | LAN Lite |
Application Scenarios | SMB Workgroups, Small Office Access Networks, IP Surveillance, Entry-level Voice & Wireless Deployment |
Downlink Ports | 48 × 10/100BASE-T Fast Ethernet RJ45 (Non-PoE) |
Uplink Ports | 2 × Dual-purpose Gigabit Combo Ports (10/100/1000BASE-T RJ45 or SFP Fiber, mutually exclusive) |
PoE Support | No PoE power budget, no PoE ports |
System Memory | DRAM: 128 MB; Flash Memory: 64 MB |
Switching Bandwidth | 16 Gbps |
64-byte Packet Forwarding Rate | 10.1 Mpps |
MAC Address Table Capacity | 8,000 entries |
Jumbo Frame Support | Up to 9018 bytes |
VLAN Capacity | Max 64 active VLANs, 4096 total VLAN IDs, 802.1Q tagging, Voice VLAN |
Spanning Tree Protocols | STP, RSTP, PVST+ |
Link Aggregation | Static LAG (No LACP support for LAN Lite image) |
Multicast Features | IGMP Snooping v1/v2 |
QoS | 4 hardware queues per port, port-based traffic prioritization |
Security Functions | Port security, 802.1X authentication, ACLs, SSH encrypted management, broadcast storm control |
Management Interfaces | RJ45 Console Port, Cisco Network Assistant, Web UI, CLI |
Stacking Support | No FlexStack stacking capability |
Physical Dimension (H × W × D) | 1.73 × 17.70 × 9.52 in (4.4 × 45.0 × 24.2 cm), 1U rackmount |
Net Weight | 3.6 kg (8.0 lbs) |
Power Supply | Built-in universal AC power, 100–240V AC 50/60Hz |
Typical Power Consumption | 40W; Max Power Draw: 50W |
Environmental Specs | Operating: -5°C ~ 45°C, 10%–90% non-condensing humidity Storage: -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 623,000 hours |
Installation | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | FCC Class A, CE, UL, CSA, RoHS Compliant |
Factory Warranty | 90-Day Cisco Limited Hardware Warranty |
Shenzhen Importgm Technology Co., Ltd.
Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.





A: Cisco service and support has received numerous industry recognitions and awards for excellence in technology service and support.
A: To protect administration traffic during the configuration or troubleshooting of a switch (such as passwords or device configuration settings), the best approach is to encrypt the data using both SSH and SNMP v3 to provide encryption of data during Telnet sessions and SNMP sessions.
A: The Cisco Catalyst 2960-Plus Series supports the IEEE 802.1x standard, which works in conjunction with a RADIUS server to authenticate users as they access a network. Additionally, portions of the network can be restricted by using ACLs. Access can be denied based on MAC addresses, IP addresses, or TCP/User Datagram Protocol (UDP) ports. ACL lookups are done in hardware and do not compromise forwarding and routing performance. An additional protection method is to use port security, which helps ensure that the appropriate user is on the network by limiting access to the port based on MAC addresses.
A: Yes.
A: No. MACsec is supported on other Cisco Catalyst switches, including the Cisco Catalyst 3750-X and Cisco Catalyst 3850.
