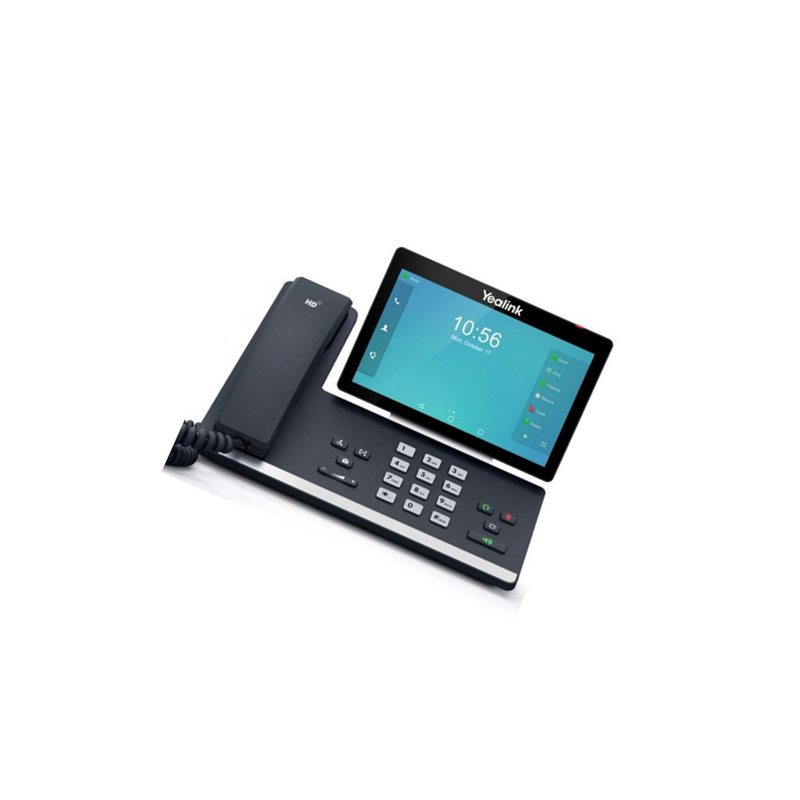

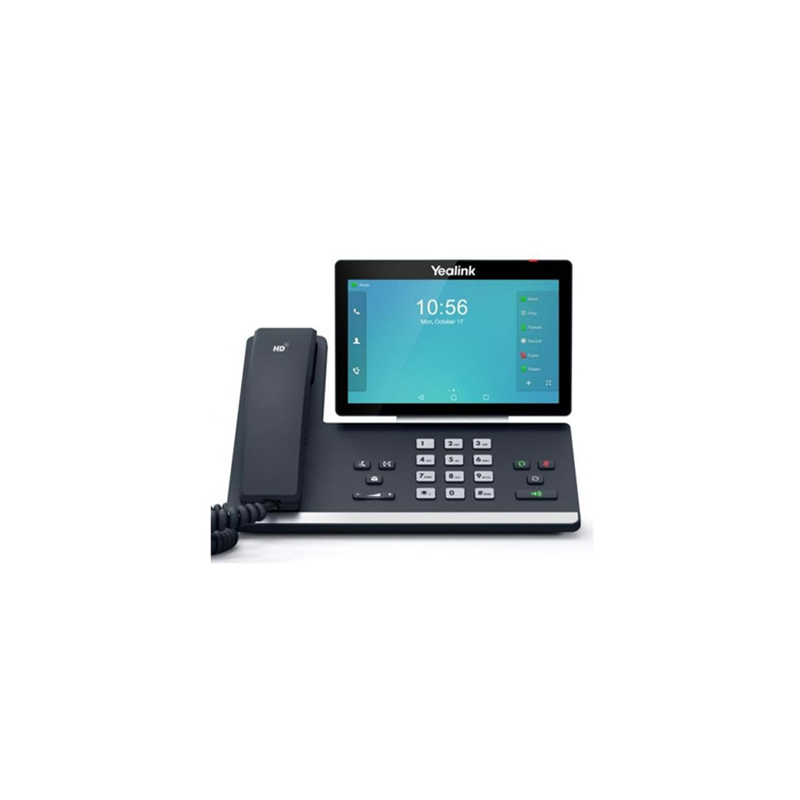

Yealink Android Based Smart Phone T58A with Camera SIP-T58A Smart Business IP Phone

  • SIP-T58A
  • Yealink
  • original new
  • 1 year
Quantity:

Product Description

yealink Android based smart phone T58A with Camera SIP-T58A Smart Business IP Phone
Easy Audio and Visual Communication
SIP-T58A
• 7 inch (1024 x 600) capacitive adjustable touch screen
• 720p30 HD video
• Runs Android 5.1.1
• Yealink Noise Proof Technology
• Yealink's SDK (Software Development Kit)
• DoorPhone Features (Preview, One-button Open, Monitoring)
• Built-in Bluetooth 4.2 for headsets and pairing mobile devices
• Built-in 2.4G/5G Wi-Fi (802.11a/b/g/n/ac)
• USB 2.0 port (2.0 compliant) for USB headset, media and storage applications
• Opus Codec support
• Up to 16 VoIP accounts
• Up to 3-party video conferencing
• Up to 10-party video/audio mixed conferencing (up to 2 video calls)
• Wall mountable
• Color-screen Expansion Module support
• Only the firmware version 58.83.0.15 or later are

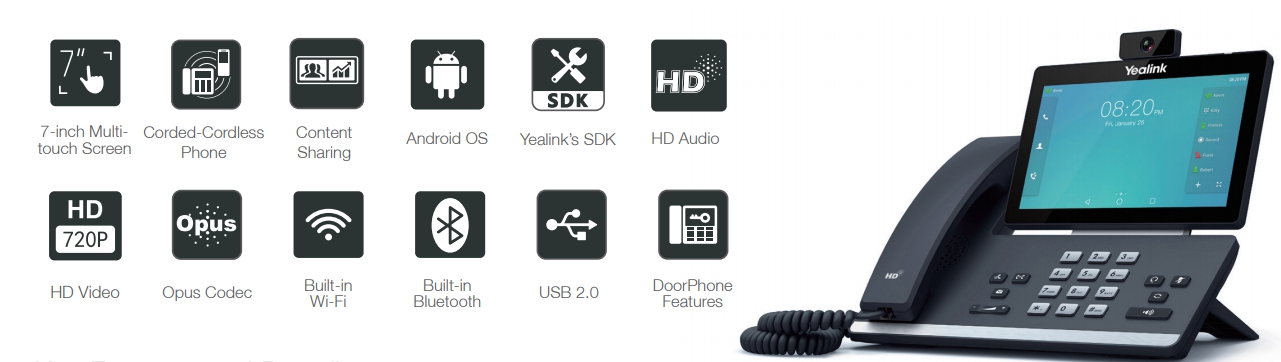

downLoadImg(8) Key Features
1.HD Audio and HD Video
The Yealink SIP-T58A with Camera includes the latest version of Yealink Optimal HD Voice technologies, including the Yealink Noise Proof Technology and now supports the Opus codec, which helps maximize the acoustic performance of the phone's handset, headset and especially the speakerphone. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly. The dynamic, removable two-megapixel HD camera CAM50 is specially designed for remarkable real-time face-to-face conversations. Morever, you can use the T58A with Camera IP phone with Yealink VC Desktop together to share content from your laptop
2.A Better User Experience with Android Operating System
Based on Android 5.1.1, the Yealink SIP-T58A with Camera features a built-in browser, email, calendar and more. Administrators can easily install additional Android applications to improve collaboration and productivity. Meanwhile, the Open Yealink's SDK (Software Development Kit) allows the phone deeply integrate with 3rd-party applications, providing richer phone features and giving a better user experience.
3.Richer Interface for Easy Customization

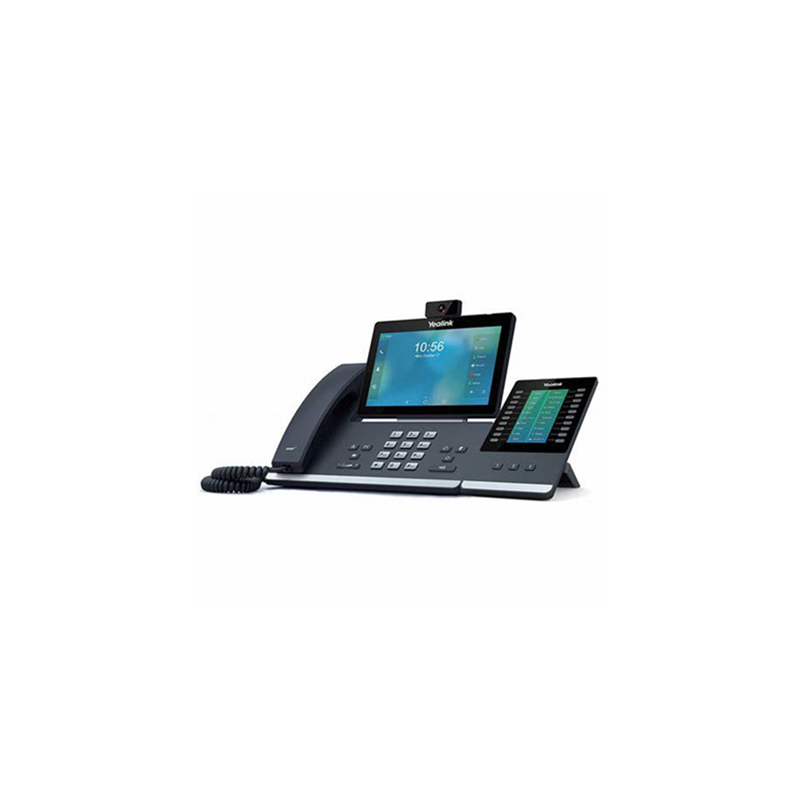

The Yealink SIP-T58A with Camera features Bluetooth 4.2 for pairing with headsets and mobile phones. It also includes dual-port Gigabit Ethernet with PoE as well as built-in Wi-Fi. The USB 2.0 port allows for media and storage via a USB flash drive and a direct wired/wireless USB headset connection. The SIP-T58A with Camera can also be paired with up to 3 Yealink color-screen expansion modules.
4.Efficient Provisioning and Management
The Yealink SIP-T58A with Camera supports Yealink's efficient Auto-Provisioning mechanism, including phone deployment and application installation. Administrators can take advantage of centralized deployment, management, updating and uninstalling to ensure application standardization.
Specification
Audio features
• HD voice: HD handset, HD speaker
Hearing aid compatible (HAC) handset
Acoustic Shield, Noise Proof
Smart Noise Filtering
• Audio codec: Opus, G.722, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Video Features
• 720p@30fps HD video call
• Video codec: H.264 High Profile, H.264, VP8
• Video quality: 720P (1280x720)-30fps ( 512 kbps)
• Yealink CAM50 camera:
- 2 mega-pixel
- Plug and play
- Adjustable
- With privacy shutter and LED indicator
- Vertical tilt angle adjustable: 50°
• Field of view (FOV): 70.2°
Self view (local video preview)
Display and Indicator
• LCD screen:
- 7" 1024 x 600 capacitive adjustable touch screen
- Vertical tilt angle adjustable: 48°
5 points multi-touch surface
Screensaver and Wallpaper
• LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo
Android bundled Applications
• FileManager/Email/Calendar/Camera/Gallery/Recorder/ Calculator/Browser/Message
• Third party Android application support
Phone Features
Yealink's SDK (Software Development Kit)
• 16 VoIP accounts
Call hold, call forward, call waiting, call transfer
One-touch speed dial, hotline, mute, DND
Group listening, emergency call
Redial, call return, auto answer
Direct IP call without SIP proxy
Ring tone select/import/delete
Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
3-party video conferencing
10-party audio/video mixed conferencing (up to two video calls)
Data import/export via Bluetooth, email, etc.
• DoorPhone features: Preview, One-button Open, Monitoring
Content sharing (via Yealink VCD)
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
- Basic functions: Answer / end, call mute
- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
Analog PSTN calls via CPN10
Wireless Access Point (AP mode)
Corded-Cordless Phone (via DECT Dongle DD10K)
Up to 4 DECT cordless handsets
Up to 4 concurrent calls
• Support Yealink W52H/W53H/W56H/DD Phone/CP930W
Slave Handset for Master Deskset
IP-PBX Features
• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
Anonymous call, anonymous call rejection
Remote office, hot desking, intercom, paging
Call completion
Message Waiting Indicator (MWI)
Voice mail, call park, call pickup
Music on hold
Call recording
Directory
• Local phonebook up to 1000 entries
Black list
• XML/LDAP remote phonebook
Google contacts
Smart dialing
Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
Feature keys
• 27 one-touch DSS keys
• 7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
Volume control keys
Illuminated mute/headset/hands-free speakerphone key
Interface
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
• Built-in dual band Wi-Fi:
- Network standard: IEEE802.11a/b/g/n/ac
- Transmission rate: Up to 433Mbps (dynamic)
- Frequency range: 2.4GHz/5.0GHz
Built-in Bluetooth 4.2 for
- Bluetooth headsets
- Pairing mobile devices
- Simultaneous connection of one headset and one mobile phone
• 1 x USB 2.0 port (on the top of the phone) for:
- Yealink CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
- USB flash drive
- Wired/wireless USB headset
- Color-screen expansion modules
- Wireless Headset Adapter EHS40
1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
Supports up to 3 color-screen expansion modules
Management
• Configuration: browser/phone/auto provision
Auto provision via FTP/TFTP/HTTP/HTTPS
• Auto provision with PnP, Zero-sp-touch, TR-069
Phone lock for personal privacy protection
• Reset to factory, reboot
Package tracing export, system log
Only the administrator can install/uninstall apps via autop
Setup Assistant wizard
Network and Security
• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
Other Physical Features
• Color: Classic Grey
Wall mountable (optional)
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 1.9W-5.7W
• Power consumption (PoE): 2.6W-7.4W
• Dimension (W*D*H*T): 259.4mm*220mm*239mm*42.6mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C (+32~104°F)
Package features
• Package content:
- Yealink SIP-T58A with Camera IP phone
- Handset with handset cord
- Ethernet Cable
- Stand
- Yealink CAM50 camera
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 9.45 kg
• G.W/CTN: 10.55 kg
• Giftbox size: 324 mm*293 mm*128 mm
• Carton Meas: 680 mm*303 mm*332 mm
Yealink-SIP-T58A-Datasheet.pdf
