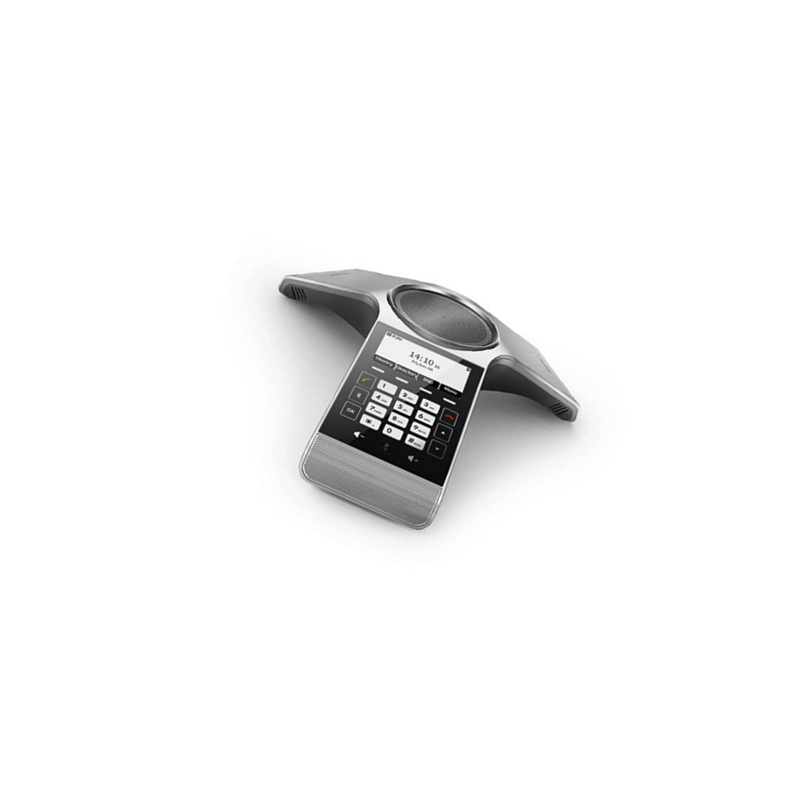

Yealink Cp920 Touch-Sensitive HD IP Conference Phone for Small-to-MID Meeting Rooms

  • CP920

  • Yealink

  • original new

  • 1 year

Availability:
Quantity:

Product Description

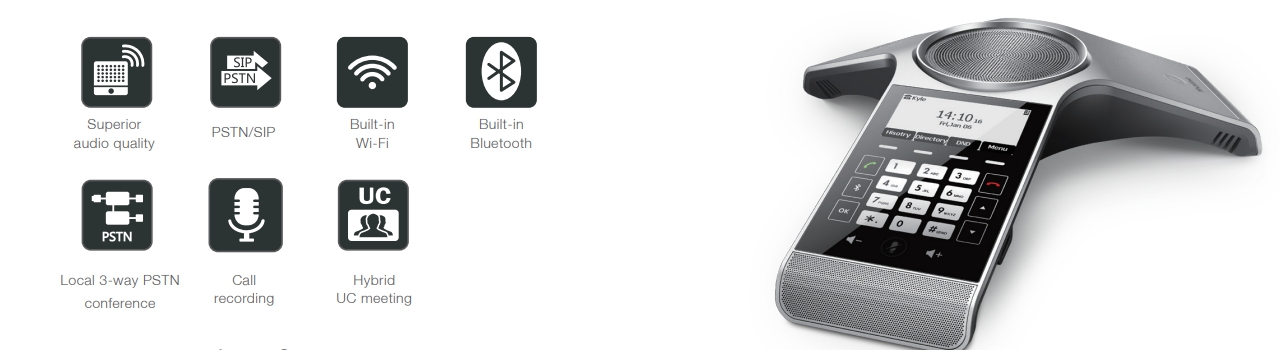

Touch-sensitive HD IP Conference Phone
CP920
ξCost-effective device for small-to-mid meeting rooms/huddle rooms
CP920+CPN10
Support analog PSTN calls via CPN10 (up to 3 party PSTN)
downLoadImg
Key Features

1.Noise Proof Technology
Yealink Noise Proof Technology intelligently eliminates background noises. It automatically mutes the microphone when no human speech is detected. When speech is detected, it automatically minimizes background noise.
2.Voice Pickup
The Yealink CP920 is designed with 3 microphone arrays which supports 20-foot and 360-degree HD voice pickup. It provides the mobility for participants to walk around in the meeting room freely, and delivers the flexibility to meet the coverage needs of different meeting sizes.
3.Hybrid UC Meeting
The Yealink Hybrid UC Meeting is designed to bridge calls from different devices into one conference call. By pairing your device via USB or Bluetooth with your Yealink conference phone, the calls can be connected to the conference phone.
4.Touch Sensitive Keyboard
Incorporated with a 3.1" 248x120-pixel graphical LCD display for easy information browsing. A sensitive touch keypad which puts main conferencing function keys at the user's fingertips. Three one-touch mute buttons with LED indicators allow switch between mute and unmute with ease, and reduce accidental operations.
Specification
Audio features
• Optimal HD audio
• Yealink Noise Proof Technology
• Smart Noise Filtering
• Background noise suppression
• 20-foot (6-meter) microphone pickup range
• Apply to small to medium conference room
• Built-in 3-microphone array, 360-degree voice pickup
• 56mm diameter and 5w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Codecs: G722, G722.1C, G726, G.729, G.729A,
G723, iLBC, Opus, PCMA, PCMU
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC
Phone features
• 1 VoIP account
• Call hold, mute, DND, call recording, hotline
• 5-way conference call
• Flash
• Redial, call waiting, emergency call
• Call forward, call transfer, call return, dial plan
• Ring tone selection/import/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth
Directory
• Local phonebook up to 1000 entries
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
• Black list
IP-PBX features
• Intercom
• Multicast paging
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickup
Display
• 3.1" 248x120-pixel graphical LCD with backlight
• 25 total keys: 4 soft keys, off-hook key, on-hook key,12-key numerical keypad, Bluetooth, mute, volume keys, 2 navigation keys, OK key
• Phone lock
• Multilingual user interface
• Caller ID with name and number
Interface
• 1 x RJ45 10/100M Ethernet port
• Built-in Wi-Fi (2.4GHz , 802.11 b/g/n)
• Built-in Bluetooth 4.0
• Power over Ethernet (IEEE 802.3af ), class 3
• 1 x USB 2.0 port
• 1 x Security slot
Network and security
• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS,
DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Reset to factory, reboot
• Package tracing export, system log
Other physical features
• Color: Space Silver
• External Yealink power adapter: AC 100~240V input and DC 12V/1A output
• Power consumption (PSU): 3w-3.8w
• Power consumption (PoE): 3.9w-7.6w
• Dimension (W*D*H): 307.8mm*298.5mm*66.9mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)
Package features
• Package content:
- Yealink CP920 IP conference phone
- Ethernet Cable (7.5m CAT5E UTP cable)
- Quick Start Guide
- Yealink Power Adapter
• Qty/CTN: 5 PCS
• N.W/CTN: 8.046 kg
• G.W/CTN: 9.062 kg
• Giftbox size: 336mm*364mm*112mm
• Carton Meas: 587mm*348mm*376mm
Yealink-CP920-Datasheet.pdf
