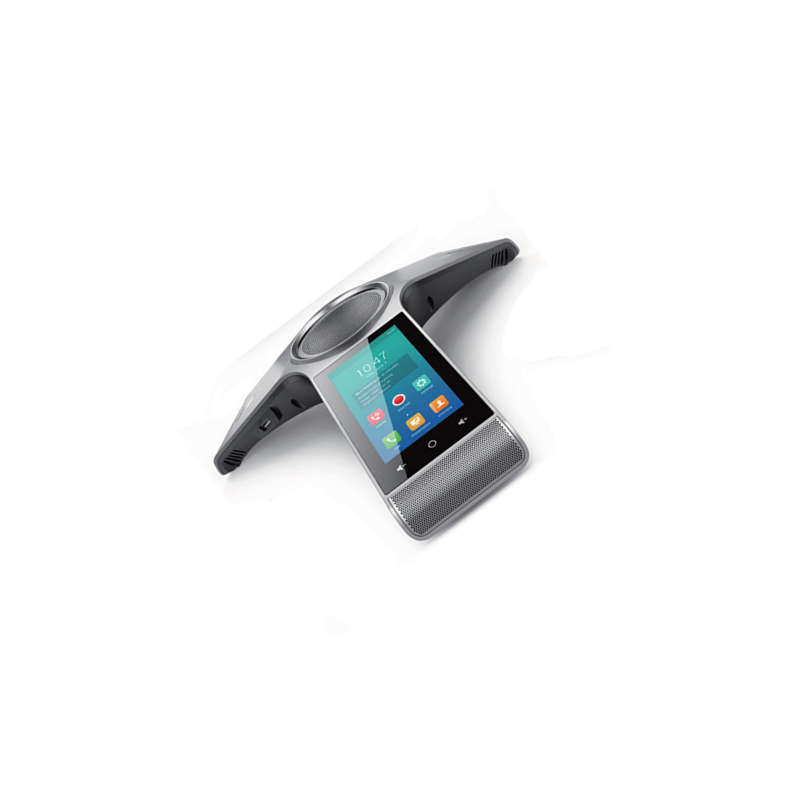

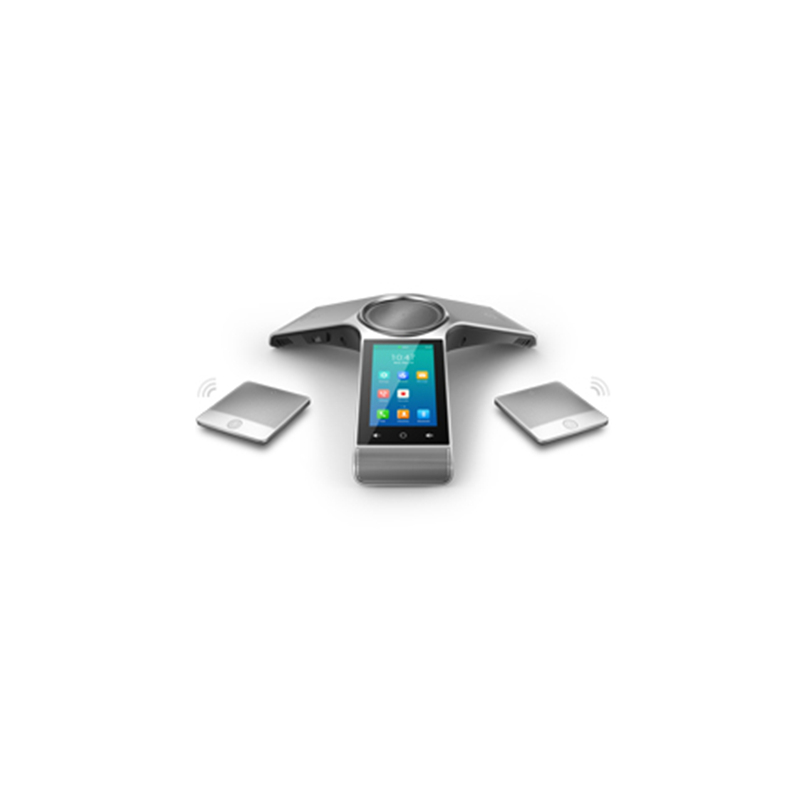

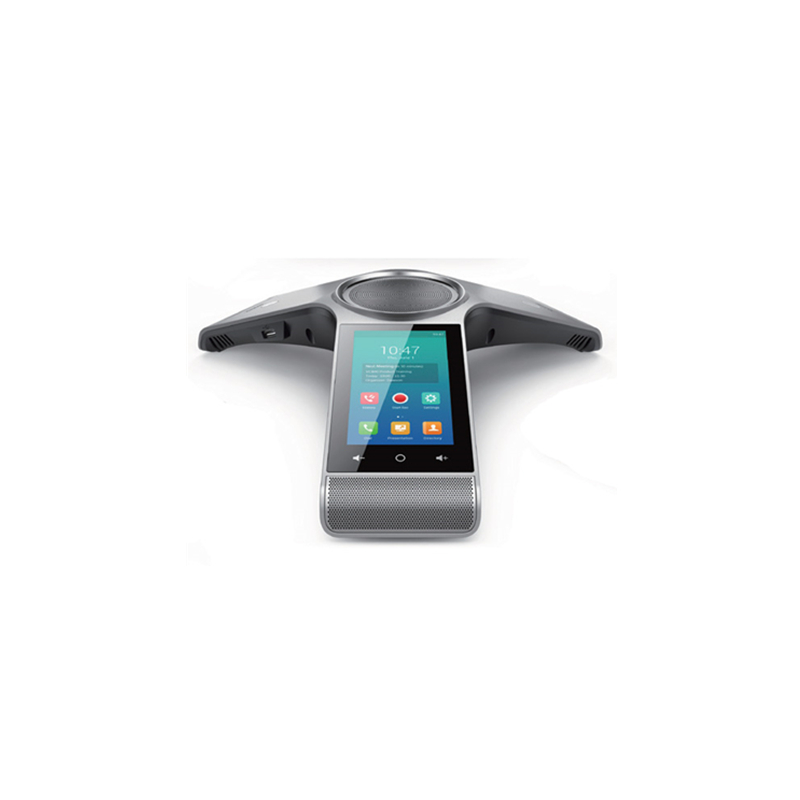

Yealink IP Conference Phone Cp960 with Wireless Microphone IP Phone

  • CP960-WirelessMic
  • Yealink
  • original new
  • 1 year
Availability:
Quantity:

Product Description

Optima HD IP Conference Phone
CP960-WirelessMic
ξSupport Yealink CPW90 Wireless Microphone, allows 66 ft(20m) away from CP960 and 10 ft(3m) voice pick up
ξFirst-class, high performance device for mid-large meeting rooms with up to 20 people

Key Features
1.Noise Proof Technology
Yealink Noise Proof Technology intelligently eliminates background noises. It automatically mutes the microphone when no human speech is detected. When speech is detected, it automatically minimizes background noise.
2.Pentagon Meeting Room
The Yealink Pentagon Meeting Room refers to the Yealink CP960's user interface, which replicates the look of a Pentagon Meeting. This simple and unique interface adds customer value by increasing adoption rates and reducing the kinds of mistakes that adversely impact conference
3.Hybrid UC Meeting
The Yealink Hybrid UC Meeting is designed to bridge calls from different devices into one conference call. By pairing your device via USB or Bluetooth with your Yealink conference phone, the calls can be connected to the conference phone.
4.Wireless DECT Microphone
The Yealink CPW90 Wireless Microphone increases voice pickup range and guarantees audio quality. Utilizing Wireless DECT technology, it allows the organization to place the microphone anywhere within the 20-meter signal reception range. This practical accessory adjusts to different types and sizes of conferencing.

Specification
Audio features
• Optimal HD audio
• Yealink Noise Proof Technology
• Smart Noise Filtering
• 20-foot (6-meter) microphone pickup range
• Apply to medium to large conference room
• Built-in 3-microphone array, 360-degree voice pickup
• 56mm diameter and 10w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Background noise suppression
• Codecs: G722, G722.1C, G726, G.729, G.729A,
G723, iLBC, Opus, PCMA, PCMU
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC
Phone features
• 1 VoIP account
• Call hold, mute, DND, call recording, hotline
• 5-way conference call
• Analog PSTN calls via CPN10
• Redial, call waiting, emergency call
• Call forward, call transfer, call return, dial plan
• Ring tone selection/import/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth/USB Micro-B port
• External speaker connection via 3.5mm audio-out port
• Create meeting directly
• Join meeting seamlessly
• Active Speaker
Star Connection
• Up to four CP960: One Master CP, three Slave CP
• Wired network only
• Two expansion microphones for each CP960
Directory
• Local phonebook up to 1000 entries
• XML/LDAP remote phonebook
• Bluetooth Contacts
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
• Black list
IP-PBX features
• Busy Lamp Field (BLF)
• Multicast paging
• Intercom
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickup
Display
• 5" 720x1280 capacitive touch screen
• Volume key
• Home button
Interface
• 1 x RJ45 10/100M Ethernet port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n/ac)
• Built-in Bluetooth 4.0
• Power over Ethernet (IEEE 802.3af ), class 3
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot
Network and security
• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass  deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Reset to factory, reboot
• Package tracing export, system log
Other physical features
• Color: Space Silver
• External Yealink PoE adapter (optional)
• Power consumption (PoE): 3.9w-9.18w
• Dimension (W*D*H): 338mm*338mm*74mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)
Package features
• Package content:
- Yealink CP960 IP conference phone
- Ethernet Cable (7.5m CAT5E UTP cable)
- Wireless Microphone CPW90 (Optional)
- Wired Microphone CPE90 (Optional)
- Quick Start Guide
- Yealink PoE Adapter YLPOE30 (Optional)
• Qty/CTN: 4 PCS
• N.W/CTN: 7.3 kg (4pcs CP960)/10.4 kg (4pcs
CP960-WirelessMic)
• G.W/CTN: 8.4 kg (4pcs CP960)/11.6 kg (4pcs
CP960-WirelessMic)
• Giftbox size: 405mm*392mm*141mm
• Carton Meas: 589mm*401mm*421mm
Yealink-CP960-Datasheet.pdf
