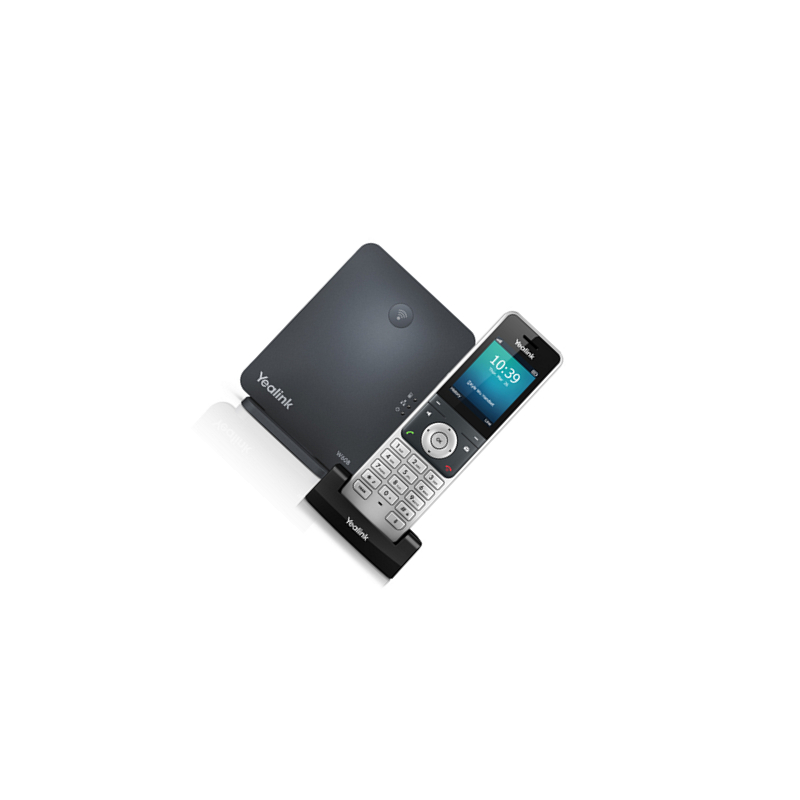

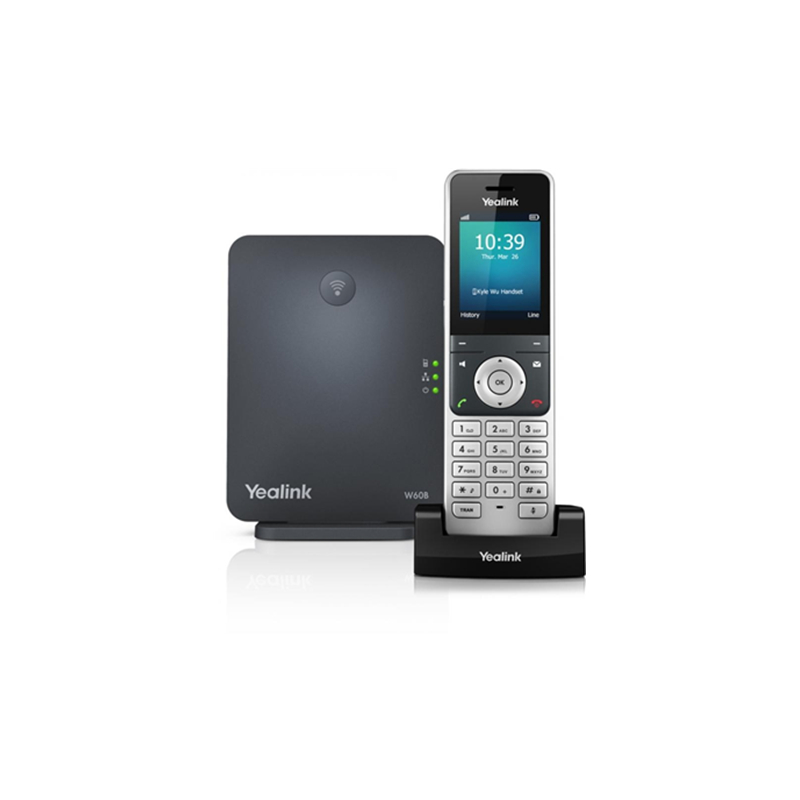

Yealink W60P Wireless DECT IP Phone including W60B Base Station

  • W60P

  • Yealink

  • Original New

  • 1 Year

Availability:
Quantity:
Inquire Add to Basket

Product Descriptio

High-performance DECT IP phone system with user-centric design
W60P
• High-performance SIP cordless phone system
• 2.4" 240 x 320 color screen with intuitive user interface
• Up to 8 concurrent calls
• Up to 8 DECT cordless handsets
• Up to 8 VoIP accounts
• Support Opus audio codec
• Up to 30-hour talk time
• Up to 400-hour standby time
• Quick charging: 10-min charge time for 2-hour talk time
• TLS and SRTP security encryption
• Noise Reduction System
• Headset connection via 3.5 mm jack
• Charger wall mountable
downLoadImg(2)

Key Features
1.HD Audio Quality
Based on wireless CAT-iq2.0 DECT standard to offer premium and stable HD audio quality for efficient and clear communication.
2.Long-life Battery
Installed with a Li-ion battery, ready for your heavy call load with 18 hours talk time, 240 hours standby timeand quick charging capability.
3.Rich Features
Enables quick user adoption and natural integration into the working environment with a thoughtful industry design, 2.4" 240x320 color display and rich telephony features.
4.Seamless compatibility with Yealink W60B DECT Base
The Yealink W60B is a powerful scalable DECT Base that supports up to 8 handsets, 8 SIP accounts and 8 concurrent calls. Equipped with robust hardware and rich features, it perfectly caters to your busy small-to-medium-sized office.

Compact as it is, the Yealink W60B DECT Base works seamlessly with the entire Yealink DECT handset range and repeater.

It also supports efficient provisioning and mass deployment with the Yealink Redirection and Provisioning Service and Booth Mechanism as to realize zero touch provisioning.

Specification
Audio features
> Full-duplex speakerphone
> Hearing Aid Compatibility (HAC) compliant
> Receiver volume control: 5 steps
> Ringer volume control: 5 steps+off
> Multiple advisory tones
> Acoustic warning for low battery status
> DTMF
> Wideband codec: Opus, AMR-WB (optional), G.722
> Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, iLBC
> VAD, CNG, AGC, PLC, AJB
> AEC (supported by W56H)
> Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
> SIP v1 (RFC2543), v2 (RFC3261)
> SNTP/NTP
> VLAN (802.1Q and 802.1P)
> 802.1x, LLDP
> STUN Client (NAT Traversal)
> UDP/TCP/TLS
> IP assignment: static/DHCP
> Support outbound proxy server backup
Personalization
> 9 ringer melodies
> Screen saver
> Multilingual user interface
Phone Features
> Up to 8 simultaneous calls
> Up to 8 handsets
> Up to 8 VoIP accounts
> Up to 2 simultaneous calls per handset
> Up to 5 repeaters per base station (RT20/RT20U)
> Up to 6 repeaters per base station (RT30)
> Handset selection for receiving call
> Handset and number selection for placing call
> Paging, intercom, auto answer, dial plan
> Call hold, call transfer, 3-way conference
> Switching between calls
> Call waiting, mute, silence, DND
> Caller ID with name and number
> Anonymous call, Anonymous call rejection
> Call forward (always/busy/no answer)
> Speed dial, voicemail, redial
> Message Waiting Indication (MWI)
> Music on hold (server-based)
> Local phonebook for up to 800 entries (store in the base)
> Remote phonebook/LDAP
> Phonebook search/import/export
> Call history (all/missed/placed/received)
> Direct IP call without SIP proxy
> Reset to factory, reboot
> Keypad lock, emergency call
> Broadsoft directory, BroadSoft call log
> Broadworks feature key synchronization
> Shared Call Appearance (SCA)
Security
> Open VPN
> Transport Layer Security (TLS)
> HTTPS (server/client), SRTP (RFC3711)
> Digest authentication
> Secure configuration file via AES encryption
> Support SHA256/SHA512/SHA384
> Three-level configuration mode: Admin/Var/User
DECT
> Frequency bands:
1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
> DECT Standards: CAT-iq2.0
Interface
> 1 x RJ45 10/100M Ethernet port
> Power over Ethernet (IEEE 802.3af), Class 1
> Headset jack (3.5 mm)
Management
> Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
> Auto-provision with PnP
> Handset upgrade: OTA (Over-The-Air)
> Configuration: browser/phone/auto-provision
> Trace package and system log export
Physical Features
> Indoor Range: 20m~50m (The ideal distance is 50m)
> Outdoor Range: 300m (in ideal conditions)
> Standby Time: 400 hours (in ideal conditions)
> Talk Time: 30 hours
> 2.4'' 240x320 pixels color display
> Desktop or wall mountable
> LCD backlit, key backlit
> Energy-saving ECO mode/ECO Mode+
> 12 key numerical keypad, 5 navigation keys,
2 softkeys, 6 function keys, 6 shortcut keys
> Three LED indicators on W60B:
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
> External Yealink AC adapter :
AC 100-240V Input and DC 5V/600mA Output
> Color: Handset: Alabaster Silver; Base: Classic Grey
> Phone size: 175mm x 53mm x 20.3mm
> Base station size: 130mm x 100mm x 25.1mm
> Operating humidity: 10~95%
> Operating temperature: 0~+40°C (+32~104°F)
Package features
> Package content:
- W56H Handset
- W60B Base Station
- Base Stand
- USB Charger Cradle
- Two Power Adapters
- Ethernet Cable
- Belt Clip
- Rechargeable Battery
- Quick Start Guide
- Handset Protective Case (optional)
> Qty/CNT: 10 PCS
> Giftbox size: 205mm*196mm*95mm
> Carton meas: 495mm*406mm*223mm
> N.W: 7.5 kg
> G.W: 8.3 kg

Yealink-W60P-Datasheet.pdf
